Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

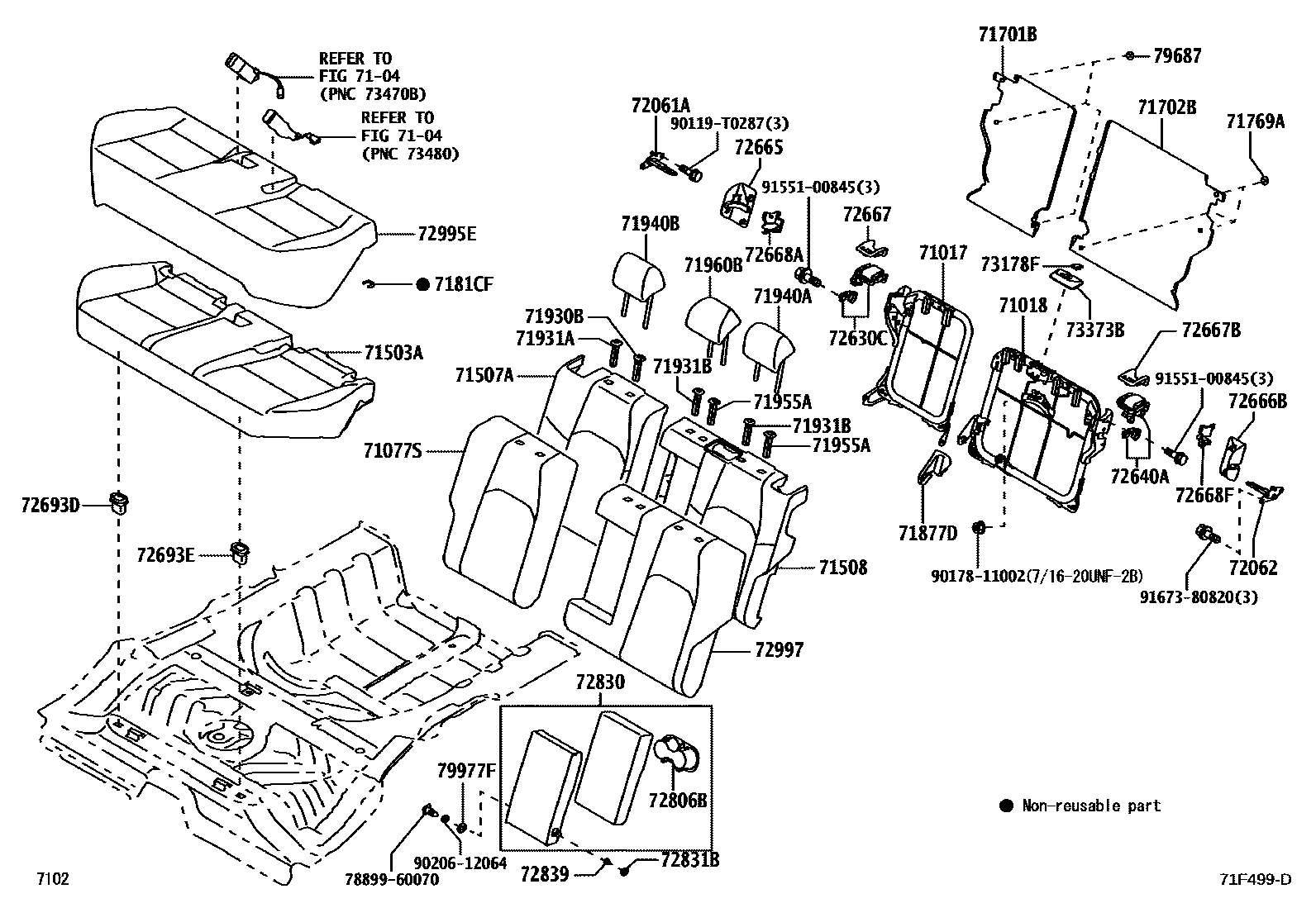

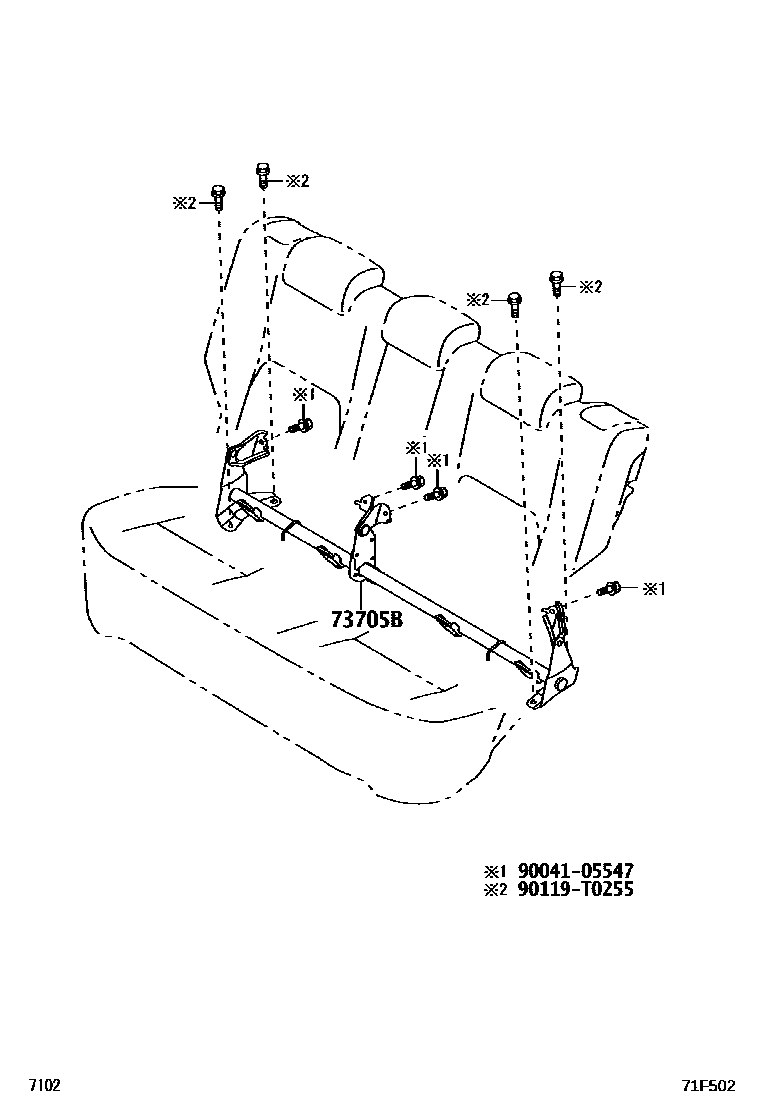

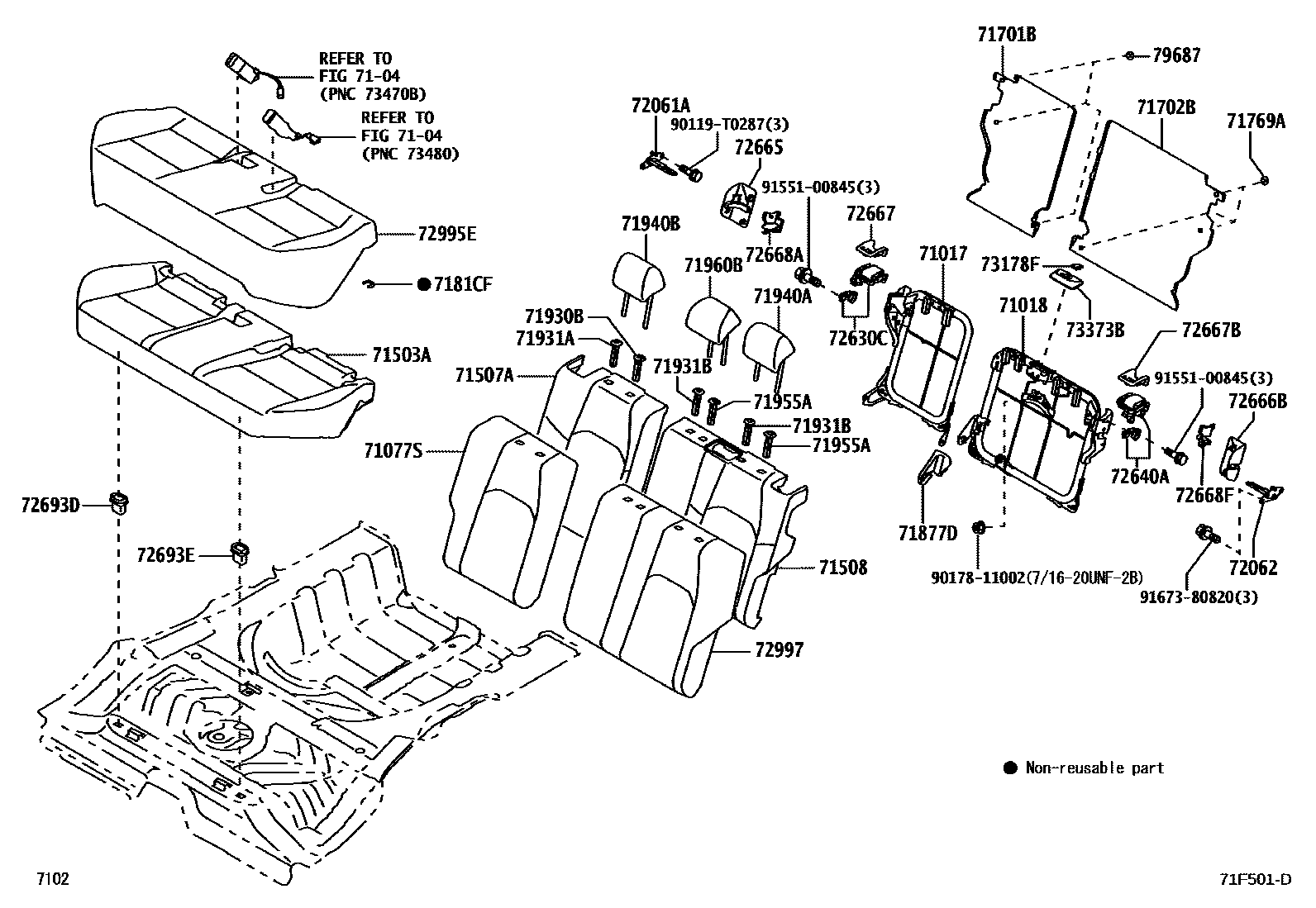

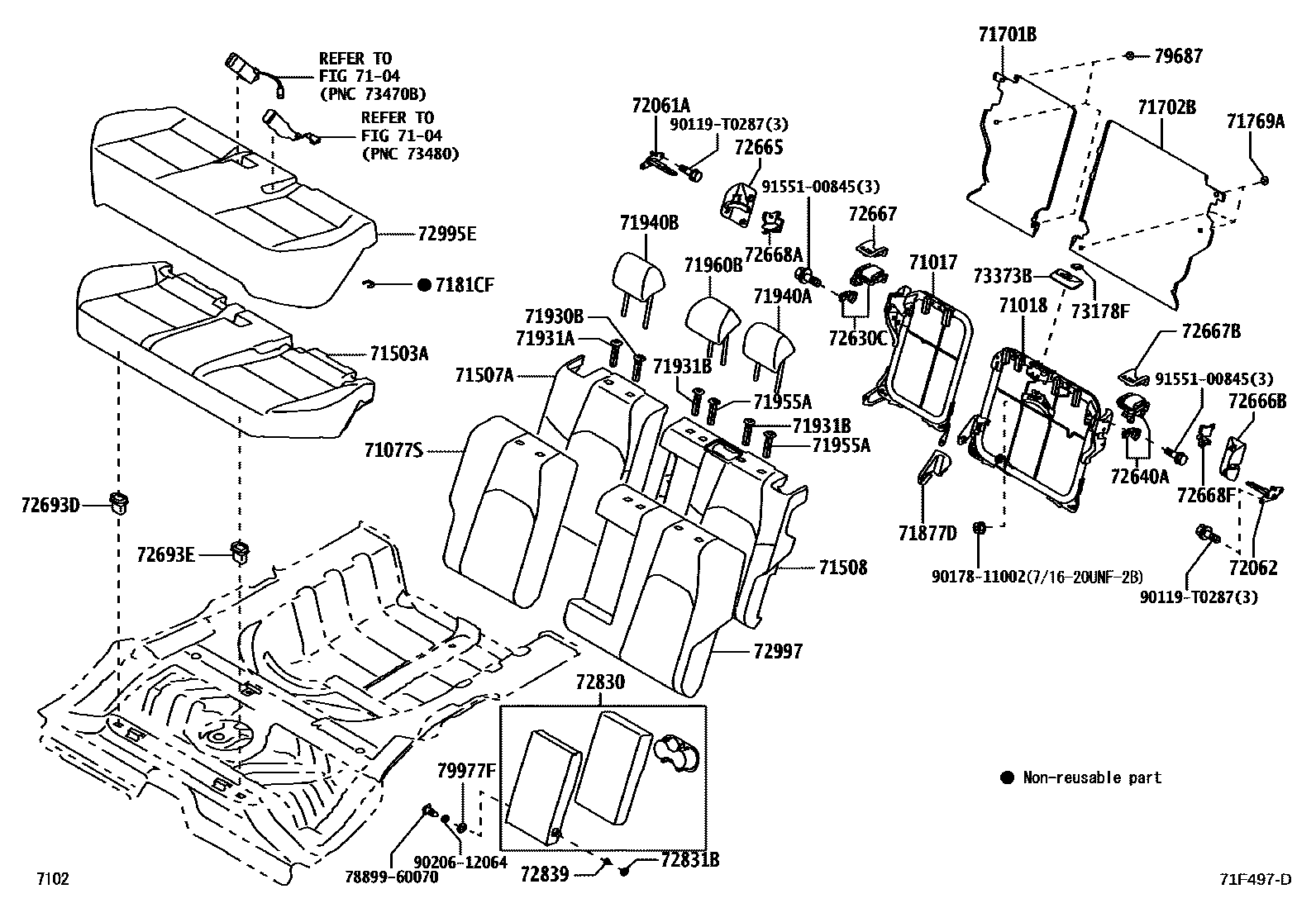

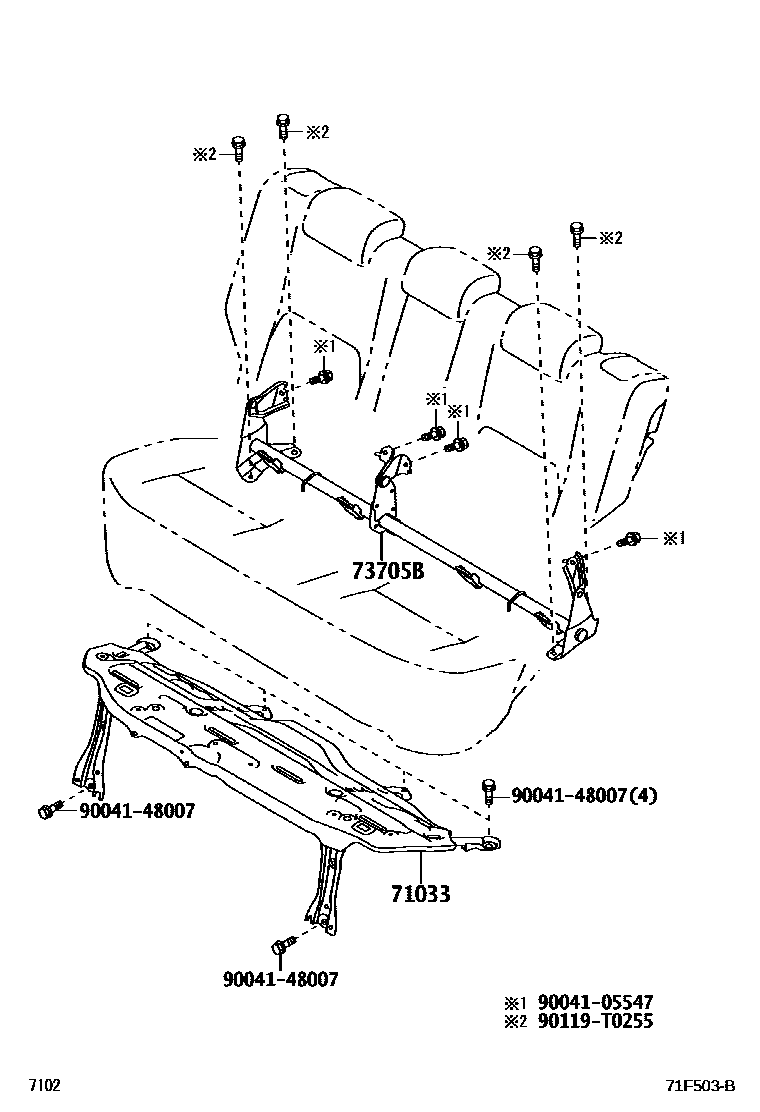

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-BZ480 · 71017-BZ490 · 71017-BZ510 |
| 71018 | Rear left seat back frame sub-assembly | 71018-BZ330 · 71018-BZ340 · 71018-BZ360 · 71018-BZ370 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-BZ090 · 71033-BZ100 |
| 71503A | Rear seat cushion sub-assembly | 71503-BZ700 · 71503-BZ710 · 71503-BZ720 · 71503-BZ750 |
| 71507A | Rear seat back cushion sub-assembly | 71507-BZ650 · 71507-BZ660 · 71507-BZ680 |
| 71508 | Rear left seat back cushion sub-assembly | 71508-BZ410 · 71508-BZ420 · 71508-BZ440 · 71508-BZ450 |
| 71701B | Rear right seat back panel sub-assembly | 71701-BZ010 · 71701-BZ020 · 71701-BZ040 |
| 71702B | Rear left seat back panel sub-assembly | 71702-BZ010 · 71702-BZ020 · 71702-BZ040 |
| 71769A | Rear seat back panel clip | 71769-28040 |
| 7181CF | Small clamp ring (for rear seat cushion) | 90468-18008 |
| 71877D | Rear seat armrest hole cover | 71877-BZ010 · 71877-BZ030 |
| 72061A | Rear right seat back lock base sub-assembly | 72061-BZ010 |
| 72062 | Rear left seat back lock base sub-assembly | 72062-BZ010 |
| 72668A | Rear seat back lock lower frame | 72668-BZ030 · 72668-BZ040 · 72668-BZ060 |
| 72668F | Rear lower left seat back lock frame | 72668-BZ070 · 72668-BZ080 · 72668-BZ100 |
| 72693D | Rear right seat cushion lock hook | 72693-12080 |
| 72693E | Rear left seat cushion lock hook | 72693-12080 |
| 72831B | No. 1 rear seat center armrest panel | 72831-BZ020 · 72831-BZ040 · 72831-BZ060 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 73705B | Cross anchor bracket sub-assembly | 73705-BZ140 · 73705-BZ150 · 73705-BZ170 |
| 79687 | clip | 71769-28040 |
| 79977F | Left seat backrest felt pad | 79977-BZ030 · 79977-BZ050 |
