Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

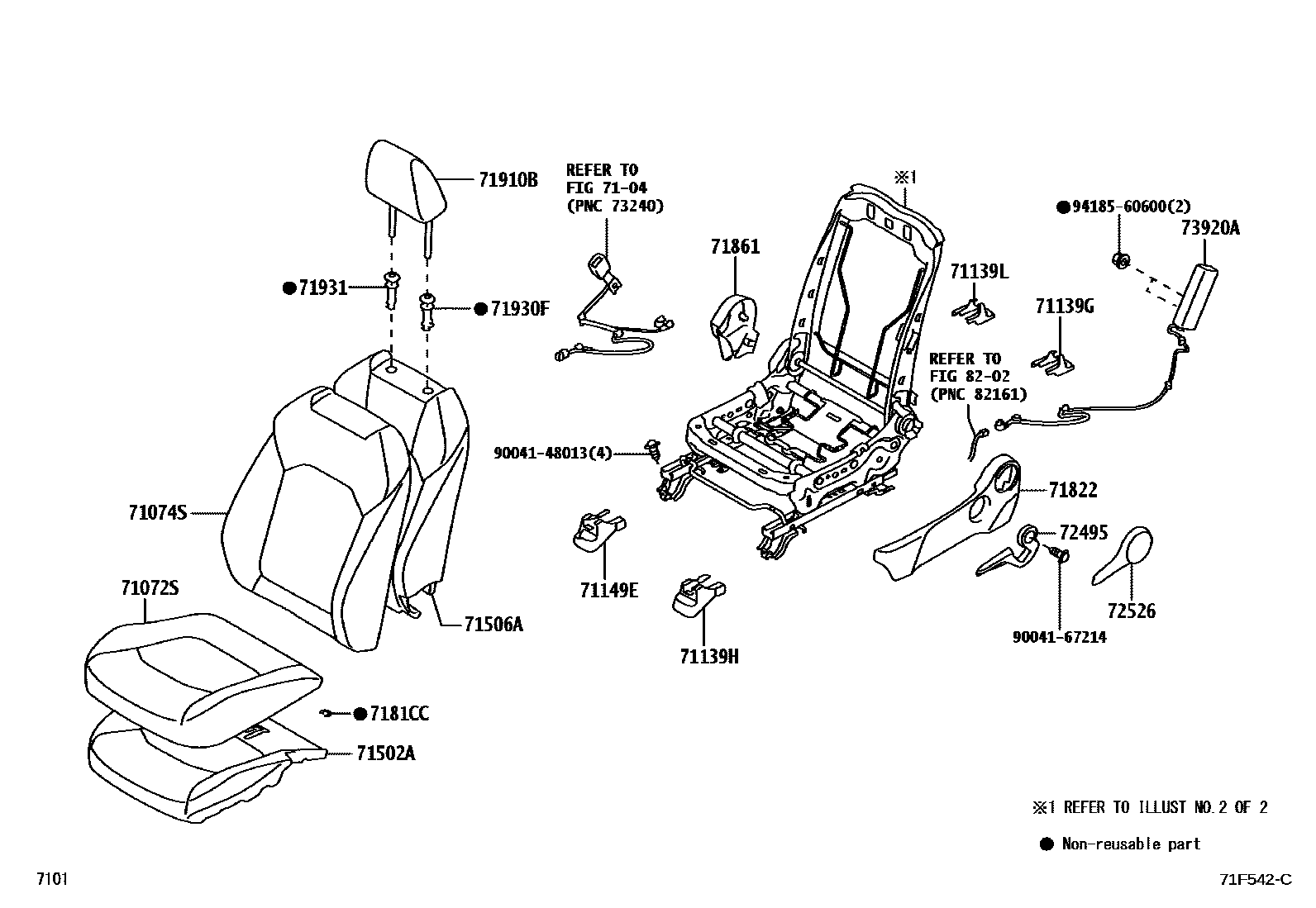

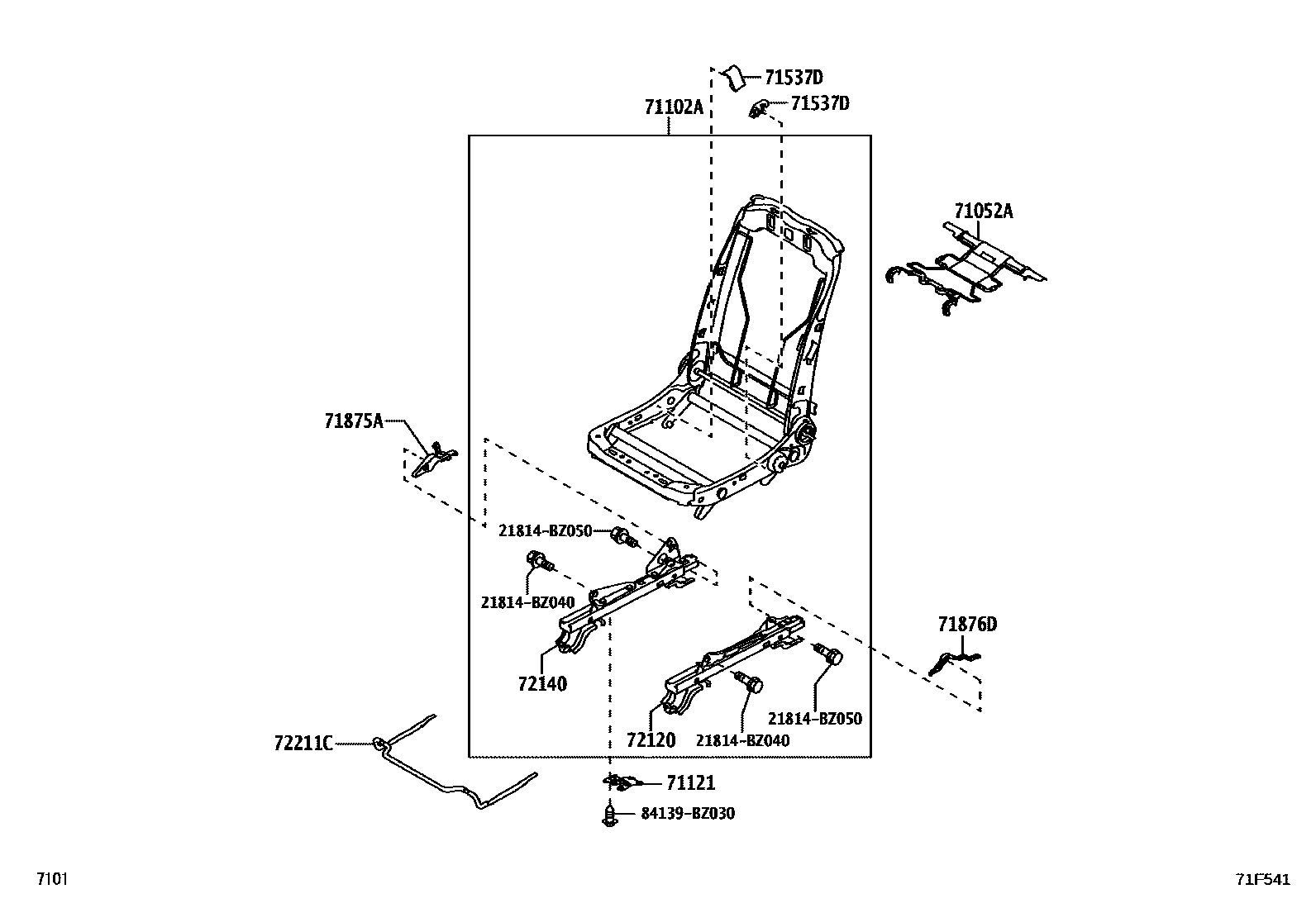

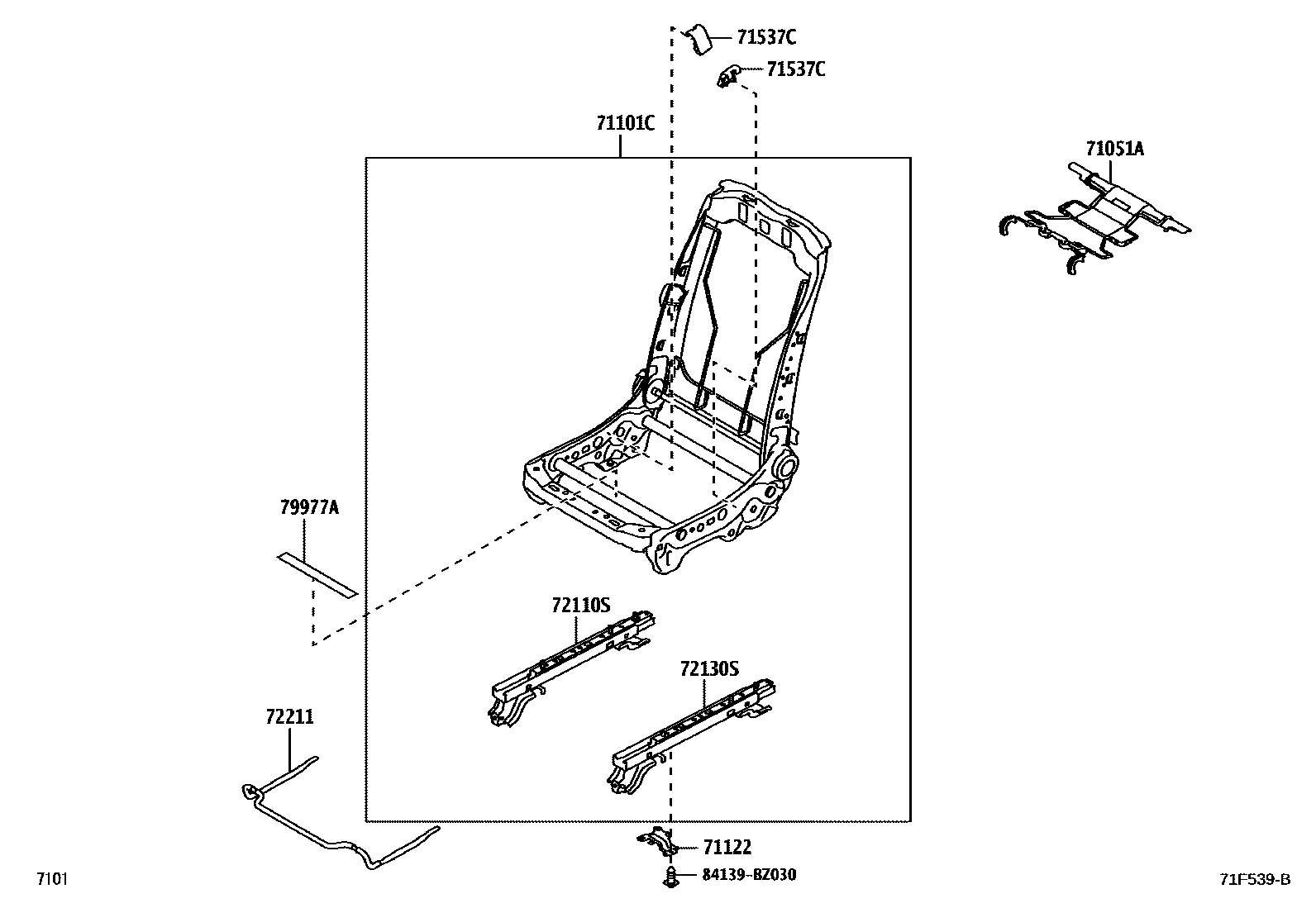

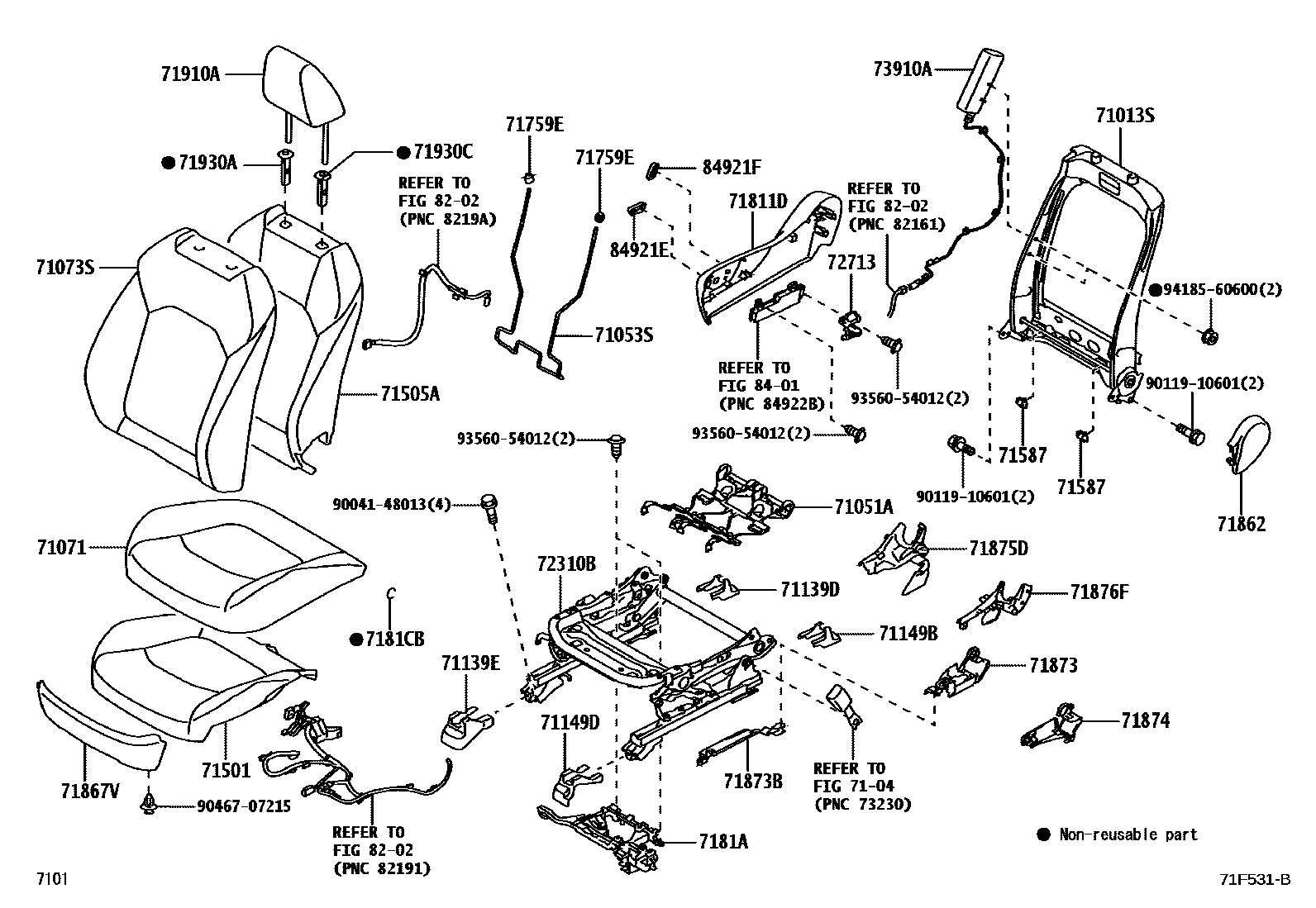

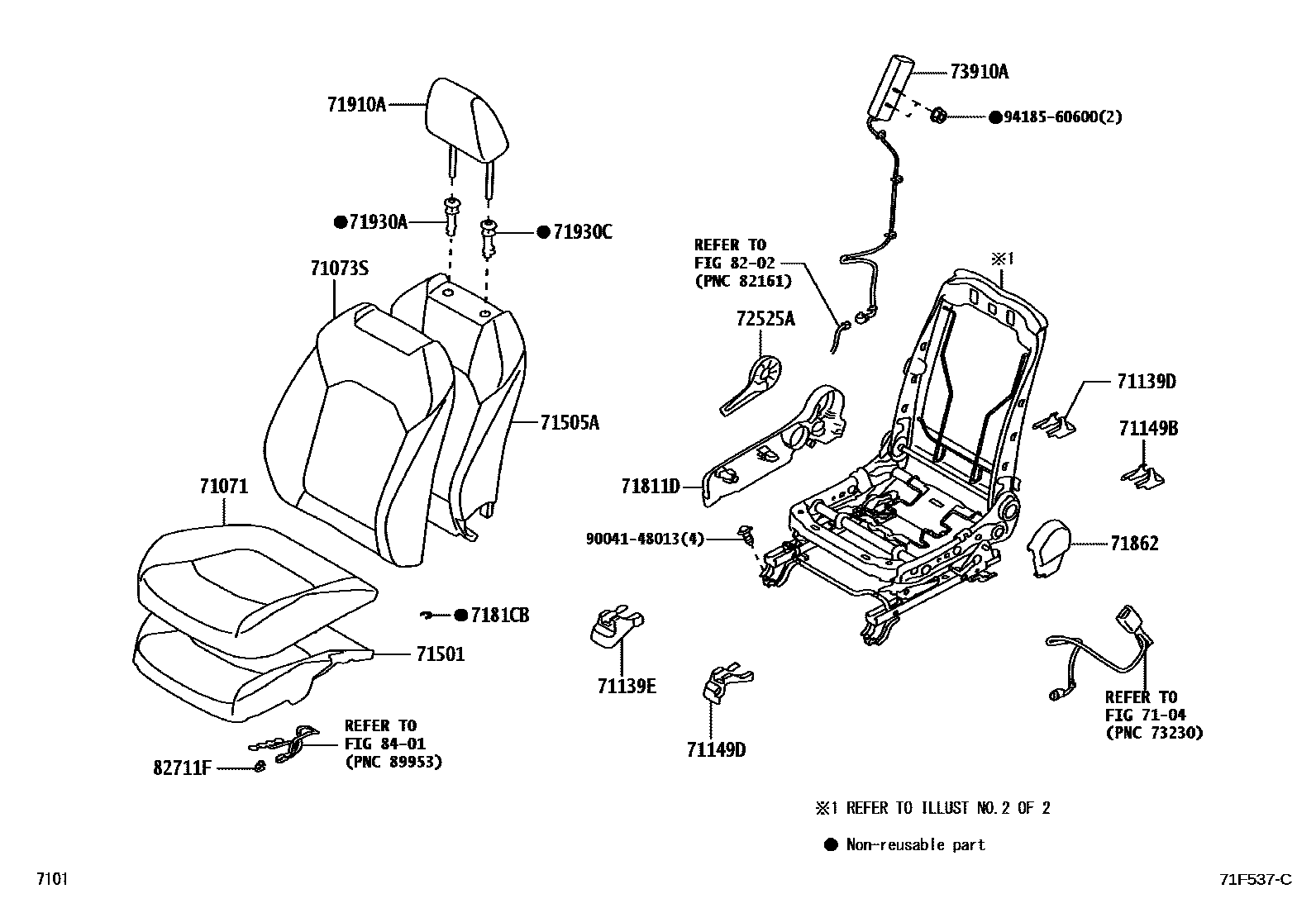

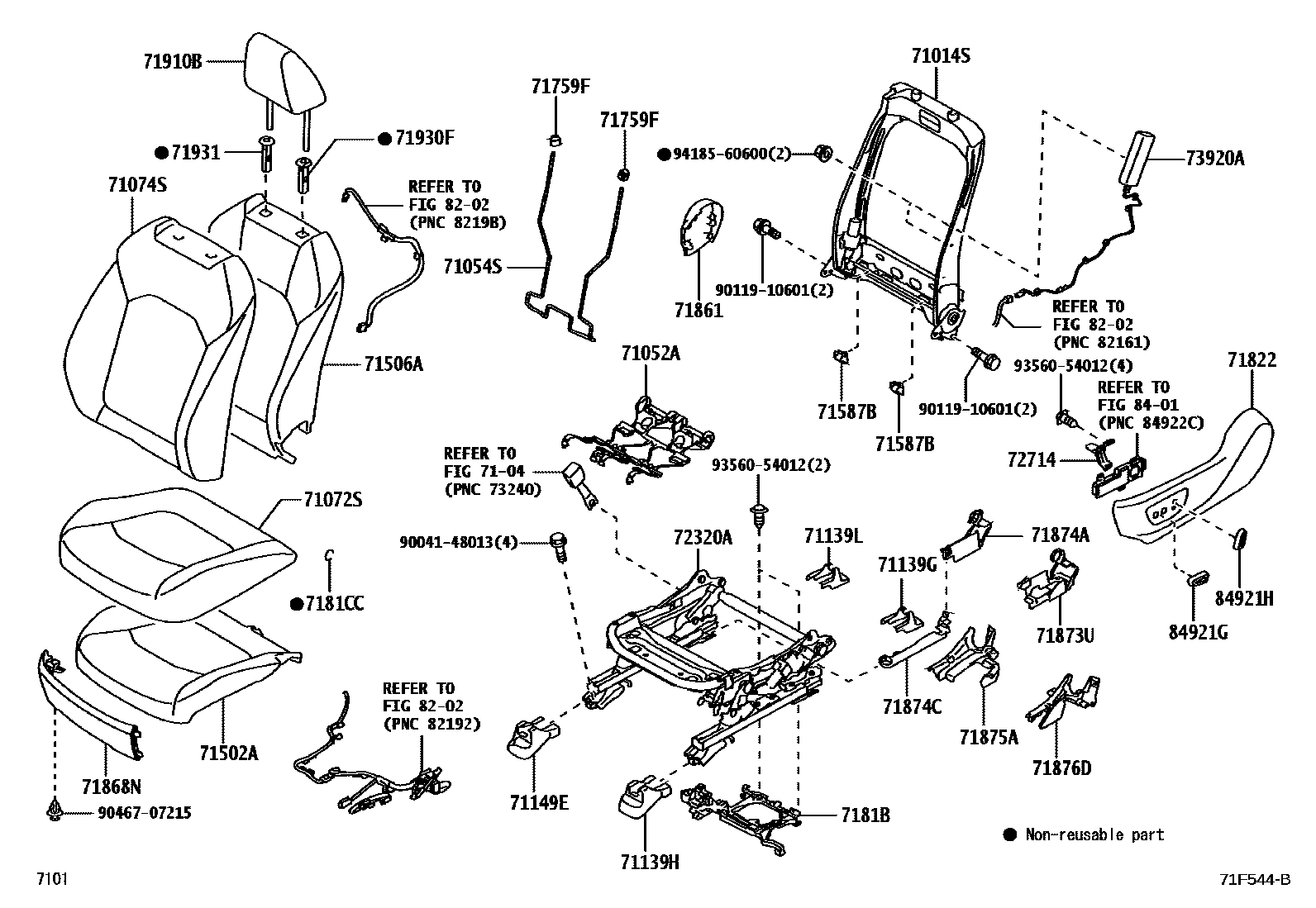

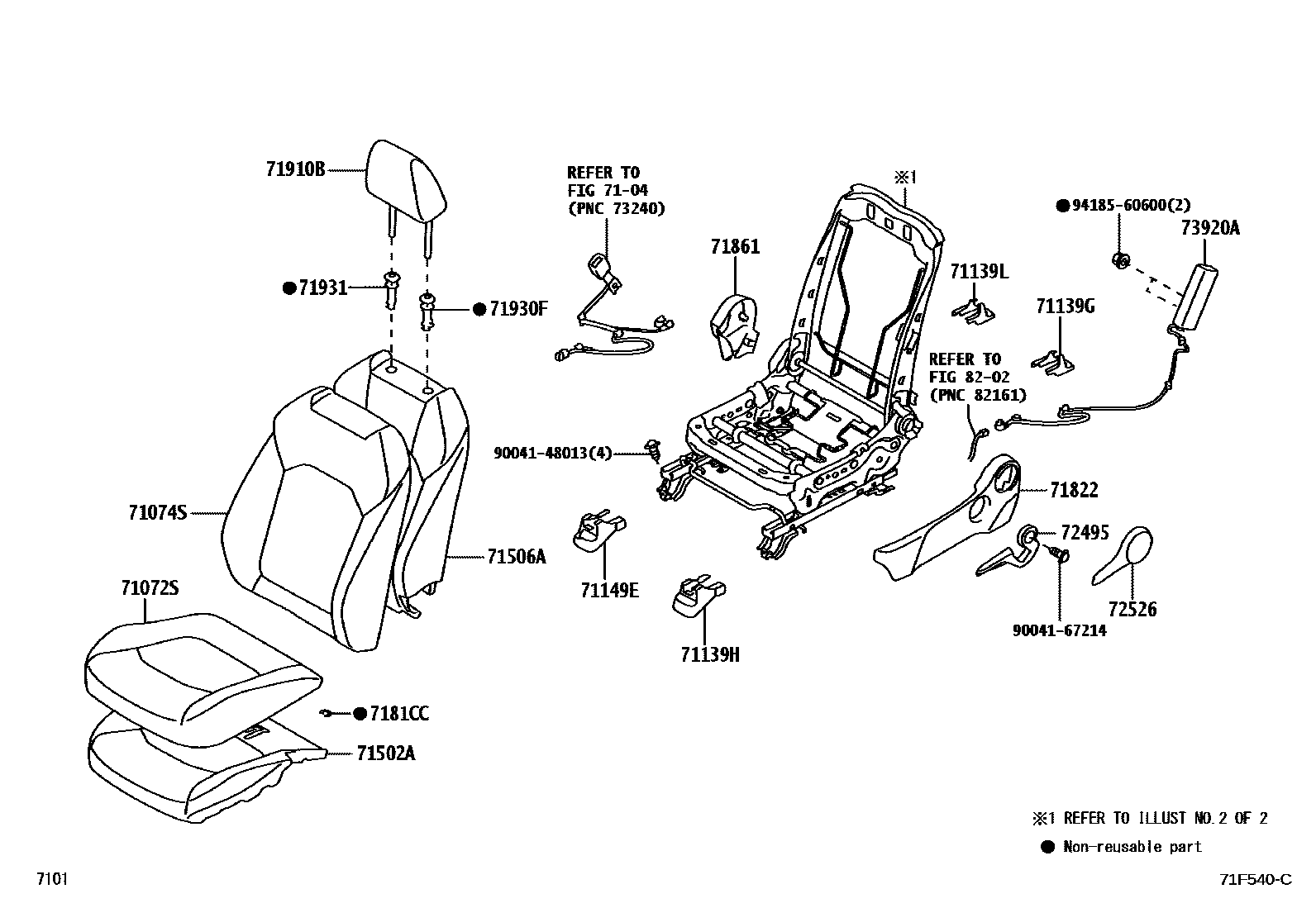

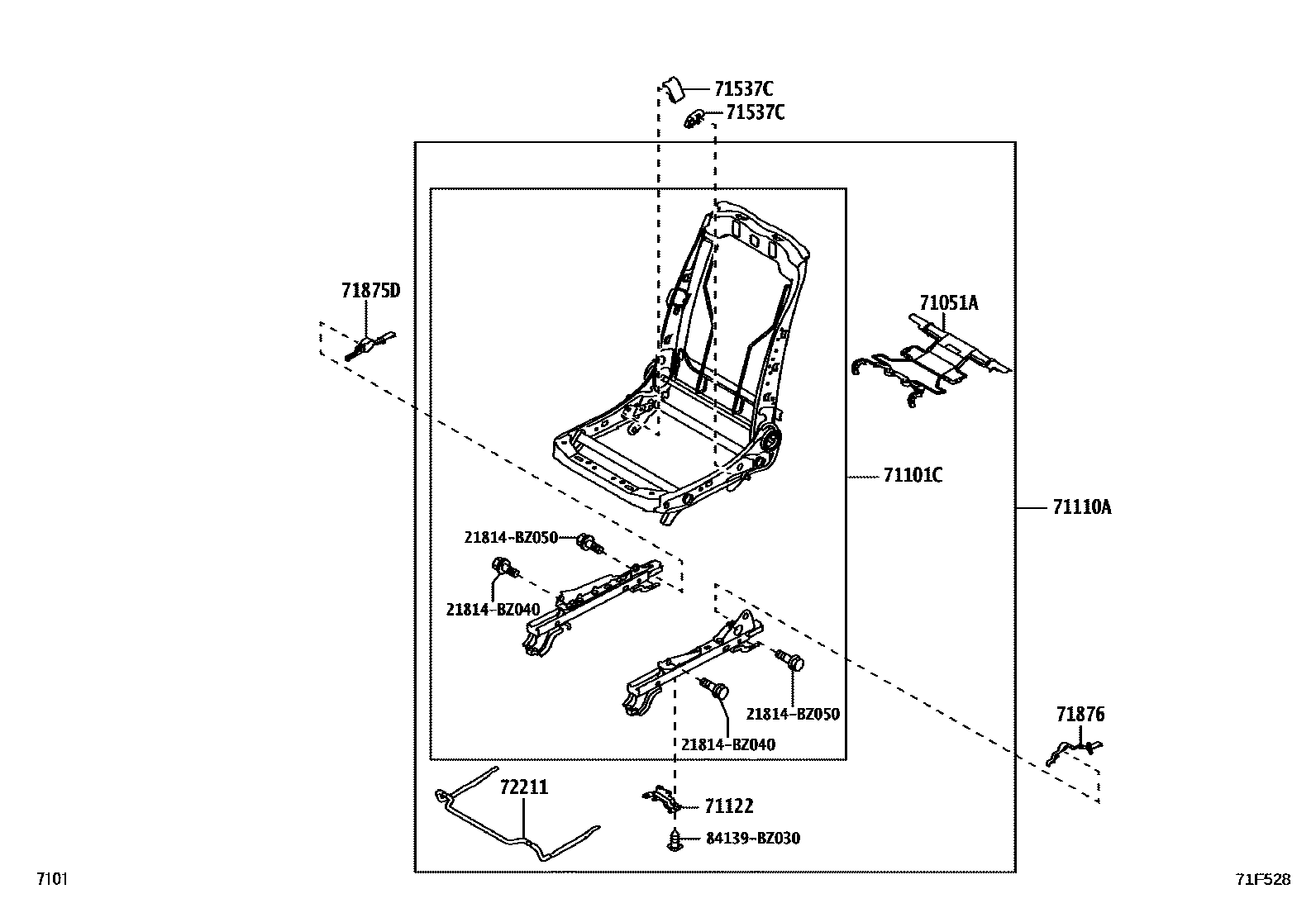

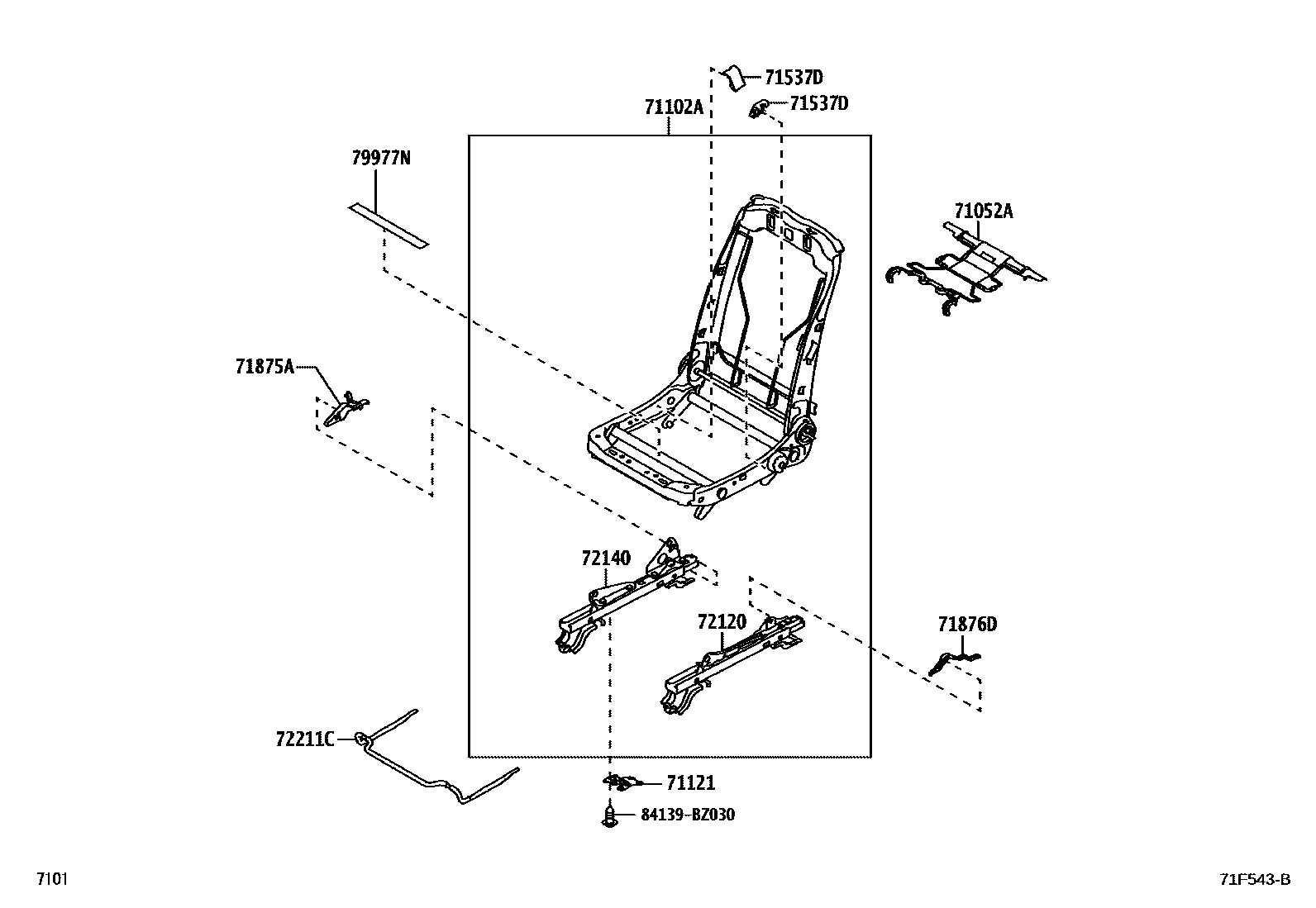

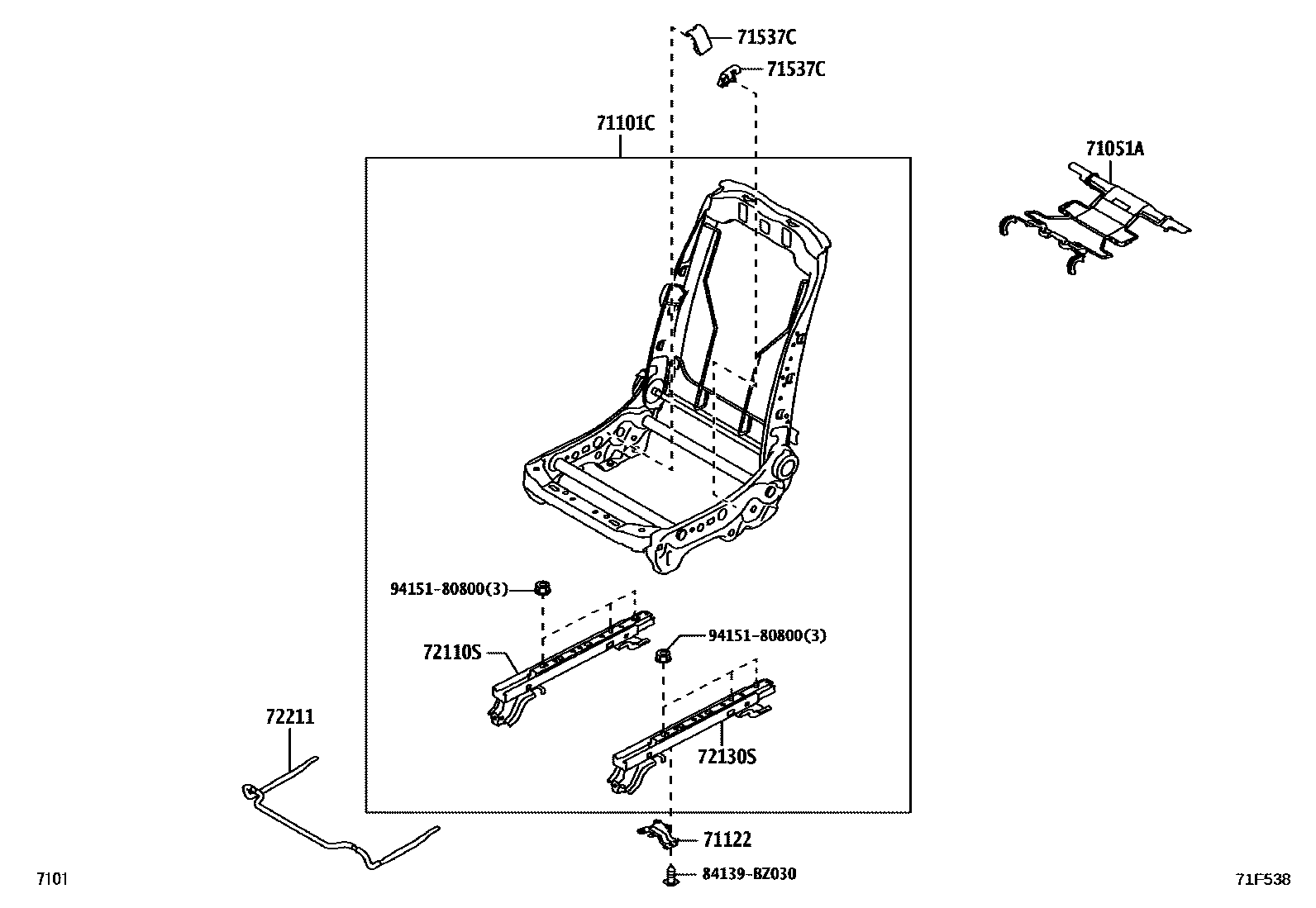

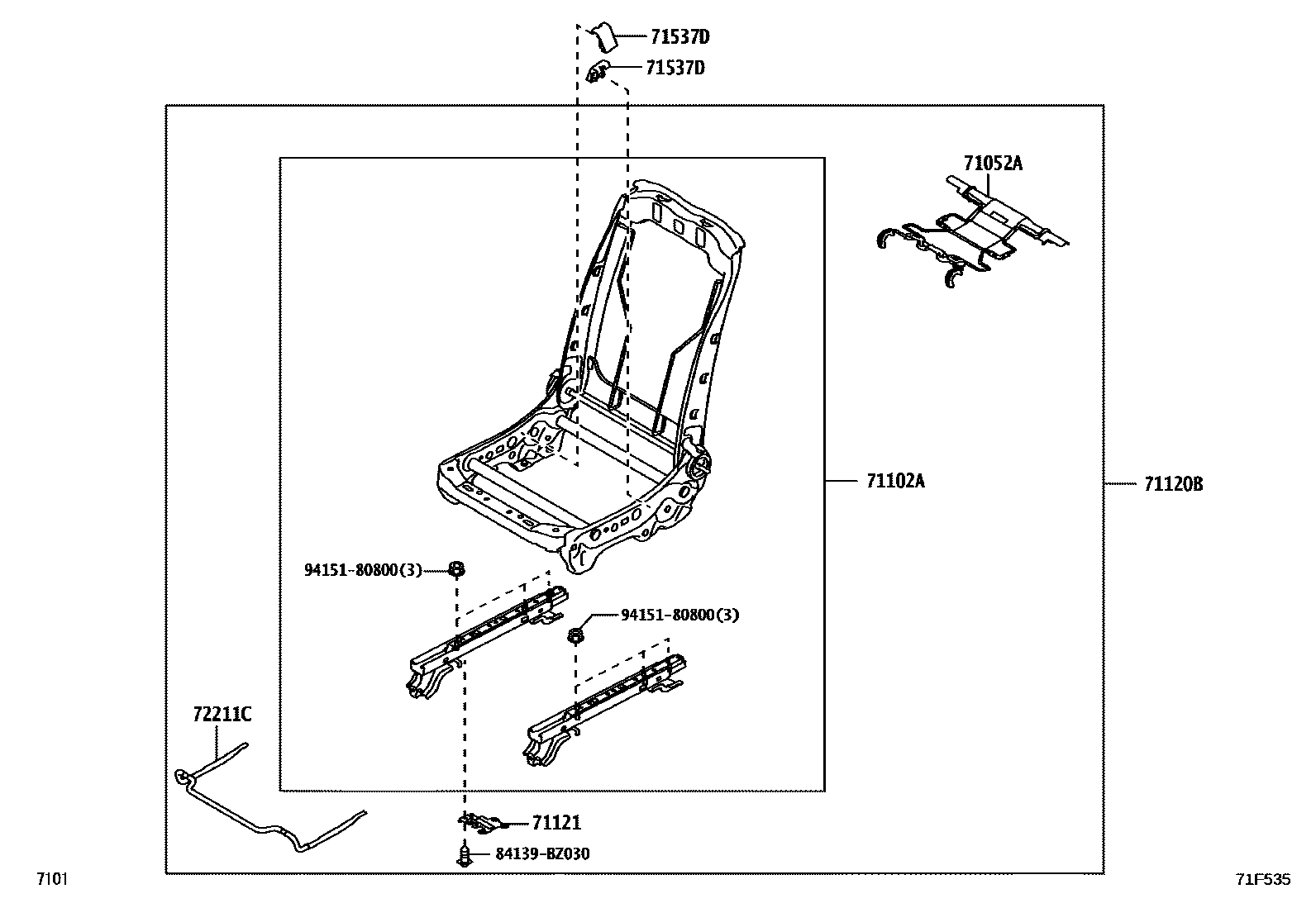

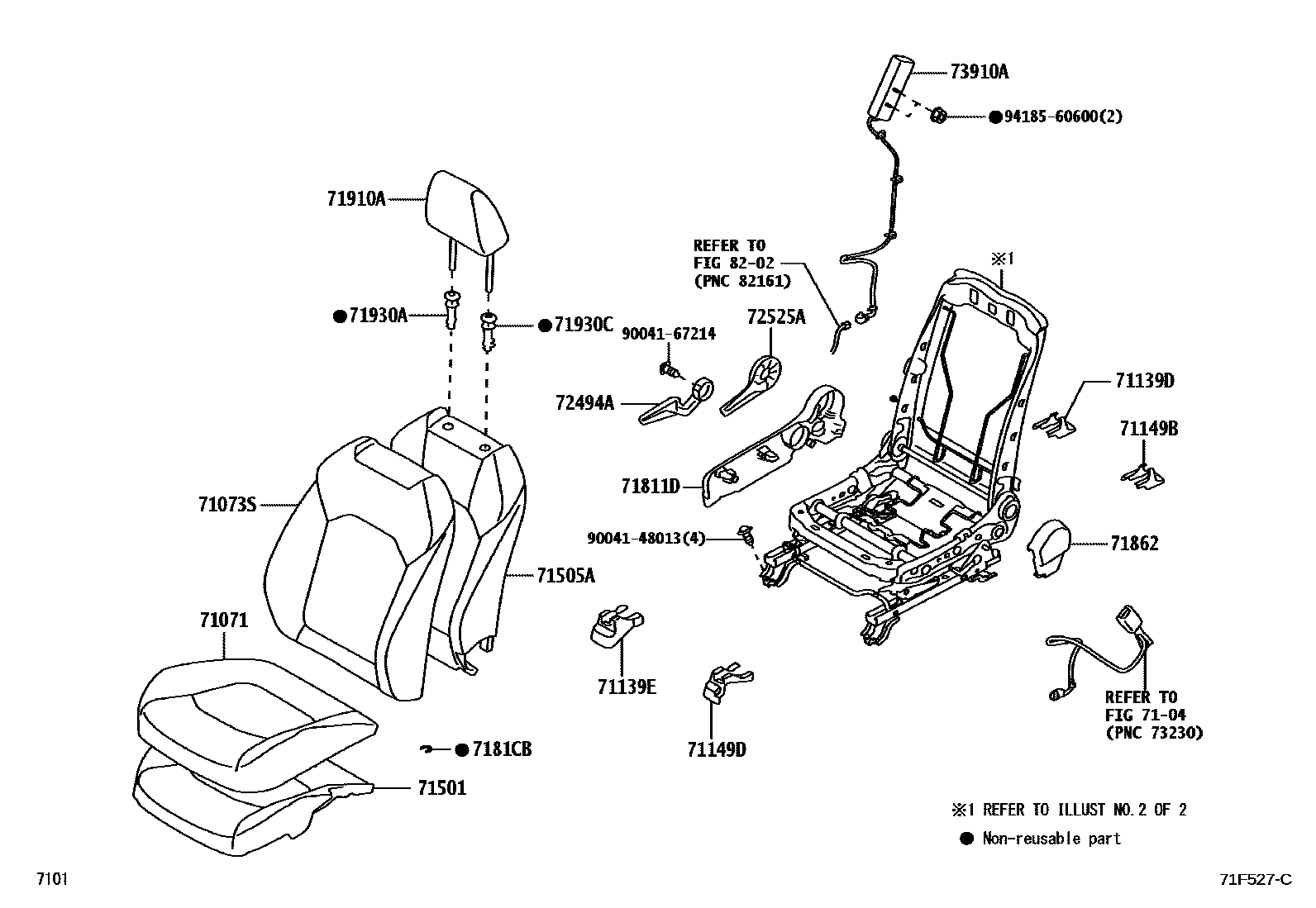

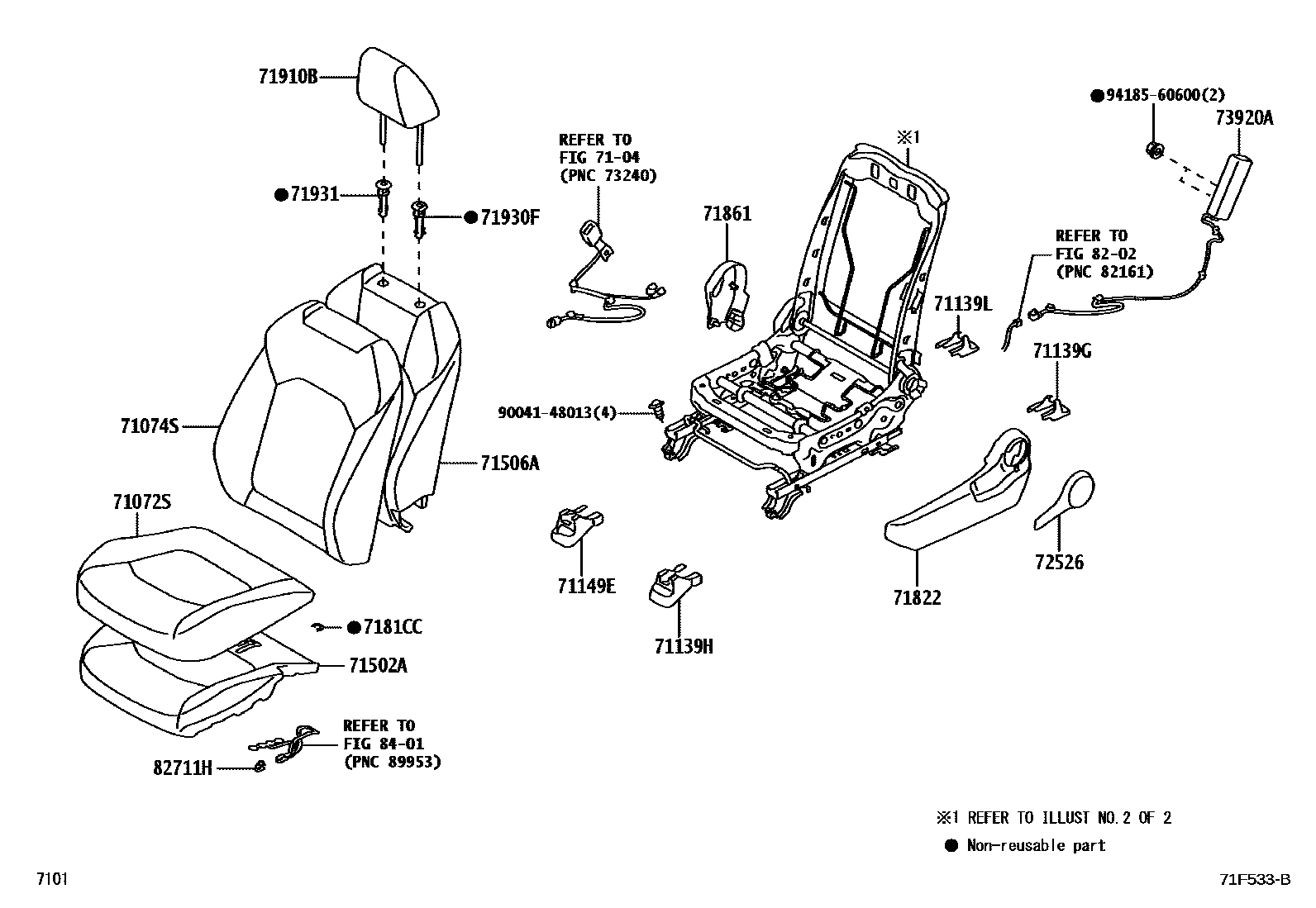

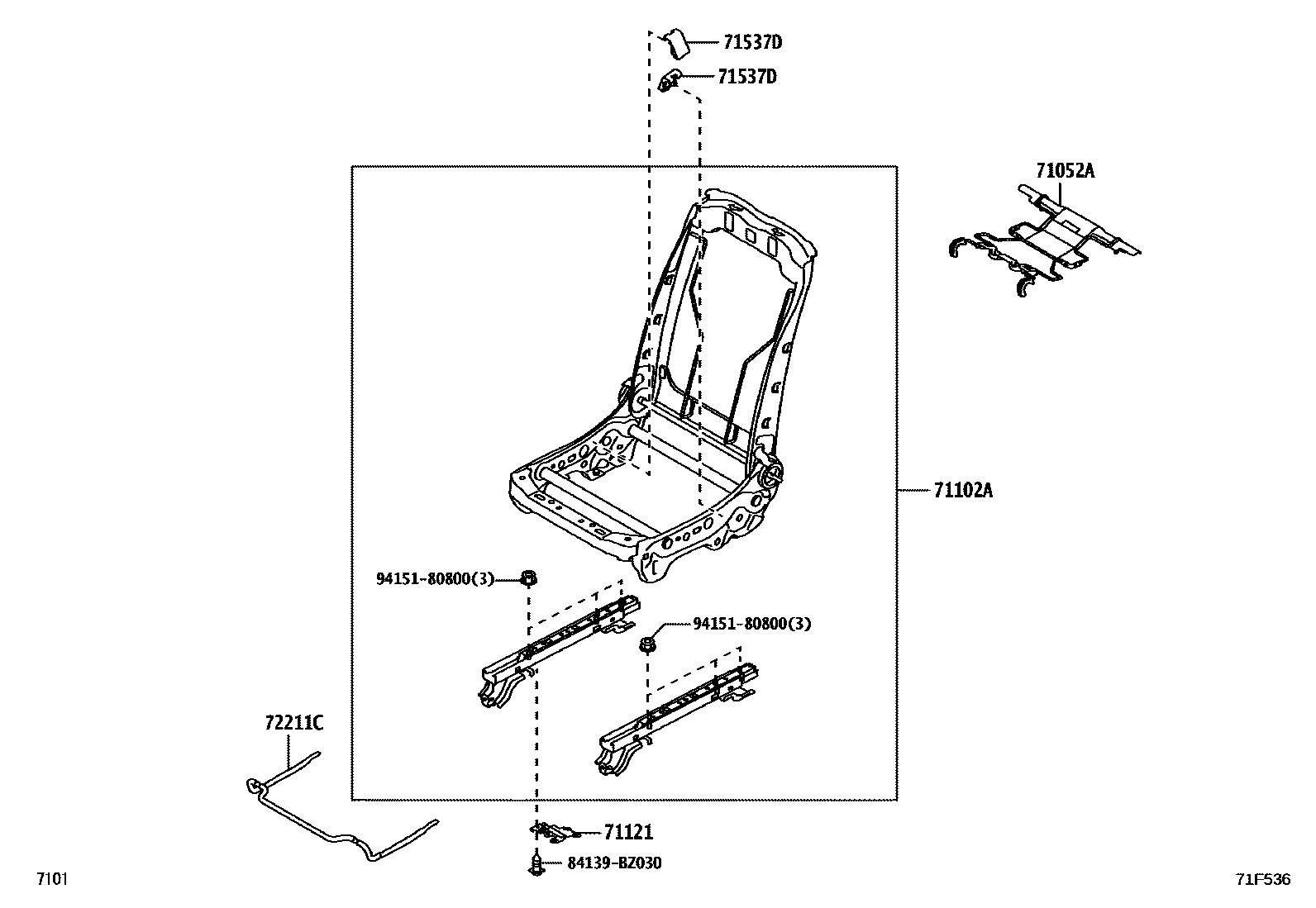

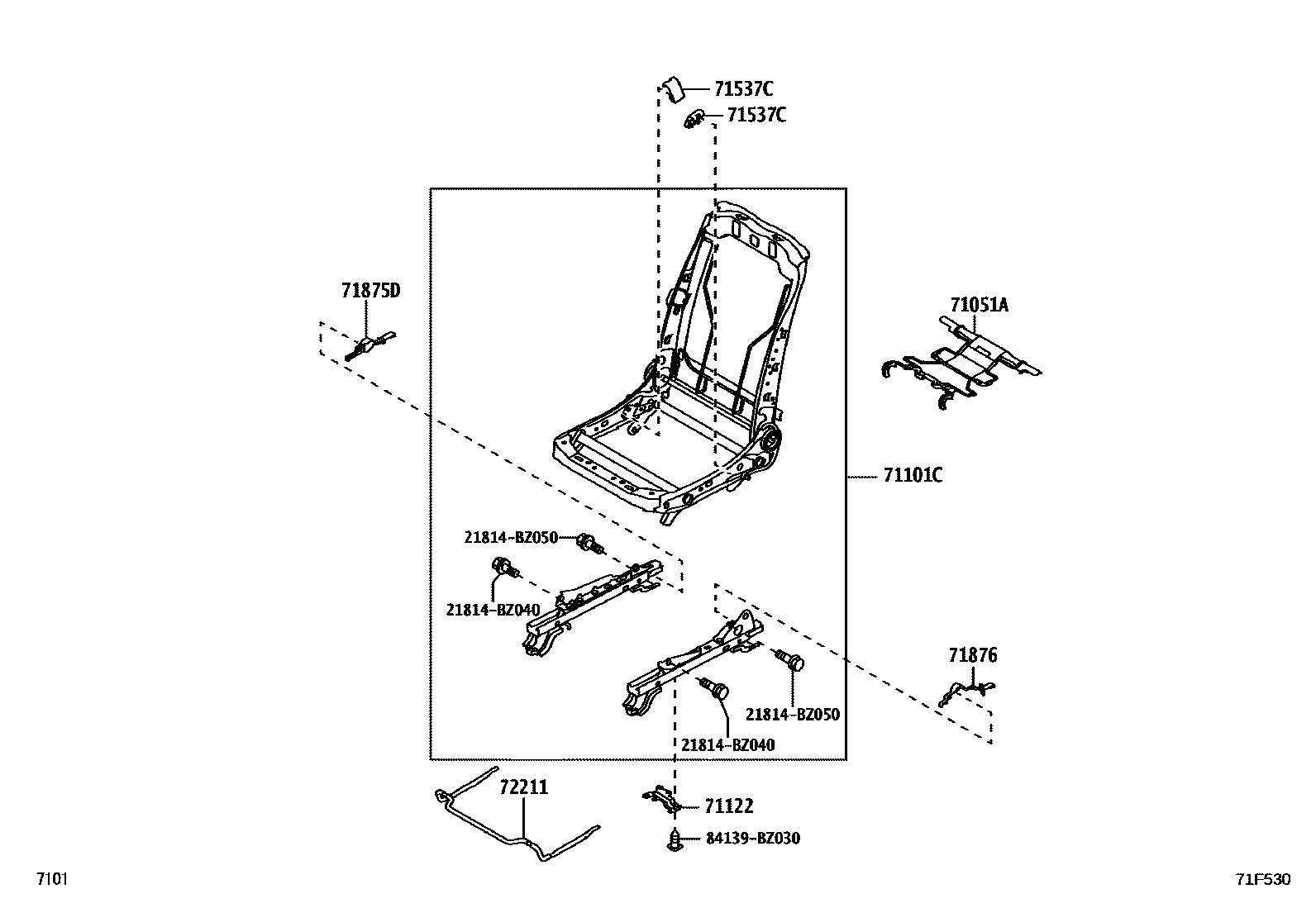

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 15 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-BZ180 · 71013-BZ190 |
| 71014S | Front left seat back frame sub-assembly | 71014-BZ190 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06120 · 71051-BZ020 · 71051-BZ030 · 71051-BZ060 · 71051-BZ080 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-BZ020 · 71051-BZ030 · 71051-BZ060 · 71051-BZ080 |
| 71053S | Front right seat back spring sub-assembly | 71053-BZ010 · 71053-BZ020 |
| 71054S | Front left seat back spring sub-assembly | 71053-BZ010 |
| 71101C | Right front seat sub-assembly | 71101-BZ050 · 71101-BZ060 · 71101-BZ080 · 71101-BZ090 |
| 71102A | Left front seat sub-assembly | 71102-BZ030 · 71102-BZ040 · 71102-BZ060 · 71102-BZ080 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-BZ530 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-BZ540 |
| 71121 | Front right seat cushion bracket | 71122-BZ170 · 71122-BZ200 · 71122-BZ230 |
| 71122 | Front left seat cushion bracket | 71121-BZ190 · 71121-BZ230 · 71121-BZ270 |
| 71501 | Front right seat cushion sub-assembly | 71501-BZ720 · 71501-BZ730 · 71501-BZ740 · 71501-BZ750 · 71501-BZ770 |
| 71502A | Front left seat cushion sub-assembly | 71502-BZ620 · 71502-BZ630 · 71502-BZ640 · 71502-BZ660 |
| 71505A | Front right seat back cushion sub-assembly | 71505-BZ700 · 71505-BZ710 · 71505-BZ720 · 71505-BZ730 · 71505-BZ750 |
| 71506A | Front left seat back cushion sub-assembly | 71506-BZ570 · 71506-BZ580 · 71506-BZ590 · 71506-BZ610 |
| 71537C | Front right seat cushion edge protective cover | 71537-0D400 · 71537-BZ060 · 71537-VT020 |
| 71537D | Front left seat cushion edge protective cover | 71537-0D400 · 71537-BZ060 · 71537-VT020 |
| 71587 | Front seat back edge protective cover | 71587-BZ010 · 71587-BZ020 |
| 71587B | Front seat back edge protective cover | 71587-BZ010 |
| 71759E | Front seat right backrest hook | 71759-BZ060 · 71759-BZ070 |
| 71759F | Front seat left backrest hook | 71759-BZ060 |
| 7181A | Front right seat cushion harness holder | 7181A-42010 · 7181A-BZ010 |
| 7181B | Front left seat cushion harness holder | 7181B-42010 |
| 7181CB | Small clamp ring (for front seat cushion) | 90468-18008 |
| 7181CC | Small clamp ring (for front seat cushion) | 90468-18008 |
| 71873 | Front right seat cushion lower guard panel | 71873-0L030 |
| 71874 | Front left seat cushion lower guard | 71873-0L020 |
| 72110S | Right seat outer slide rail assembly (for separate seats) | 72110-BZ390 · 72110-BZ410 |
| 72120 | Front left seat outer slide rail assembly | 72120-BZ340 · 72120-BZ380 |
| 72130S | Right seat inner slide rail assembly (for separate seats) | 72140-BZ410 · 72140-BZ430 |
| 72140 | Left seat inner slide rail assembly | 72130-BZ400 · 72130-BZ440 |
| 72211 | Seat slide adjustment handle | 72211-BZ180 · 72211-BZ210 · 72211-BZ230 |
| 72211C | Seat slide adjustment handle | 72211-BZ180 · 72211-BZ210 · 72211-BZ230 |
| 72310B | Front right seat adjuster assembly | 72310-BZ010 · 72310-BZ020 |
| 72320A | Front left seat height adjuster assembly | 72320-BZ010 |
| 72713 | Right seat adjuster protective clip bracket | 72713-BZ010 · 72713-BZ020 |
| 72714 | Left seat adjuster protective clip bracket | 72714-BZ010 |
| 73910A | Front right seat airbag assembly | 73910-BZ070 · 73910-BZ090 · 73910-BZ120 · 73910-BZ170 |
| 73920A | Front left seat airbag assembly | 73920-BZ070 · 73920-BZ100 · 73920-BZ180 |
| 79977A | Seat back felt pad | 79977-BZ070 |
| 79977N | Seat back felt pad | 79977-BZ070 |
| 82711F | Wire harness clip | 82711-1E360 |
| 82711H | Wire harness clip | 82711-1E360 · 82711-50491 |
