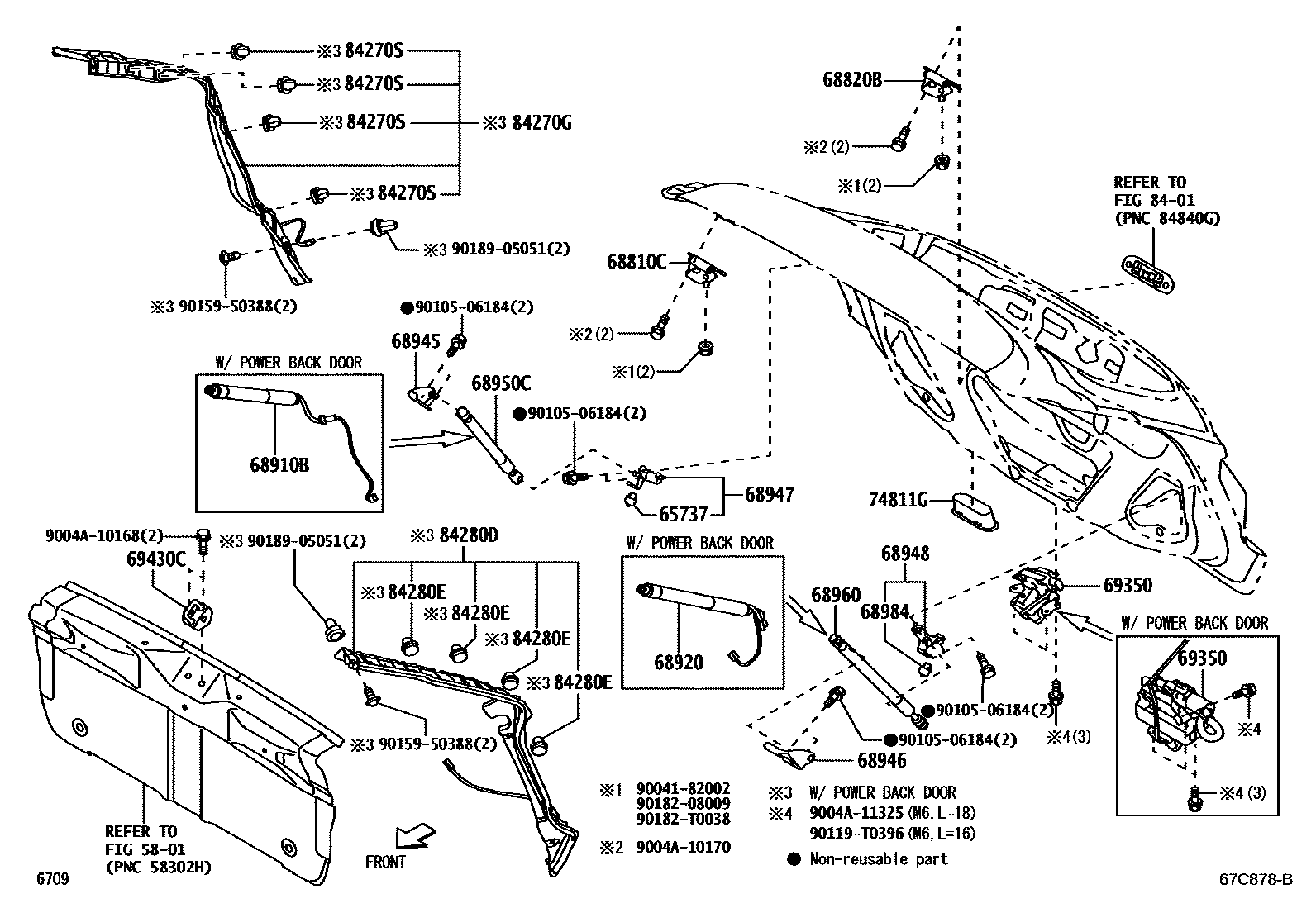

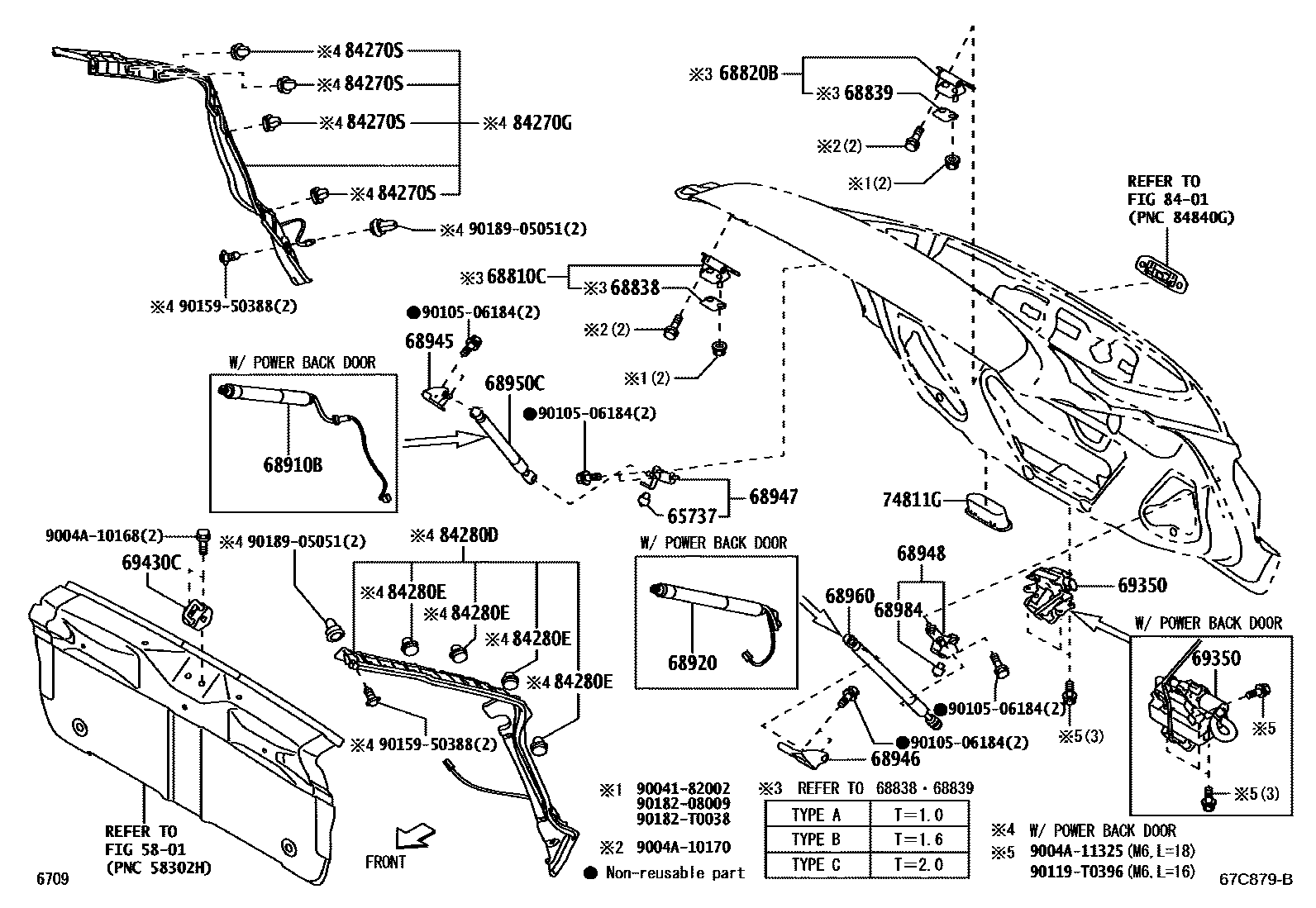

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65737 | Back door stopper | 68984-42010 |
| 68810C | Back door right hinge assembly | 68810-0K070 · 68810-0K100 · 68810-BZ070 · 68810-BZ080 · 68810-BZ090 |
| 68820B | Back door left hinge assembly | 68810-0K070 · 68810-0K100 · 68810-BZ070 · 68810-BZ080 · 68810-BZ090 |
| 68838 | Back door hinge No. 1 gasket | 68838-0K090 · 68838-0K100 · 68838-0K110 |
| 68839 | Back door hinge No. 2 gasket | 68838-0K090 · 68838-0K100 · 68838-0K110 |
| 68910B | Right rear door electric unit assembly assembly | 68910-B1010 |
| 68920 | Left rear door electric unit assembly assembly | 68920-B1010 |
| 68945 | Back door right damping stay upper bracket | 68945-BZ050 · 68945-BZ070 |
| 68946 | Rear door left damping strut upper bracket | 68946-BZ020 · 68946-BZ030 |
| 68947 | Back door right damping strut lower bracket | 68947-BZ020 |
| 68948 | Rear door left damping strut lower bracket | 68948-BZ020 |
| 68950C | Back door right support rod assembly | 68950-BZ400 |
| 68960 | Back door left support rod assembly | 68950-BZ400 |
| 68984 | Back door support rod stop | 68984-42010 |
| 69350 | Rear door lock assembly | 69350-0A070 · 69350-0K190 · 69350-42060 |
| 69430C | Back door lock assembly | 69430-B0020 |
| 74811G | door handle | 69285-0D040 · 74811-BZ030 |
| 84270G | Electric back door right side sensor assembly | 84270-B1010 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42040 |
| 84280D | Electric back door left sensor assembly | 84280-B1010 |
| 84280E | Catch (electric back door left sensor) | 61617-42040 |
