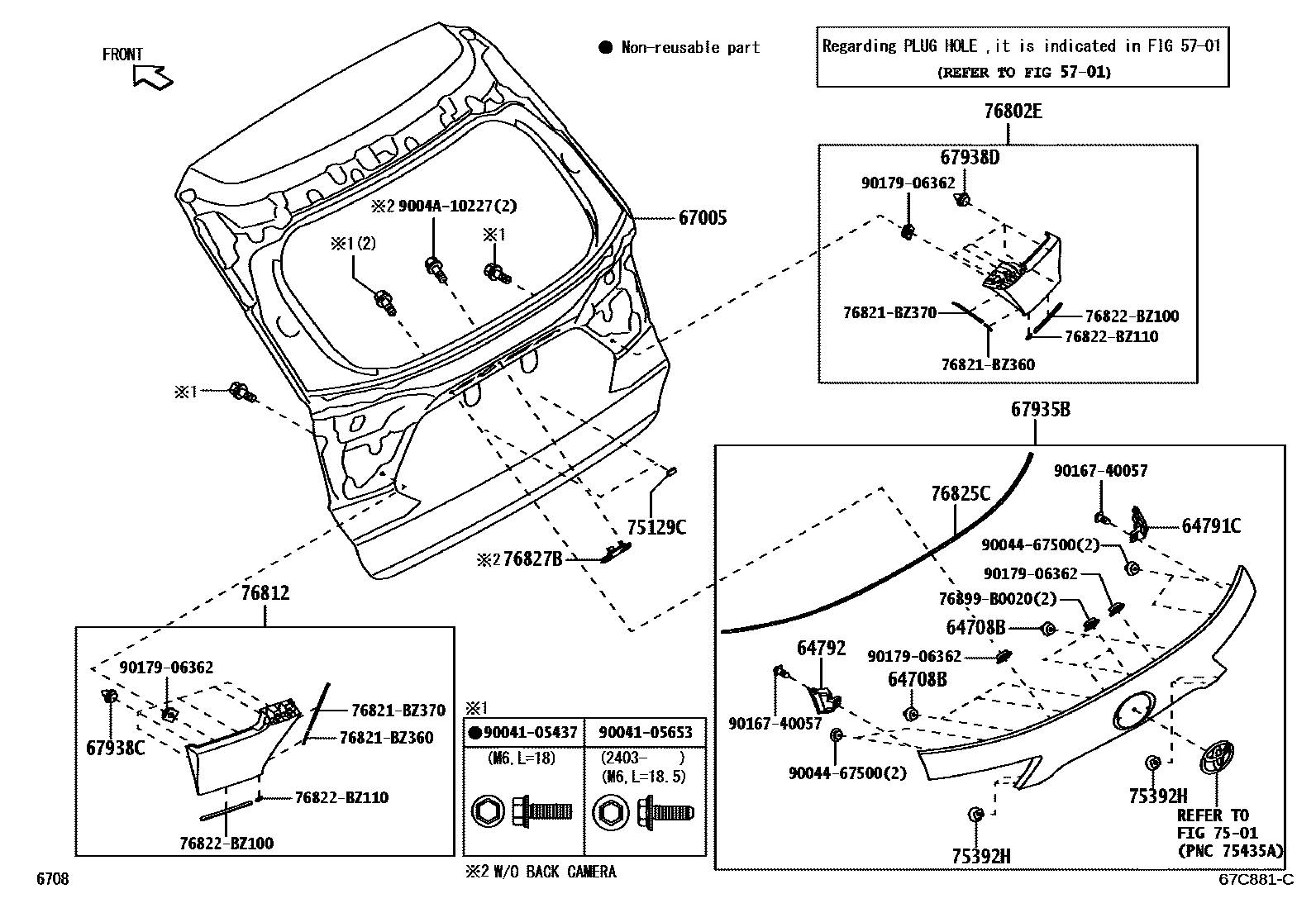

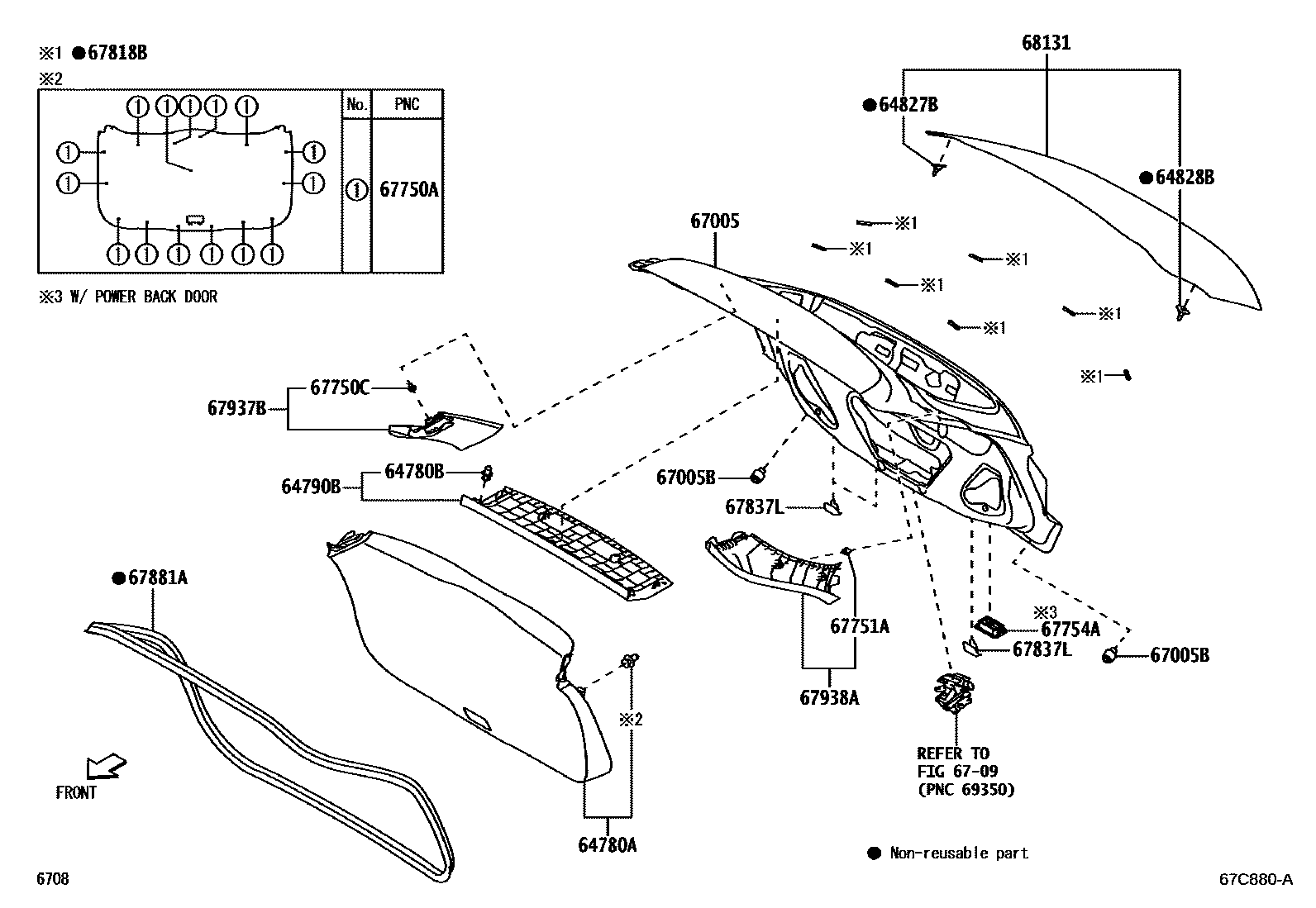

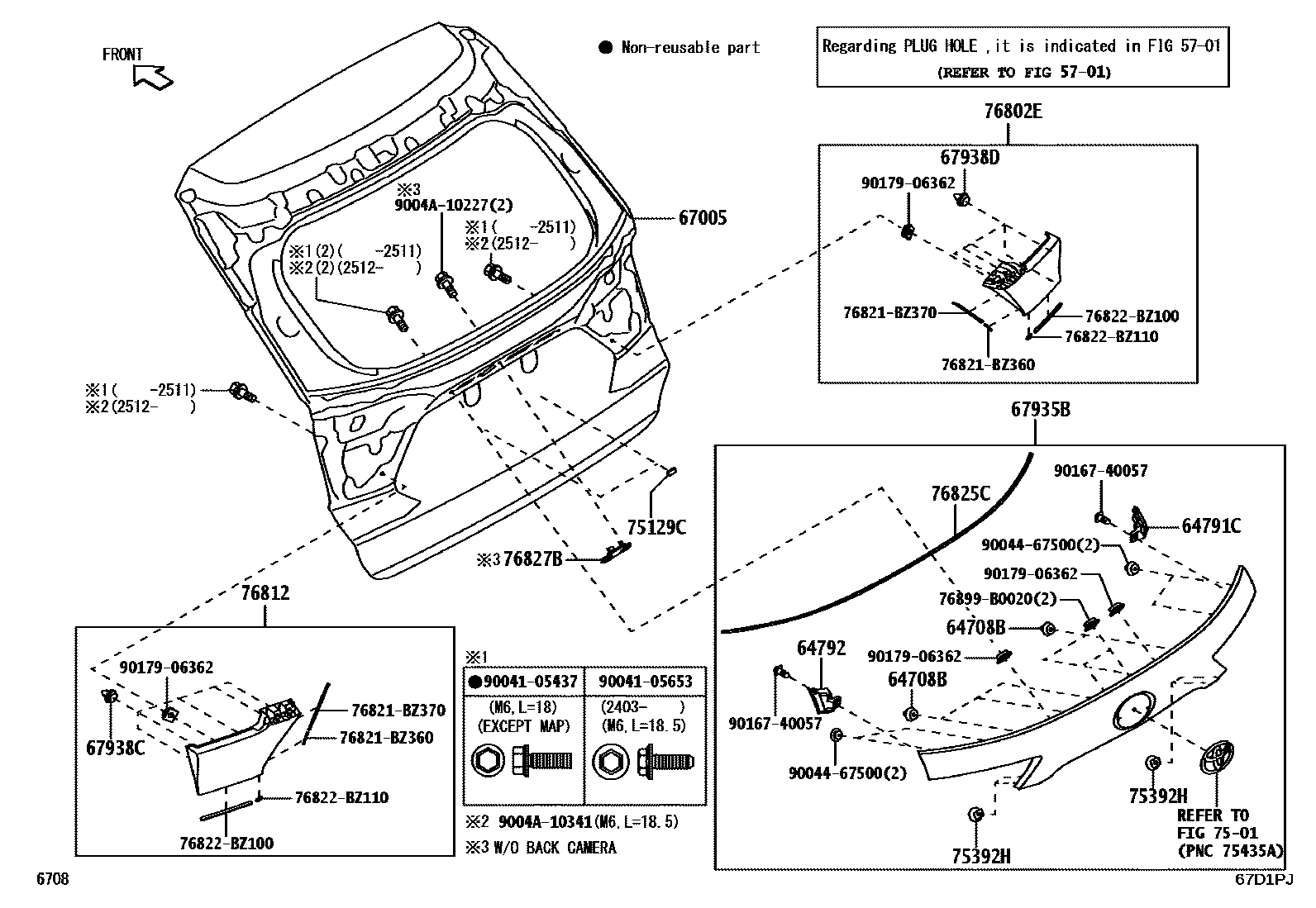

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64708B | Rear door decorative panel clip | 90467-T0019 |
| 64780B | Clip (for rear door trim panel) | 90467-10161 |
| 64791C | Decorative cover on the right side of the rear door | 76821-BZ380 · 76821-BZ390 · 76821-BZ400 |
| 64792 | Decorative cover on the left side of the rear door | 76822-BZ120 · 76822-BZ130 · 76822-BZ140 |
| 64827B | Catch on the right side of the back window glass | 64827-BZ170 |
| 64828B | Catch on the left side of the back window glass | 64828-BZ140 |
| 67005 | Rear door panel sub-assembly | 67005-BZF60 · 67005-BZF70 · 67005-BZF80 · 67005-BZF90 · 67005-BZK40 · 67005-BZK50 |
| 67005B | Cushion pad (for back door panel) | 9004A-54016 |
| 67750A | Clip (for rear door trim panel) | 90467-10161 |
| 67750C | AGRAFE FIXATION (PANNEAU GARNITURE HAYON) | 90467-10161 |
| 67751A | Clip (for rear door trim panel) | 90467-T0021 |
| 67818B | Back window glass spacer | 64818-BZ090 |
| 67837L | Door dust seal retainer | 67837-BZ030 · 67837-BZ130 |
| 67881A | Back door seal | 67881-BZ270 |
| 67935B | Rear door decorative panel | 76801-BZ901 · 76801-BZ902 · 76801-BZ903 |
| 67938C | Left side clip (for rear door side trim strip) | 90044-67500 |
| 67938D | AGRAFE FIX. (DE DOUBLURE LATERALE HAYON) | 90044-67500 |
| 68131 | back door glass | 68105-BZ450 · 68105-BZ460 · 68105-BZ480 |
| 75129C | rear license plate cushion | 75129-0D030 · 75129-BZ010 |
| 75392H | External protective strip fixings | 53145-B2030 |
| 76802E | Rear door outer lower decorative strip sub-assembly | 76812-BZ900 · 76812-BZ901 · 76812-BZ902 |
| 76812 | Lower trim strip outside rear door | 76813-BZ900 · 76813-BZ901 · 76813-BZ902 |
| 76825C | Rear door exterior decorative strip protective cover | 76825-BZ170 · 76825-BZ230 · 76825-BZ250 |
| 76827B | No. 2 rear door trim strip fixings | 76826-BZ090 |
