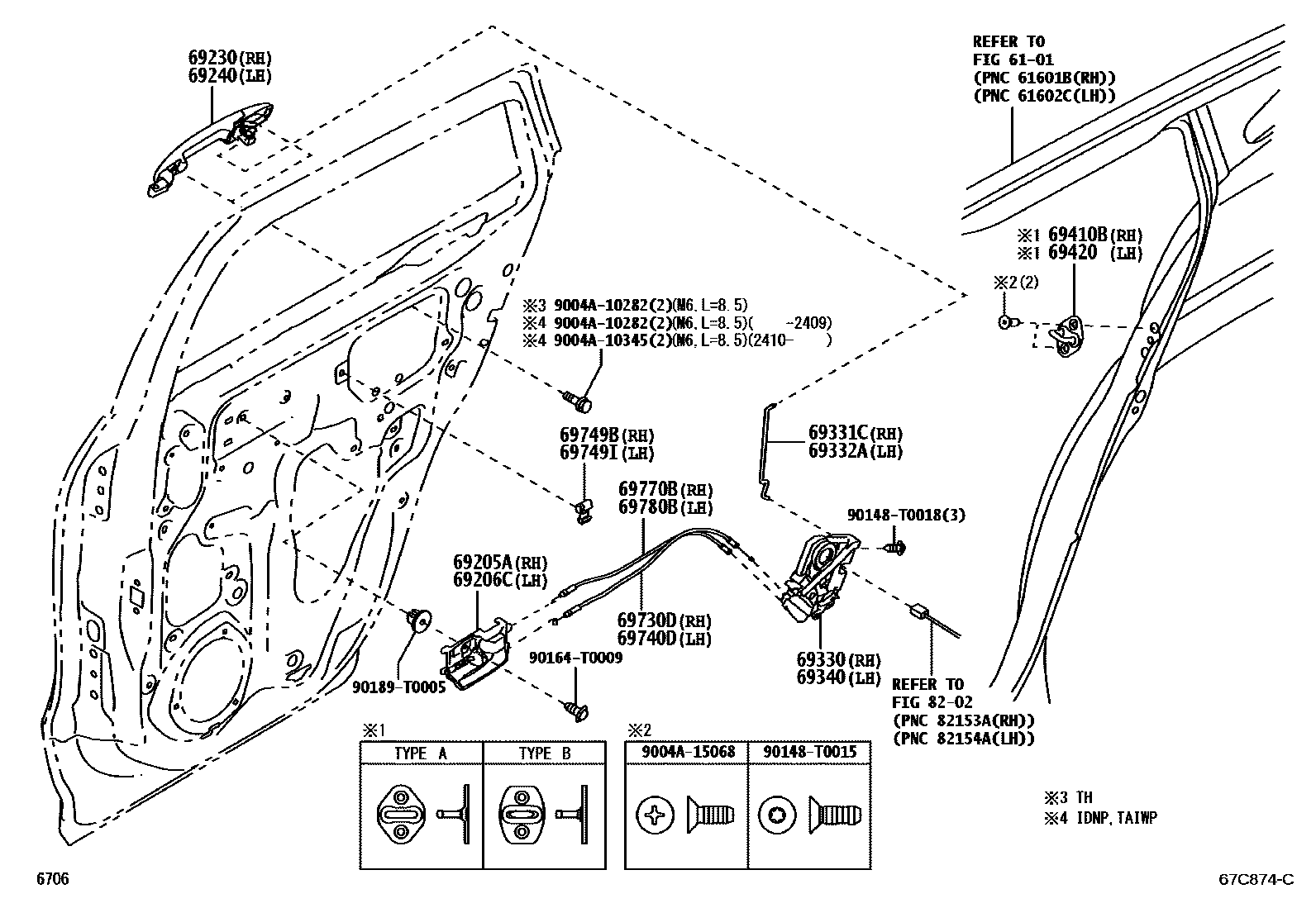

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69330 | Right rear door door lock assembly | 69330-BZ290 · 69330-BZ420 · 69330-BZ430 |
| 69331C | Right rear door lock opening lever | 69331-BZ200 |
| 69332A | Left rear door lock opening lever | 69332-BZ200 |
| 69340 | Left rear door lock assembly | 69340-BZ290 · 69340-BZ430 · 69340-BZ440 |
| 69410B | Rear door lock plate assembly | 69410-0D070 · 69410-BZ010 |
| 69420 | Rear door lock plate assembly | 69410-0D070 · 69410-BZ010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-BZ340 · 69730-BZ350 |
| 69740D | Left rear door lock remote control cable assembly | 69730-BZ340 · 69730-BZ350 |
| 69749B | Rear door lock link clamp | 69749-32040 · 69749-BZ100 |
| 69749I | Door lock link clamp | 69749-32040 · 69749-BZ100 |
| 69770B | Right rear door inner lock cable assembly | 69770-BZ250 · 69770-BZ260 |
| 69780B | Left rear door inner lock cable assembly | 69780-BZ250 · 69780-BZ260 |
