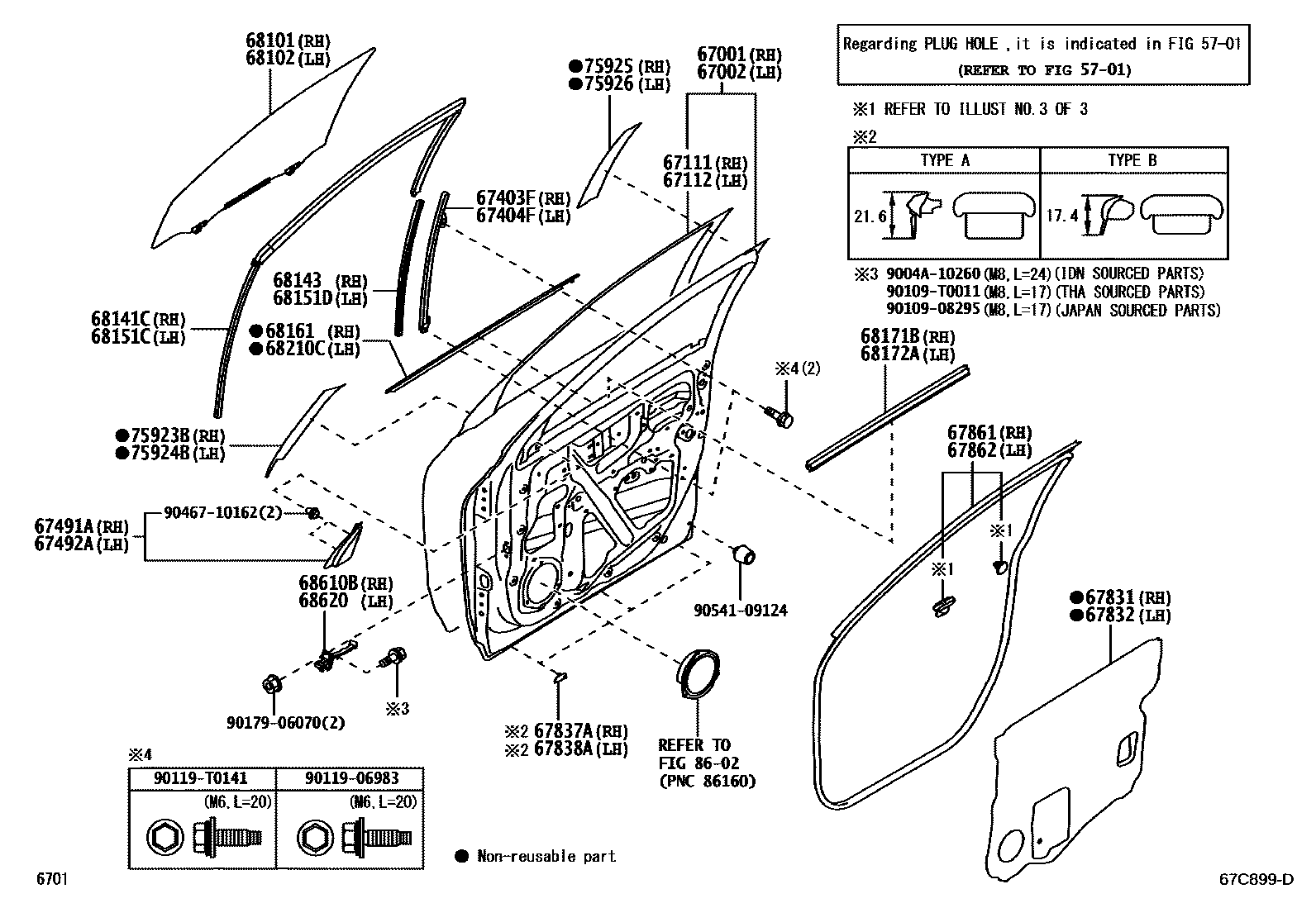

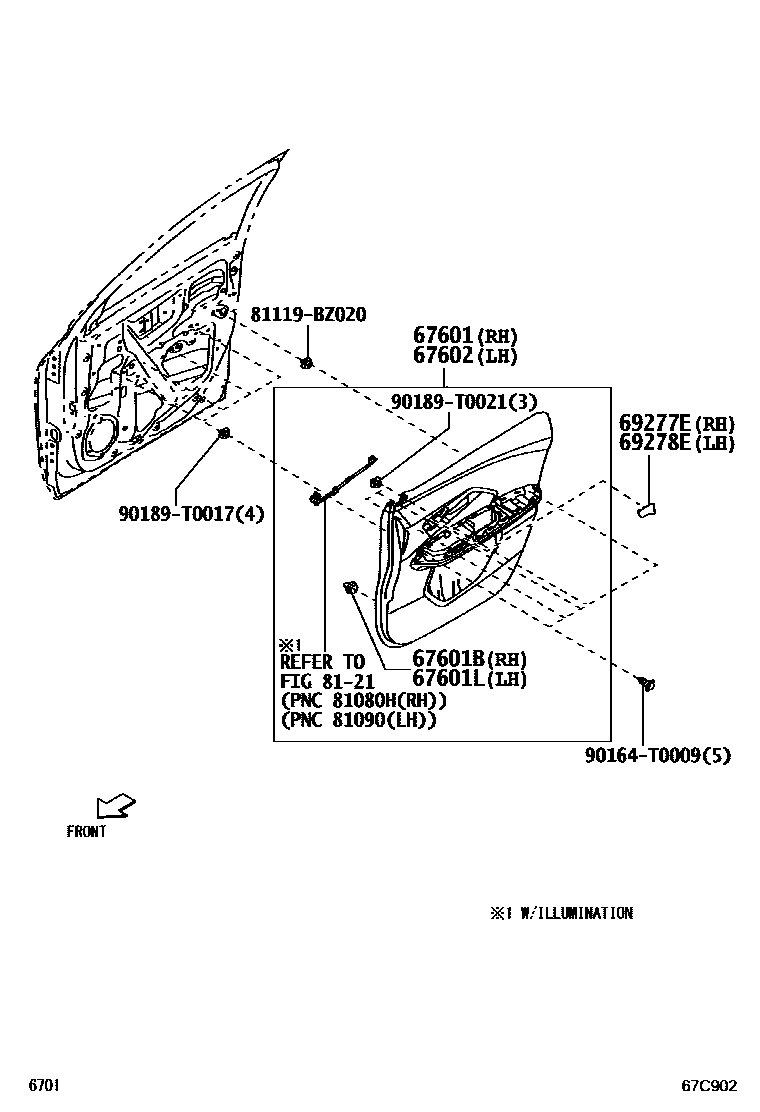

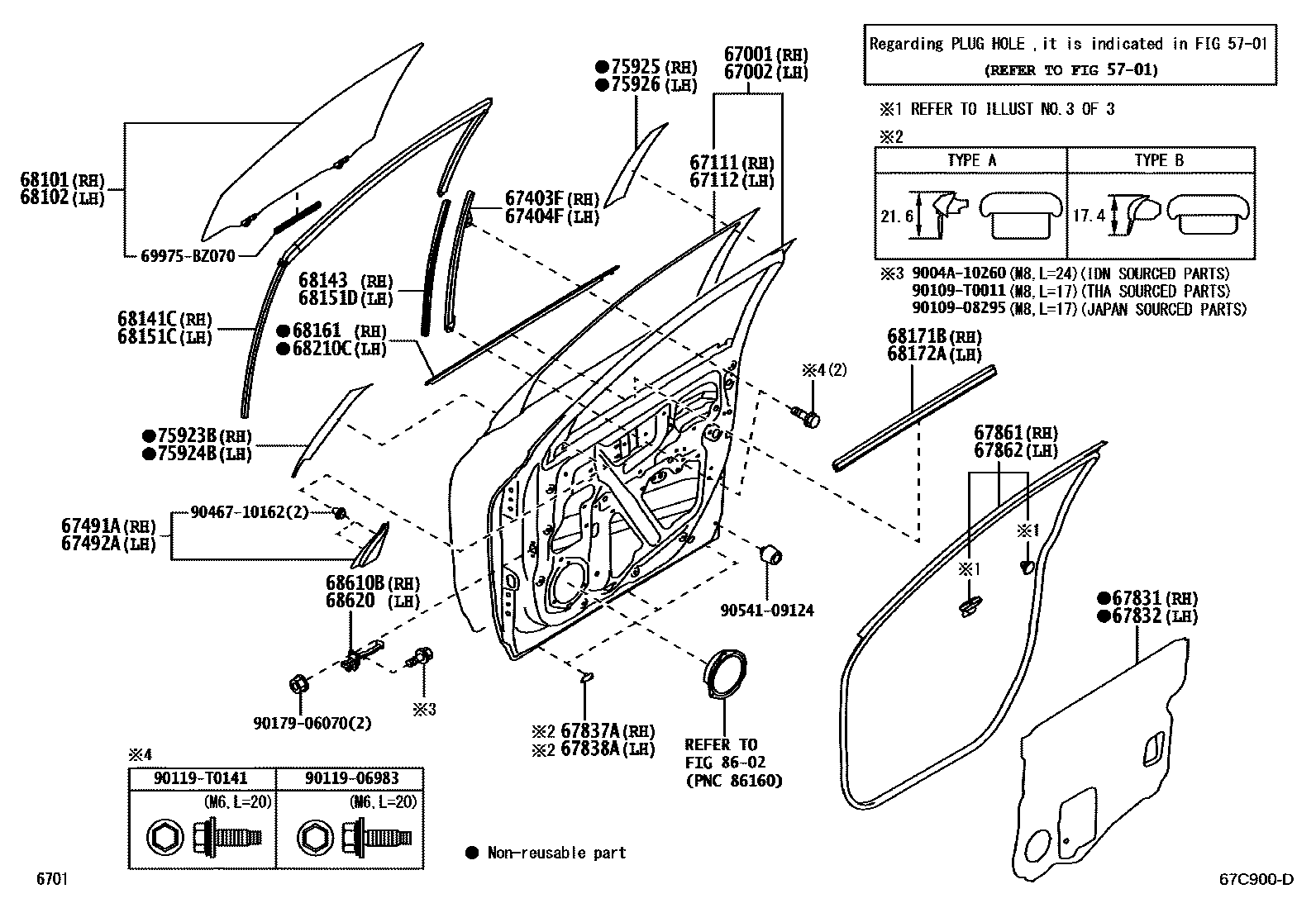

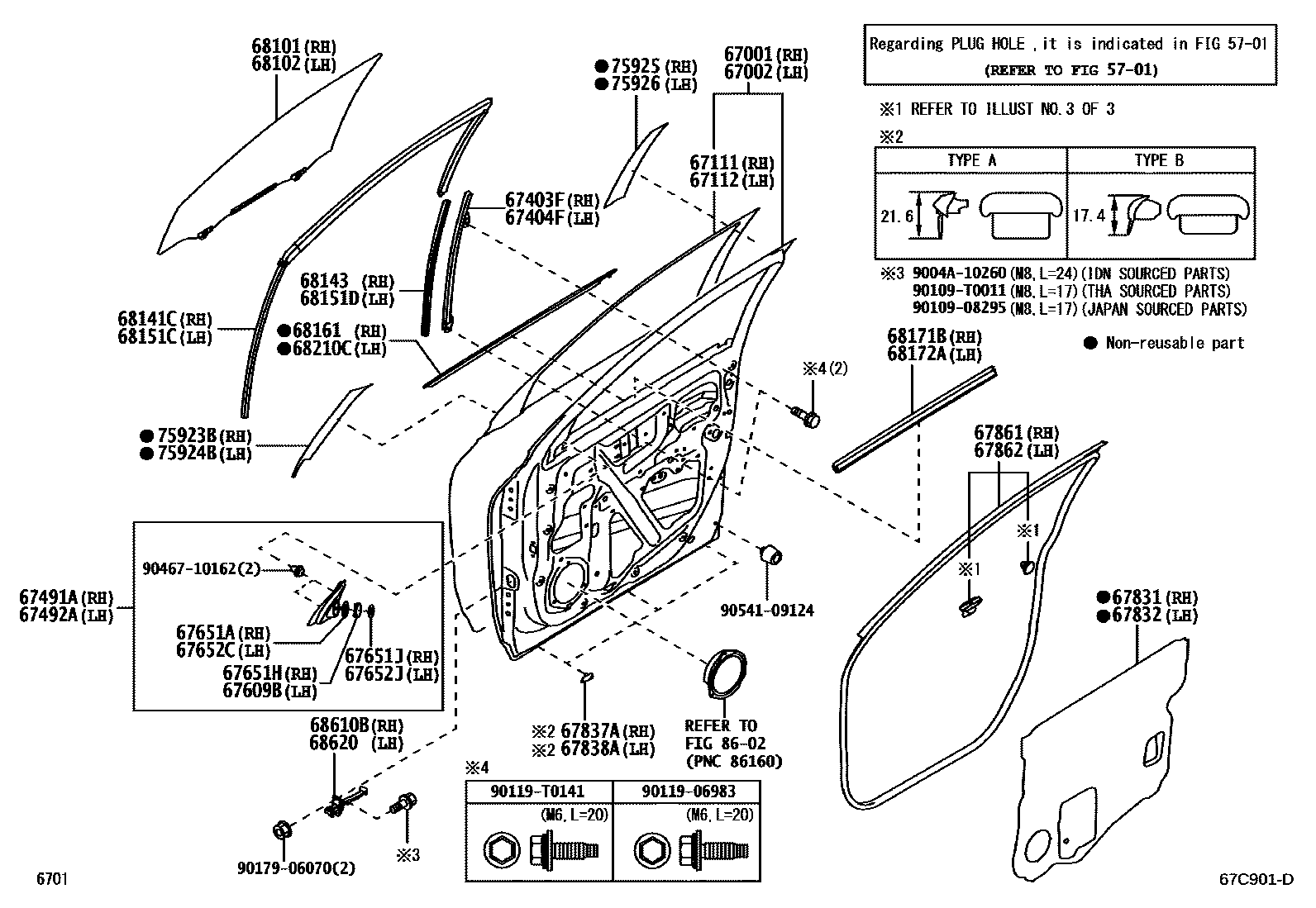

Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 6 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-BZ800 · 67001-BZ820 · 67001-BZ830 |
| 67002 | Left front door panel sub-assembly | 67002-BZ790 · 67002-BZ840 · 67002-BZ850 |
| 67111 | Outer right front door panel | 67111-BZ440 · 67111-BZ450 |
| 67112 | Outer left front door panel | 67112-BZ440 · 67112-BZ450 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-BZ220 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-BZ210 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-BZ210 · 67491-BZ220 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-BZ210 · 67492-BZ220 |
| 67601B | Catch (for front door trim panel) | 90467-09206 · 90467-T0019 |
| 67601L | Catch (for front door trim panel) | 90467-09206 · 90467-T0019 |
| 67609B | Front door speaker grille sub-assembly | 67688-BZ010 |
| 67651H | Right door speaker grille | 67688-BZ010 |
| 67651J | Right door speaker grille sub-assembly | 86269-BZ090 |
| 67652J | Left door speaker grille sub-assembly | 86269-BZ090 |
| 67831 | Right front door access hole cover | 67831-BZ570 |
| 67832 | Left front door access hole cover | 67832-BZ200 |
| 67837A | Right front door ventilator seal | 67837-0K090 · 67837-BZ070 |
| 67838A | Left front door ventilator seal | 67837-0K090 · 67837-BZ070 |
| 67861 | Right front door seal | 67861-BZ320 · 67861-BZ330 · 67861-BZ340 |
| 67862 | Left front door seal | 67862-BZ320 · 67862-BZ330 · 67862-BZ340 |

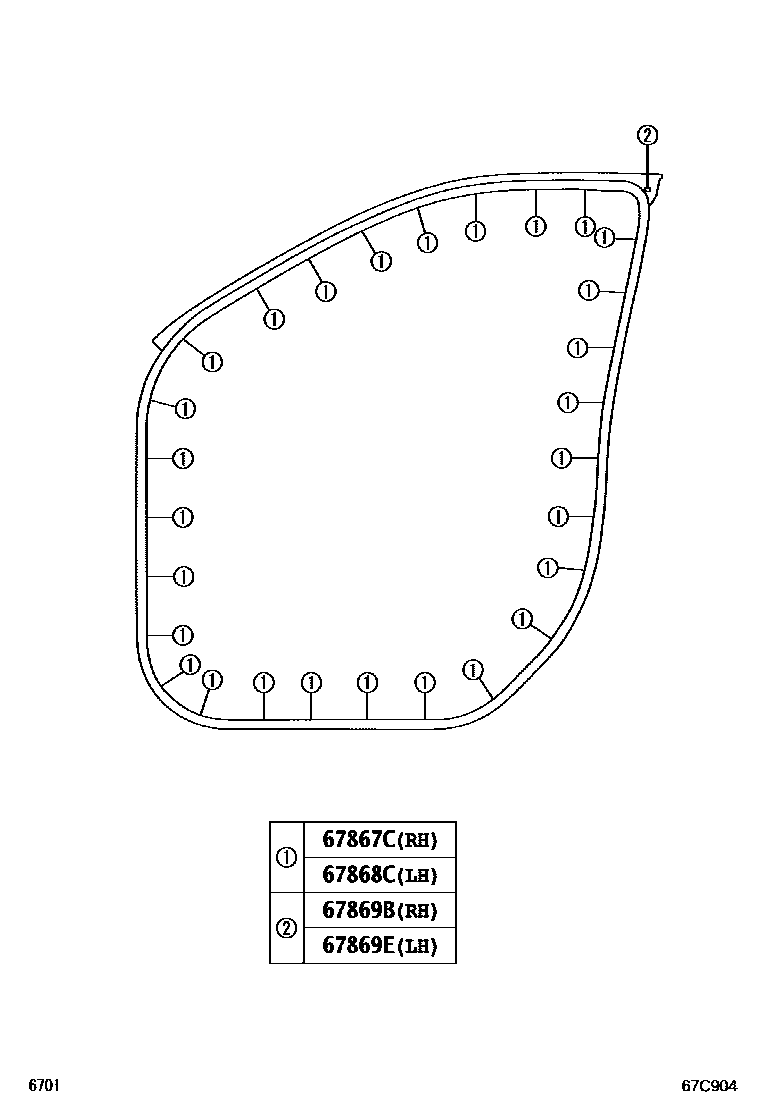

| 67867C | Right front door seal strip fixing | 67867-B2320 · 67867-BZ490 · 67867-BZ520 |
| 67868C | Left front door seal strip fixing | 67867-B2320 · 67867-BZ500 · 67867-BZ530 |
| 67869B | Front door seal strip clip | 9004A-46317 · 90467-06084 |
| 67869E | Front door seal strip clip | 9004A-46317 · 90467-06084 |
| 68101 | Right front door glass sub-assembly | 68101-BZ510 · 68101-BZ530 · 68101-BZ550 |
| 68102 | Left front door glass sub-assembly | 68102-BZ500 · 68102-BZ520 · 68102-BZ540 |
| 68141C | Right front door glass lift channel | 68141-BZ150 · 68141-BZ280 · 68141-BZ290 |
| 68143 | Lift chute under front door glass | 68143-BZ090 · 68143-BZ200 · 68143-BZ210 |
| 68151C | Left front door glass lift channel | 68151-BZ150 · 68151-BZ280 · 68151-BZ290 |
| 68151D | Left front door glass lift channel | 68143-BZ090 · 68143-BZ200 · 68143-BZ210 |
| 68161 | Front door glass outer seal strip | 68161-BZ290 · 68161-BZ340 |
| 68171B | Right front door glass inner sealing strip | 68171-BZ310 |
| 68172A | Left front door glass inner sealing strip | 68172-BZ310 |
| 68210C | Left front door glass outer sealing strip assembly | 68162-BZ290 · 68162-BZ340 |
| 68610B | Right front door opening limiter assembly | 68610-BZ320 |
| 68620 | Left front door opening limiter assembly | 68610-BZ320 |
