Toyota YARIS 底板和底板装饰罩 — Figure 6404

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 2 images and 4 PNC and OE references.

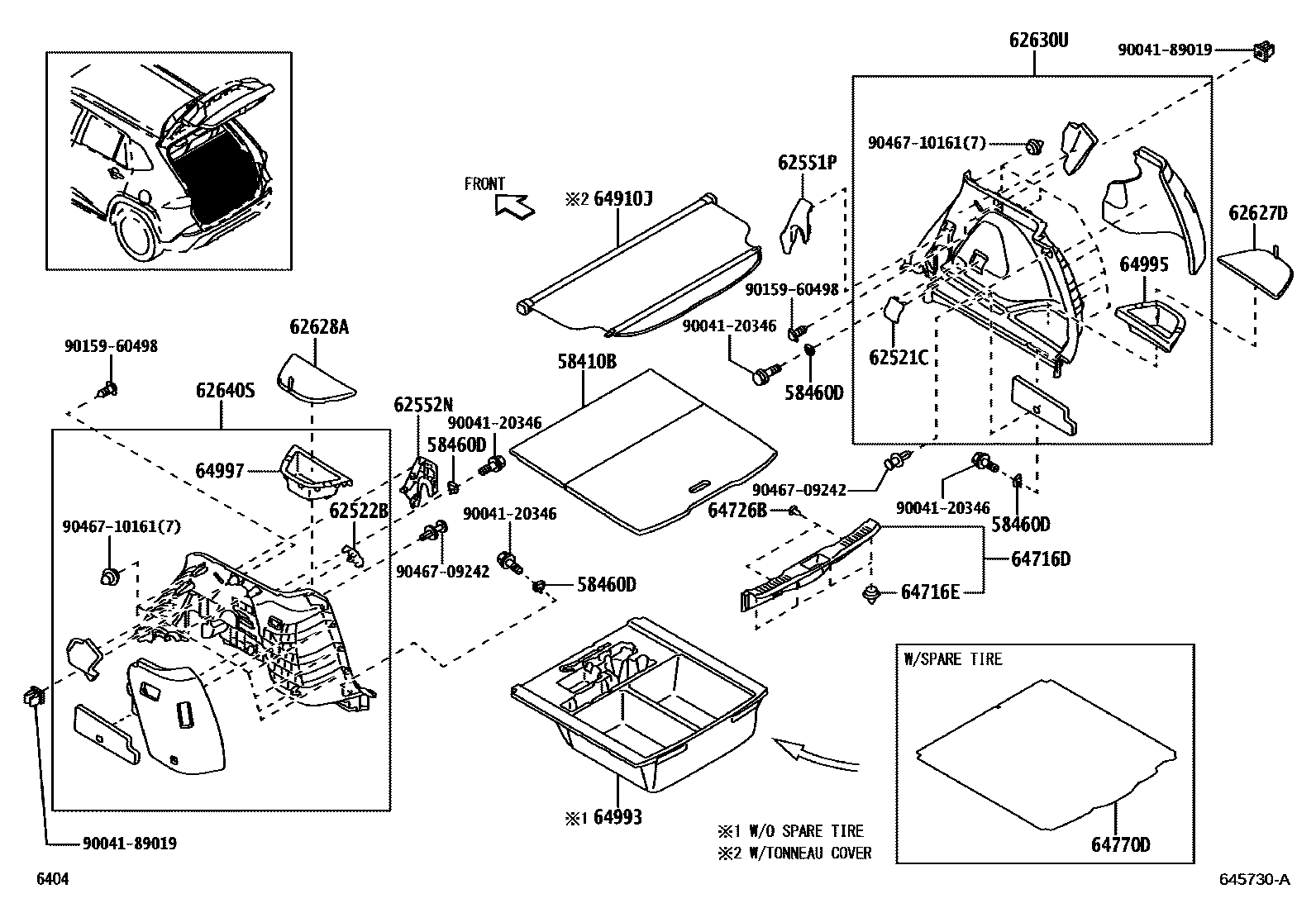

Toyota YARIS 底板和底板装饰罩 EPC diagram — 645730A
底板和底板装饰罩 — 645730A (202306 – 999999)

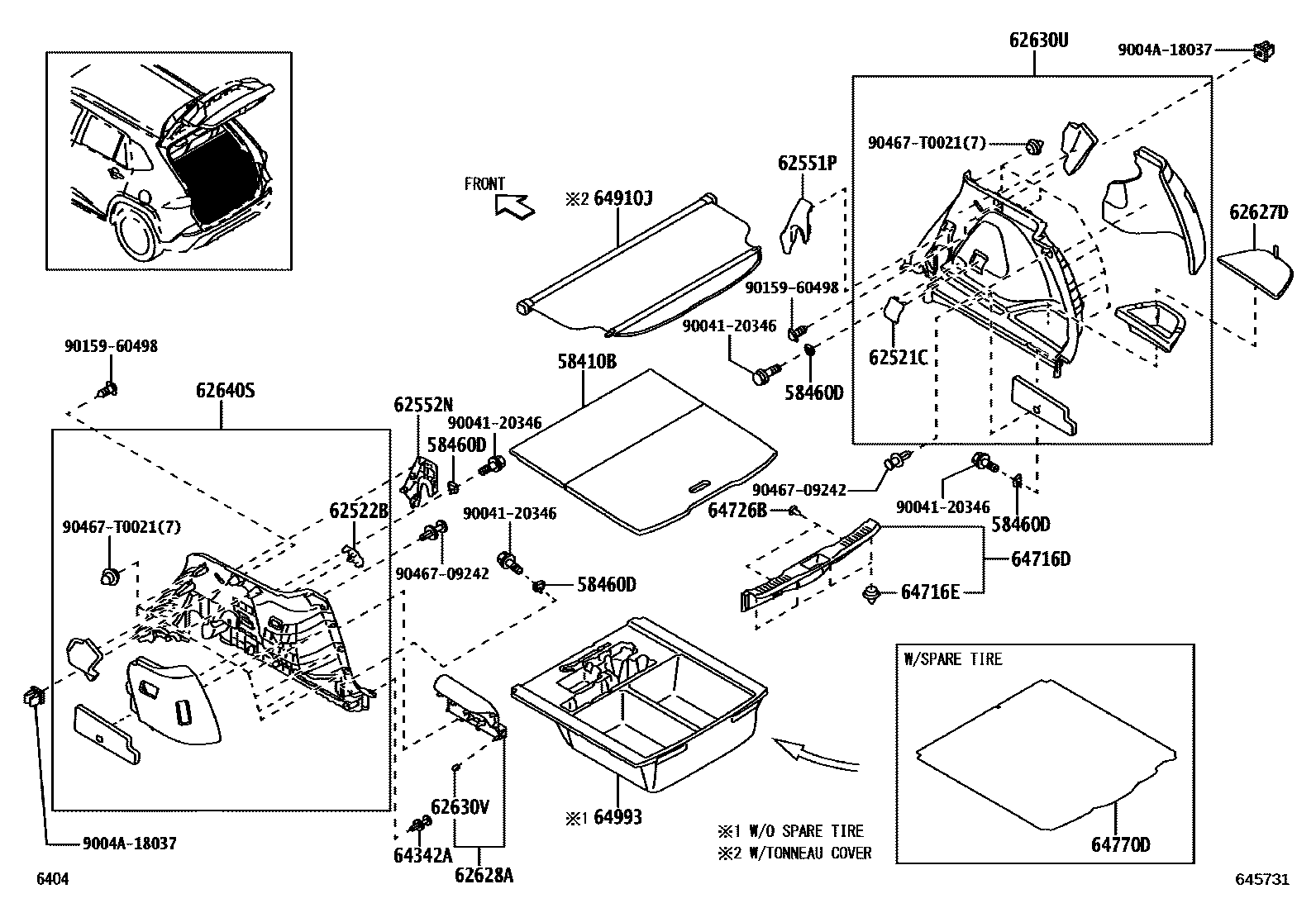

Toyota YARIS 底板和底板装饰罩 EPC diagram — 645731
底板和底板装饰罩 — 645731 (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
58460DLuggage fixing belt lock assembly58460-33020
62630VClip (for rear side panel)90467-05171
64716EClip (for rear floor decorative cover)90467-T0021
64993Bottom floor box64993-BZ070 · 64993-BZ080
