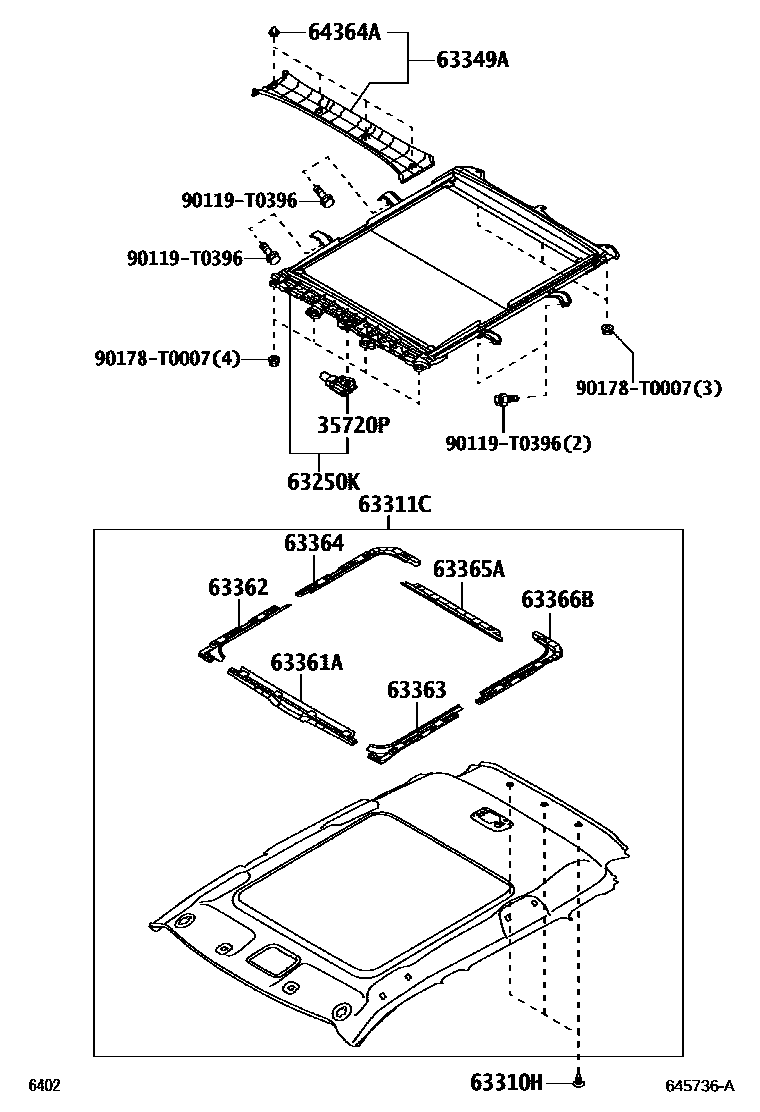

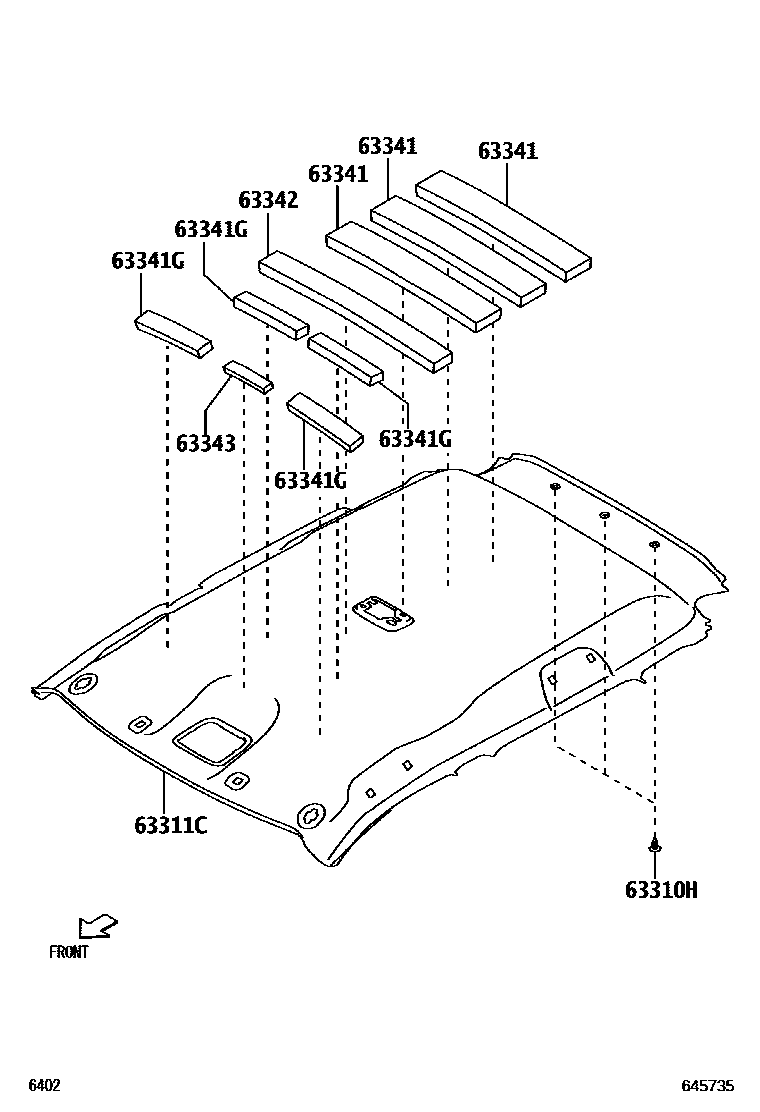

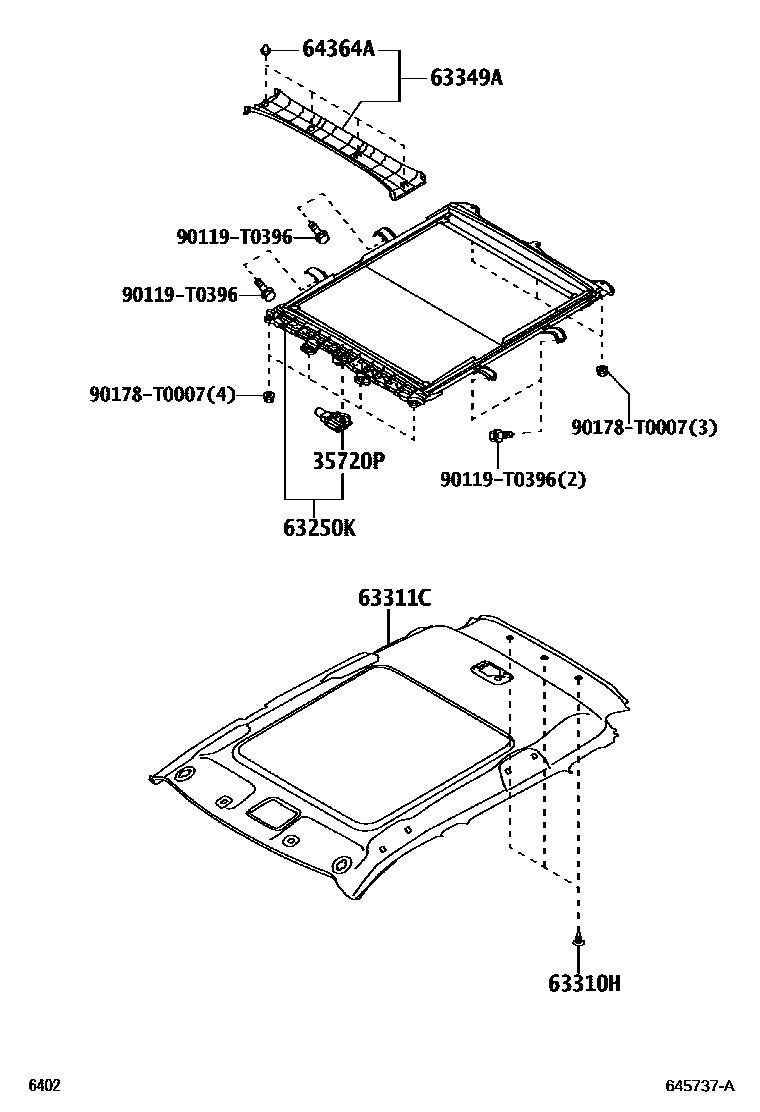

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35720P | Gear assembly | 63260-B1010 |
| 63250K | CHAMBRE ASS, PARE SOLEIL | 63250-B1010 |
| 63341 | No. 1 roof silencer mat | 63341-BZ340 |
| 63341G | roof muffler mat | 63341-BZ320 |
| 63342 | No. 2 roof muffler pad | 63341-BZ330 |
| 63343 | No. 3 roof muffler pad | 63351-BZ160 |
| 63361A | headliner bracket | 63361-BZ110 |
| 63362 | Headlining bracket No. 2 | 63362-BZ060 |
| 63363 | No. 3 roof lining bracket | 63363-BZ090 |
| 63364 | No. 4 roof lining bracket | 63364-BZ060 |
| 63365A | Headlining fixing plate | 63365-BZ040 |
| 63366B | Roof left inner lining fixing plate | 63366-BZ030 |
| 64364A | clip | 75867-68010 |
