Toyota YARIS 内饰板和车门防水胶条 — Figure 6401

Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 21 PNC and OE references.

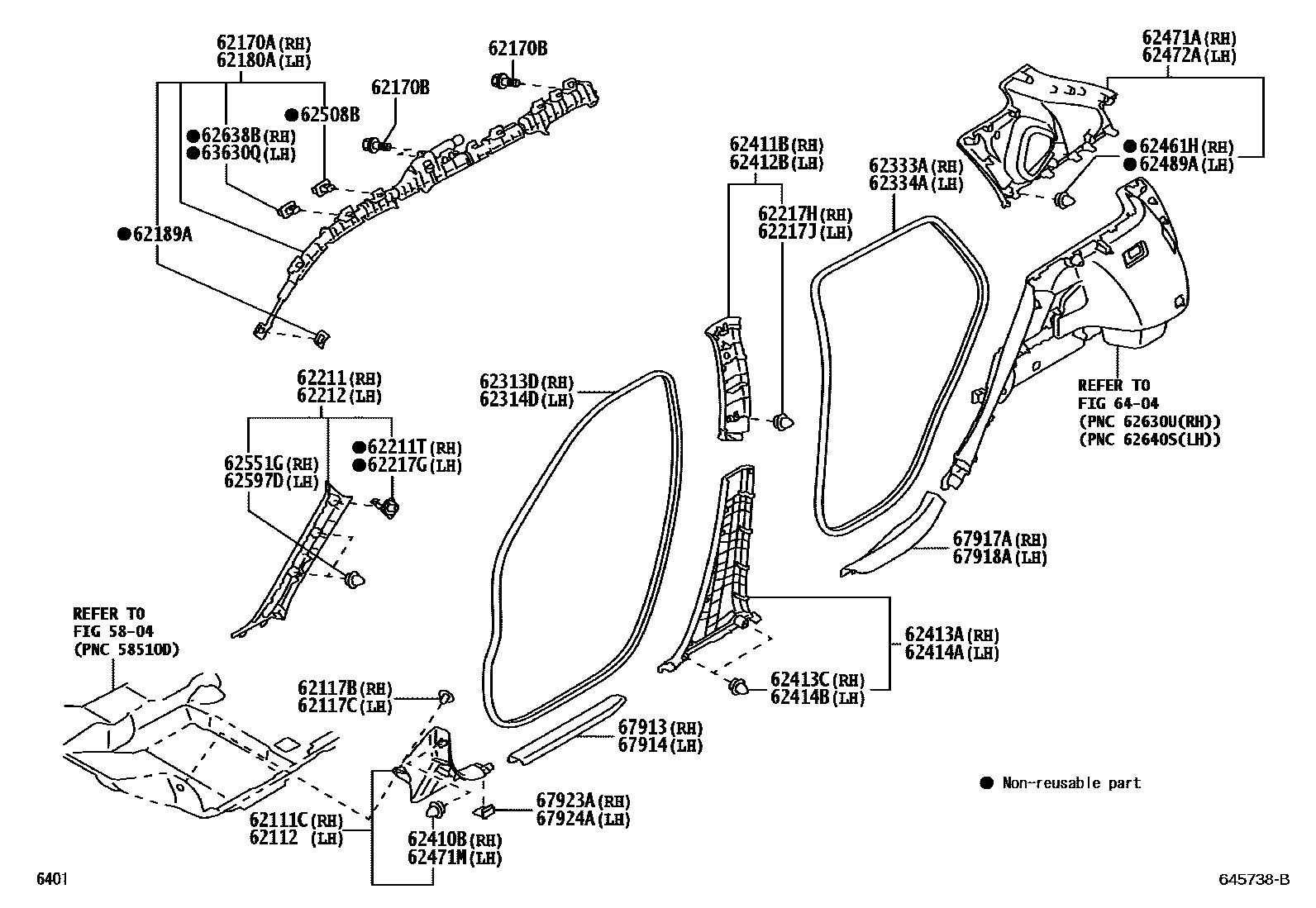

Toyota YARIS 内饰板和车门防水胶条 EPC diagram — 645738B
内饰板和车门防水胶条 — 645738B (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
62170ARight curtain air bag assembly62170-BZ120 · 62170-BZ140
62170BBolts with washers9004A-11383 · 91673-80616
62180ALeft curtain air bag assembly62180-BZ120 · 62180-BZ140
62189ACurtain air bag clip spacer62189-42010
62211TClip (for front pillar decorative panel)62217-52120
62217GFront pillar decorative plate clip62217-52120
62217HCenter pillar decorative plate clip90467-T0021
62217JCenter pillar decorative plate clip90467-T0021
62410Bclip90467-T0019
62413CClip (for the decorative panel under the center pillar)90467-T0021
62414BClip (for the decorative panel under the center pillar)90467-T0021
62461HClips (for roof side interior panels)90467-T0021
62471Mclip90467-T0019
62489ARoof side interior panel clips90467-T0021
62508Bclip62489-28010
62551Gclip90467-T0021
62597Dclip90467-T0021
62638Bclip90467-18017
63630Qclip90467-18017
67923ACar door No. 1 wear plate clip67924-BZ020
67924ADoor No. 2 wear plate clip67924-BZ020
