Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

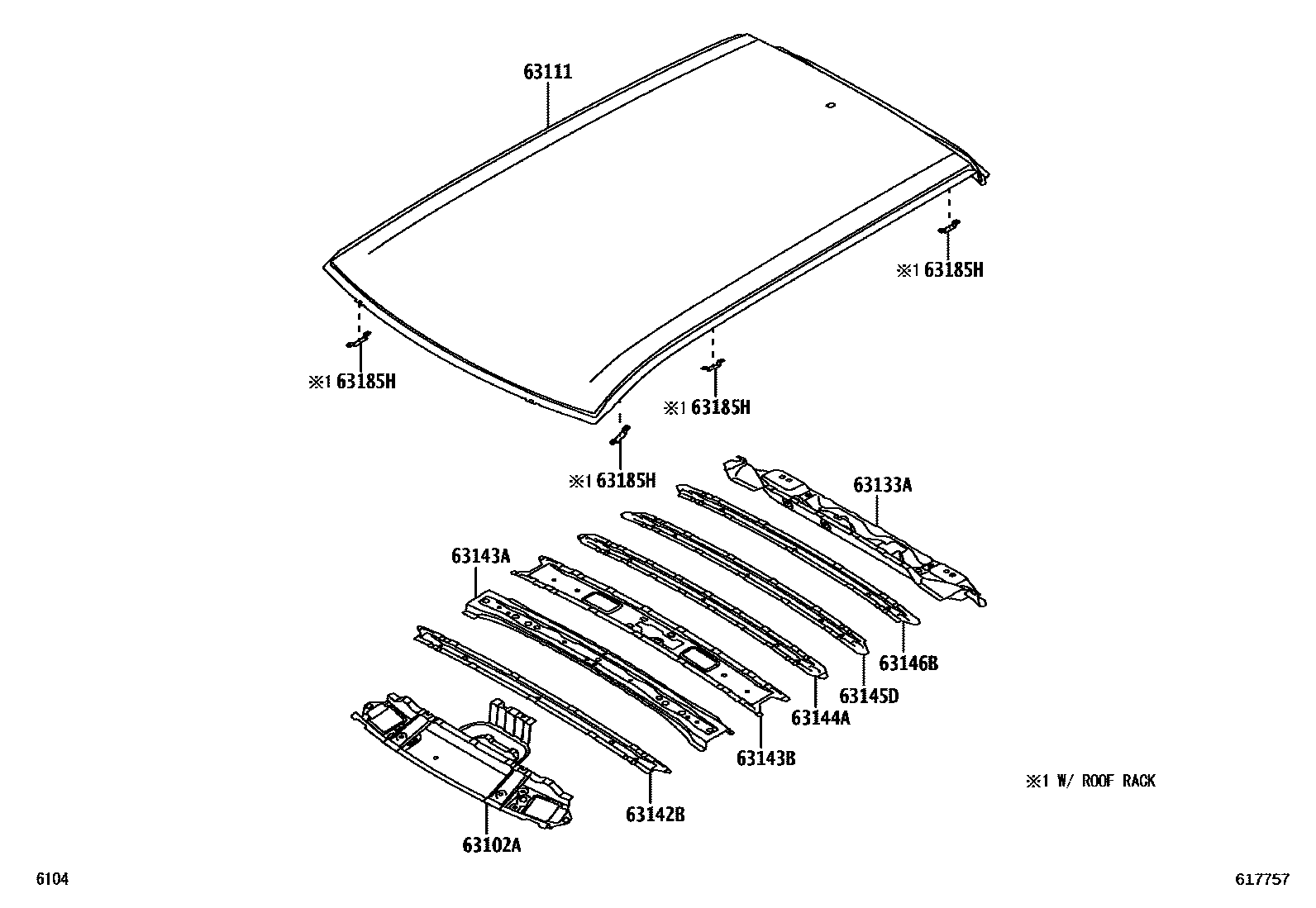

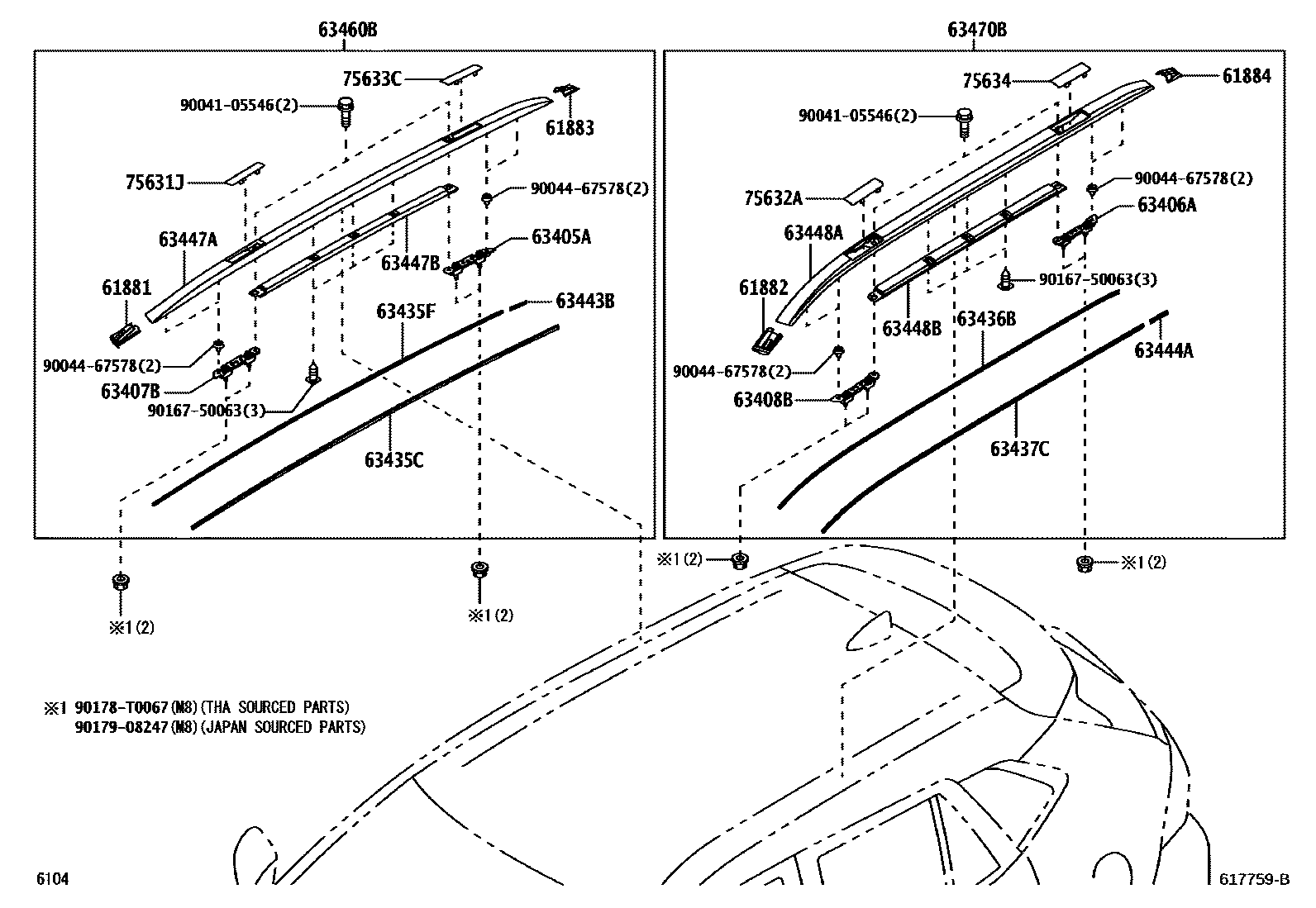

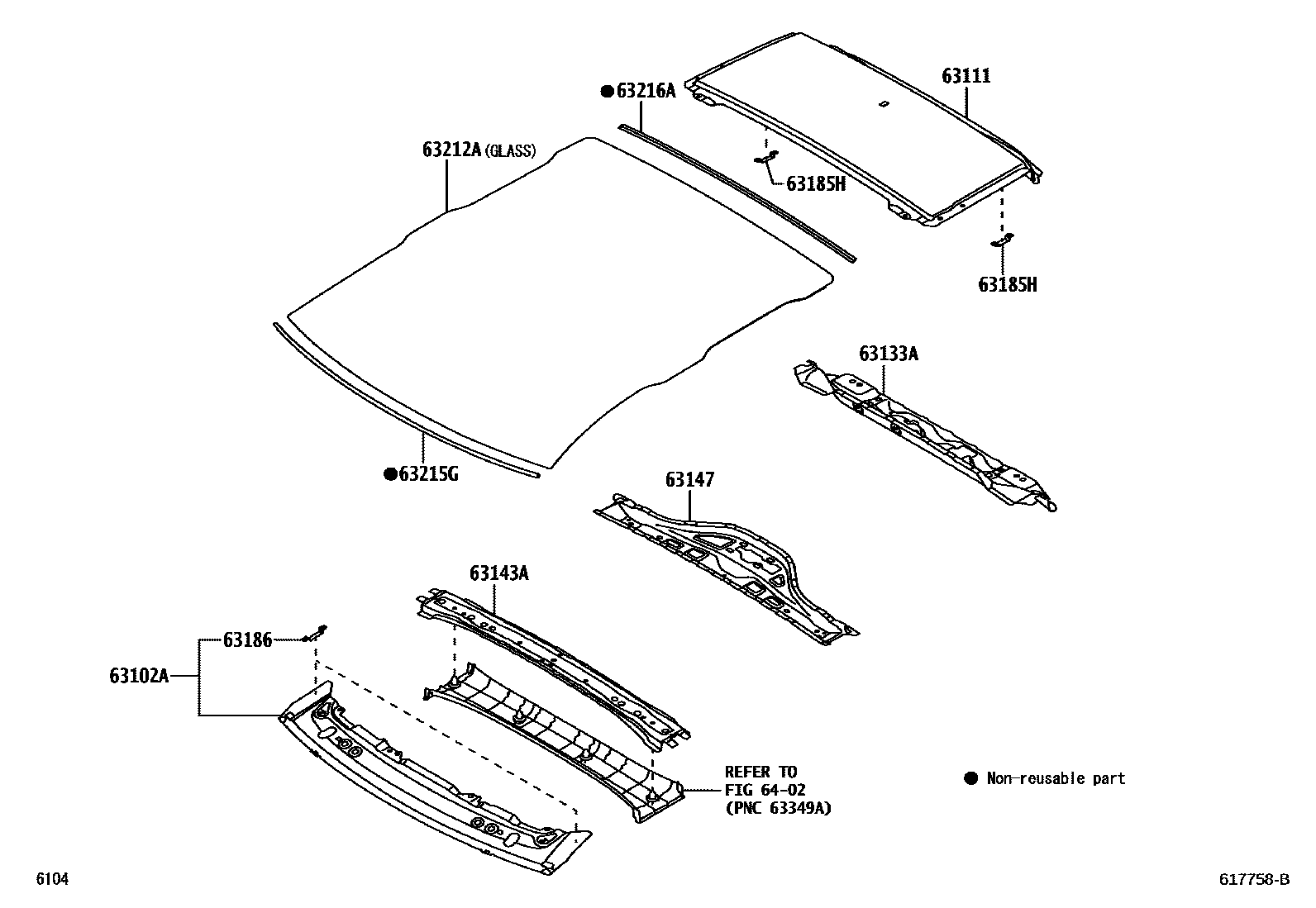

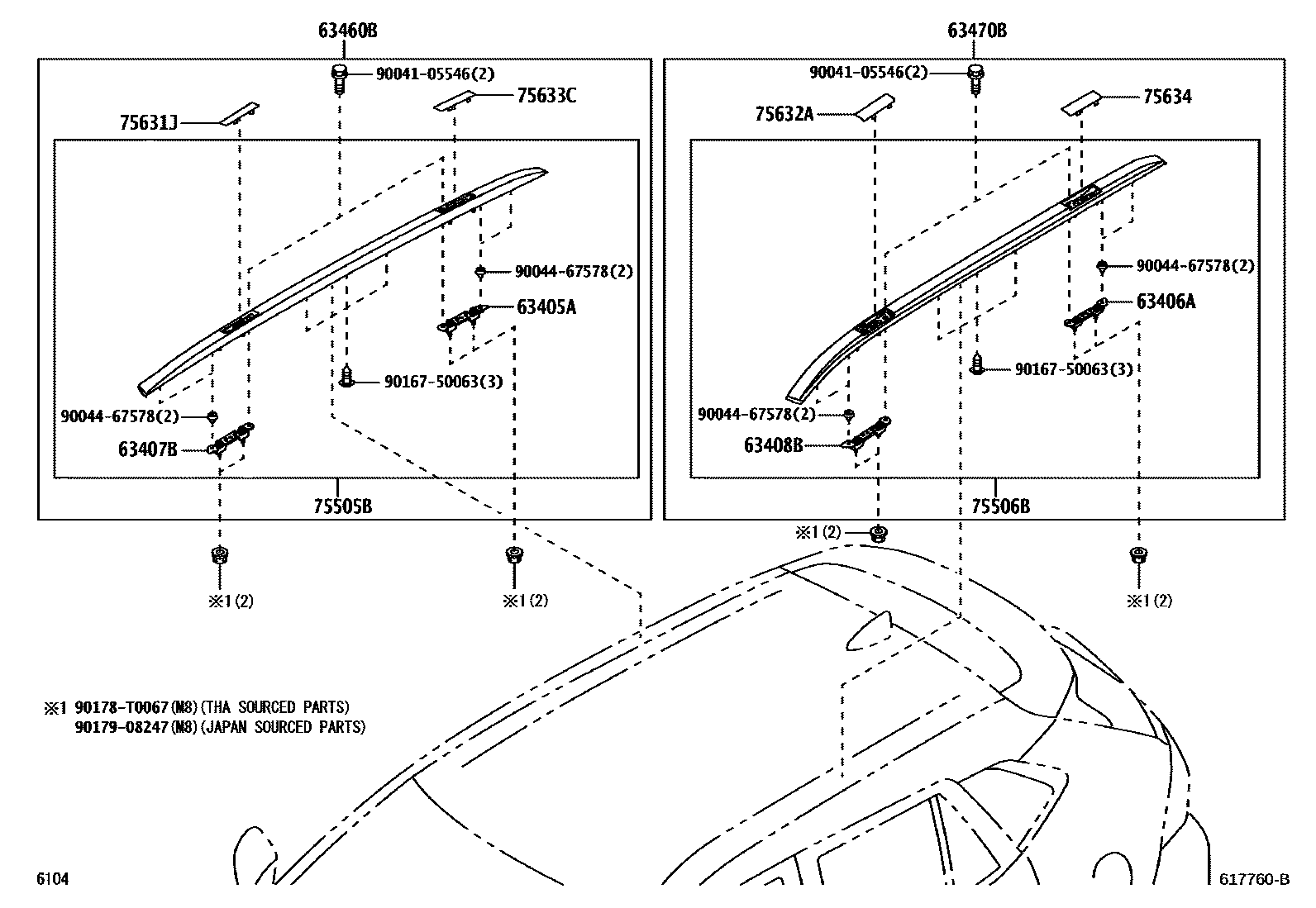

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61881 | Right front roof rail seal | 63435-BZ280 |
| 61882 | Left front roof rail seal | 63436-BZ190 |
| 61883 | Right rear roof rail seal | 63435-BZ290 |
| 61884 | Left rear roof rail seal | 63436-BZ200 |
| 63102A | Windshield roof sub-assembly | 63102-BZ080 · 63102-BZ100 |
| 63111 | roof panel | 63111-BZ390 · 63111-BZ400 · 63111-BZ420 · 63111-BZ430 · 63113-BZ010 |
| 63133A | upper frame of back window | 63134-BZ320 · 63134-BZ330 · 63134-BZ340 |
| 63142B | Rear roof panel reinforcement | 63142-BZ240 |
| 63143A | Roof panel reinforcement | 63141-BZ220 · 63141-BZ230 · 63141-BZ240 |
| 63143B | No. 3 roof panel reinforcement | 63143-BZ180 |
| 63144A | No. 4 roof panel reinforcement | 63144-BZ150 |
| 63145D | roof reinforcement bracket | 63145-BZ070 |
| 63146B | No. 2 windshield roof reinforcement | 63146-BZ030 |
| 63147 | Roof panel reinforcement bracket | 63147-BZ020 |
| 63185H | Roof rack bracket | 63185-BZ050 |
| 63186 | Front roof rack bracket | 63185-BZ050 |
| 63212A | skylight glass | 63201-BZ900 · 63201-BZ901 |
| 63215G | Front sunroof protective strip | 63215-BZ010 |
| 63216A | Sunroof rear protective strip | 63216-BZ010 |
| 63405A | Rear roof rack bracket sub-assembly | 63408-BZ070 |
| 63406A | Left rear roof rack bracket sub-assembly | 63407-BZ070 |
| 63407B | Front roof rack bracket sub-assembly | 63407-BZ070 · 63407-BZ080 |
| 63408B | Left front roof rack bracket sub-assembly | 63408-BZ070 · 63408-BZ080 |
| 63435C | Roof right storage rack No. 1 seal | 63435-BZ260 |
| 63435F | Roof rack No. 1 seal | 63435-BZ270 |
| 63436B | Roof left storage rack No. 1 seal | 63436-BZ170 |
| 63437C | Roof rack seal | 63436-BZ180 |
| 63443B | Roof right luggage rack protector | 63435-BZ070 |
| 63444A | Roof left luggage rack protector | 63436-BZ210 |
| 63447A | Roof right side rail | 75555-BZ060 |
| 63447B | Roof rack support on right side | 63447-BZ120 |
| 63448A | Roof left side rail | 75556-BZ060 |
| 63448B | Roof left storage rack stay | 63448-BZ120 |
