Toyota YARIS 侧梁 — Figure 6101

Toyota YARIS EPC diagram 6101, 侧梁, with 7 images and 59 PNC and OE references.

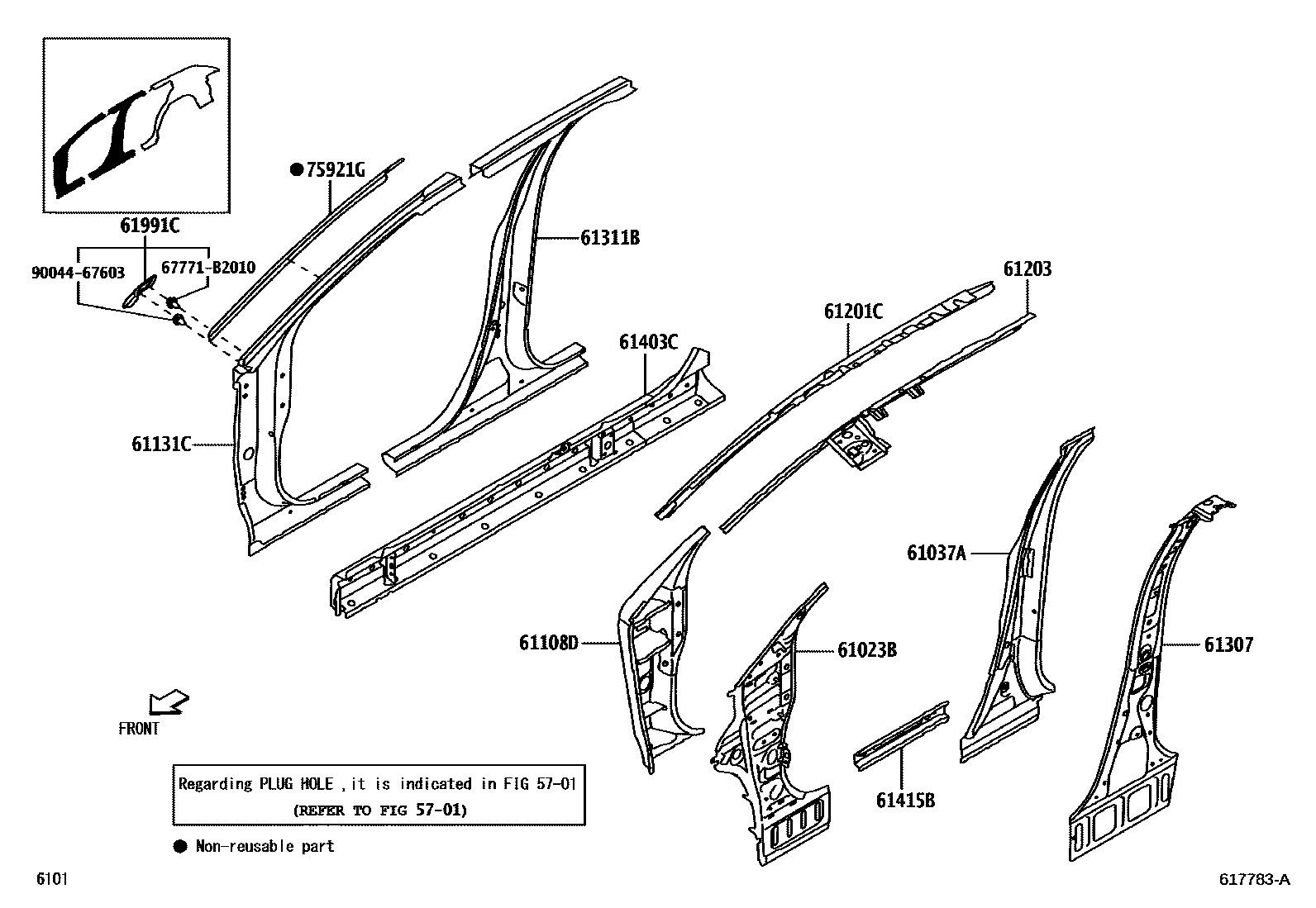

Toyota YARIS 侧梁 EPC diagram — 617783A
侧梁 — 617783A (202306 – 999999)

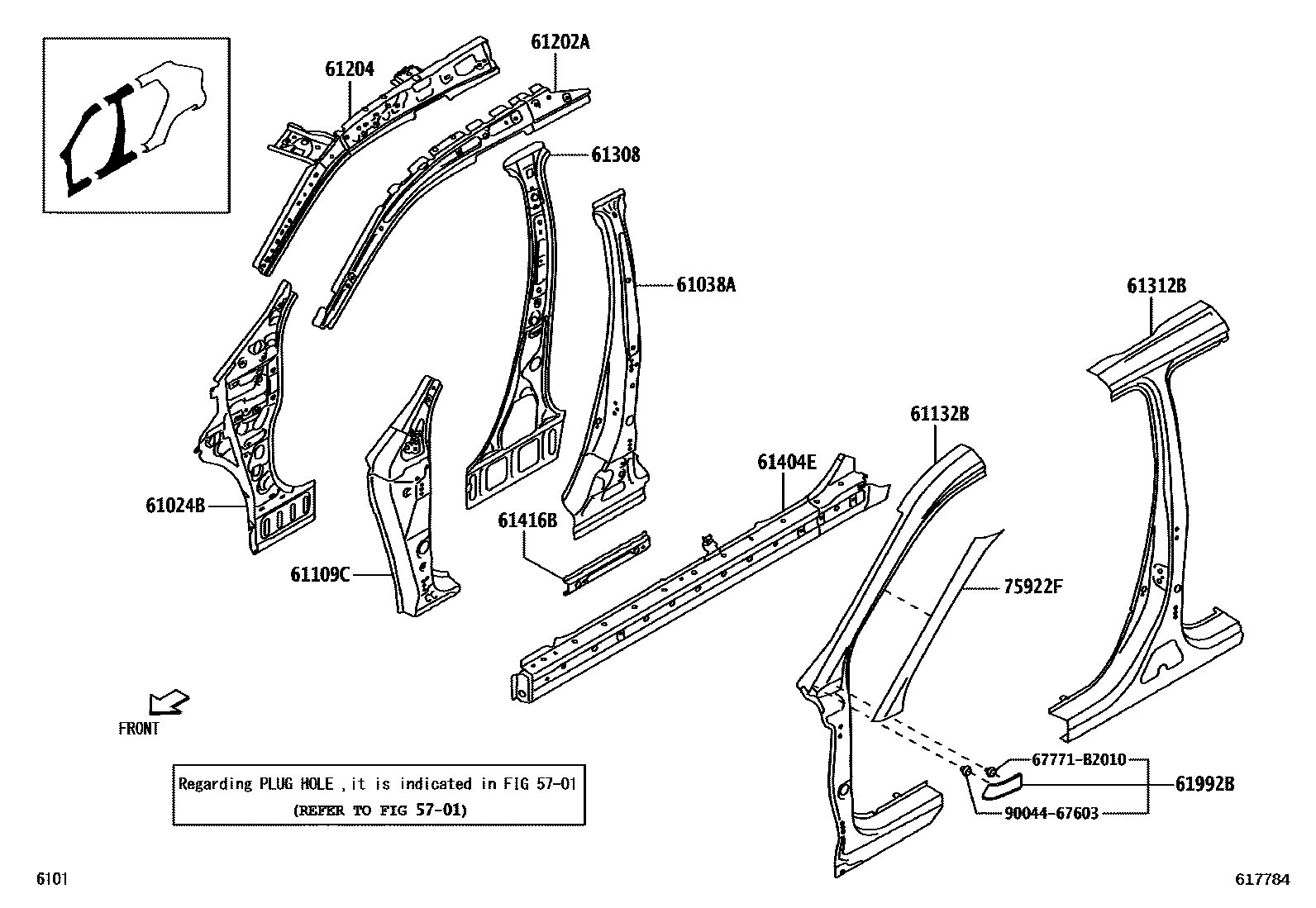

Toyota YARIS 侧梁 EPC diagram — 617784
侧梁 — 617784 (202306 – 999999)

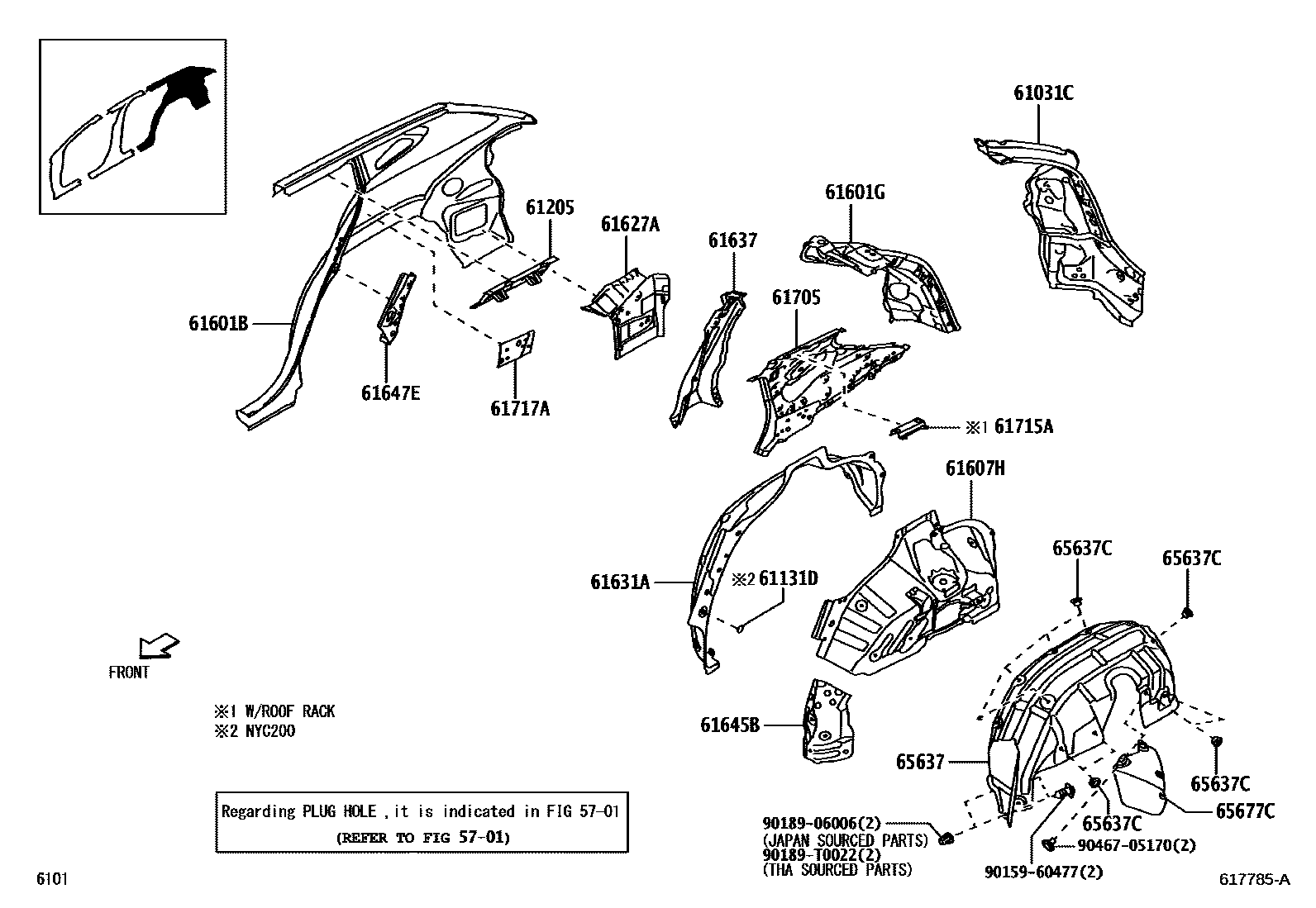

Toyota YARIS 侧梁 EPC diagram — 617785A
侧梁 — 617785A (202306 – 999999)

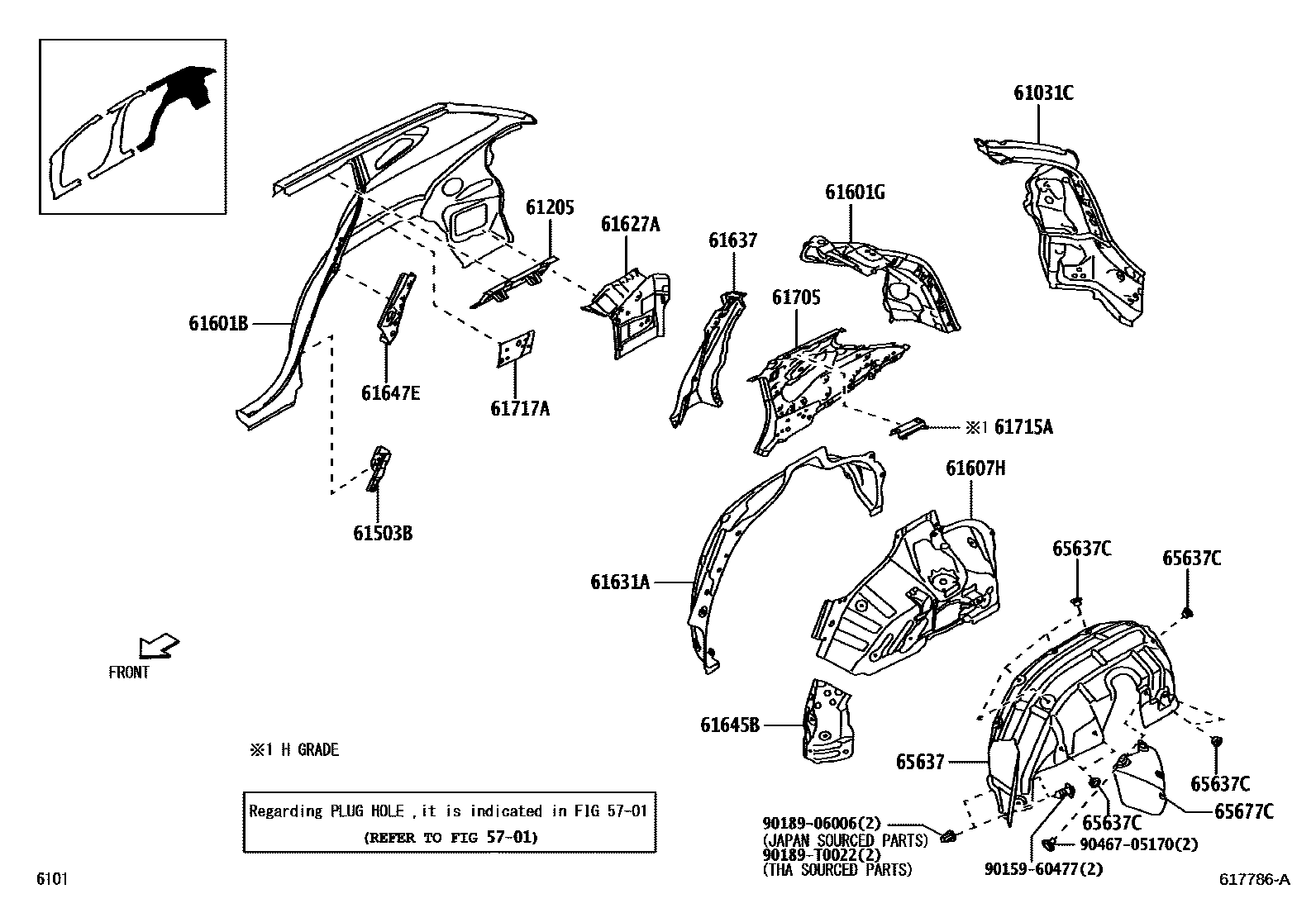

Toyota YARIS 侧梁 EPC diagram — 617786A
侧梁 — 617786A (202310 – 999999)

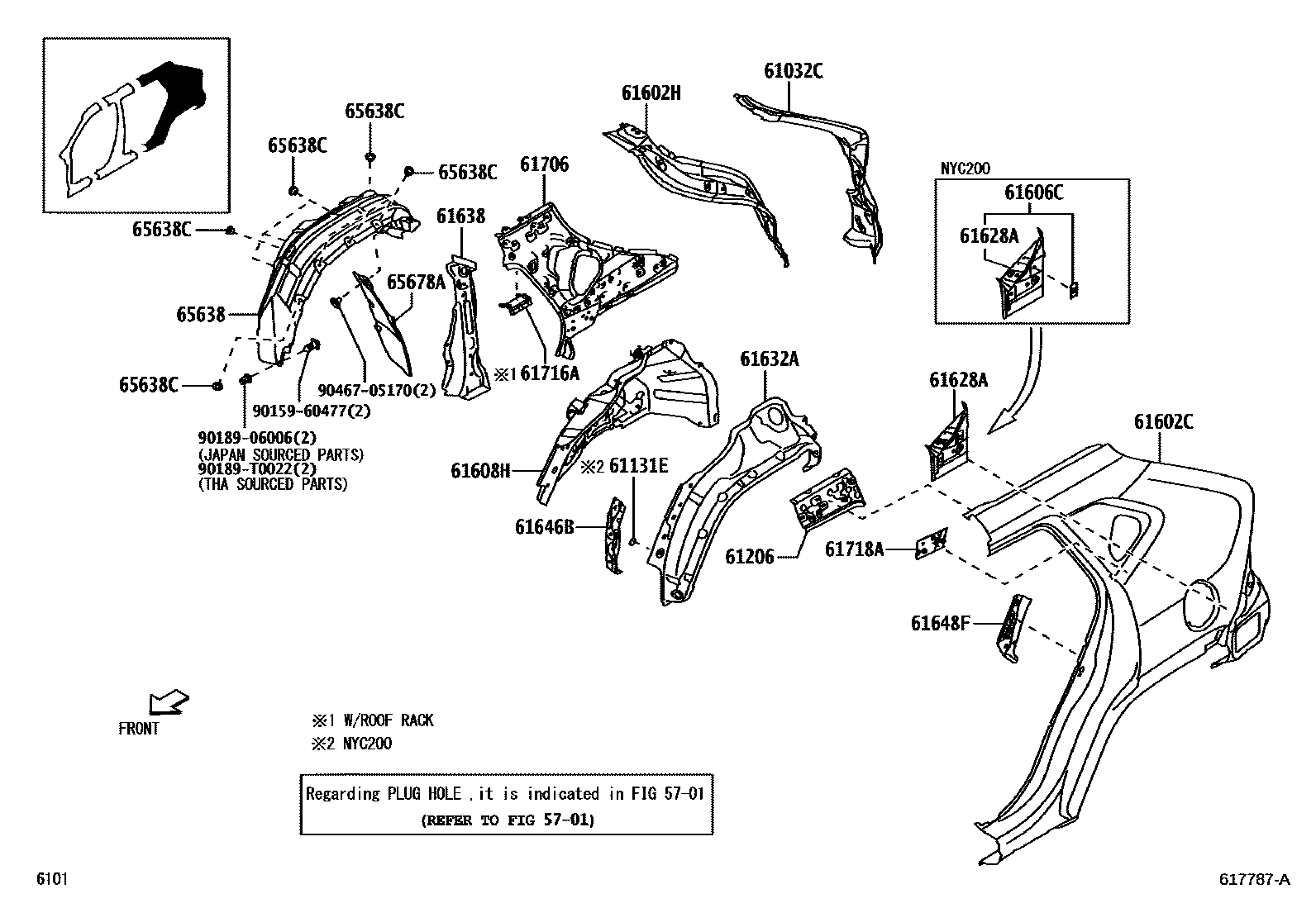

Toyota YARIS 侧梁 EPC diagram — 617787A
侧梁 — 617787A (202306 – 999999)

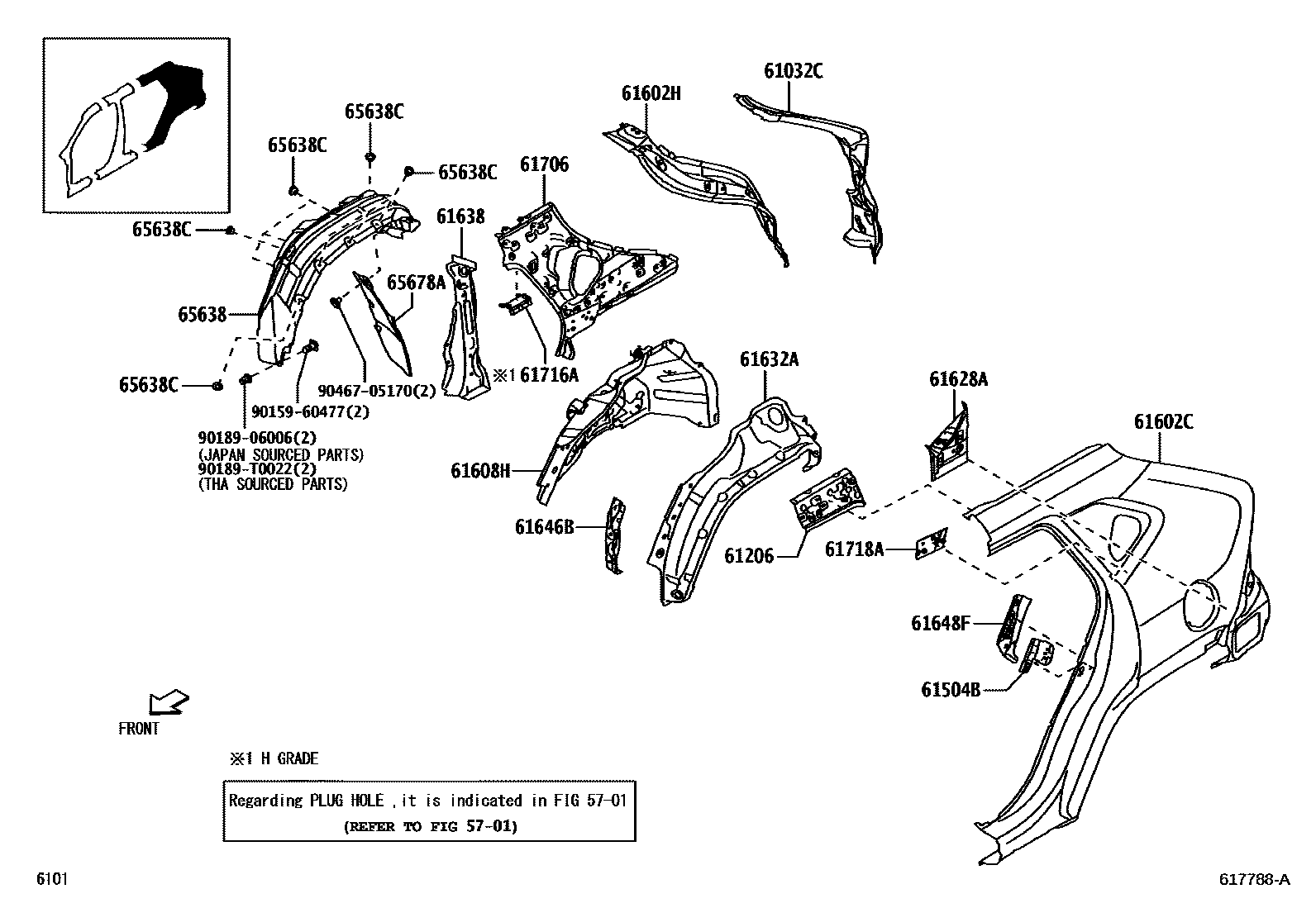

Toyota YARIS 侧梁 EPC diagram — 617788A
侧梁 — 617788A (202310 – 999999)

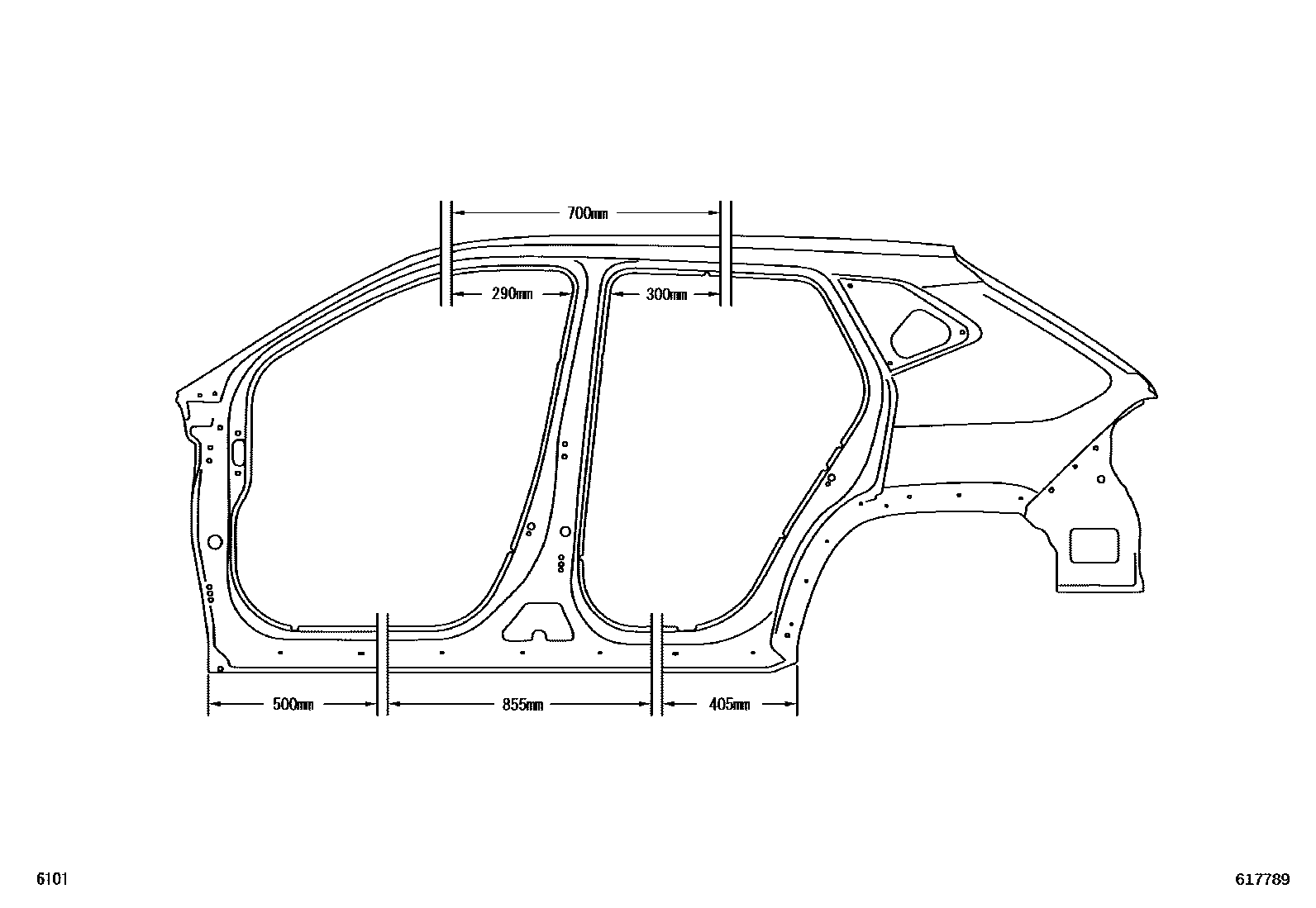

Toyota YARIS 侧梁 EPC diagram — 617789
侧梁 — 617789 (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
61023BRight body inner front pillar sub-assembly61023-BZ560
61024BLeft body inner front pillar sub-assembly61024-BZ530 · 61024-BZ540
61031CRight rear side panel extension sub-assembly61031-BZ300 · 61031-BZ310
61032CLeft rear side panel extension sub-assembly61032-BZ320 · 61032-BZ330
61037ARight body center pillar reinforcement sub-assembly61037-BZ370
61038ALeft body center pillar reinforcement sub-assembly61038-BZ450
61108DFront panel right lower reinforcement sub-assembly61108-BZ260 · 61108-BZ901
61109CFront panel left lower reinforcement sub-assembly61109-BZ230 · 61109-BZ260 · 61109-BZ901
61131CRight body outer front pillar61131-BZ640 · 61131-BZ700
61131Dhole plug9004A-35005 · 90333-T0004
61131Ehole plug9004A-35005 · 90333-T0004
61132BLeft body outer front pillar61132-BZ600 · 61132-BZ670
61201CRoof right outer longitudinal beam sub-assembly61201-BZ140 · 61201-BZ900
61202ARoof left outer longitudinal beam sub-assembly61202-BZ100 · 61202-BZ900
61203Roof right inner longitudinal beam sub-assembly61203-BZ220 · 61203-BZ230
61204Roof left inner longitudinal beam sub-assembly61204-BZ210 · 61204-BZ230
61205Right rear roof inner longitudinal beam sub-assembly61205-BZ050
61206Left rear roof inner longitudinal beam sub-assembly61206-BZ050
61307Right body inner center pillar sub-assembly61307-BZ140 · 61307-BZ160
61308Left body inner center pillar sub-assembly61308-BZ170 · 61308-BZ200
61311BRight body outer center pillar61311-BZ450 · 61311-BZ470
61312BLeft body outer center pillar61312-BZ450 · 61312-BZ480
61403CRight door outer sill reinforcement sub-assembly61403-BZ140 · 61403-BZ901
61404ELeft door outer sill reinforcement sub-assembly61404-BZ190 · 61404-BZ901
61415BRight door outer sill extension61415-BZ060
61416BLeft door outer sill extension61415-BZ060
61503BRight side locking column reinforcement sub-assembly61503-BZ240
61504BLeft side locking column reinforcement sub-assembly61504-BZ240
61601BRight side enclosure sub-assembly61601-BZ260 · 61601-BZ270 · 61601-BZ290
61601GRight rear body rear side panel sub-assembly61601-BZ200 · 61601-BZ220 · 61601-BZ230
61602CLeft side enclosure sub-assembly61602-BZ250 · 61602-BZ260 · 61602-BZ280
61602HLeft rear body rear side panel sub-assembly61602-BZ180 · 61602-BZ200 · 61602-BZ210 · 61602-BZ340 · 61602-BZ350
61606CLeft rear side panel inner panel sub-assembly61606-BZ110
61607HRight side wheel cover lining plate sub-assembly61607-BZ220
61608HLeft side wheel cover lining plate sub-assembly61608-BZ220
61627ARight side panel lower extension61621-BZ170
61628AExtension piece under left side hoarding61622-BZ160 · 61622-BZ170
61631ARight wheel cover outer panel61631-BZ260
61632ALeft side wheel cover outer panel61632-BZ260
61637Right wheel cover bracket61637-BZ150
61638Left side wheel cover bracket61638-BZ100
61645BRight rear side wheel housing corner panel61645-BZ140
61646BLeft rear side wheel housing corner panel61646-BZ170
61647ERight side panel lower reinforcement61647-BZ040
61648FReinforcement piece under left side hoarding61648-BZ040
61705Roof right inner panel sub-assembly61705-BZ140
61706Roof left inner panel sub-assembly61706-BZ120
61715ARoof right inner upper extension61715-BZ080
61716ARoof left inner upper extension61716-BZ080
61717ARight side panel extension reinforcement61717-BZ070
61718ALeft side bulkhead extension reinforcement61718-BZ070
61991CRight front pillar cover protector61991-BZ030
61992BLeft front pillar cover protector61992-BZ030
65637Right rear wheel house lining65637-BZ340
65637CRear wheel cover lining clip90467-06121
65638Left rear wheel house lining65638-BZ330
65638CRear wheel cover lining clip90467-06121
65677CRight rear wheel house seal65677-BZ020
65678ALeft rear wheel house seal65678-BZ020
