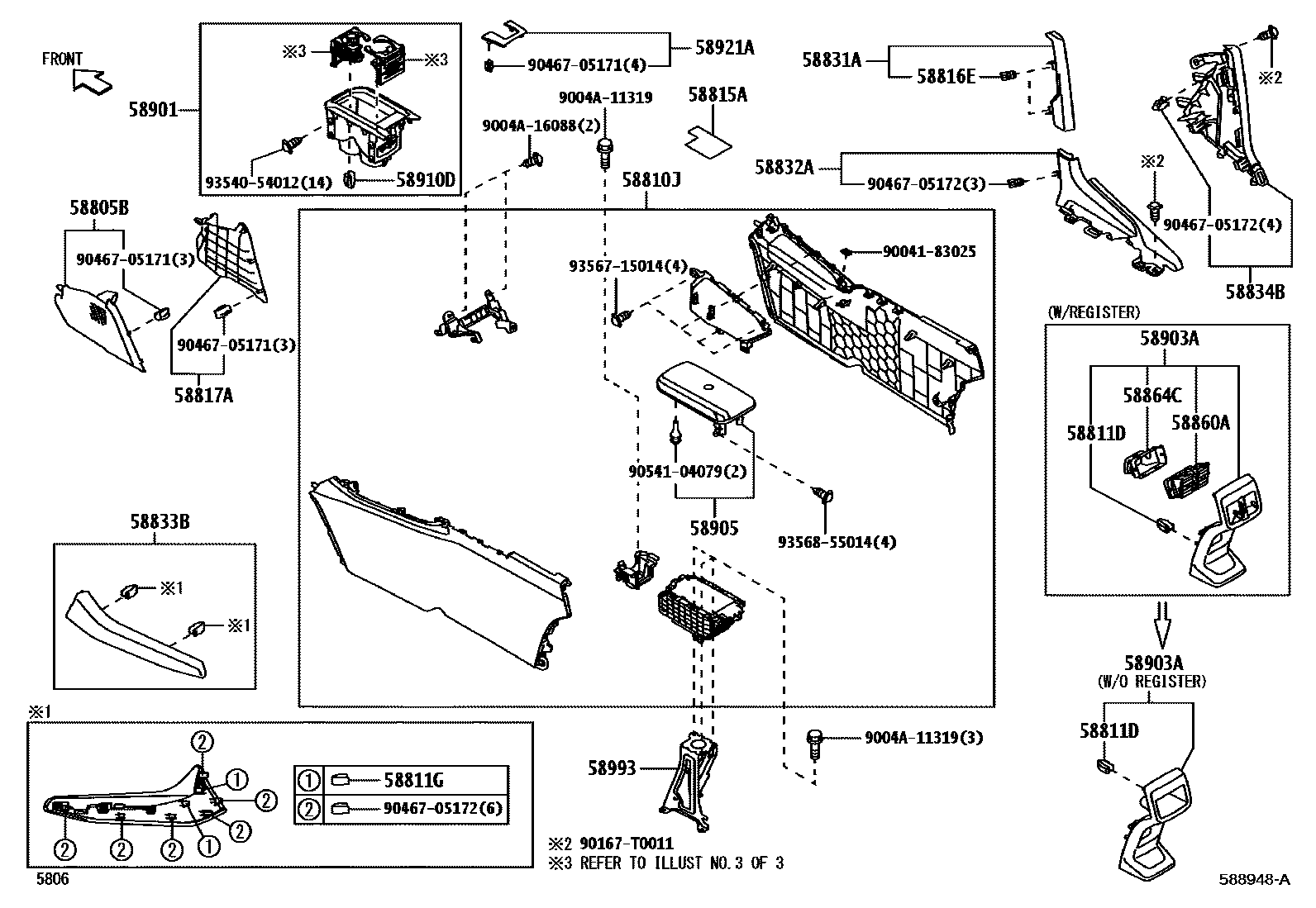

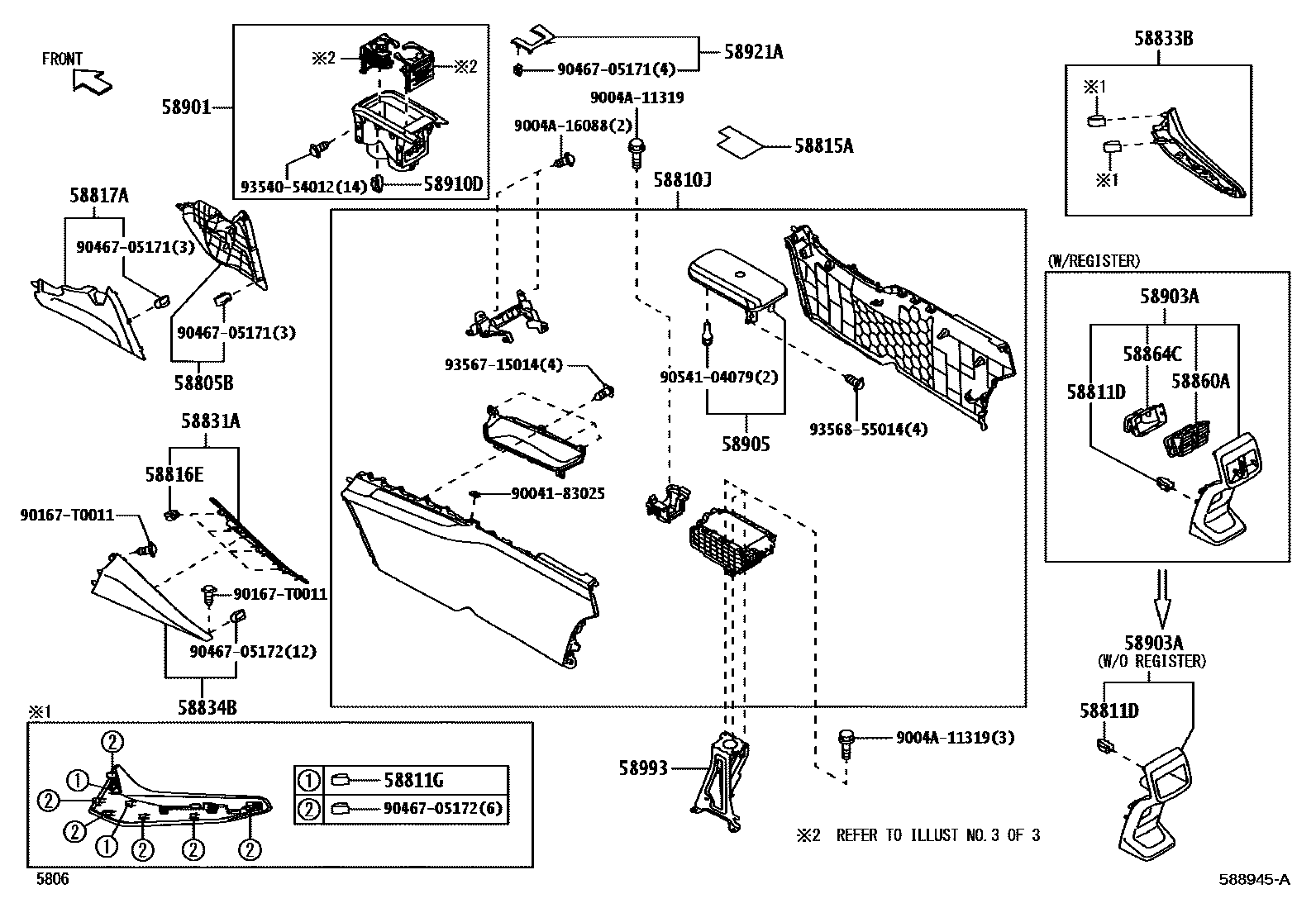

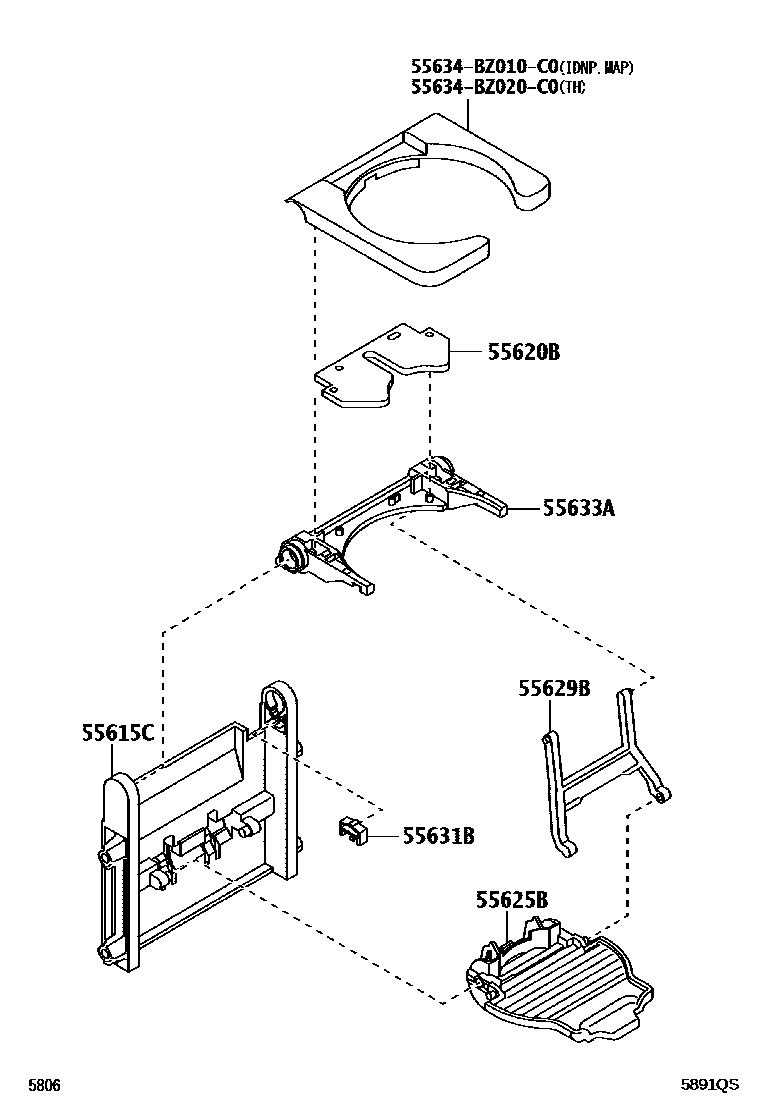

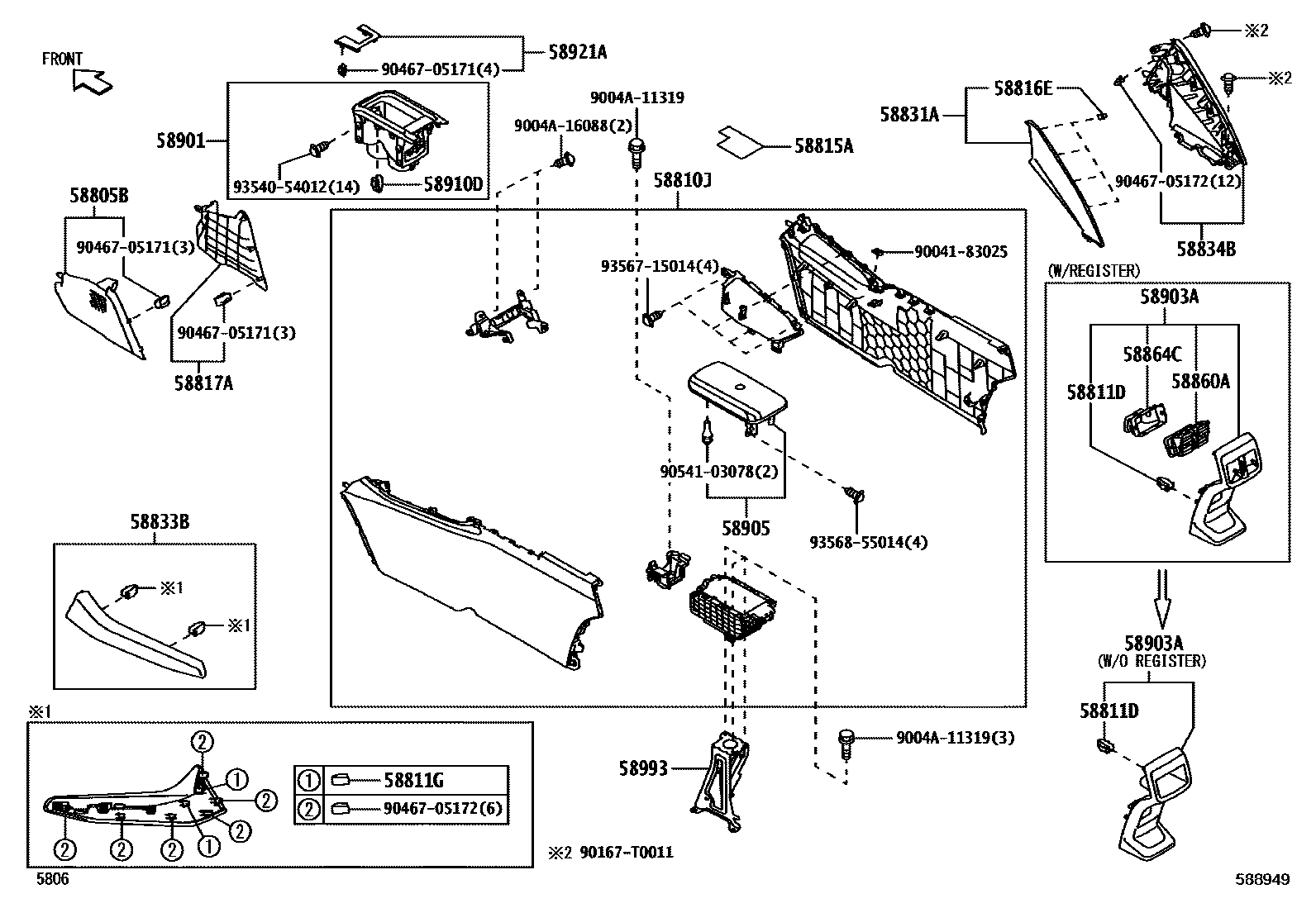

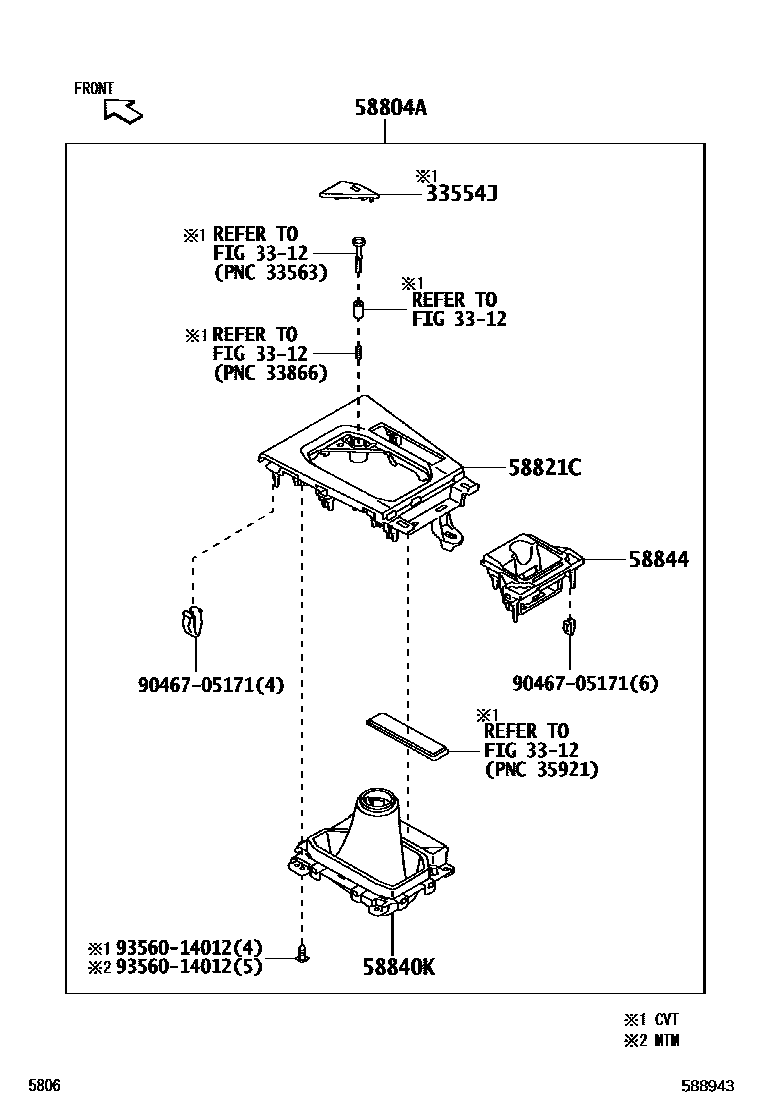

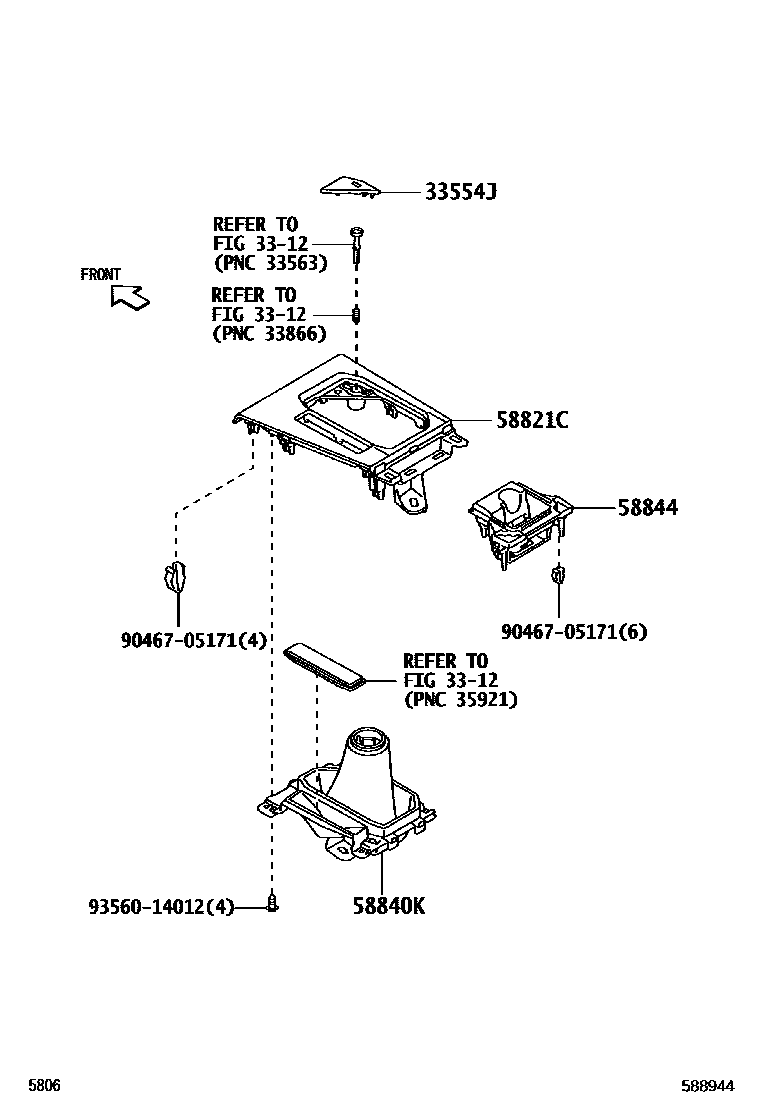

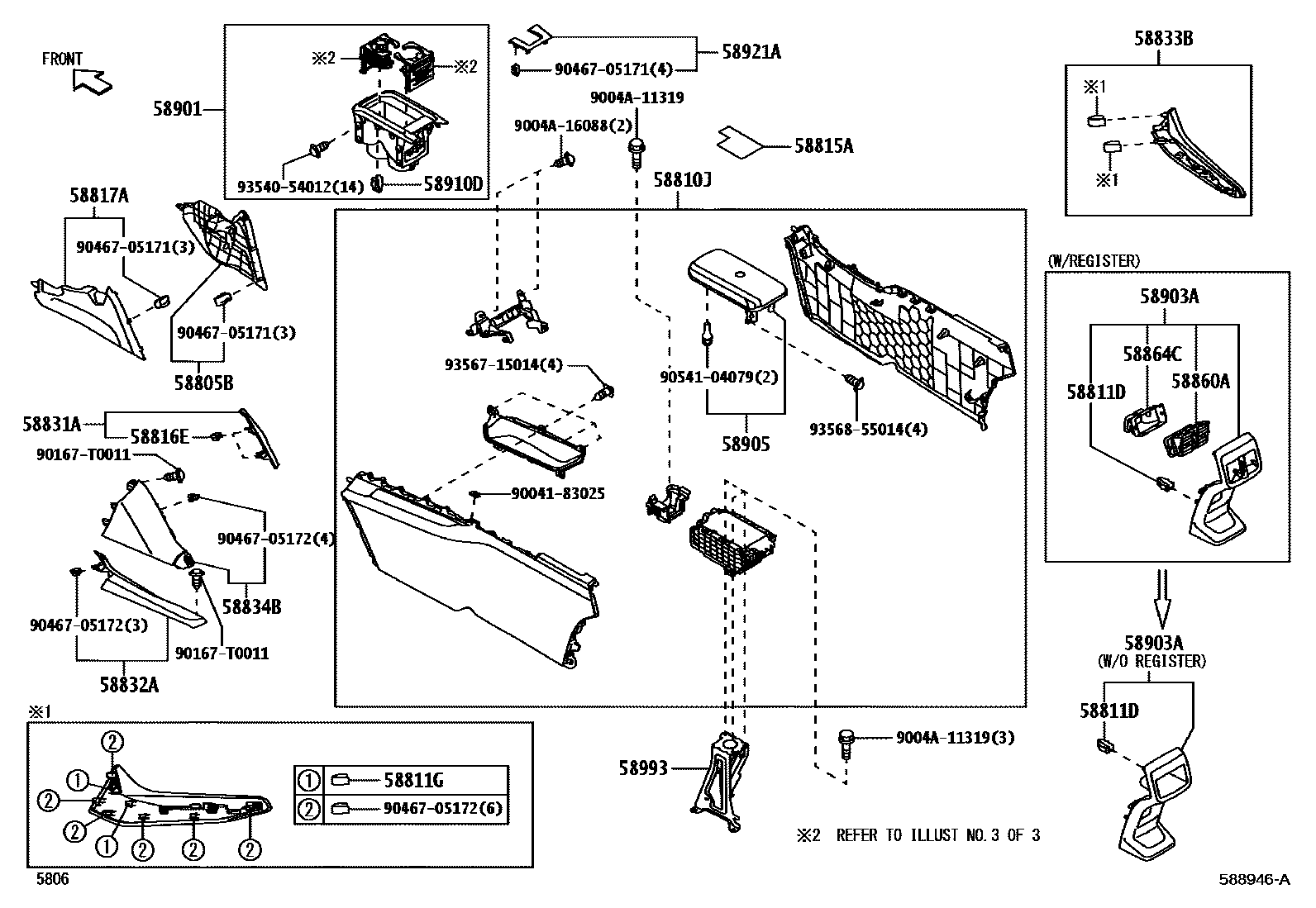

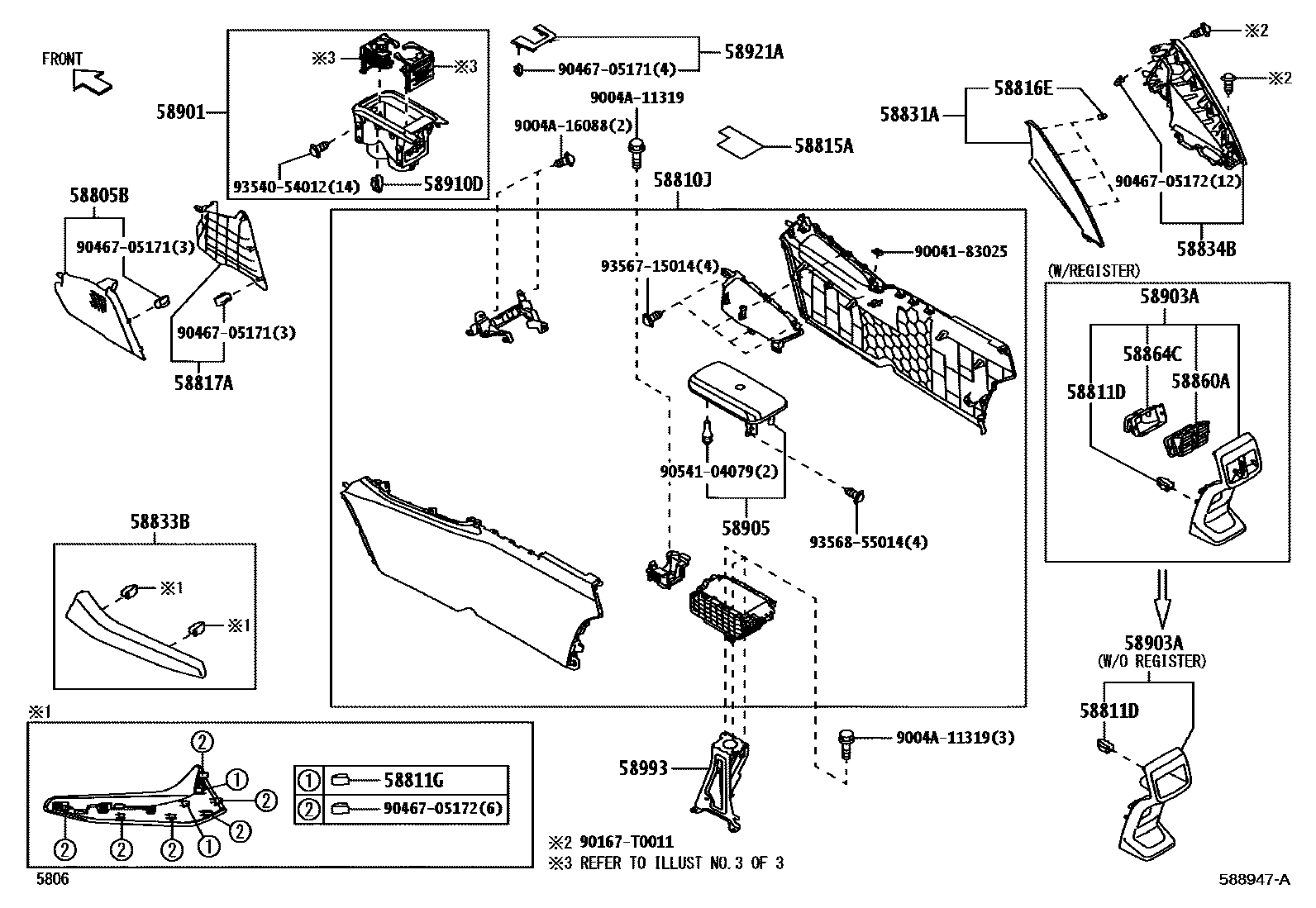

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 8 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58811D | Clip (for armrest box) | 90467-05171 |
| 58811G | Clip (armrest box) | 90467-05171 |
| 58815A | Armrest box felt pad | 58815-BZ160 |
| 58816E | Front armrest box insert clip | 90467-05171 · 90467-05172 |
| 58831A | Front armrest box upper panel decorative parts | 58831-BZ070 · 58831-BZ100 |
| 58864C | Armrest box No. 4 air duct | 58864-BZ030 · 58864-BZ040 · 58864-BZ060 |
| 58910D | Clip (for armrest box) | 90467-05171 |
| 58921A | Rear armrest box upper panel | 58921-BZ220 · 58921-BZ240 |
| 58993 | Armrest box rear mounting bracket | 58993-BZ100 |
