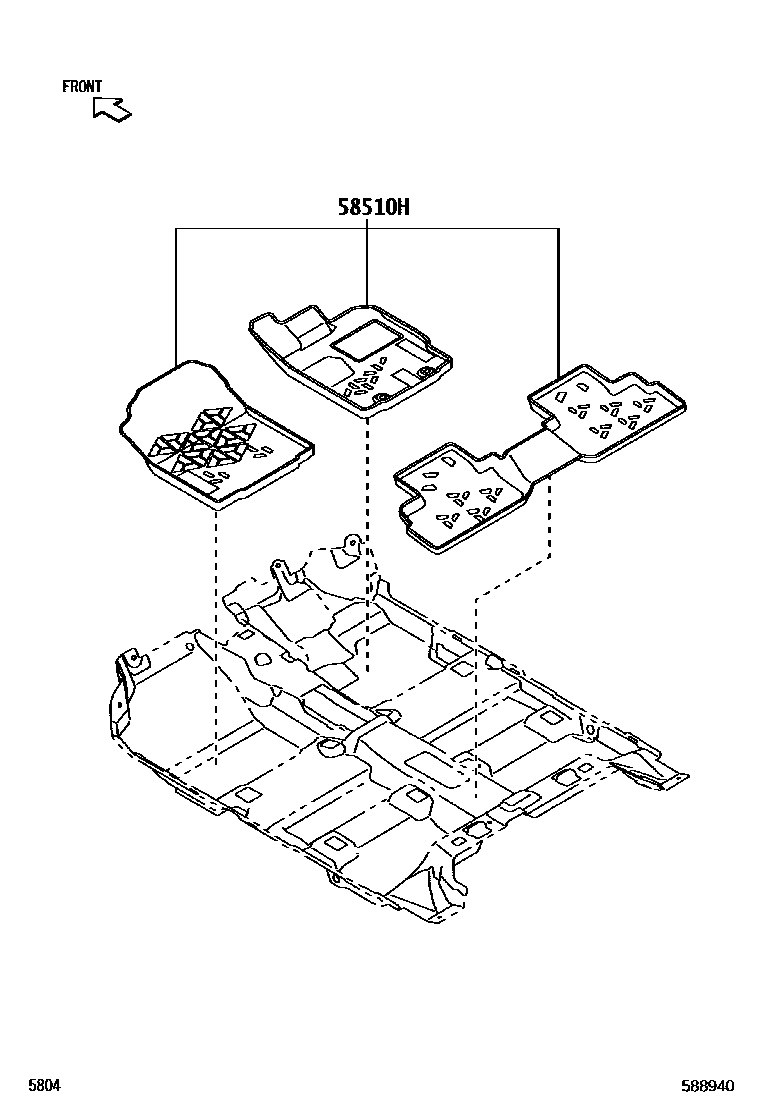

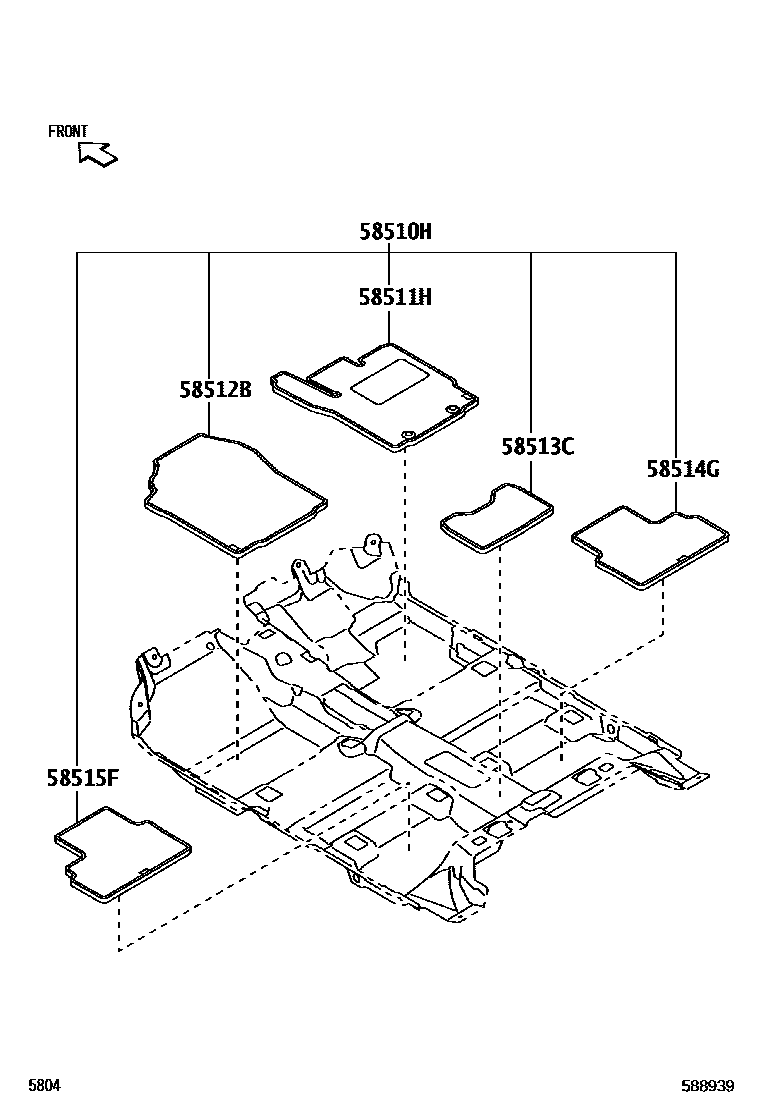

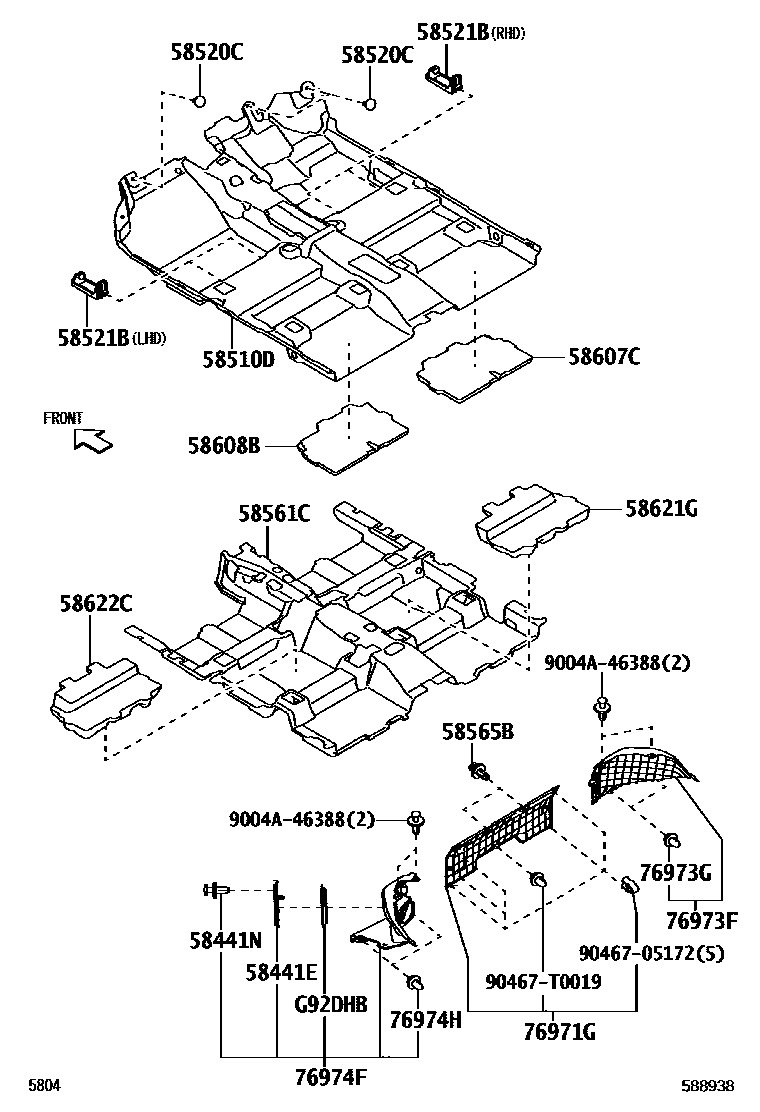

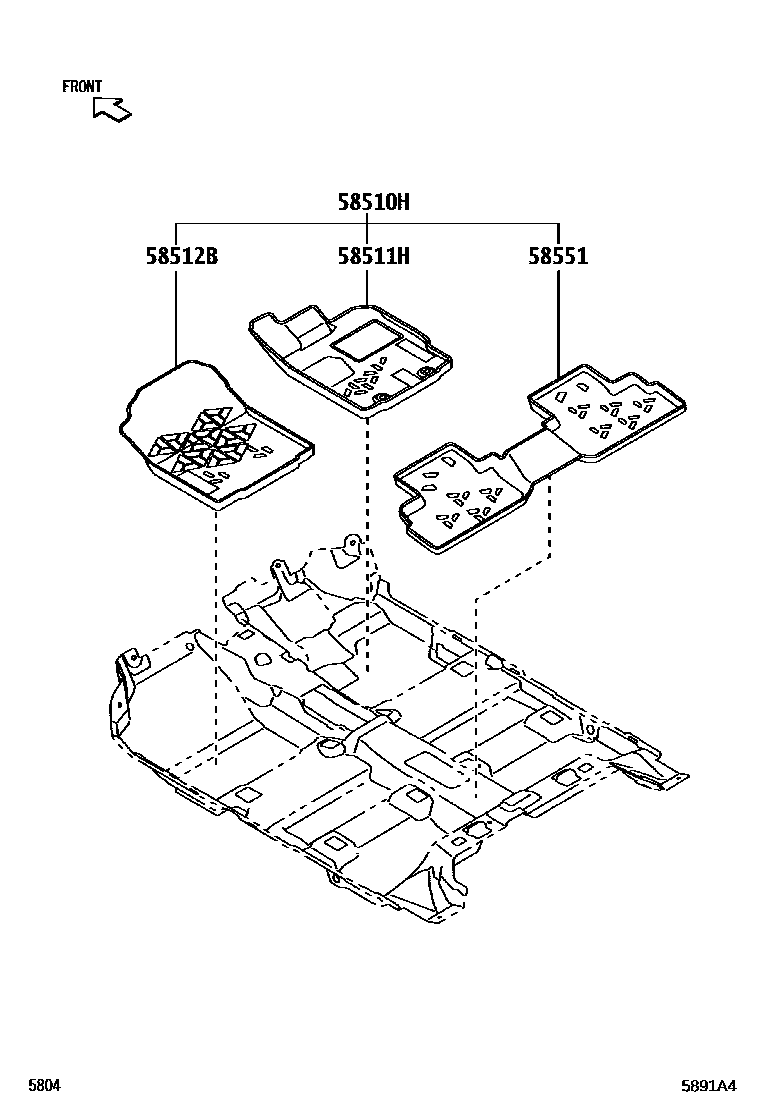

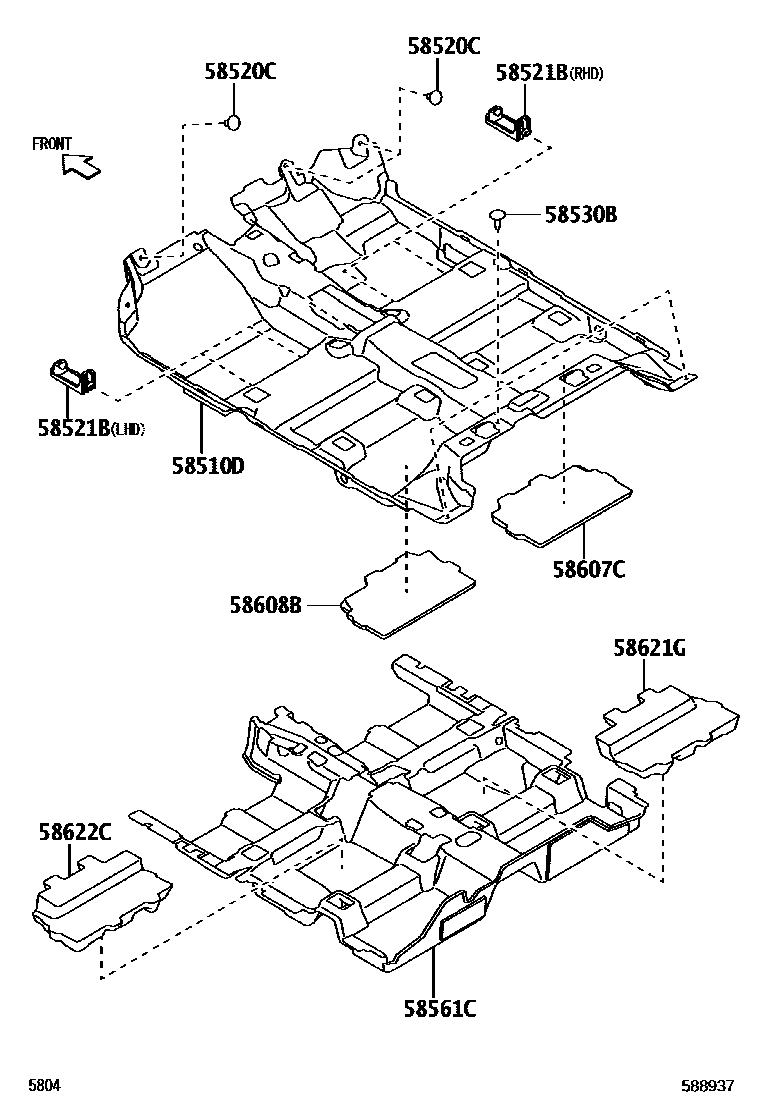

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58510H | Floor mat assembly | 58510-BY700 · 58510-BY710 · 58510-BY720 · 58510-BY730 · 58510-BYA10 |
| 58511H | Front floor right mat | 58511-BZ630 · 58511-BZB90 · 58511-BZC00 |
| 58512B | Front floor left mat | 58512-BZ250 · 58512-BZ260 · 58512-BZ300 |
| 58513C | Front floor center mat | 58513-BZ080 · 58513-BZ090 |
| 58514G | Rear floor right mat | 58514-BZ220 |
| 58515F | Rear floor left mat | 58515-BZ200 |
| 58521B | carpet hook | 58522-52030 |
| 58551 | rear floor mat | 58514-BZ230 |
| 58561C | Front floor silencer No. 1 | 58561-BZ100 · 58561-BZ110 · 58561-BZ120 · 58561-BZ150 |
| 58607C | Front floor right rear muffler pad sub-assembly | 58676-BZ060 · 58676-BZ070 |
| 58608B | Front floor left rear muffler pad sub-assembly | 58677-BZ060 · 58677-BZ070 |
| 58621G | Front floor right muffler pad | 58621-BZ150 |
| 58622C | Front floor left muffler pad | 58622-BZ080 |
| 76973G | Right rear bottom cover clip | 90467-T0019 |
| 76974H | Left rear bottom cover clip | 90467-T0019 |
| G92DHB | No. 1 HV battery air intake filter | G92DH-K0010 |
