VOCR EPC

Toyota YARIS hole plug — Figure 5701

Toyota YARIS EPC diagram 5701, hole plug, with 6 images and 0 PNC and OE references.

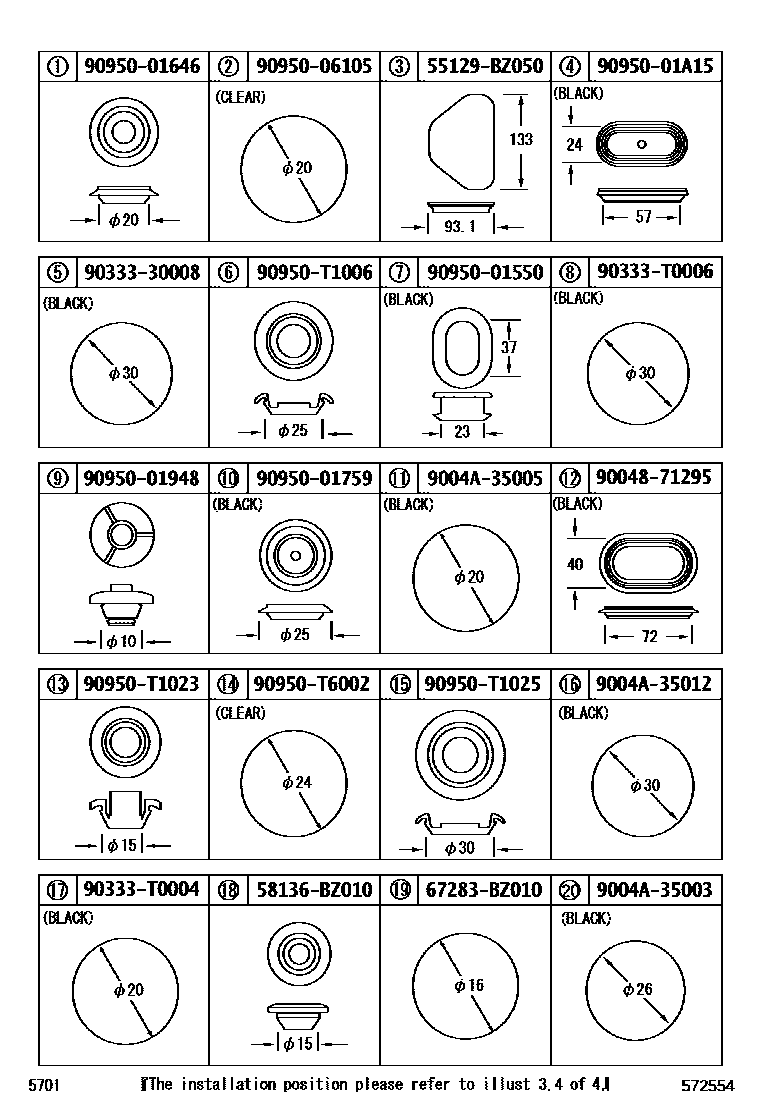

Toyota YARIS hole plug EPC diagram — 572554
hole plug — 572554 (202306 – 999999)

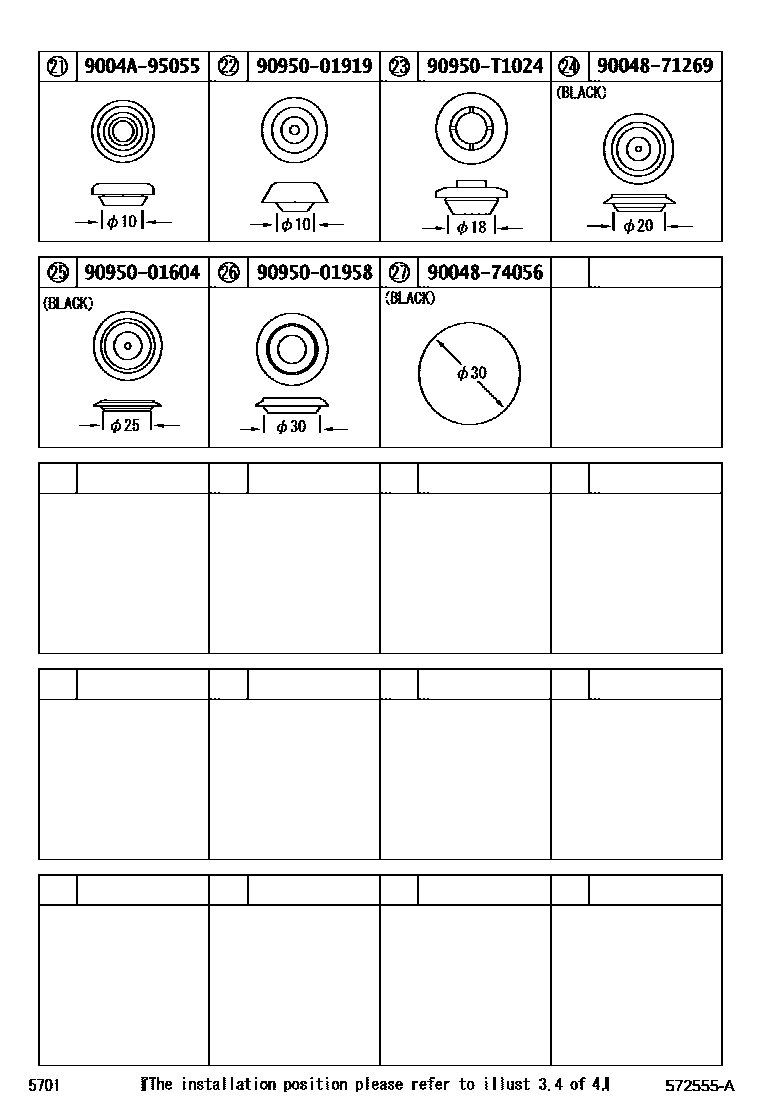

Toyota YARIS hole plug EPC diagram — 572555A
hole plug — 572555A (202306 – 999999)

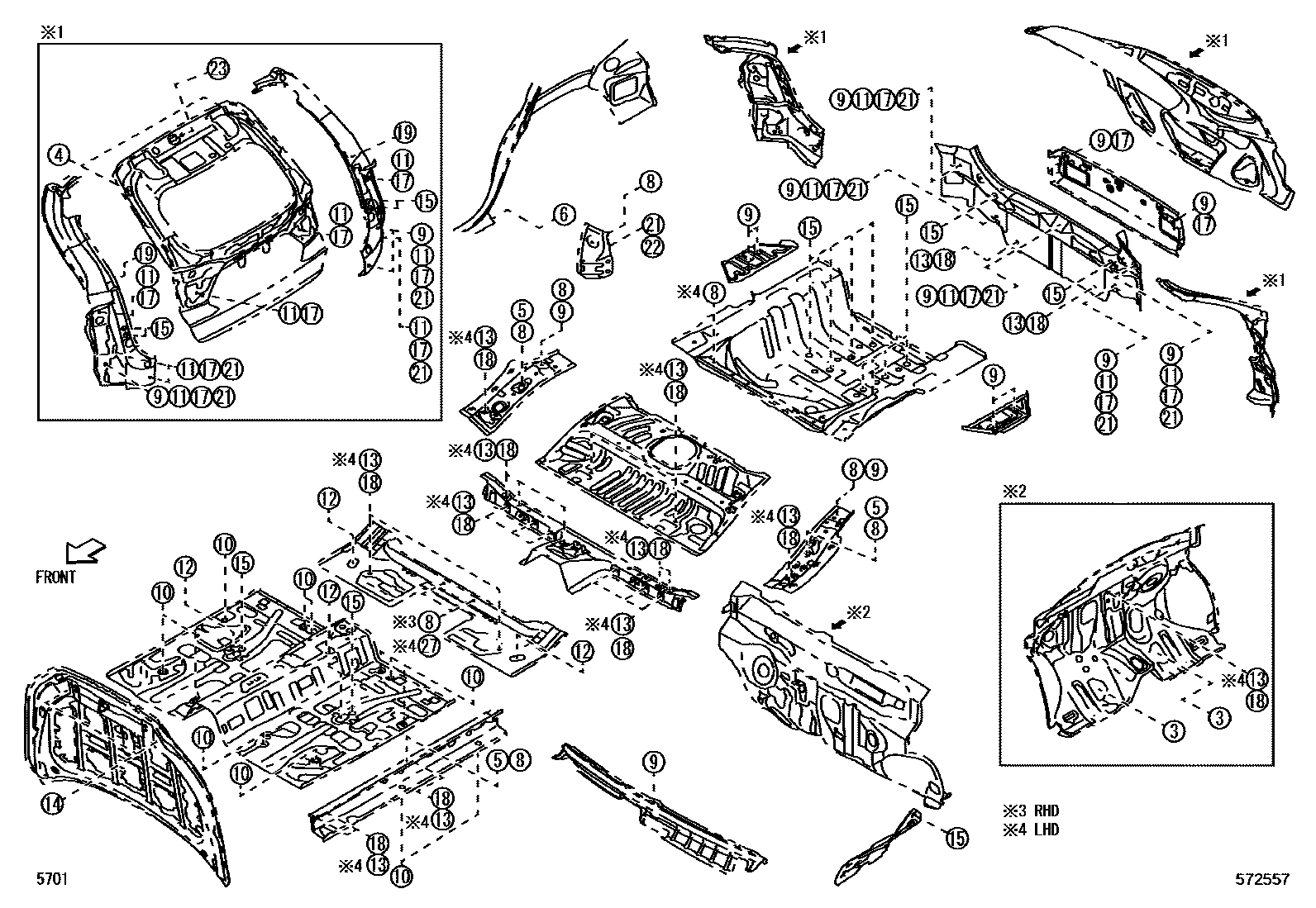

Toyota YARIS hole plug EPC diagram — 572557
hole plug — 572557 (202306 – 999999)

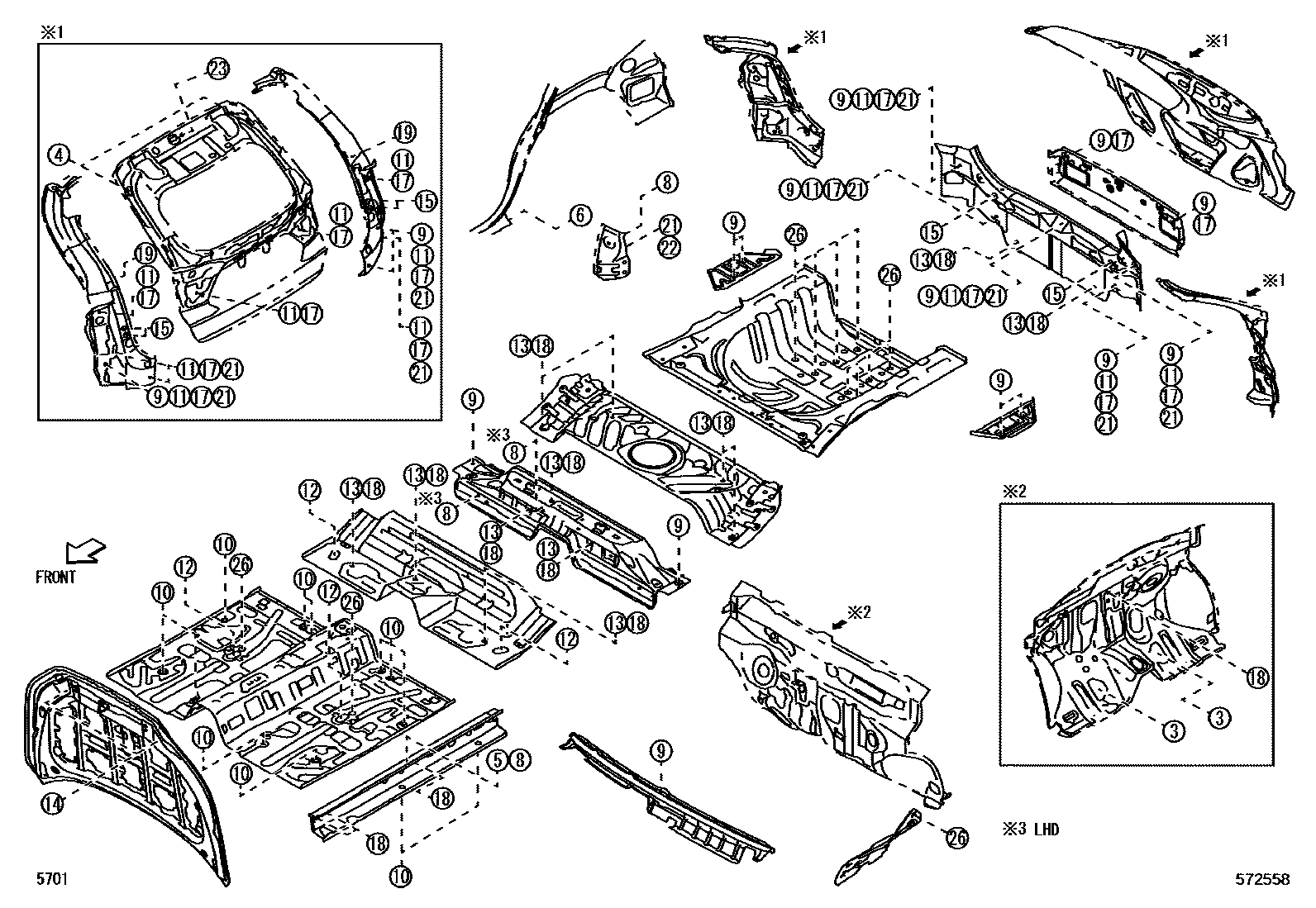

Toyota YARIS hole plug EPC diagram — 572558
hole plug — 572558 (202306 – 999999)

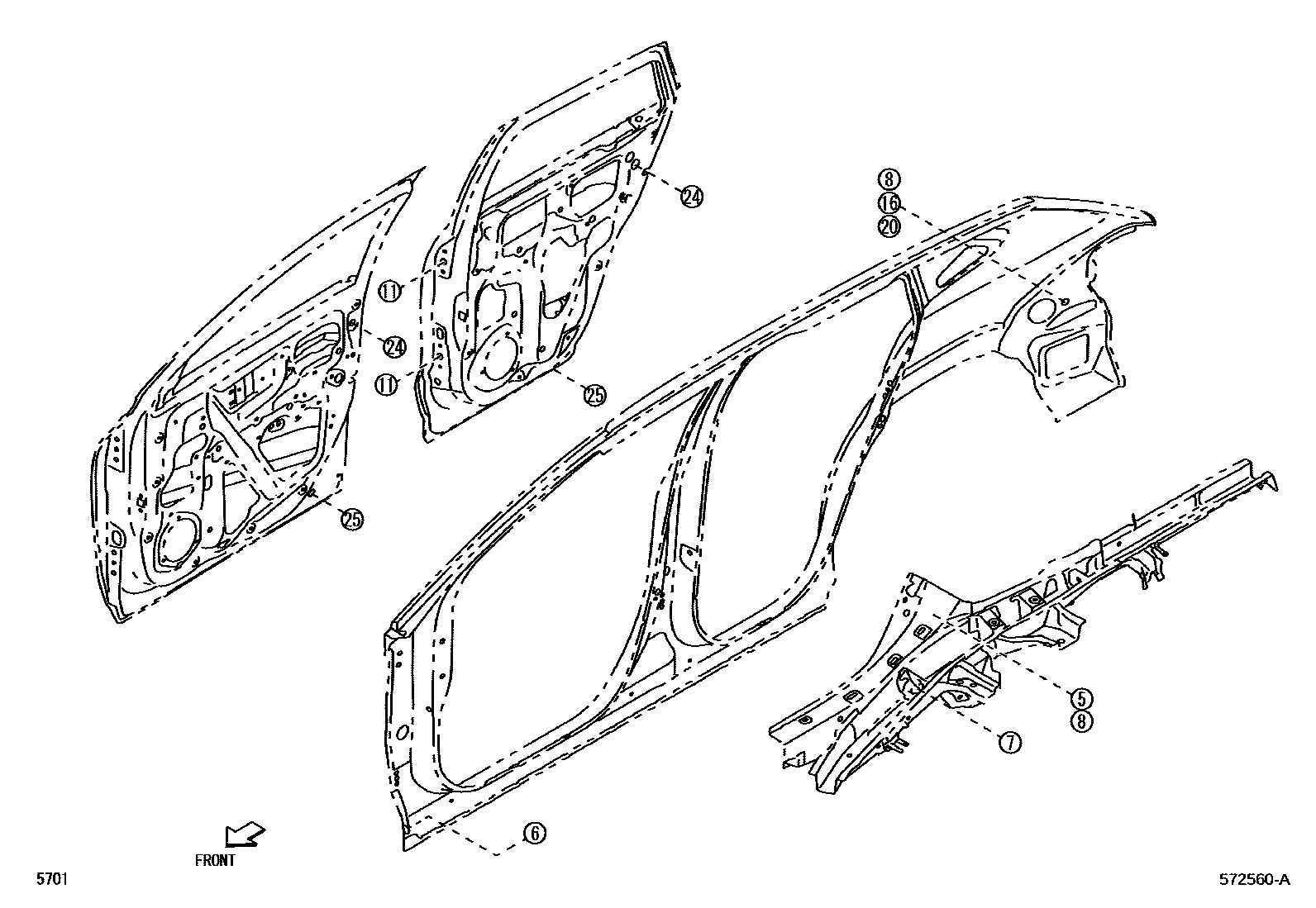

Toyota YARIS hole plug EPC diagram — 572560A
hole plug — 572560A (202306 – 999999)

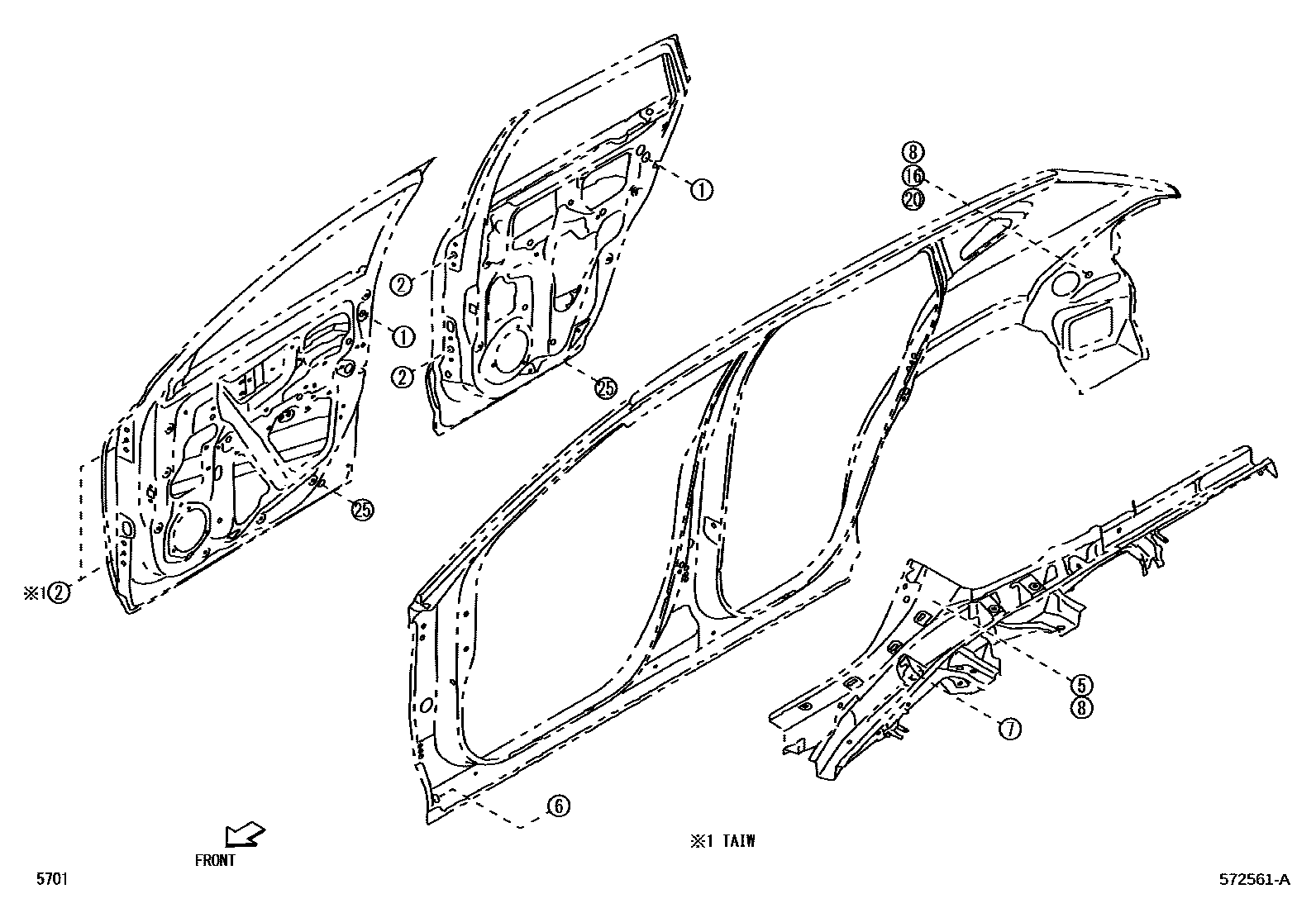

Toyota YARIS hole plug EPC diagram — 572561A
hole plug — 572561A (202310 – 999999)
