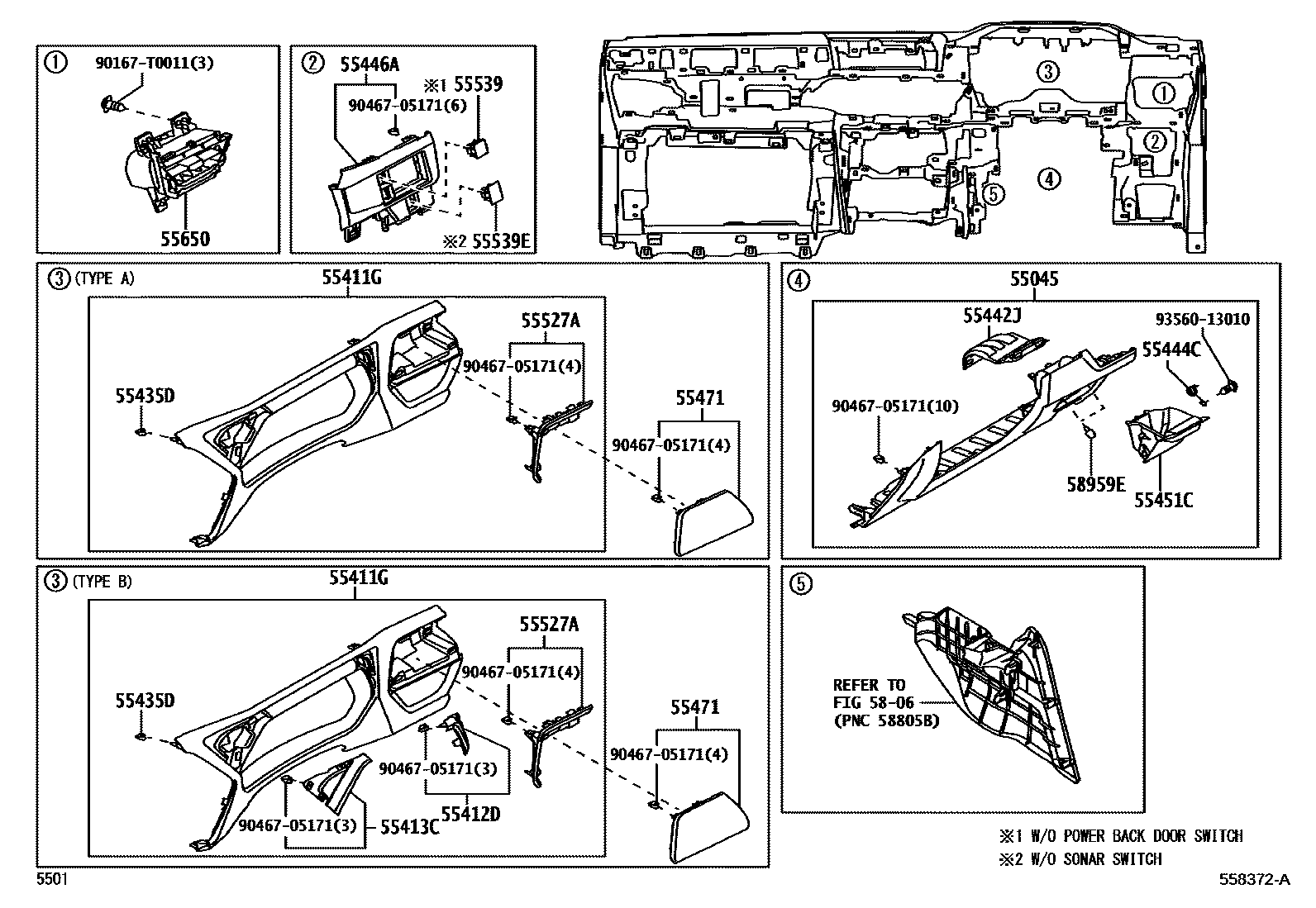

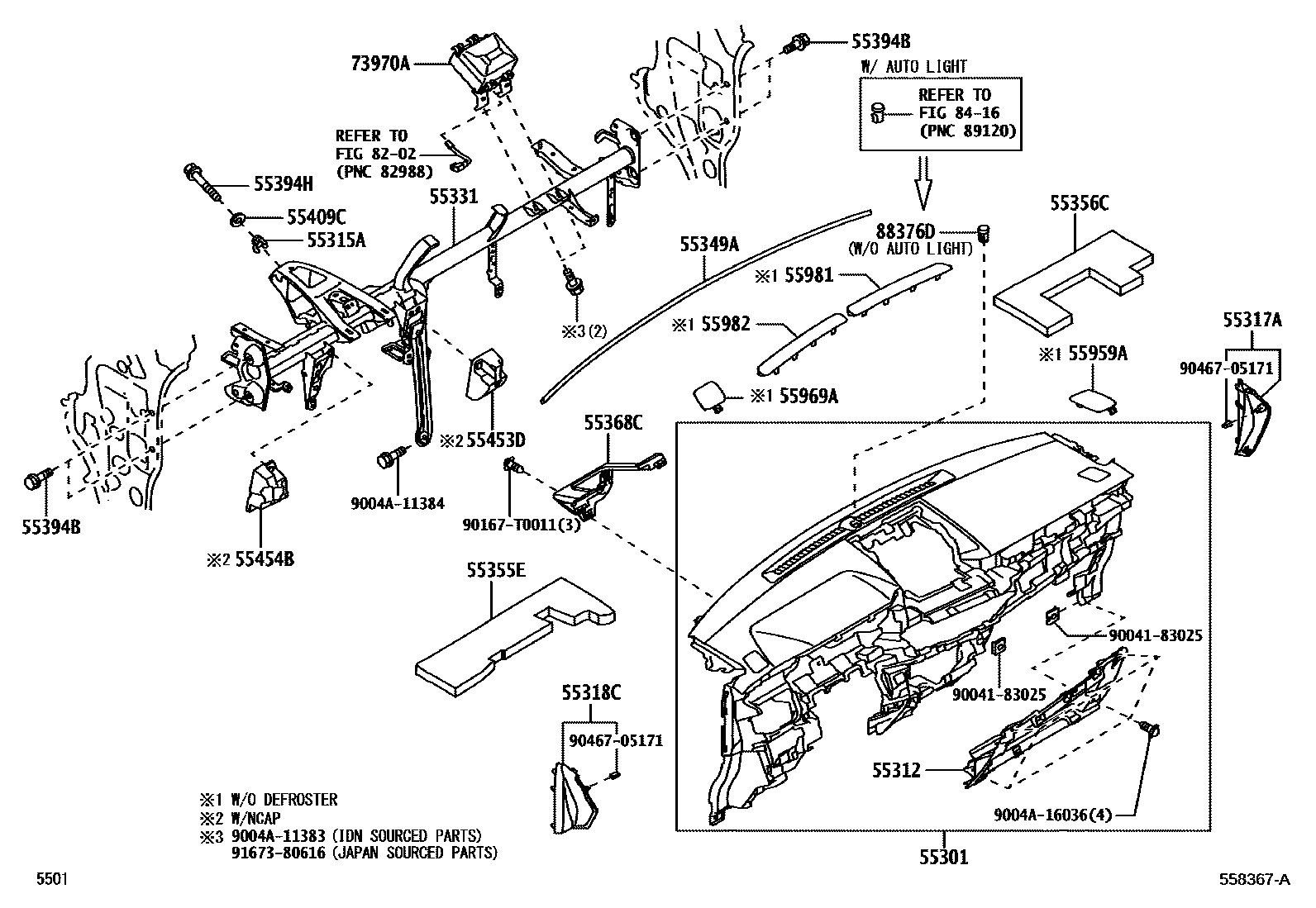

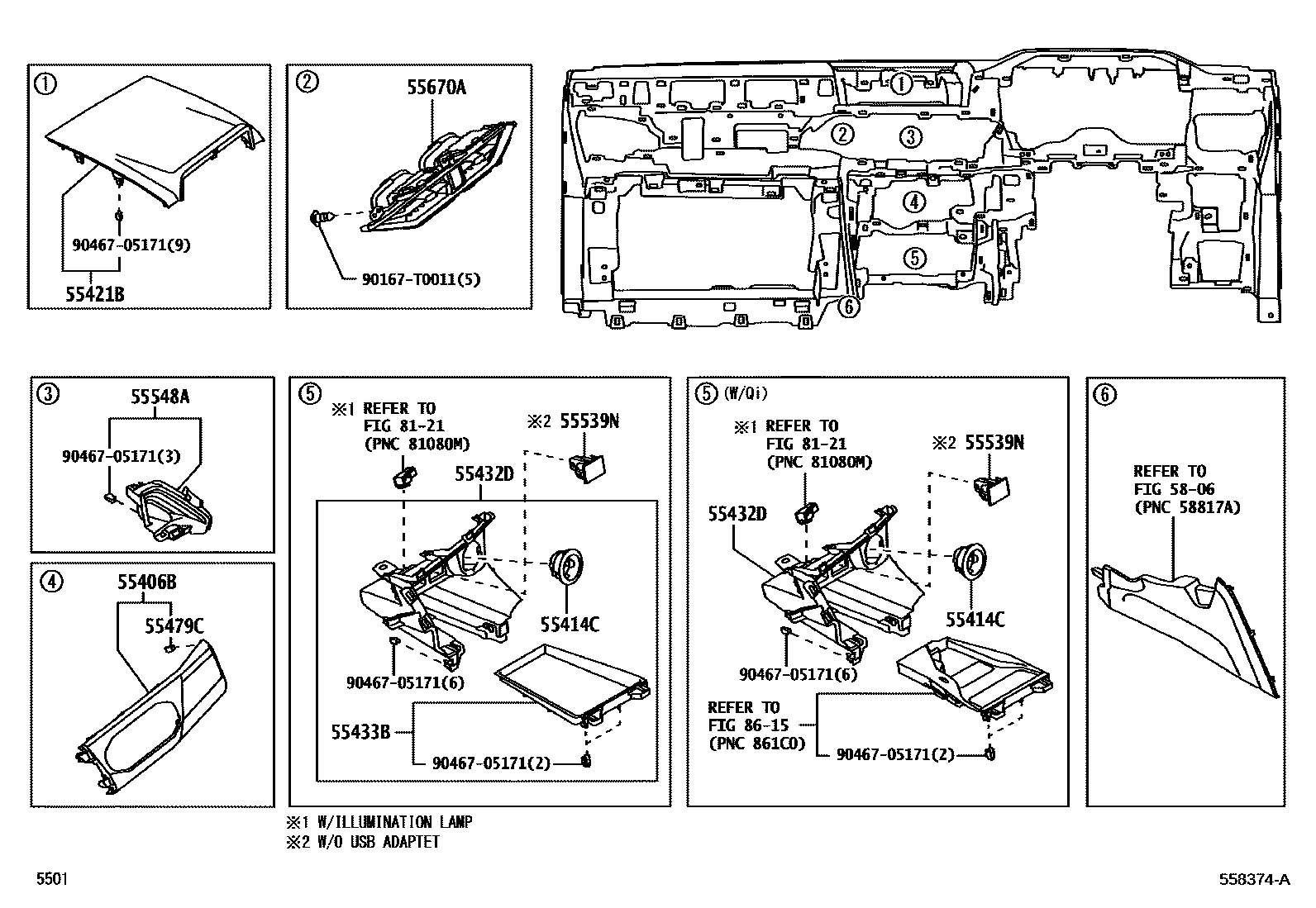

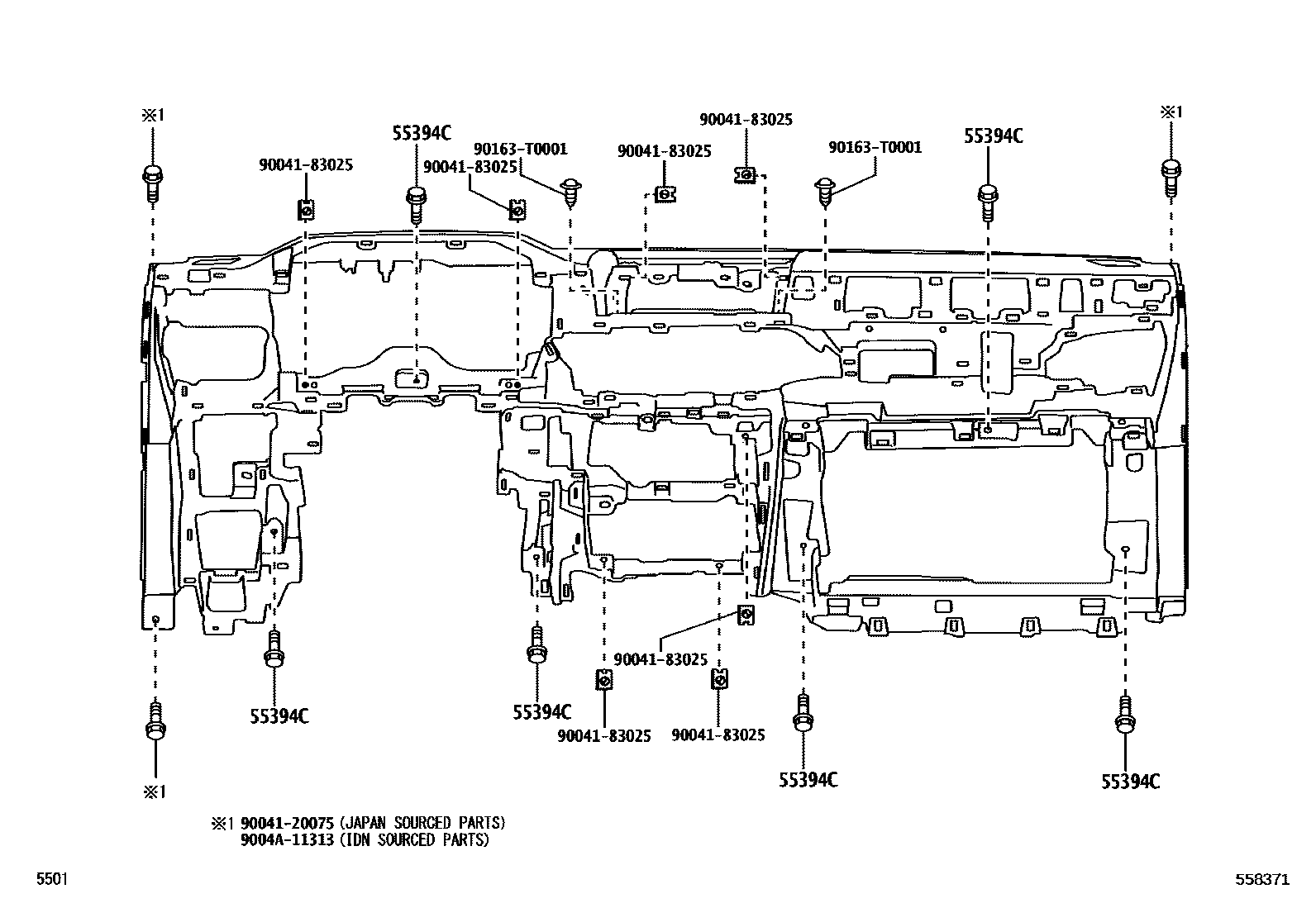

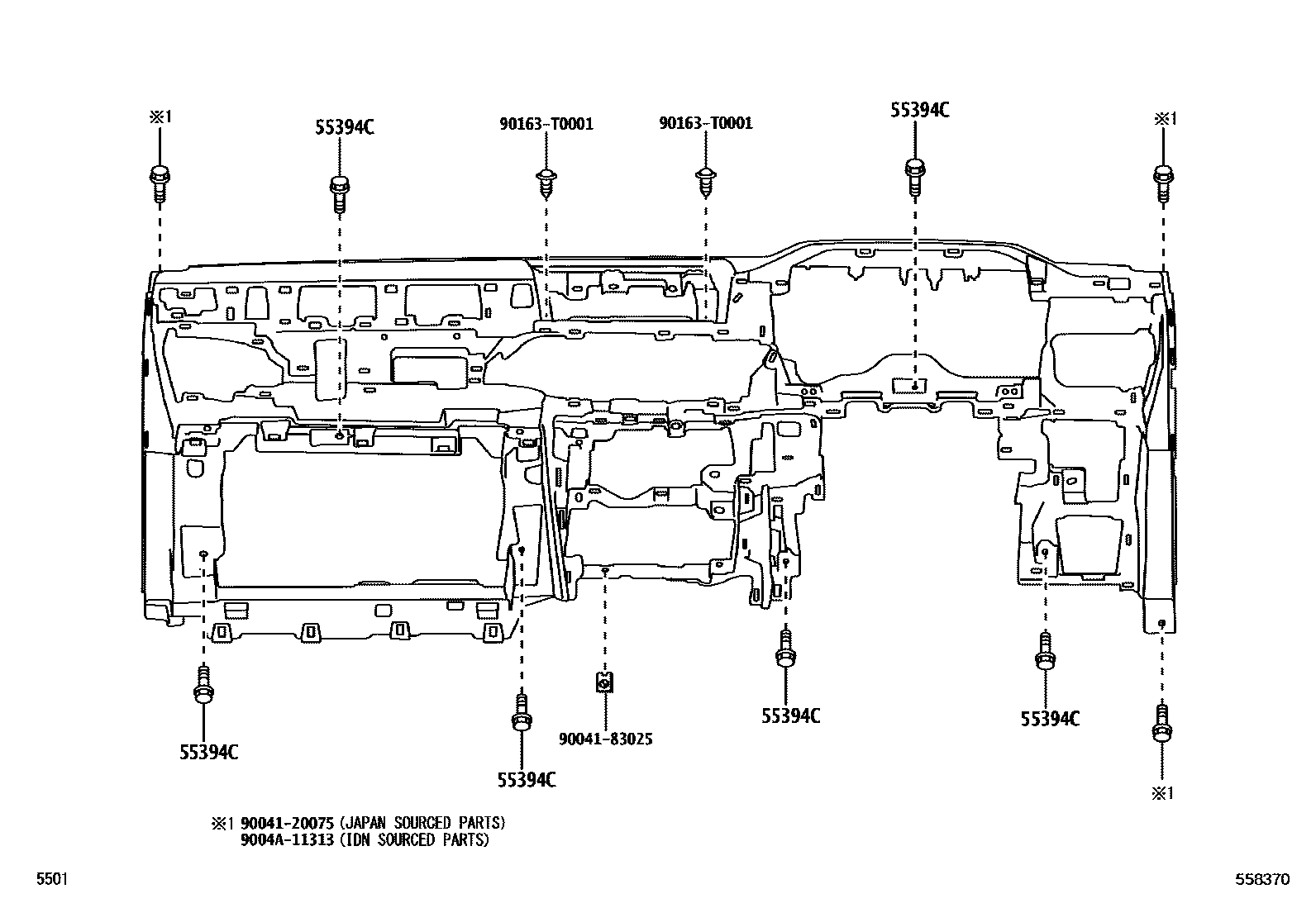

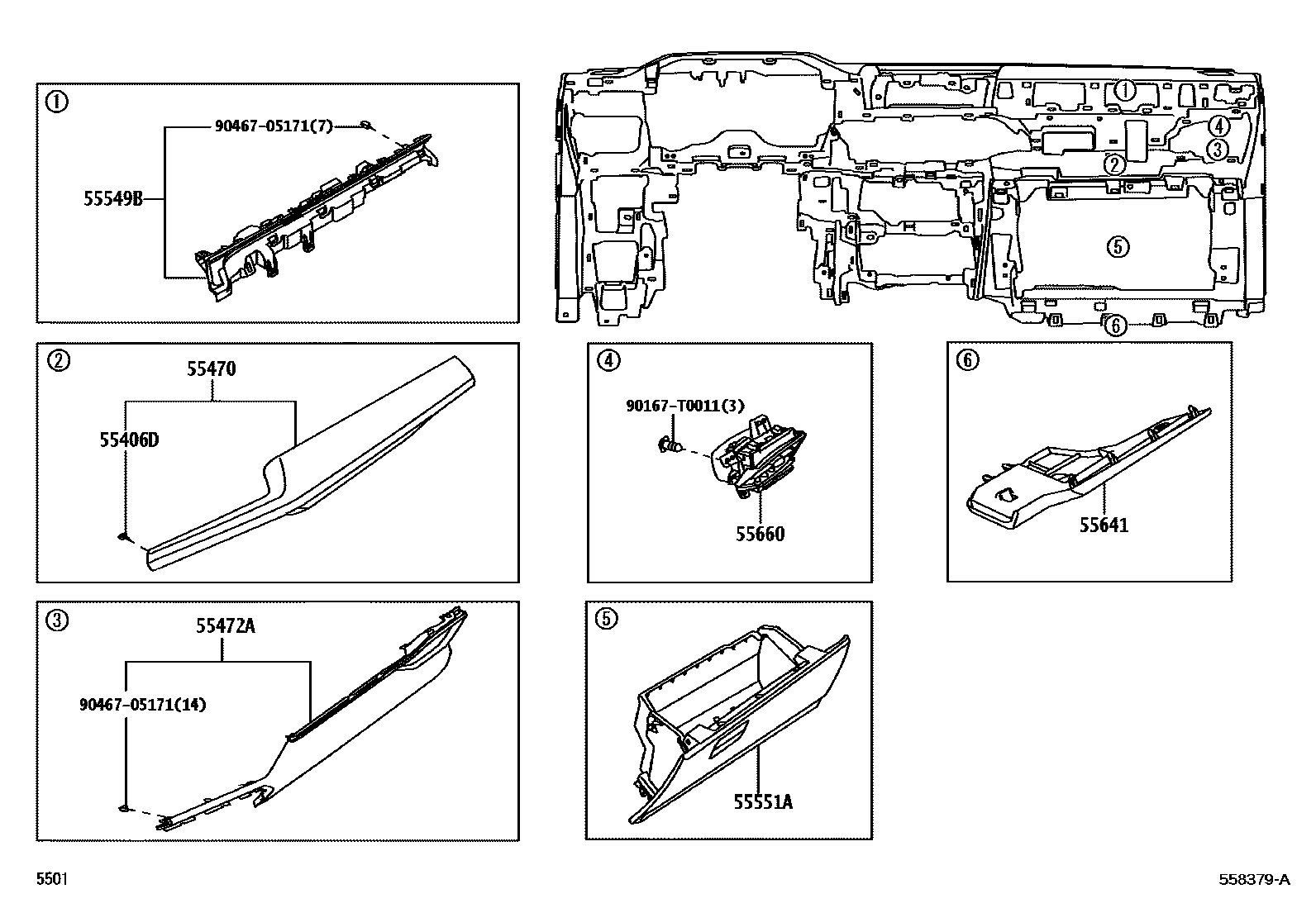

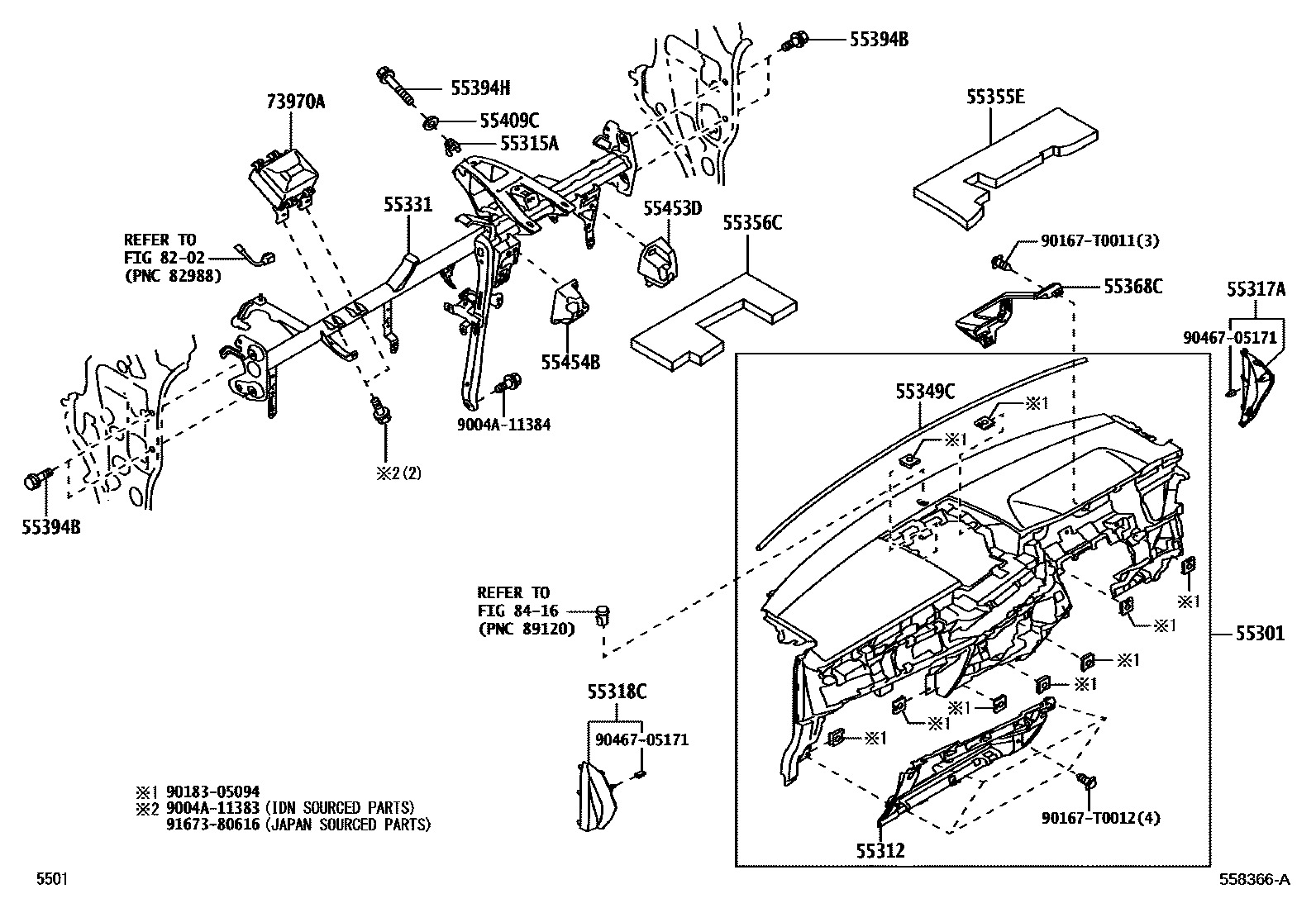

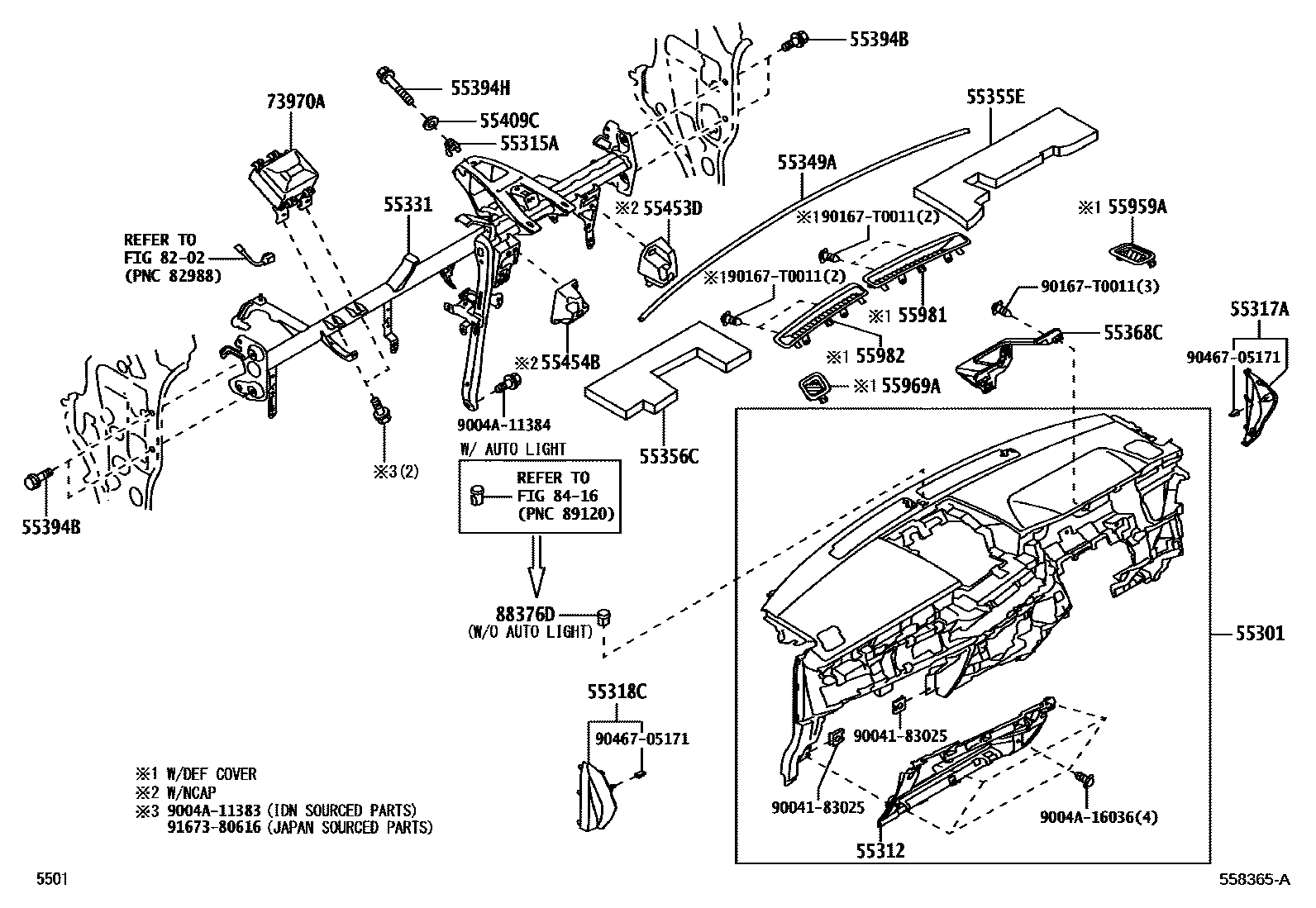

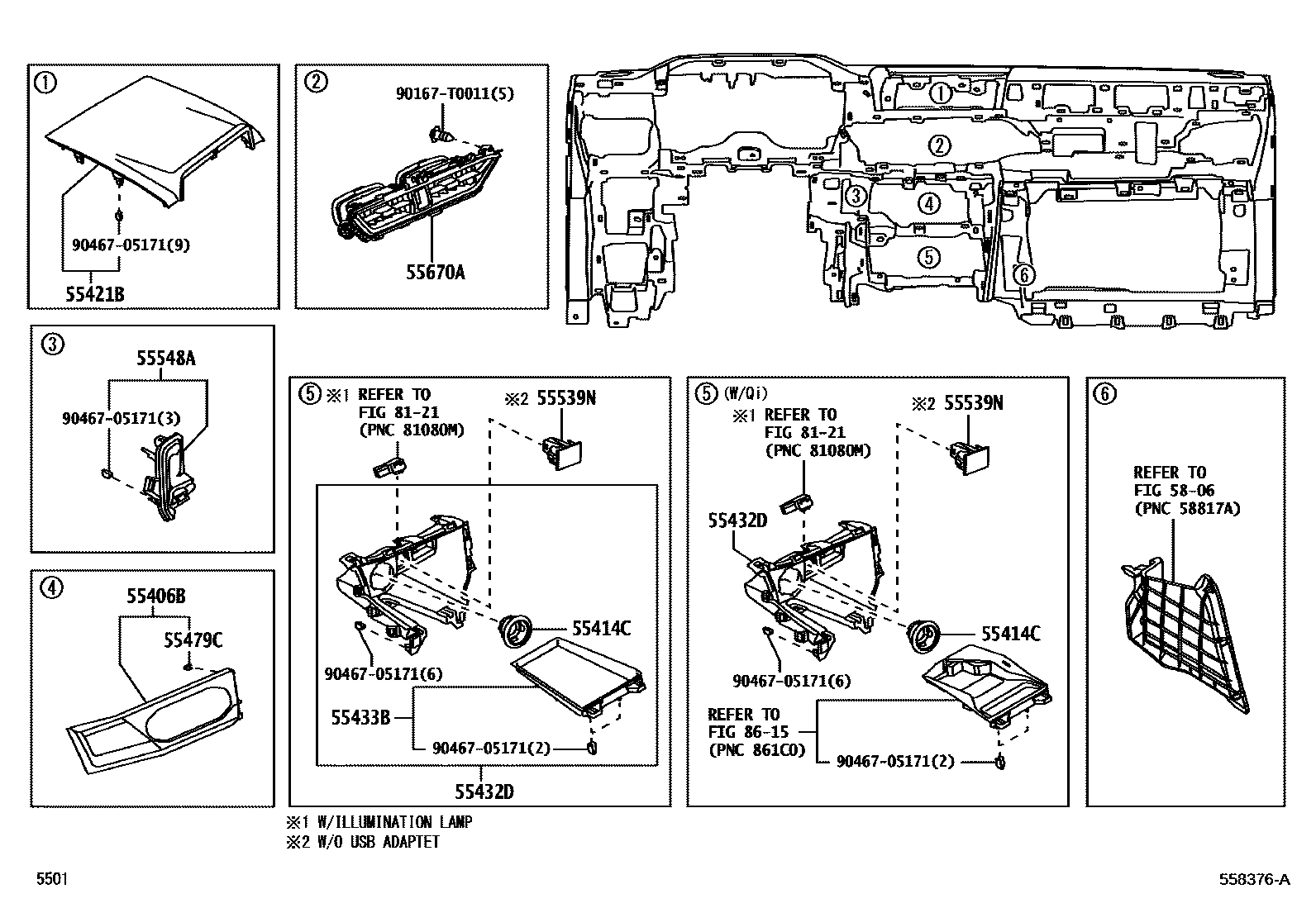

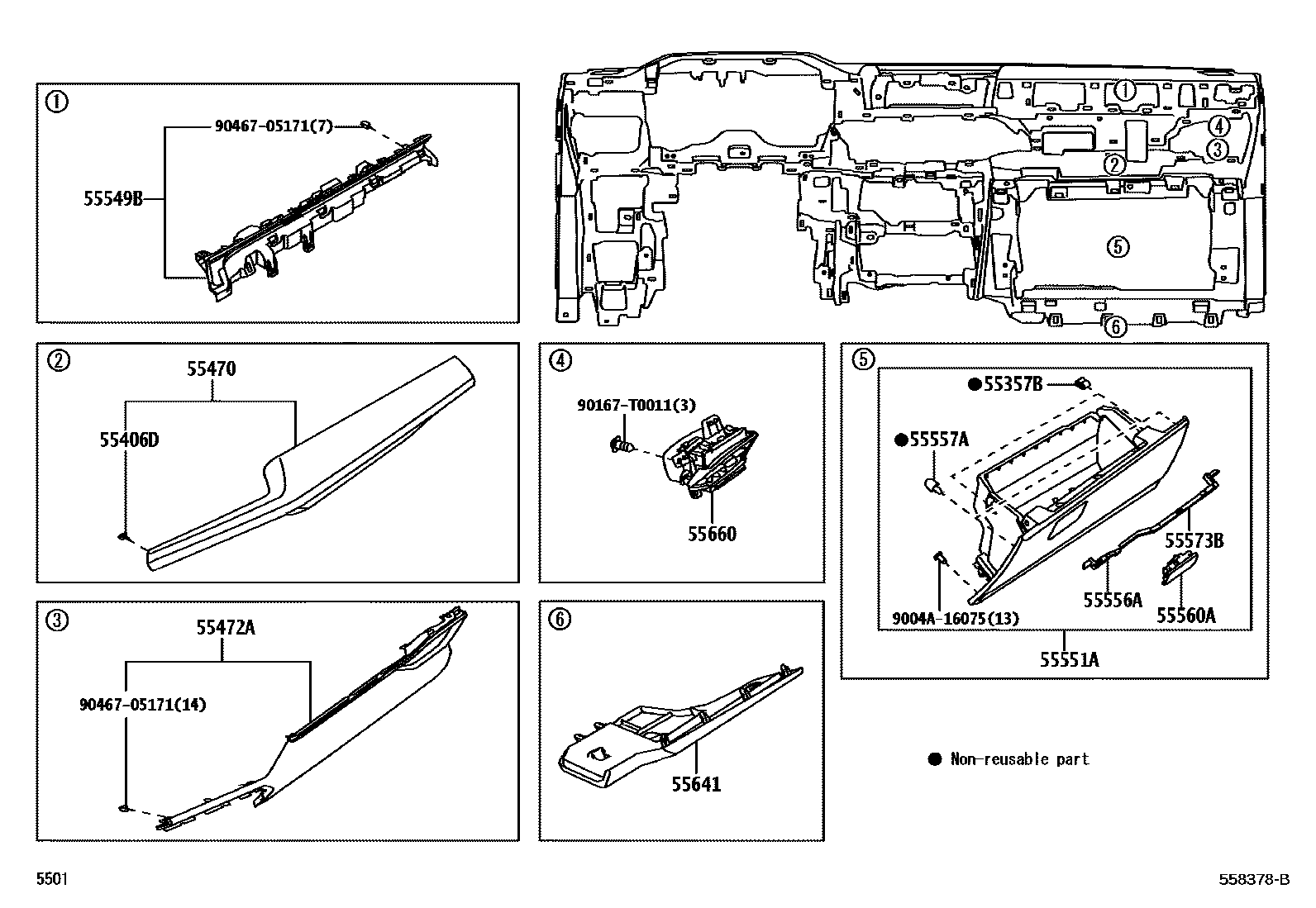

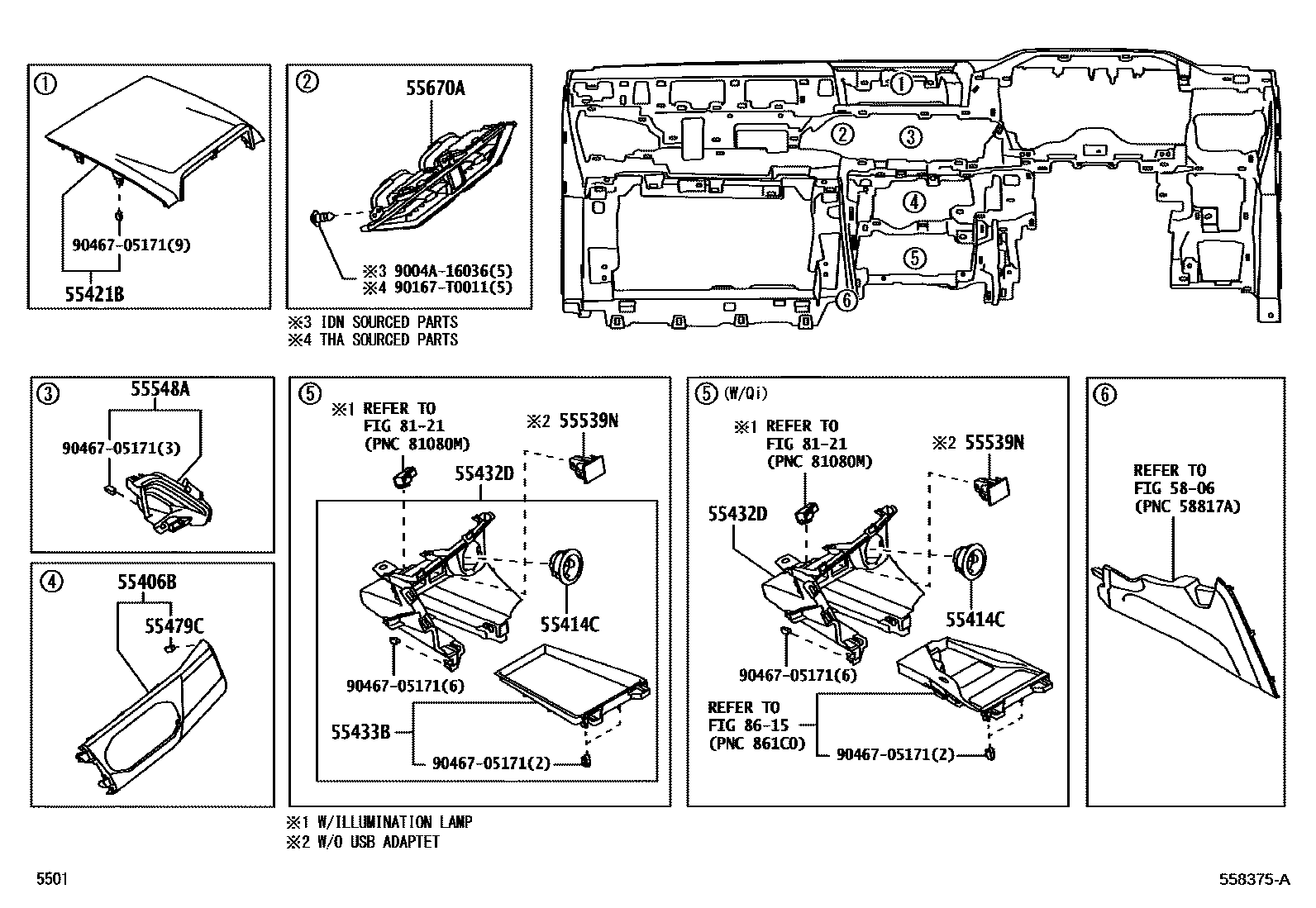

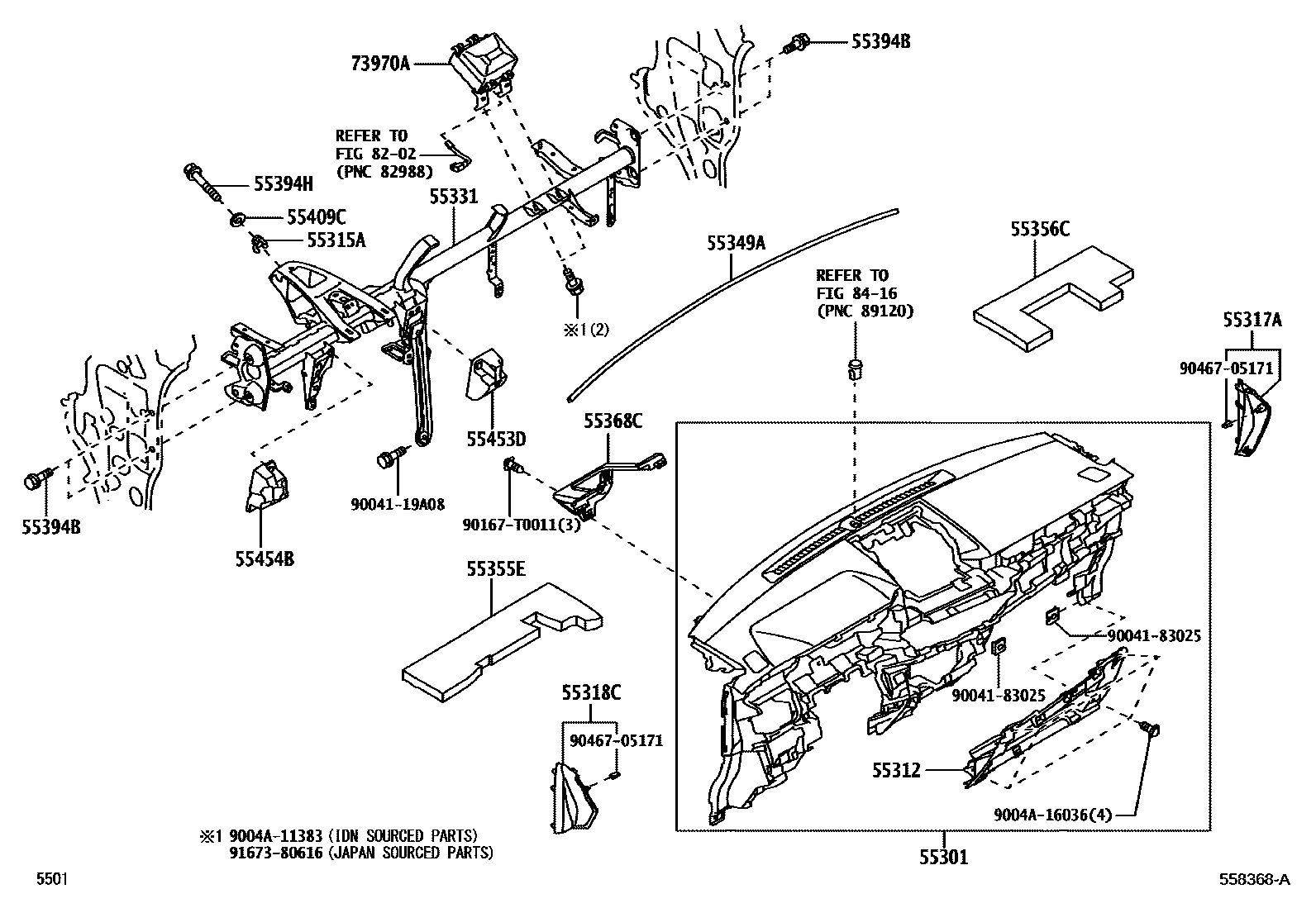

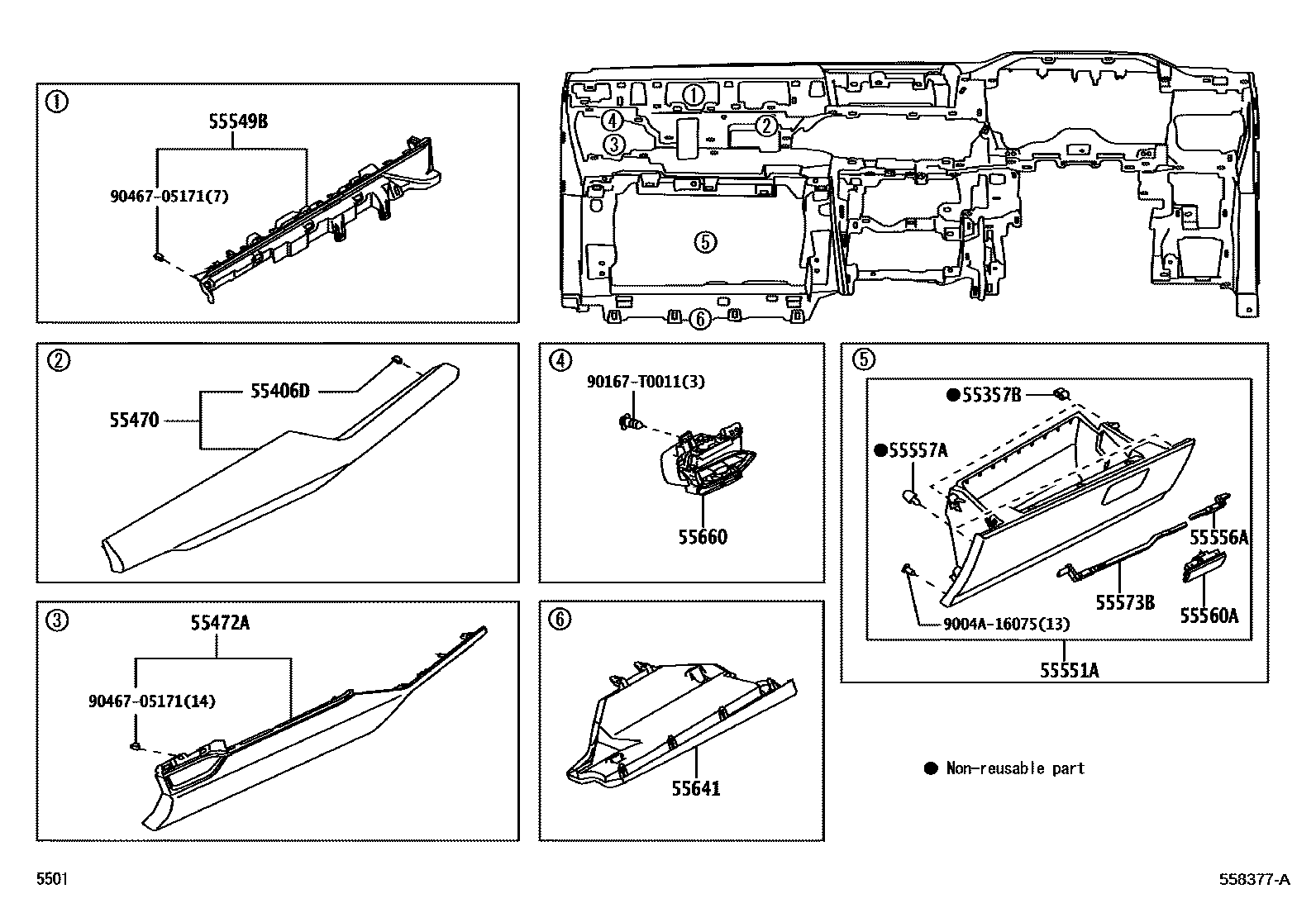

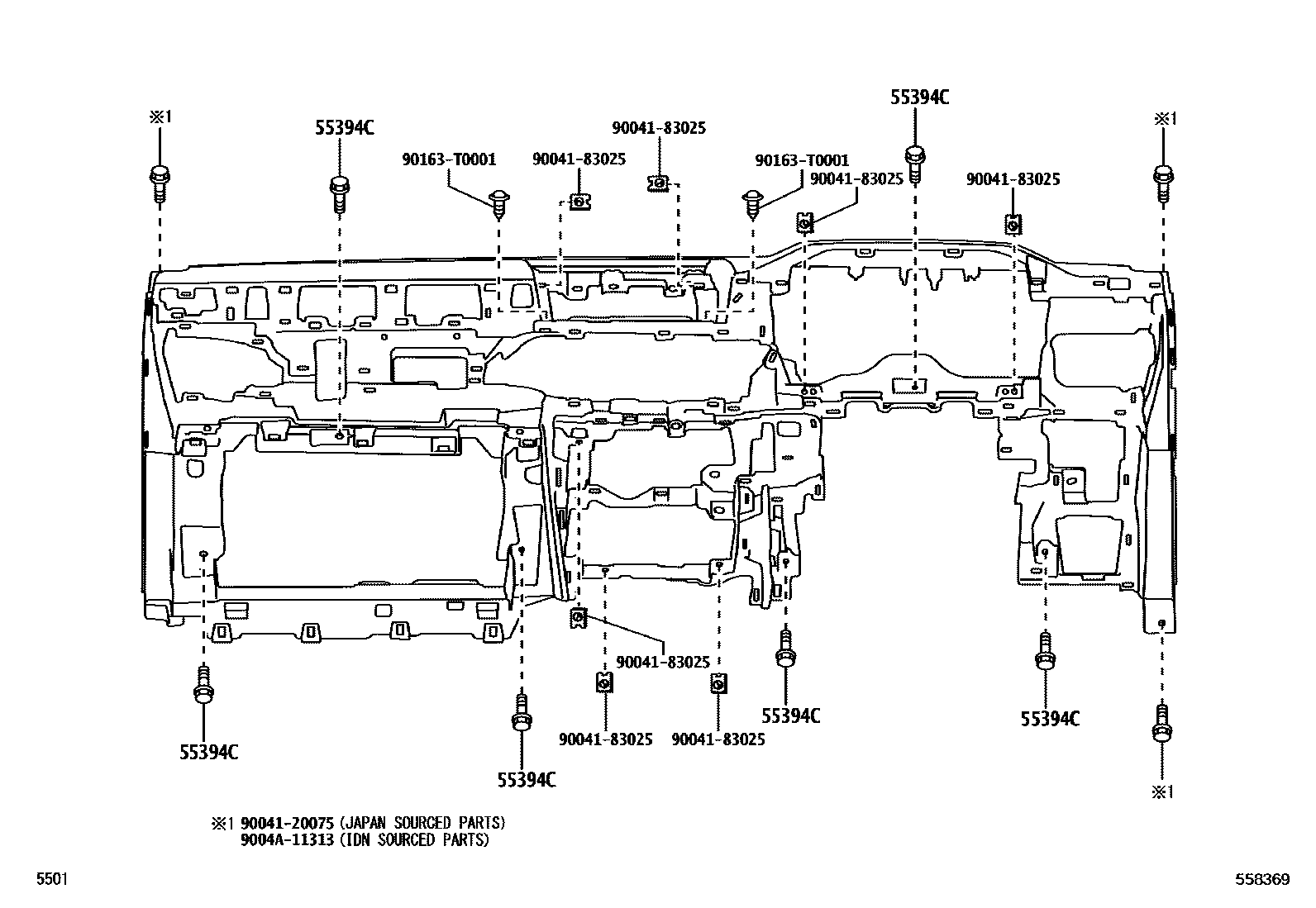

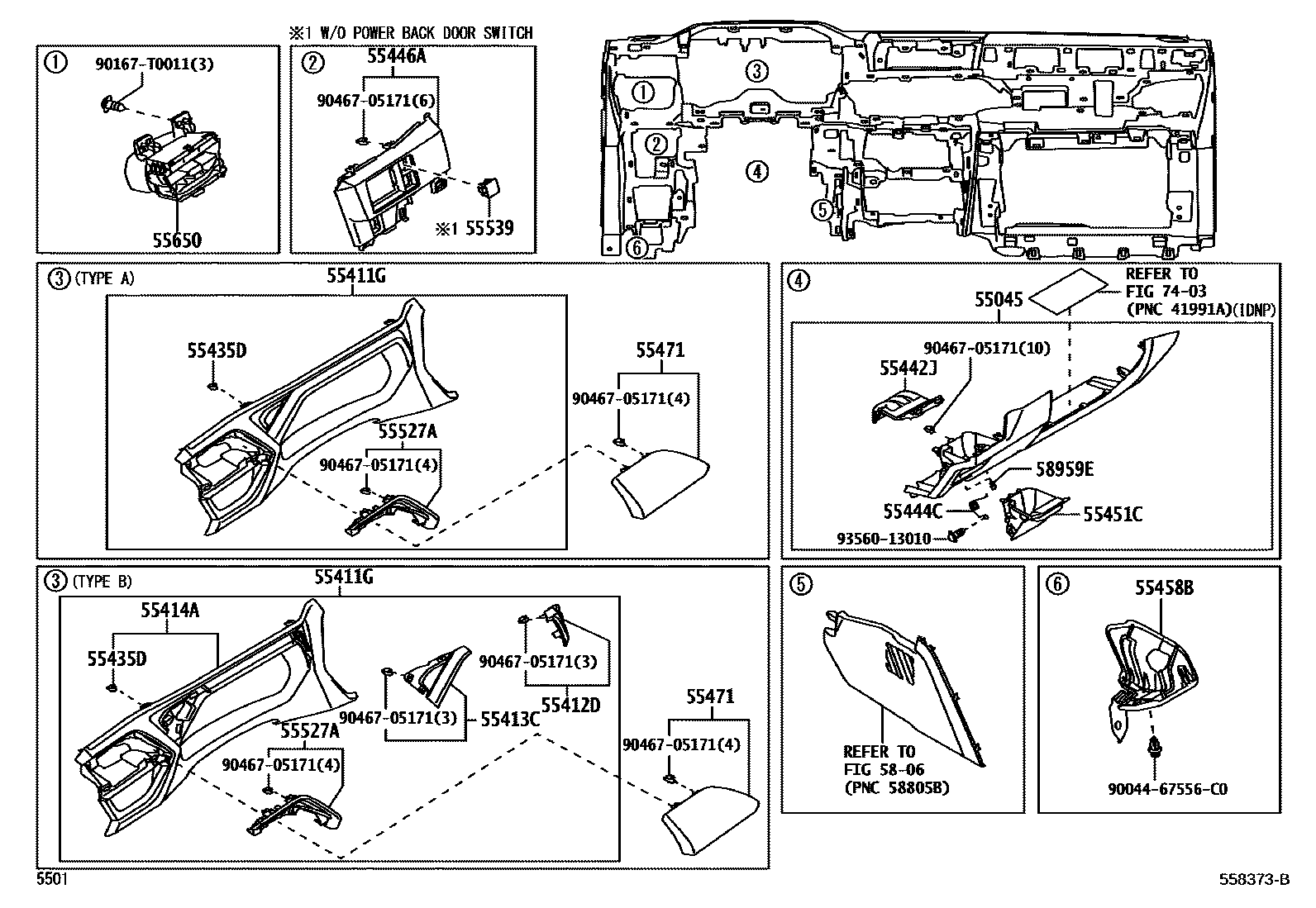

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 15 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55315A | Instrument panel spacer No. 1 | 55315-B2020 |
| 55331 | Dashboard reinforcement | 55305-BZB50 · 55305-BZD80 · 55305-BZD90 · 55305-BZE00 · 55305-BZE10 · 55305-BZE30 · 55305-BZE70 |
| 55349A | Dashboard cushion | 55349-BZ140 |
| 55349C | Dashboard cushion | 55349-BZ180 |
| 55355E | Dashboard cushion | 55355-BZ210 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-BZ210 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-B1070 |
| 55368C | Instrument mounting bracket | 55368-BZ050 |
| 55394B | Dashboard bolts | 55394-BZ020 · 90041-19A09 |
| 55394C | Dashboard bolts | 90041-20304 · 9004A-11313 |
| 55394H | Instrument panel bolt No. 2 | 90041-19A38 · 9004A-11385 |
| 55406D | Clip (for instrument cluster decorative panel) | 90467-05171 |
| 55409C | hole plug | 90048-71319 |
| 55435D | Instrument cover group clip | 90467-05171 |
| 55442J | Dashboard coin box frame | 55442-BZ030 · 55442-BZ060 |
| 55444C | Dashboard storage box spring | 55444-BZ060 · 55444-BZ070 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-BZ140 · 55453-BZ160 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-BZ150 · 55454-BZ170 |
| 55479C | Clip (for instrument panel lower cover) | 90467-05171 |
| 55556A | Glove box cover right stopper arm | 55556-BZ050 · 55556-BZ060 |
| 55557A | Glove box cover limit pad | 55557-B2040 |
| 55573B | Glove box cover left stopper arm | 55573-BZ060 · 55573-BZ070 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73970A | Dashboard passenger air bag assembly | 73970-BZ470 · 73970-BZ480 |
| 88376D | blind cover | 88376-B2010 |
