Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

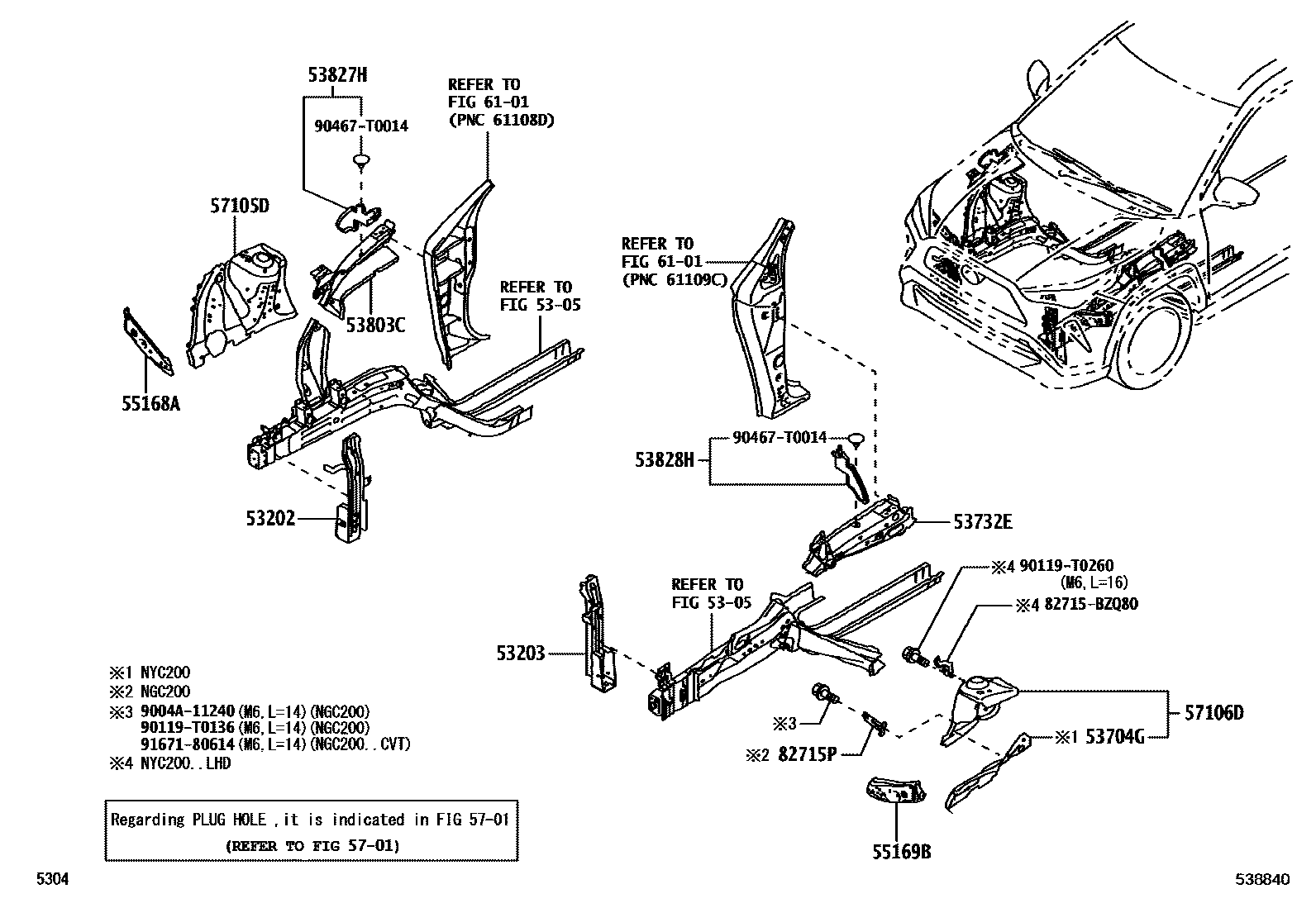

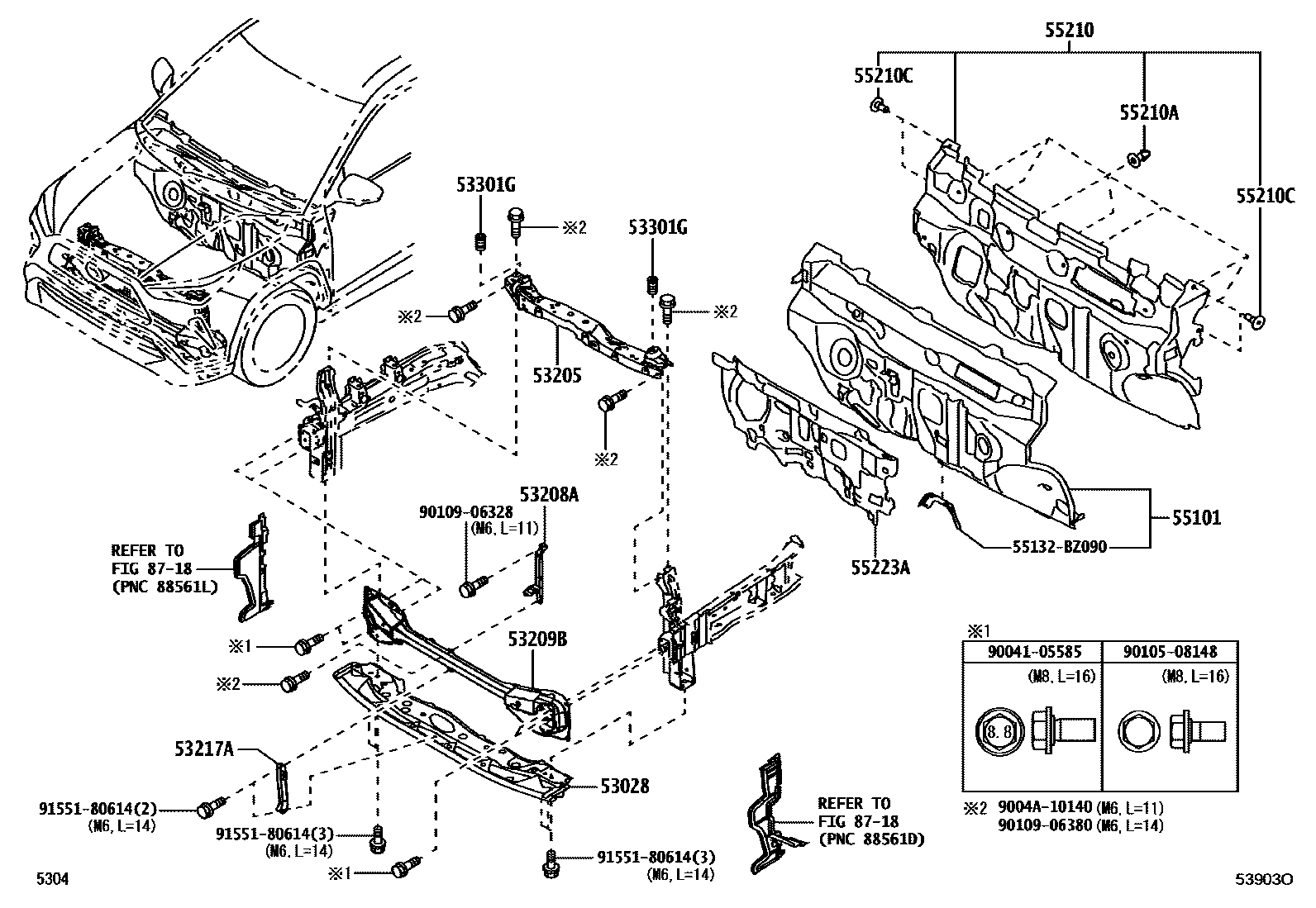

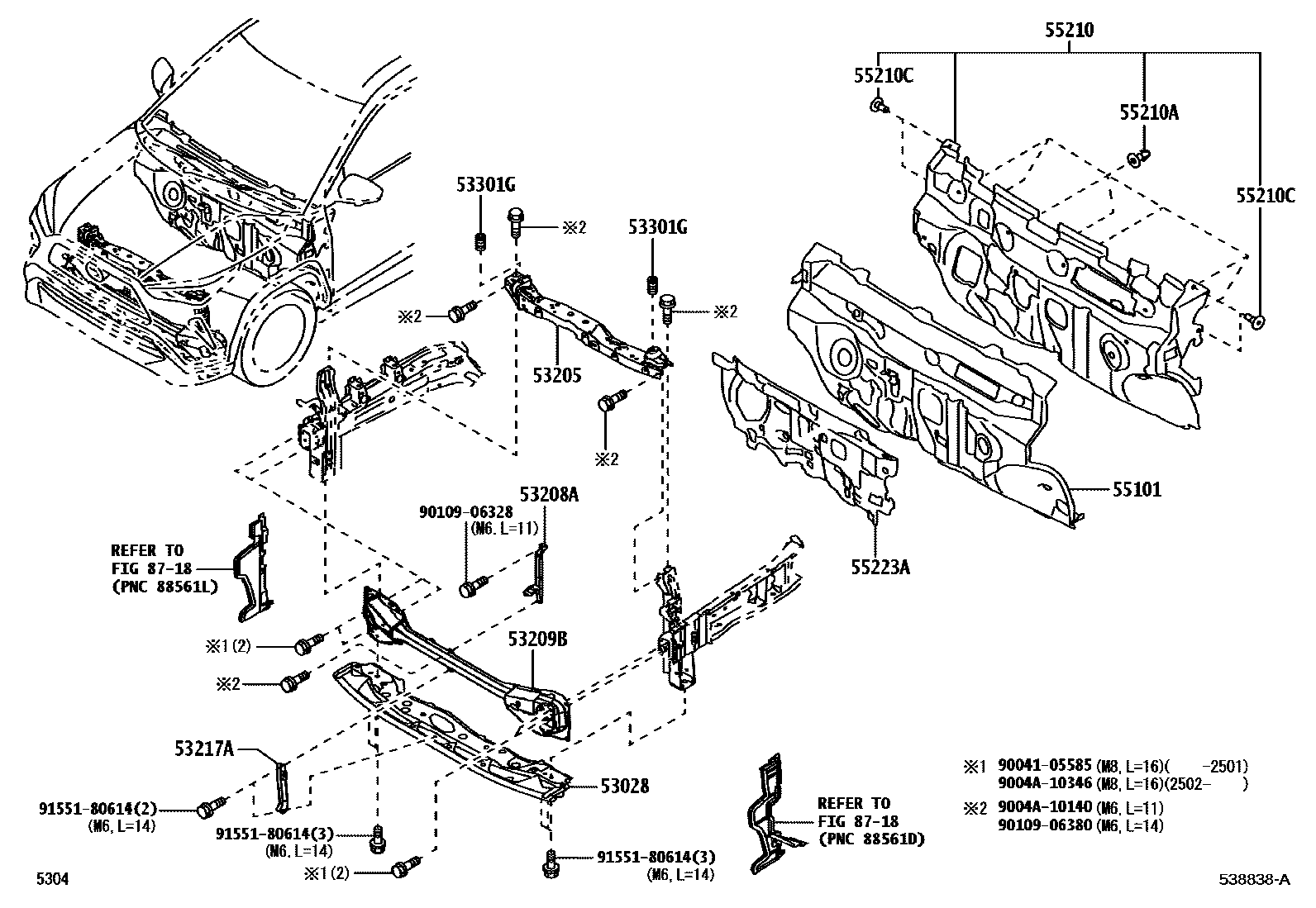

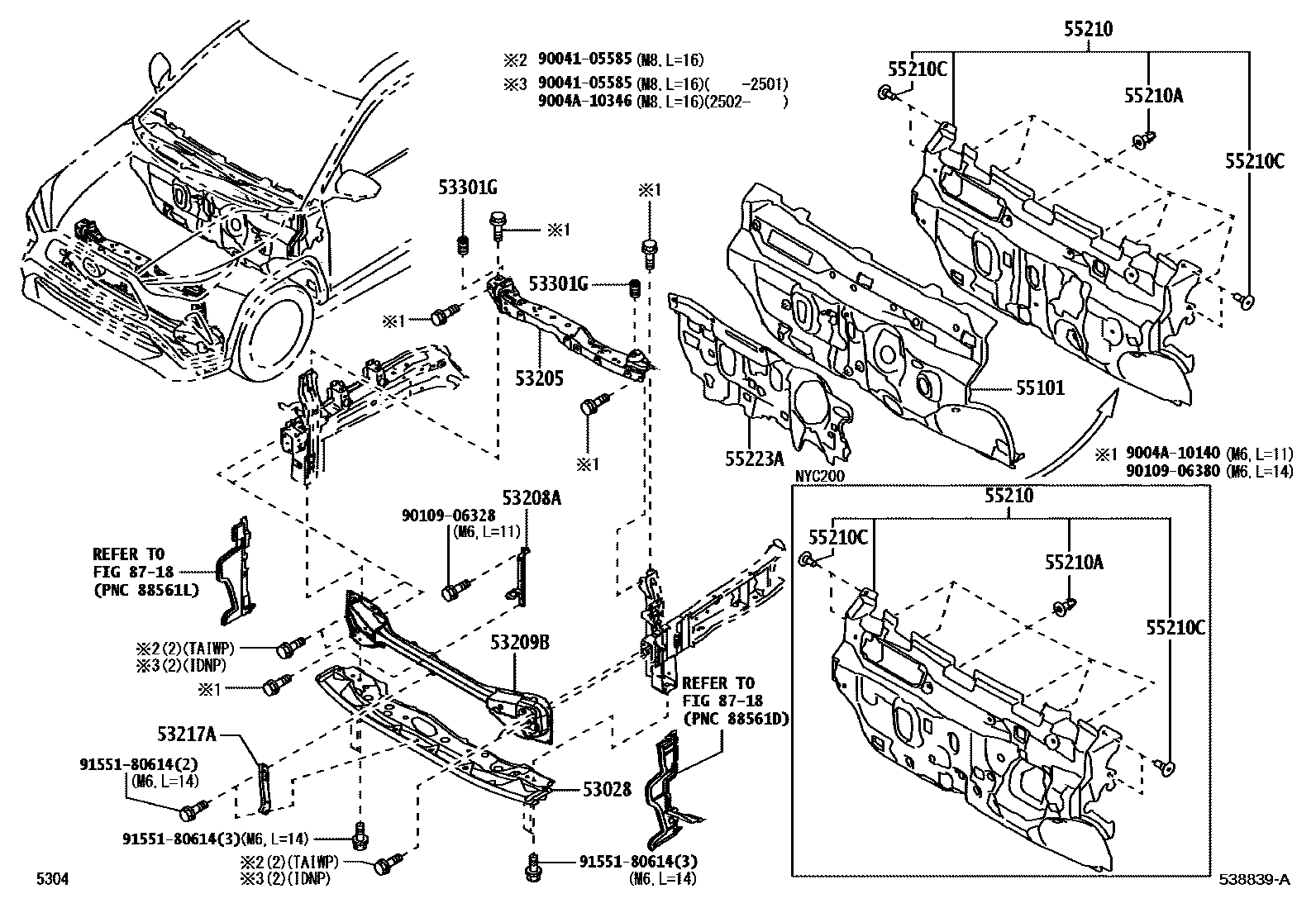

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53028 | Radiator lower bracket sub-assembly | 53028-BZ340 |
| 53202 | Radiator right side bracket sub-assembly | 53202-BZ140 · 53202-BZ230 |
| 53203 | Radiator left bracket sub-assembly | 53203-BZ240 · 53203-BZ340 |
| 53205 | Radiator upper bracket sub-assembly | 53205-BZ260 · 53205-BZ270 · 53205-BZ280 · 53205-BZ300 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-BZ170 |
| 53209B | Engine cover lock bracket sub-assembly | 53209-BZ080 · 53209-BZ160 · 53209-BZ170 |
| 53217A | engine cover lock bracket | 53217-BZ030 |
| 53301G | engine cover cushion | 90541-15033 |
| 53704G | No. 2 left front fender fender sub-assembly | 53704-BZ090 · 53704-BZ110 |
| 53732E | Left front fender fender reinforcement | 53804-BZ140 · 53804-BZ150 |
| 53803C | Front fender right rear side reinforcement sub-assembly | 53803-BZ160 |
| 53827H | Right front fender side panel protector | 53825-BZ040 |
| 53828H | Left front fender side panel protector | 53826-BZ030 |
| 55101 | Front apron sub-assembly | 55101-BZ904 · 55101-BZT40 · 55101-BZT60 · 55101-BZT70 · 55101-BZT80 · 55101-BZT90 · 55101-BZU10 · 55101-BZU40 · 55101-BZU50 · 55101-BZU90 · 55101-BZV00 |
| 55168A | Right front fender mounting bracket | 55168-BZ250 |
| 55169B | Left front fender mounting bracket | 55169-BZ240 |
| 55210 | Front wall insulation pad assembly | 55210-BZ780 · 55210-BZ790 · 55210-BZ800 · 55210-BZ810 · 55210-BZA30 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-13079 |
| 55223A | Front wall outer heat insulation pad | 55223-BZ300 · 55223-BZ310 · 55223-BZ320 · 55223-BZ330 · 55223-BZ460 · 55223-BZ470 |
| 57105D | Right front longitudinal beam plate sub-assembly | 57105-BZ290 |
| 57106D | Left front longitudinal beam plate sub-assembly | 57106-BZ210 · 57106-BZ230 · 57106-BZ290 |
| 82715P | Wire harness clamp bracket | 82715-BZE90 |
