Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

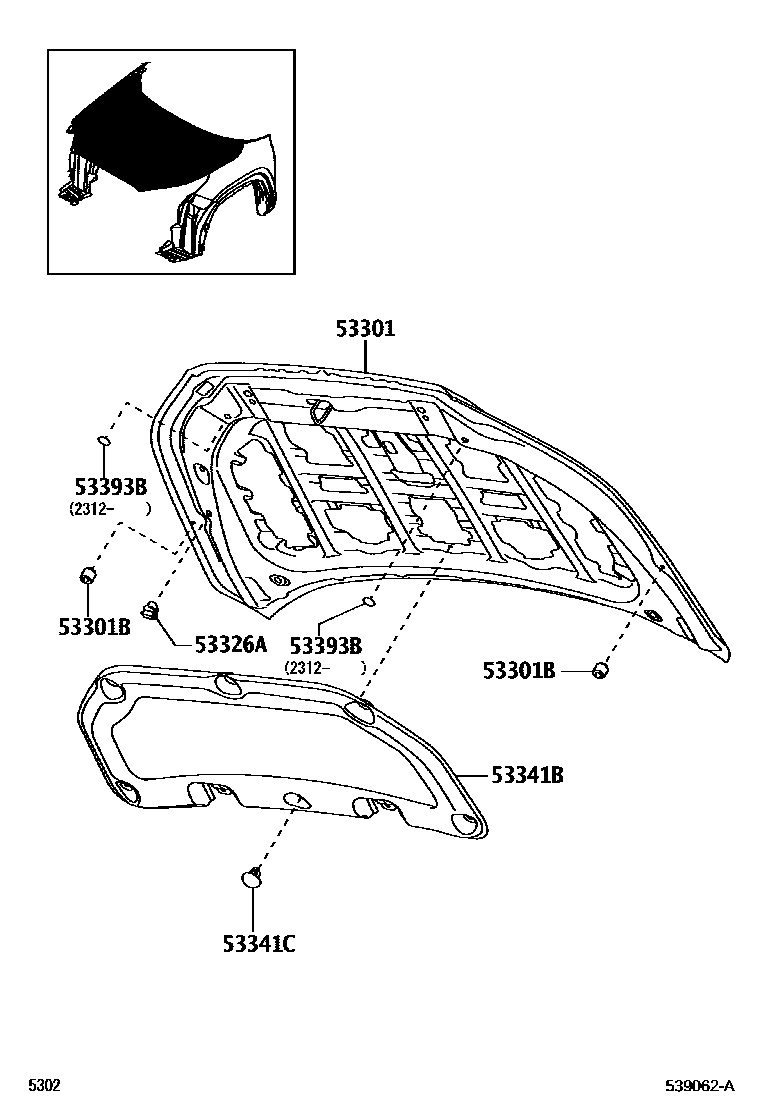

| 53301 | Engine cover sub-assembly | 53301-BZ450 |
| 53301B | engine cover cushion | 90541-09125 |
| 53326A | Engine cover protective strip clip | 53326-0D010 |
| 53341B | engine cover gasket | 53341-BZ210 |
| 53341C | Clip (for engine cover gasket) | 90467-T0014 |
| 53393B | Engine cover front protector | 53393-BZ040 |

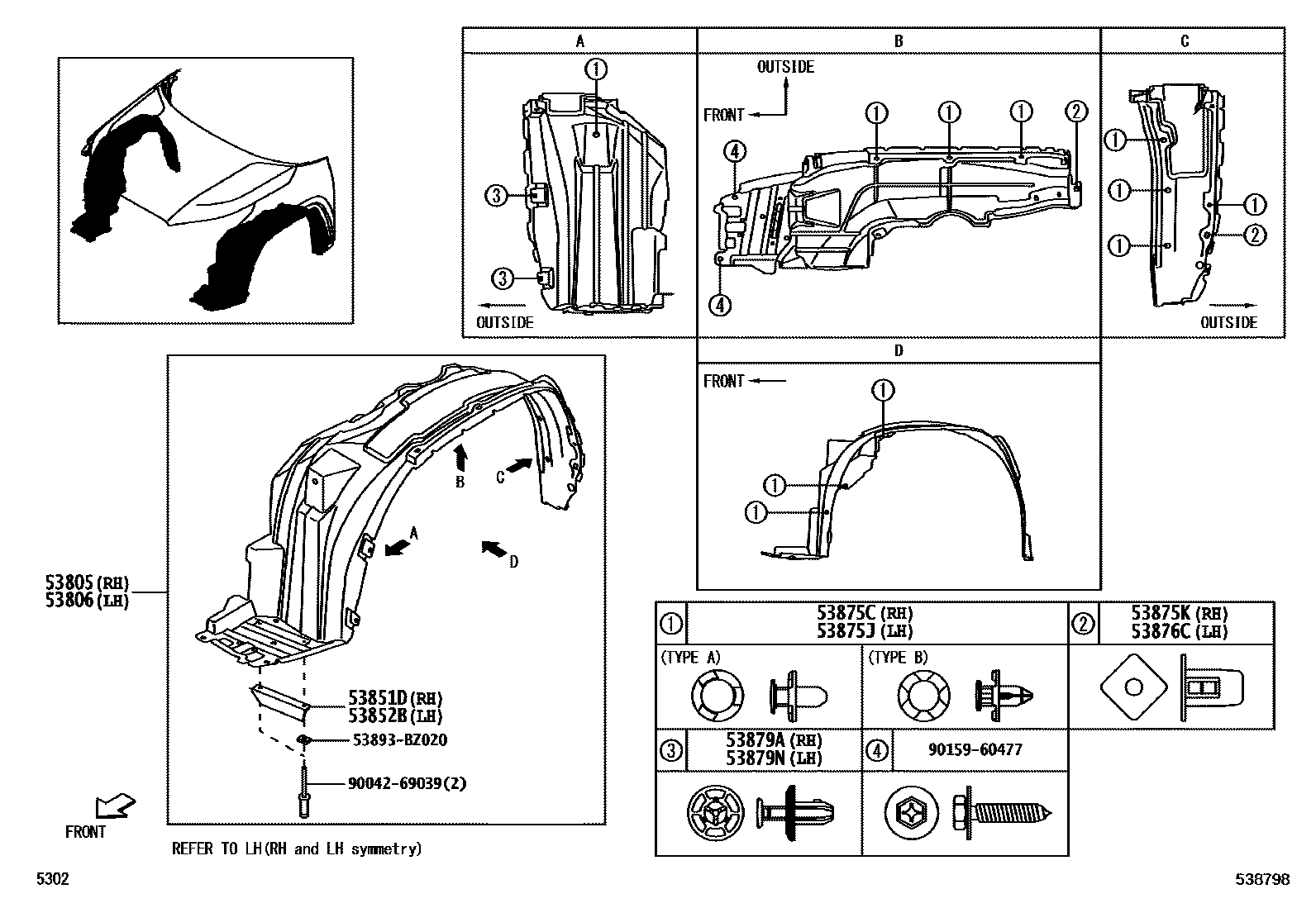

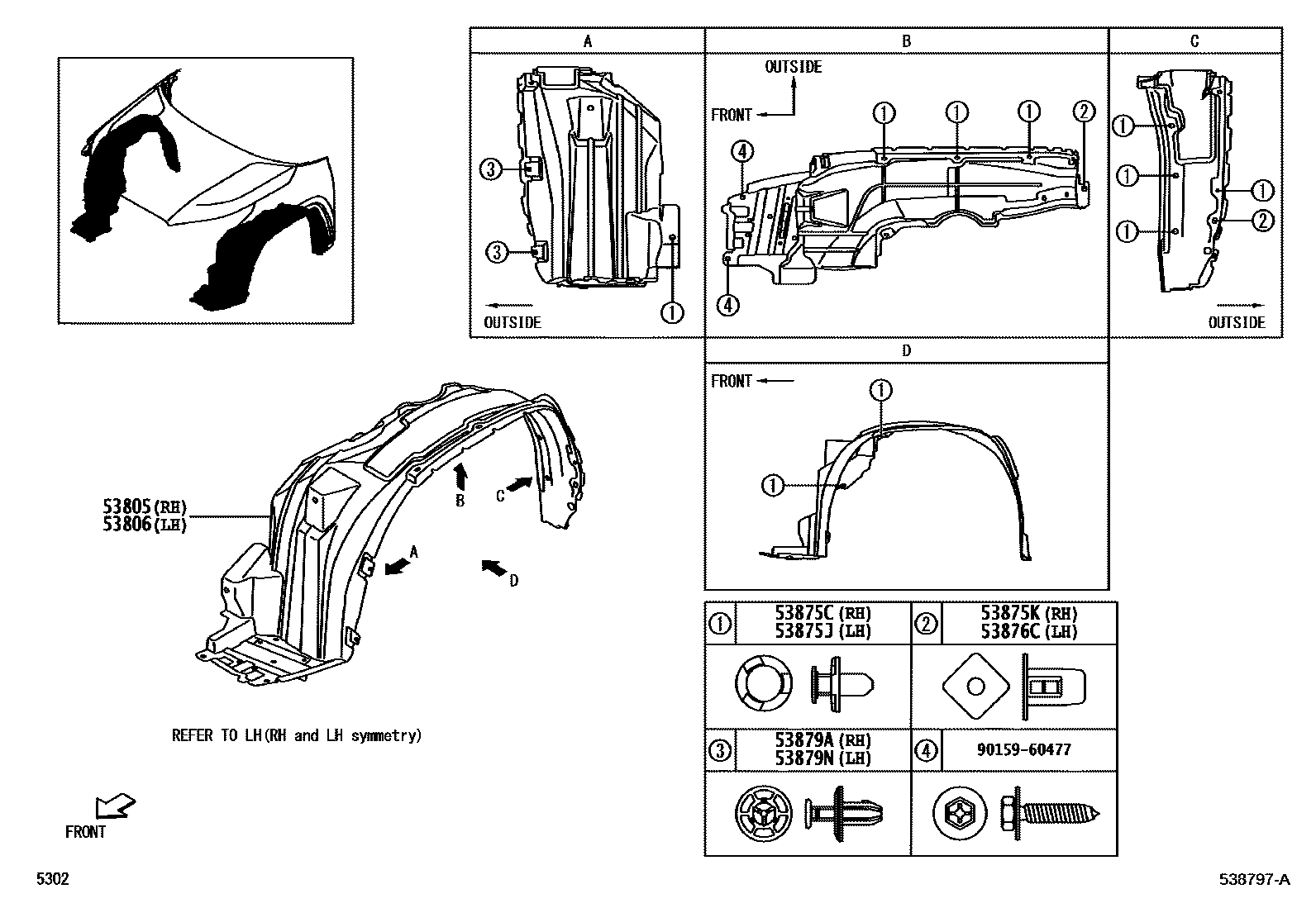

| 53805 | Right front fender splash guard sub-assembly | 53805-BZ140 · 53805-BZ170 · 53805-BZ200 |
| 53806 | Left front fender splash guard sub-assembly | 53806-BZ110 · 53806-BZ140 · 53806-BZ170 |

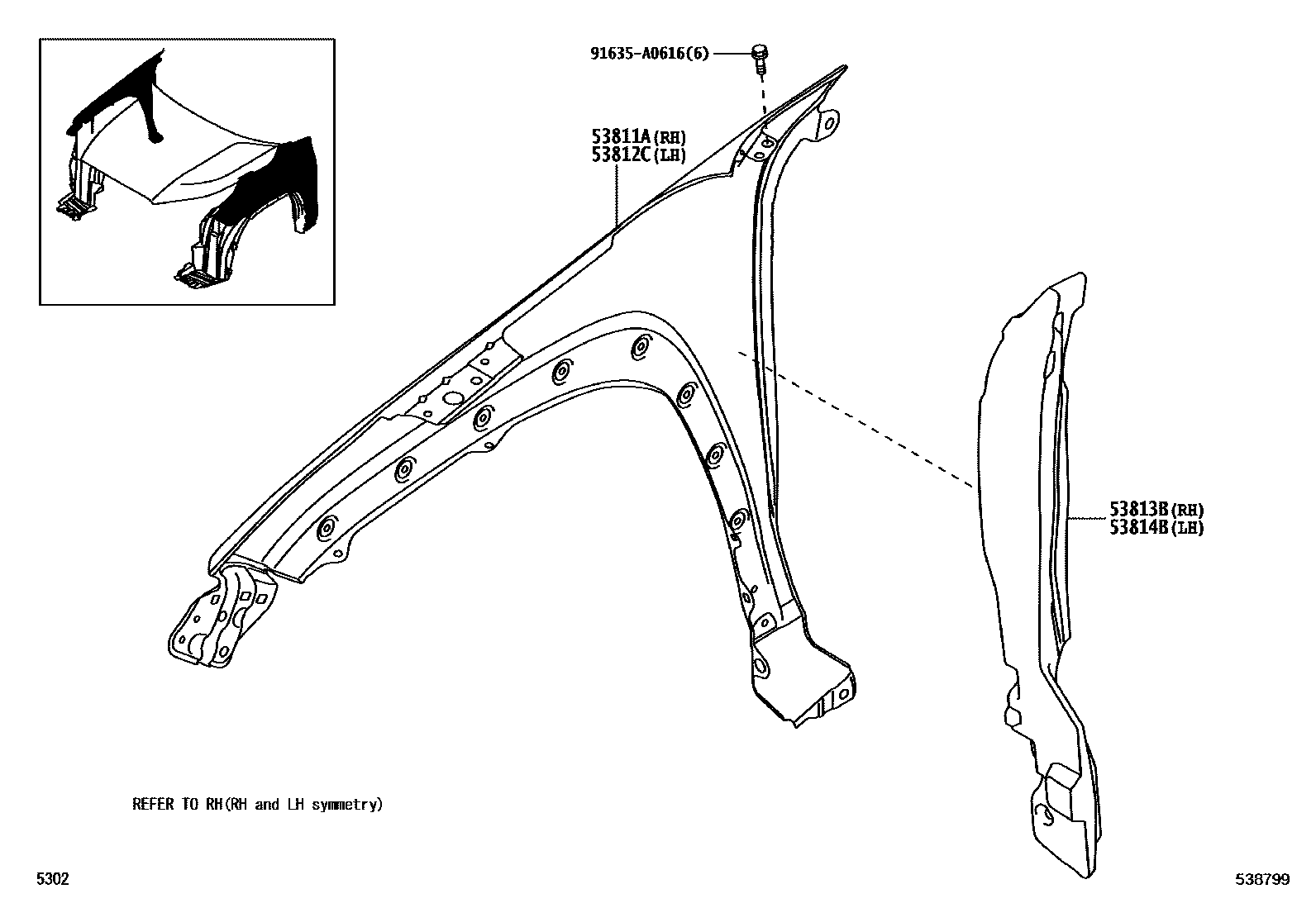

| 53811A | right front fender | 53811-BZ700 |
| 53812C | left front fender | 53812-BZ710 |
| 53813B | Right front fender extension | 53813-BZ090 |
| 53814B | Left front fender extension | 53814-BZ070 |
| 53851D | Right front fender outer panel pad | 53851-BZ180 |
| 53852B | Left front fender exterior panel pad | 53852-BZ100 |
| 53875C | Front fender lining clip | 9004A-46323 · 9004A-46404 |
| 53875J | Front fender lining clip | 9004A-46323 · 9004A-46404 |
| 53875K | screw seal | 90041-89079 · 9004A-18042 |
| 53876C | screw seal | 90041-89079 · 9004A-18042 |
| 53879A | Front fender lining fixing parts | 9004A-46380 |
| 53879N | Left front fender lining fixing | 9004A-46380 |
