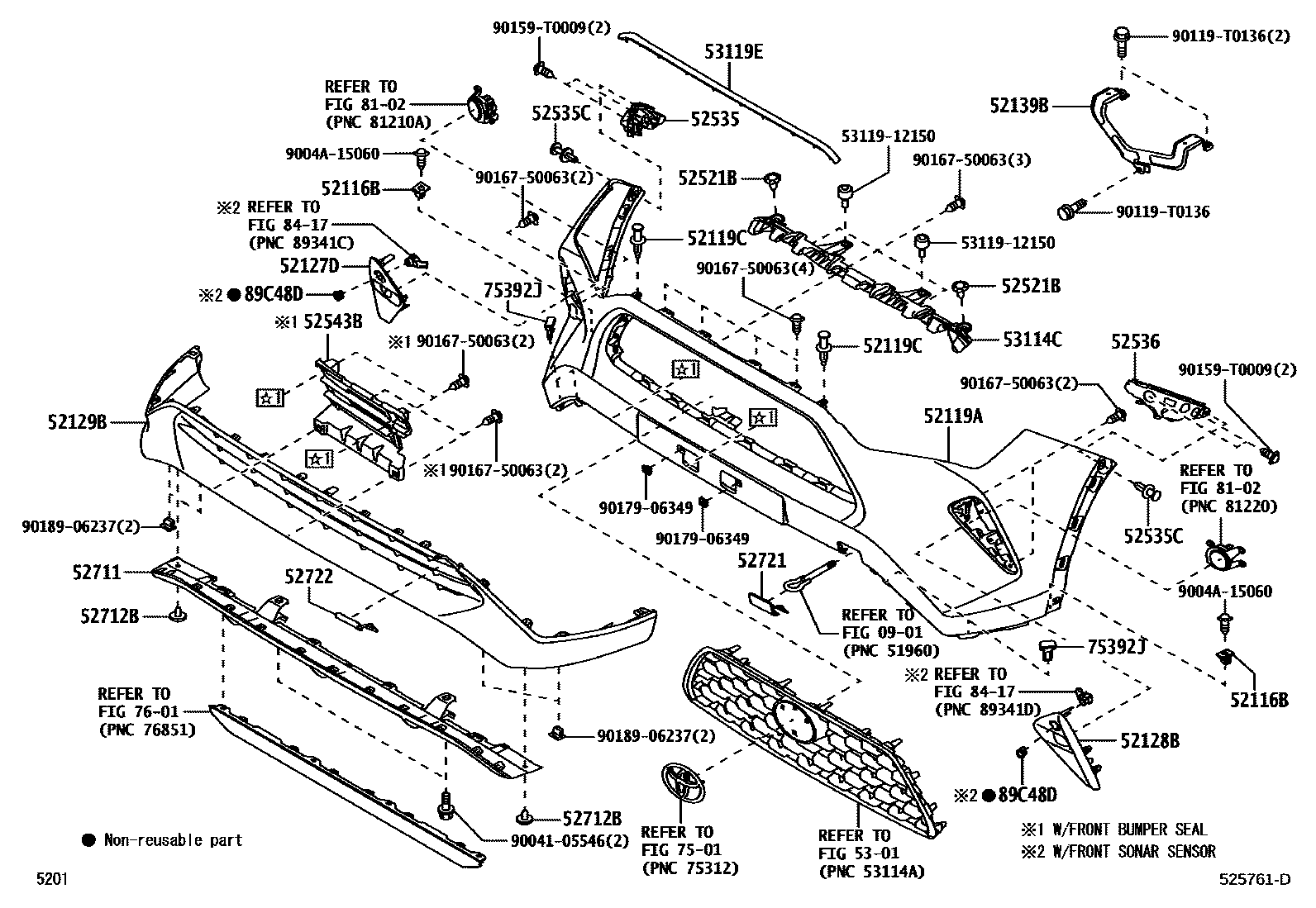

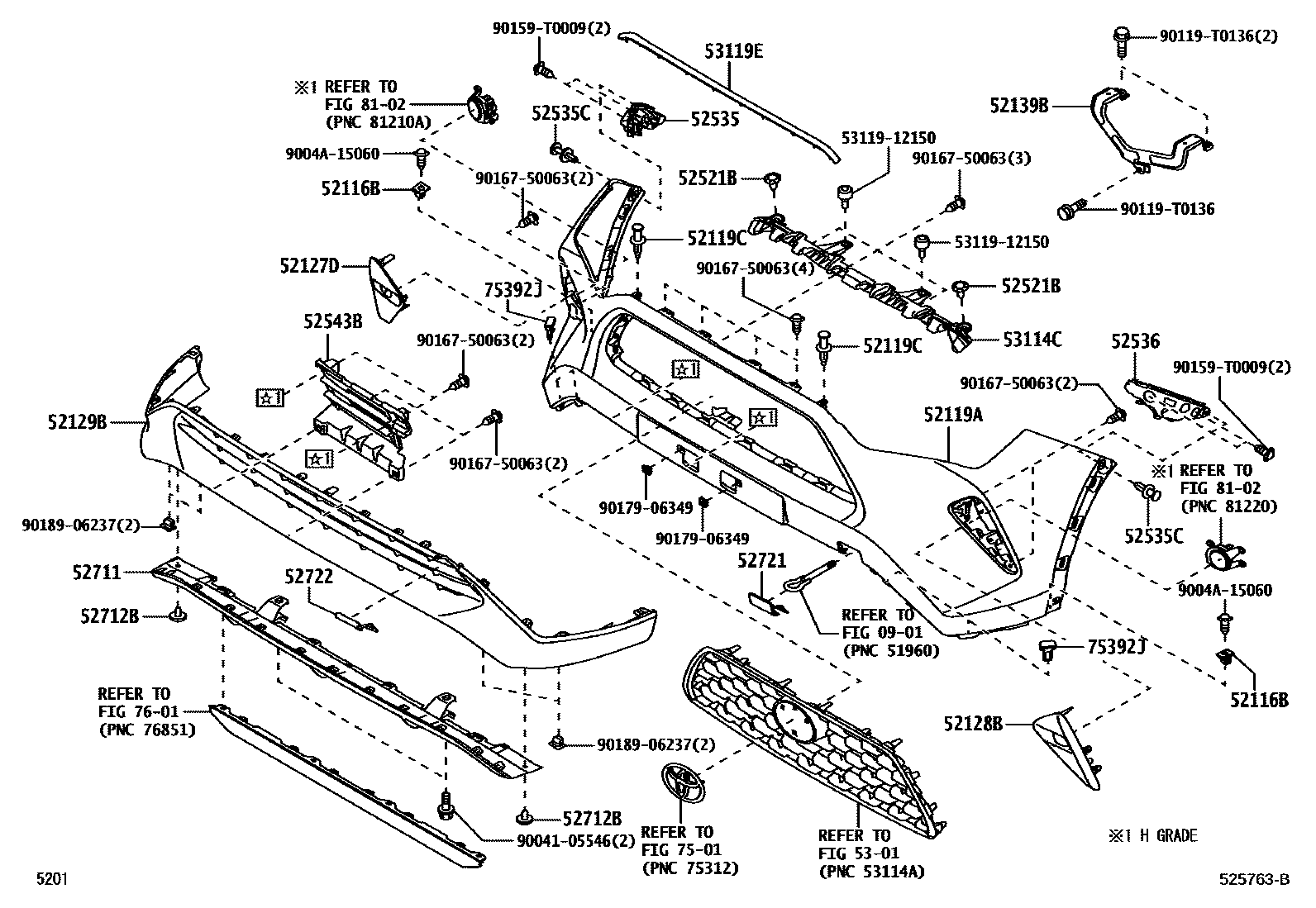

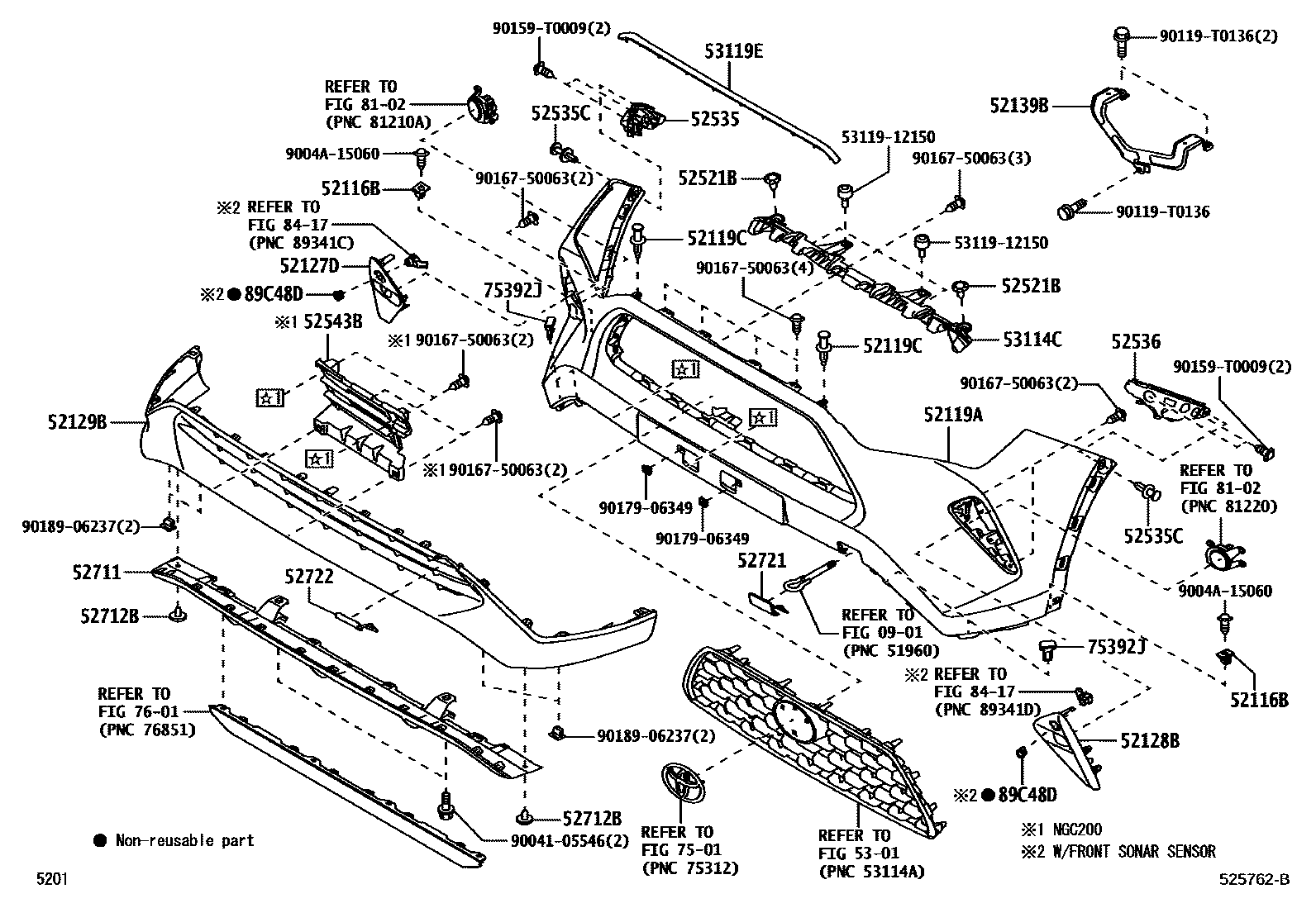

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52116B | front bumper fixings | 52116-B2480 |
| 52119A | front bumper cover | 52119-BZ920 · 52119-BZ921 · 52119-BZ923 |
| 52119C | Front bumper cover clip | 90467-05170 |
| 52127D | Front bumper right hole cover | 52127-BZD60 |
| 52128B | Front bumper left hole cover | 52128-BZ710 |
| 52129B | Front bumper lower cover | 52129-BZ230 · 52129-BZ250 · 52129-BZ260 |
| 52139B | Front bumper center bracket | 52139-BZ100 |
| 52521B | Front bumper upper fixing bracket | 9004A-46323 |
| 52535 | Front bumper right side fixing bracket | 52535-BZ060 · 52535-BZ080 |
| 52535C | Front bumper side fixing bracket | 90467-07220 |
| 52536 | Front bumper left fixed bracket | 52536-BZ060 · 52536-BZ080 |
| 52543B | front bumper seal | 52543-BZ240 · 52543-BZ260 |
| 52712B | Front bumper protective strip clip | 90467-07215 |
| 52721 | Front bumper right extension protection strip | 52721-BZ900 · 52721-BZ901 · 52721-BZ903 |
| 52722 | Front bumper left extended section protective strip | 52722-BZ110 · 52722-BZ130 · 52722-BZ140 |
| 53114C | inner radiator grille | 53112-BZ410 · 53112-BZ430 · 53112-BZ440 |
| 53119E | Radiator grille protector | 53119-BZ090 · 53119-BZ110 |
| 75392J | External protective strip fixings | 75392-0K010 |
