Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

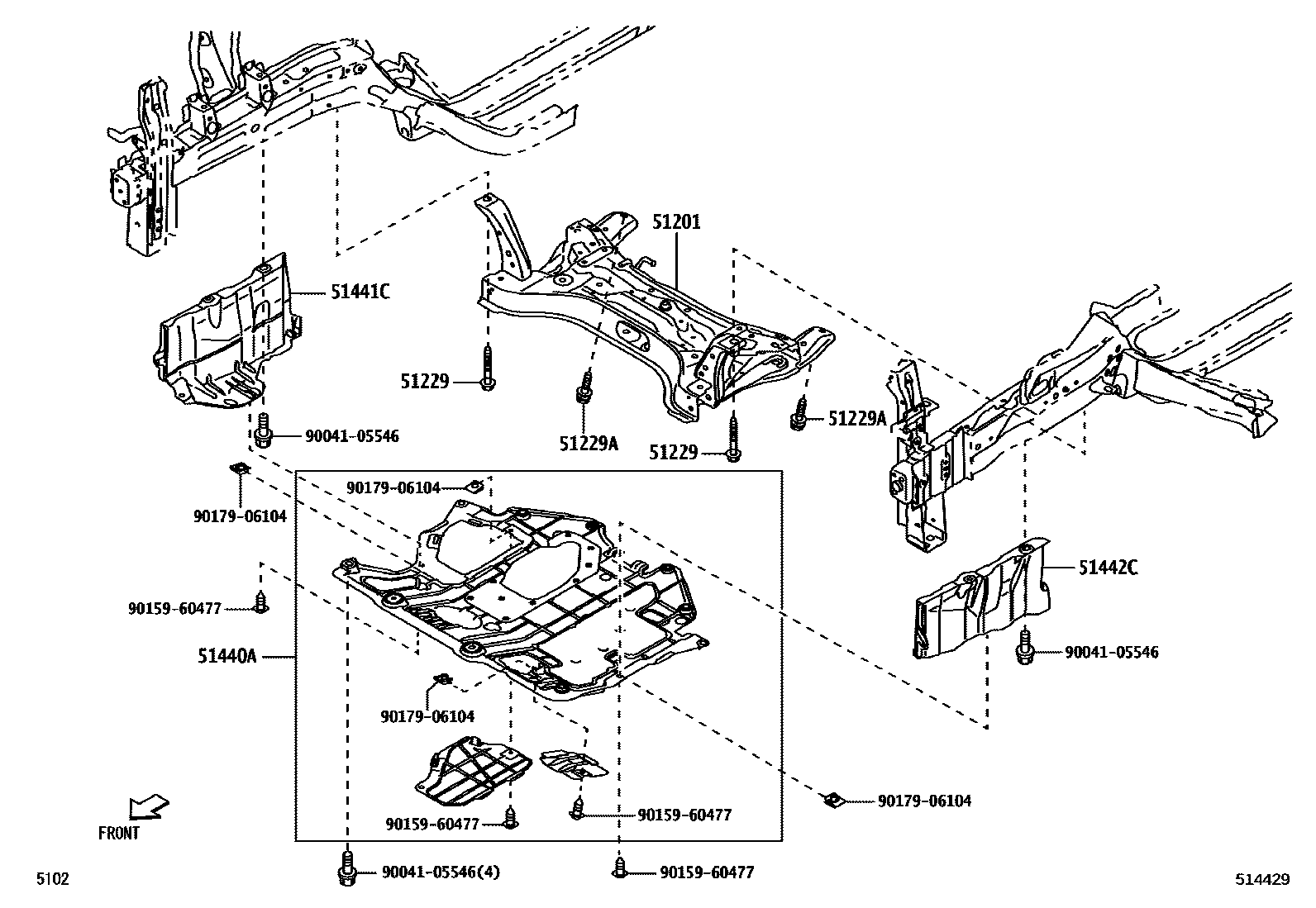

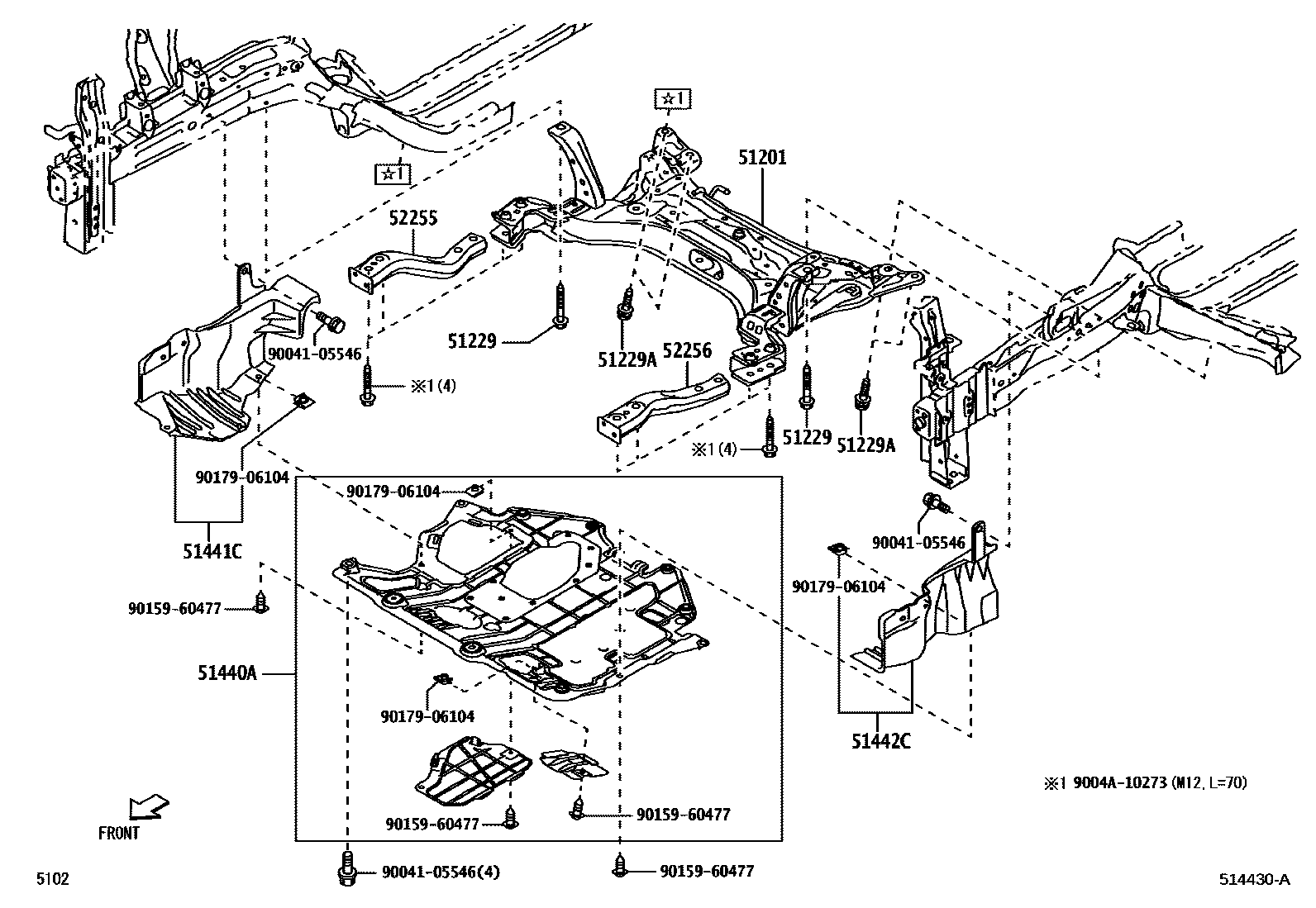

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-BZ161 · 51201-BZ200 · 51201-BZ210 |
| 51229 | Suspension cross member fixing bolts | 90041-05594 |
| 51229A | Front suspension cross member mounting bolts | 9004A-11430 · 91673-A1025 |
| 51440A | Engine bottom cover assembly | 51405-BZ130 · 51405-BZ170 |
| 51441C | Engine right bottom cover | 51441-BZ340 · 51441-BZ390 · 51441-BZ400 · 51441-BZ410 |
| 51442C | Engine left bottom cover | 51442-BZ150 · 51442-BZ190 · 51442-BZ210 · 51442-BZ220 |
| 52255 | Right front suspension cross member front bracket | 51205-BZ090 |
| 52256 | Left front suspension cross member front bracket | 51206-BZ020 |
