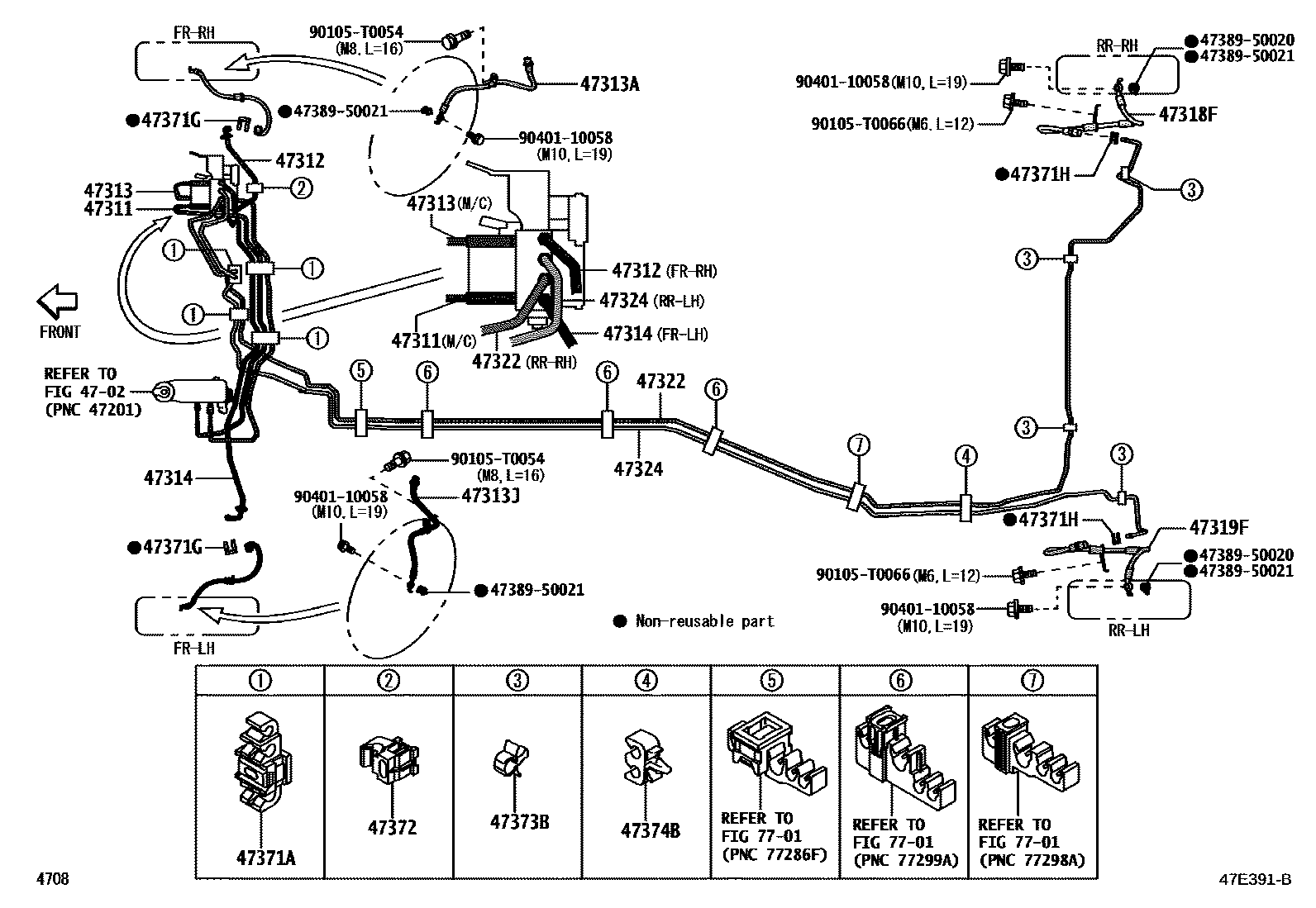

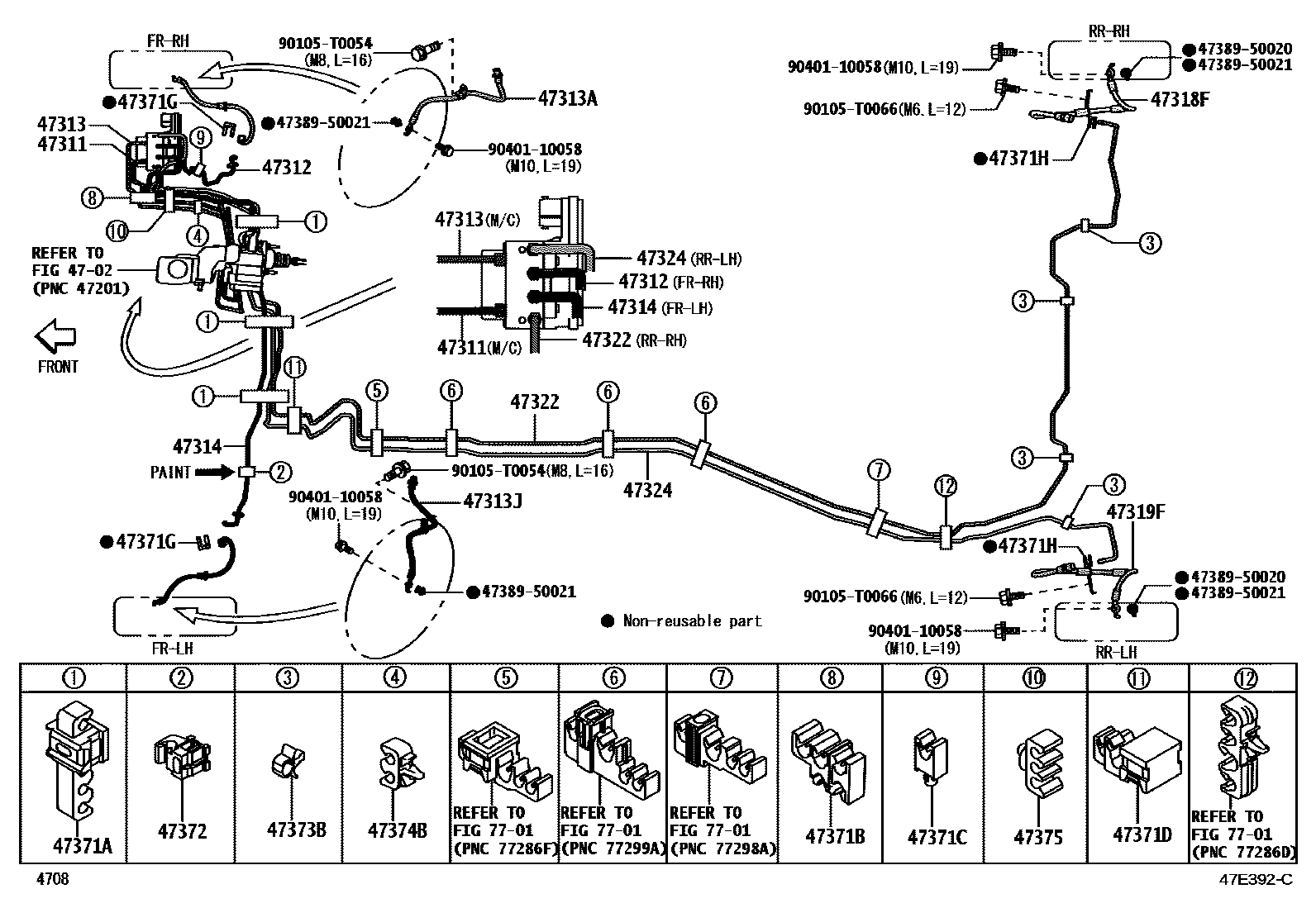

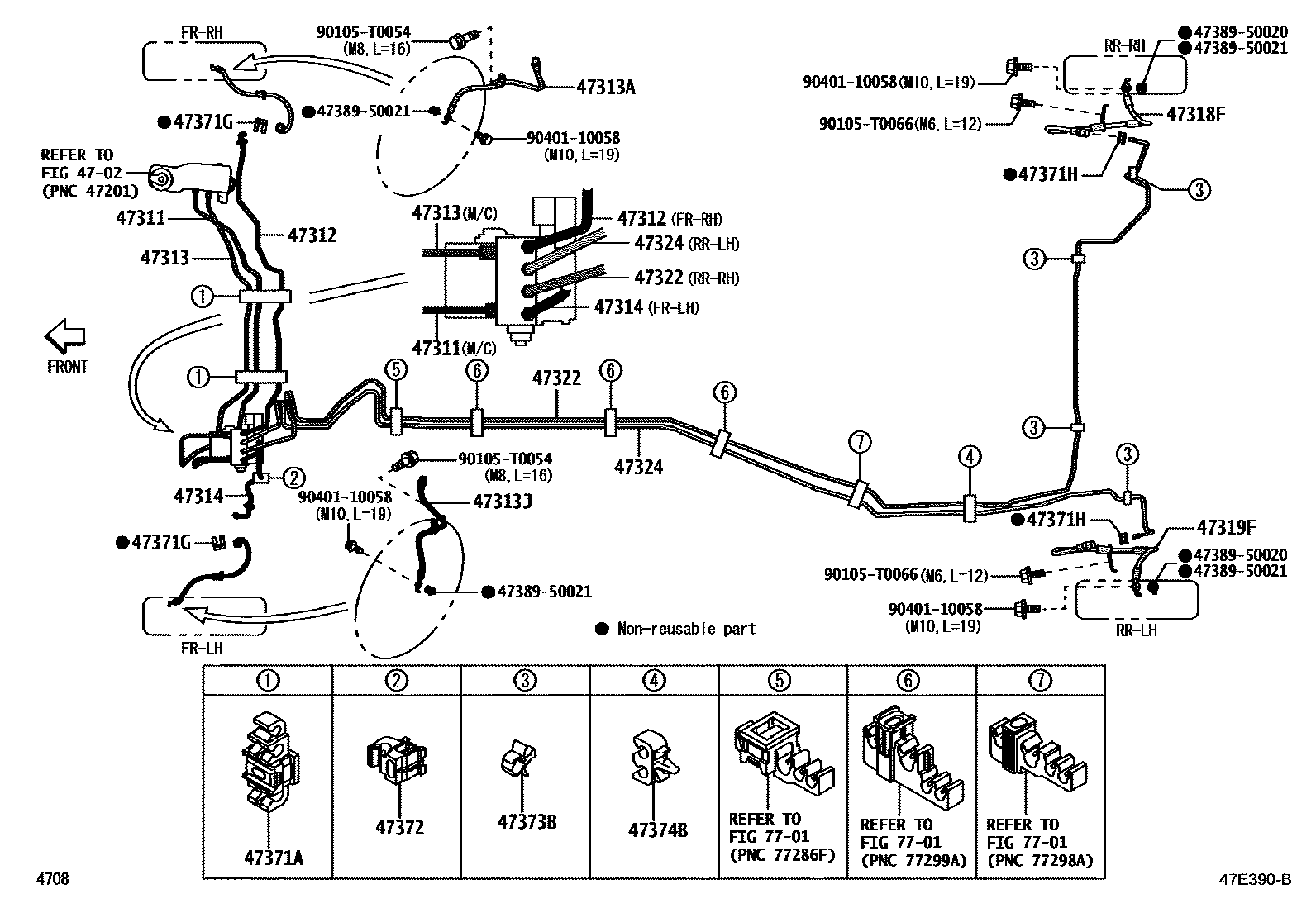

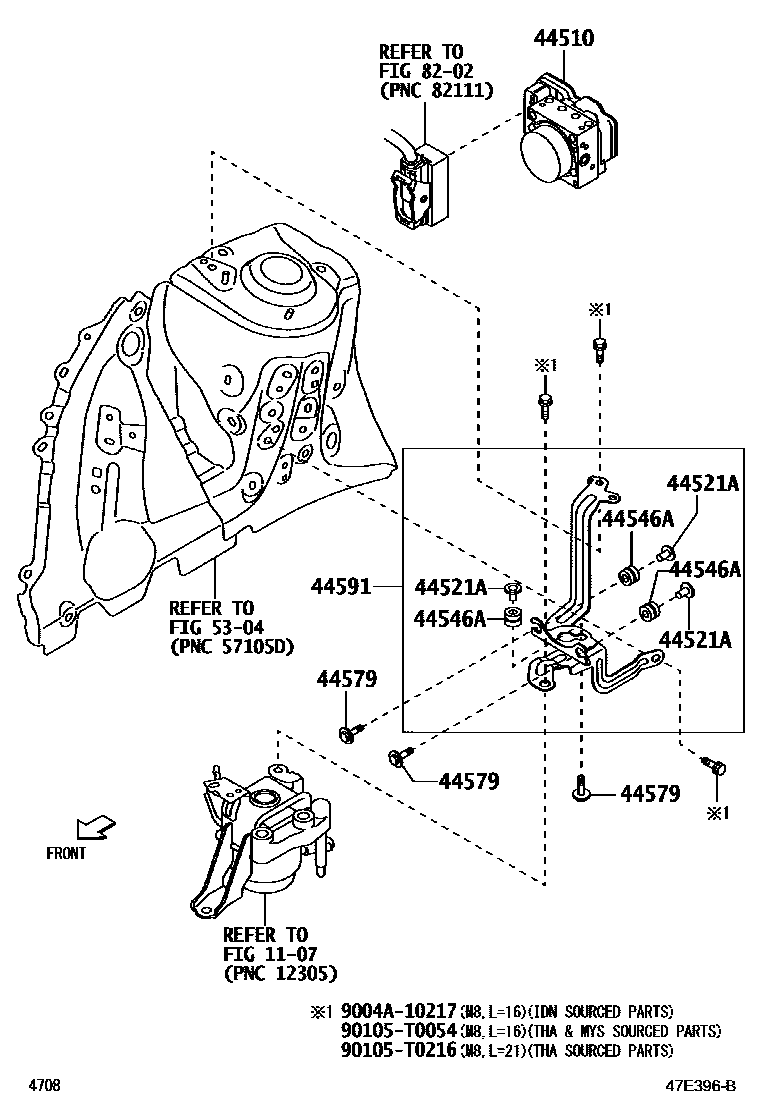

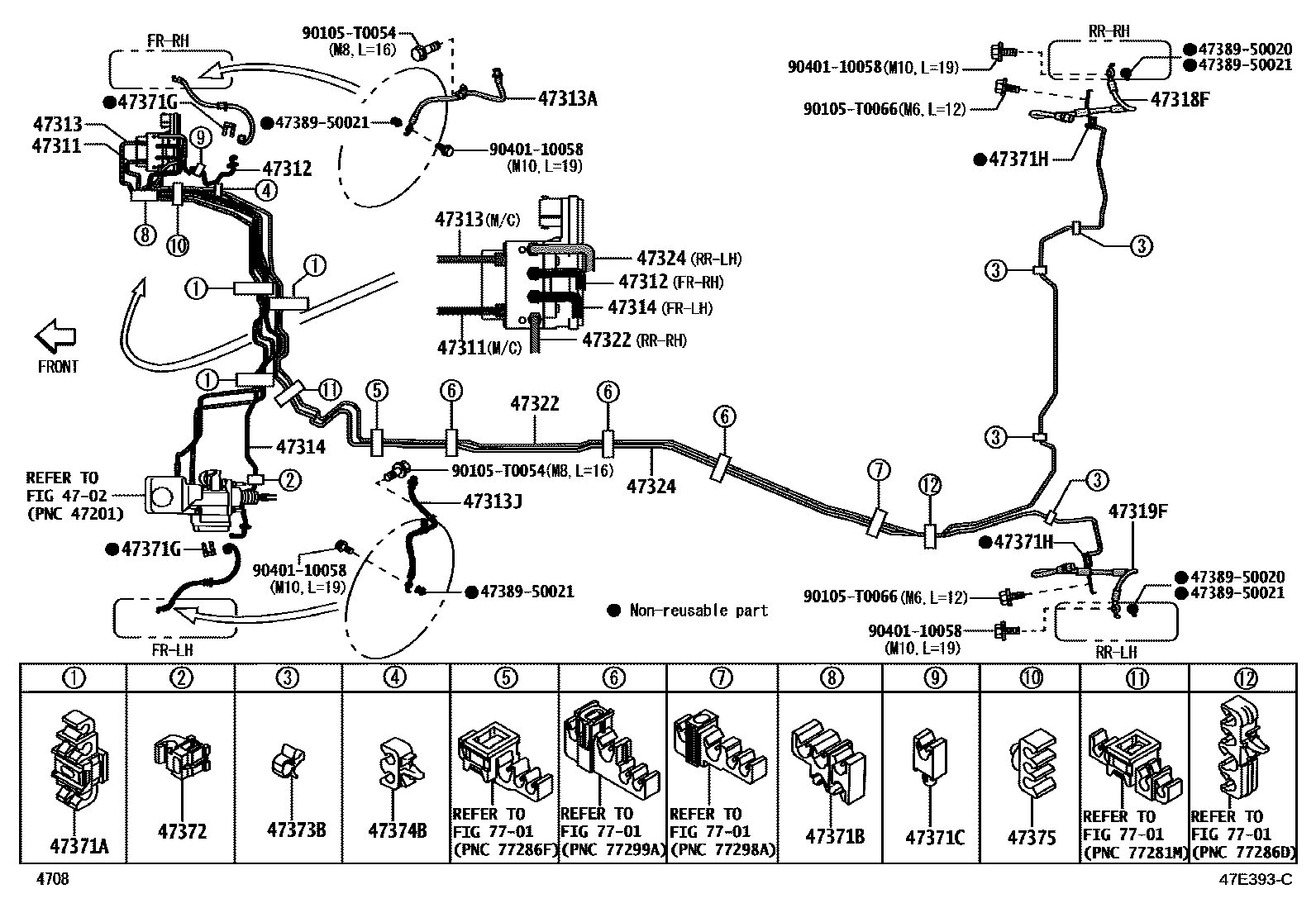

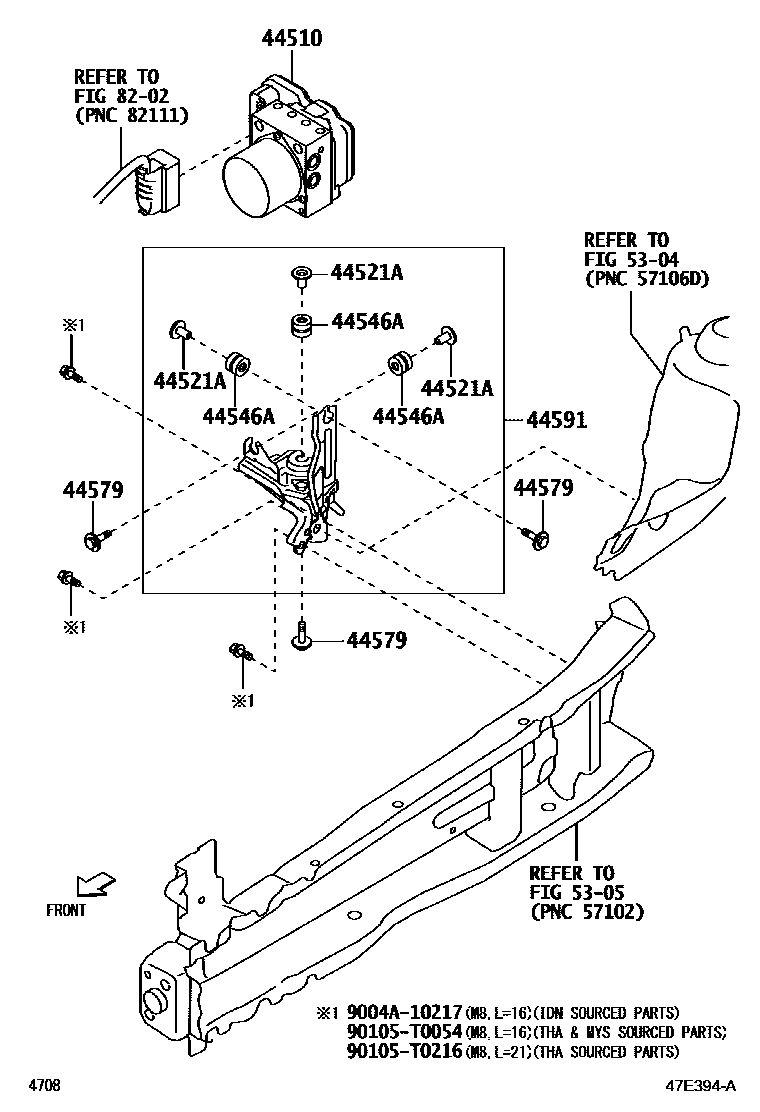

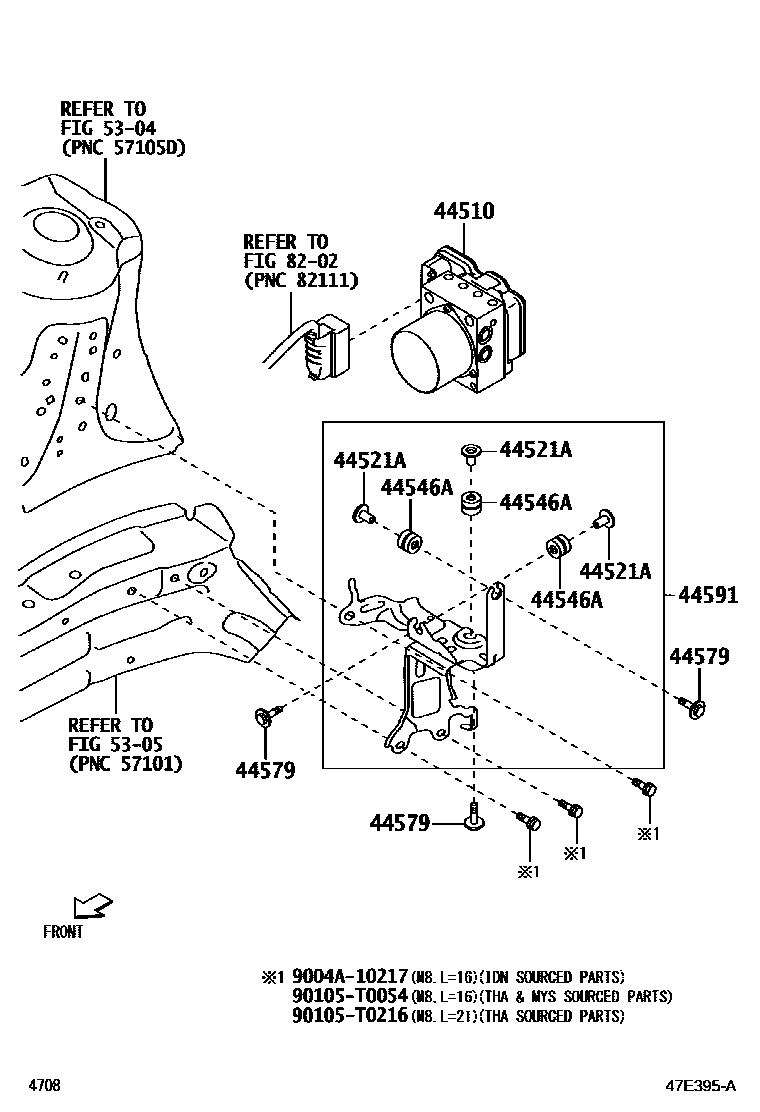

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 7 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-B1A00 · 44050-BZC70 · 44050-BZC80 · 44050-BZD10 · 44050-BZD30 · 44050-BZD40 · 44050-BZD50 |
| 44521A | No. 1 brake actuator housing collar | 44521-0D010 · 44521-B1010 |
| 44546A | Brake actuator bolt cushion | 44546-BZ020 · 44547-02050 |
| 44579 | Brake actuator bracket bolt | 90119-T0199 |
| 44591 | No. 1 brake actuator bracket | 44591-BZ280 · 44591-BZ290 · 44591-BZ390 · 44591-BZ400 · 44591-BZ410 |
| 47311 | No. 1 front brake pipe | 47311-BZ700 · 47311-BZ720 · 47311-BZ770 · 47311-BZ790 · 47311-BZ800 · 47311-BZ810 · 47311-BZ820 · 47311-BZ890 |
| 47312 | No. 2 front brake pipe | 47312-BZ710 · 47312-BZ720 · 47312-BZ790 · 47312-BZ810 |
| 47313 | No. 3 front brake pipe | 47313-BZ660 · 47313-BZ680 · 47313-BZ750 · 47313-BZ770 · 47313-BZ780 · 47313-BZ810 · 47313-BZ820 · 47313-BZ870 |
| 47313A | No. 1 front flexible hose | 9004A-94114 · 9004A-94152 |
| 47313J | No. 2 front flexible hose | 9004A-94114 · 9004A-94152 |
| 47314 | No. 4 front brake pipe | 47314-BZ680 · 47314-BZ690 · 47314-BZ750 · 47314-BZ770 · 47314-BZ771 · 47314-BZ780 |
| 47318F | Right rear flexible hose | 47330-BZ030 · 47330-BZ050 |
| 47319F | Left rear flexible hose | 47340-BZ030 · 47340-BZ050 |
| 47322 | No. 2 rear brake pipe | 47322-BZ500 · 47322-BZ510 · 47322-BZ560 · 47322-BZ570 |
| 47324 | No. 4 rear brake pipe | 47324-BZ560 · 47324-BZ570 · 47324-BZ610 · 47324-BZ620 |
| 47371A | No. 1 brake pipe clamp | 47371-B2080 · 47371-BZ070 · 47371-BZ160 · 47371-BZ240 · 47371-BZ300 |
| 47371B | No. 6 brake pipe clamp | 47371-BZ150 · 47371-BZ230 |
| 47371C | No. 7 brake pipe clamp | 47372-BZ090 |
| 47371D | No. 8 brake pipe clamp | 47371-BZ190 · 47371-BZ250 |
| 47371G | No. 11 brake pipe clamp | 90044-65441 |
| 47371H | No. 12 brake pipe clamp | 90044-65441 |
| 47372 | No. 2 brake pipe clamp | 47372-B2040 · 47372-BZ020 · 47372-BZ120 |
| 47373B | No. 3 brake pipe clamp | 47371-BZ140 · 90044-64918 · 9004A-46419 |
| 47374B | No. 4 brake pipe clamp | 47372-BZ080 · 90044-64891 · 9004A-46418 |
| 47375 | No. 5 brake pipe clamp | 90949-01D41 |
