Toyota YARIS 制动助力器和真空管 — Figure 4703

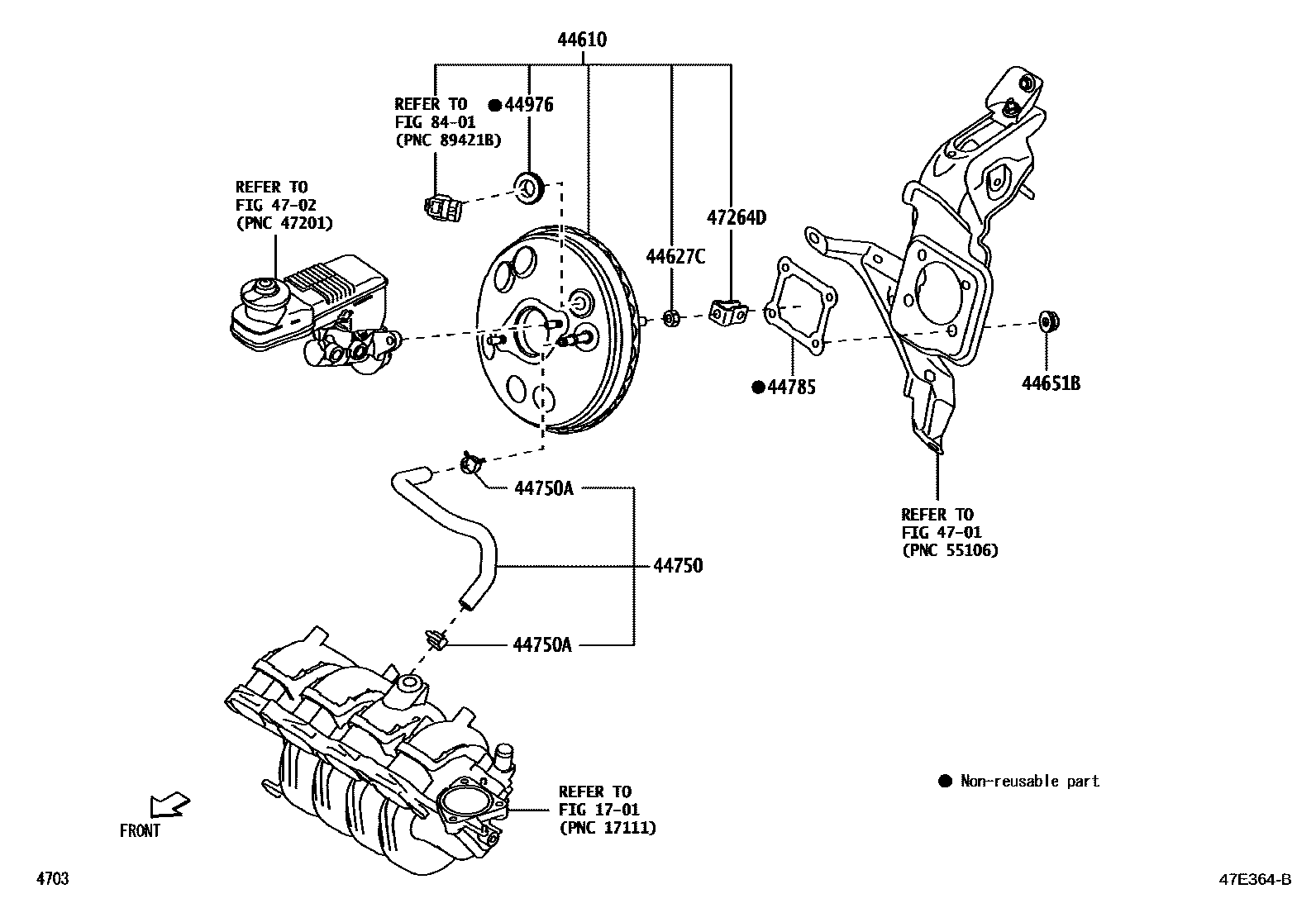

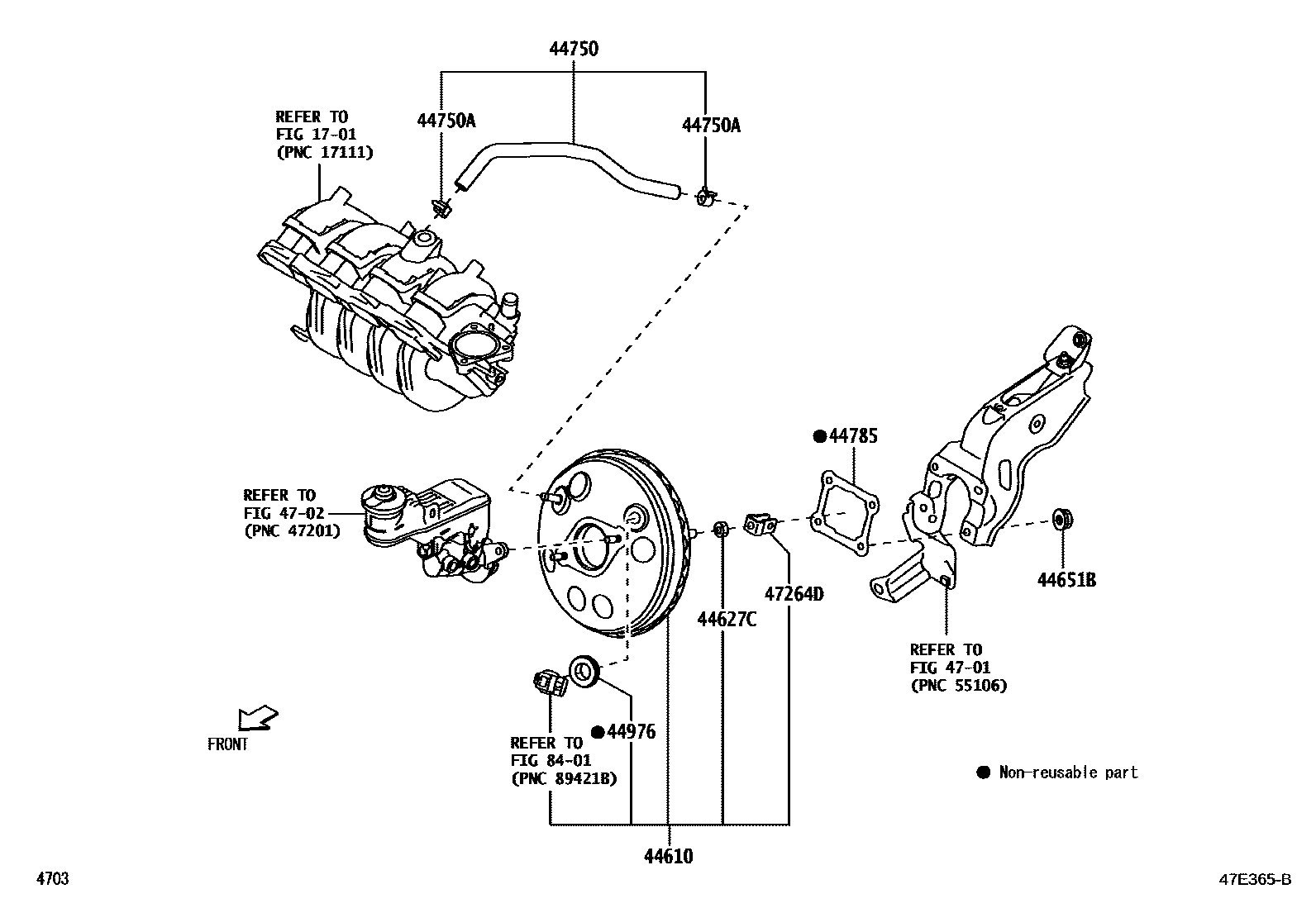

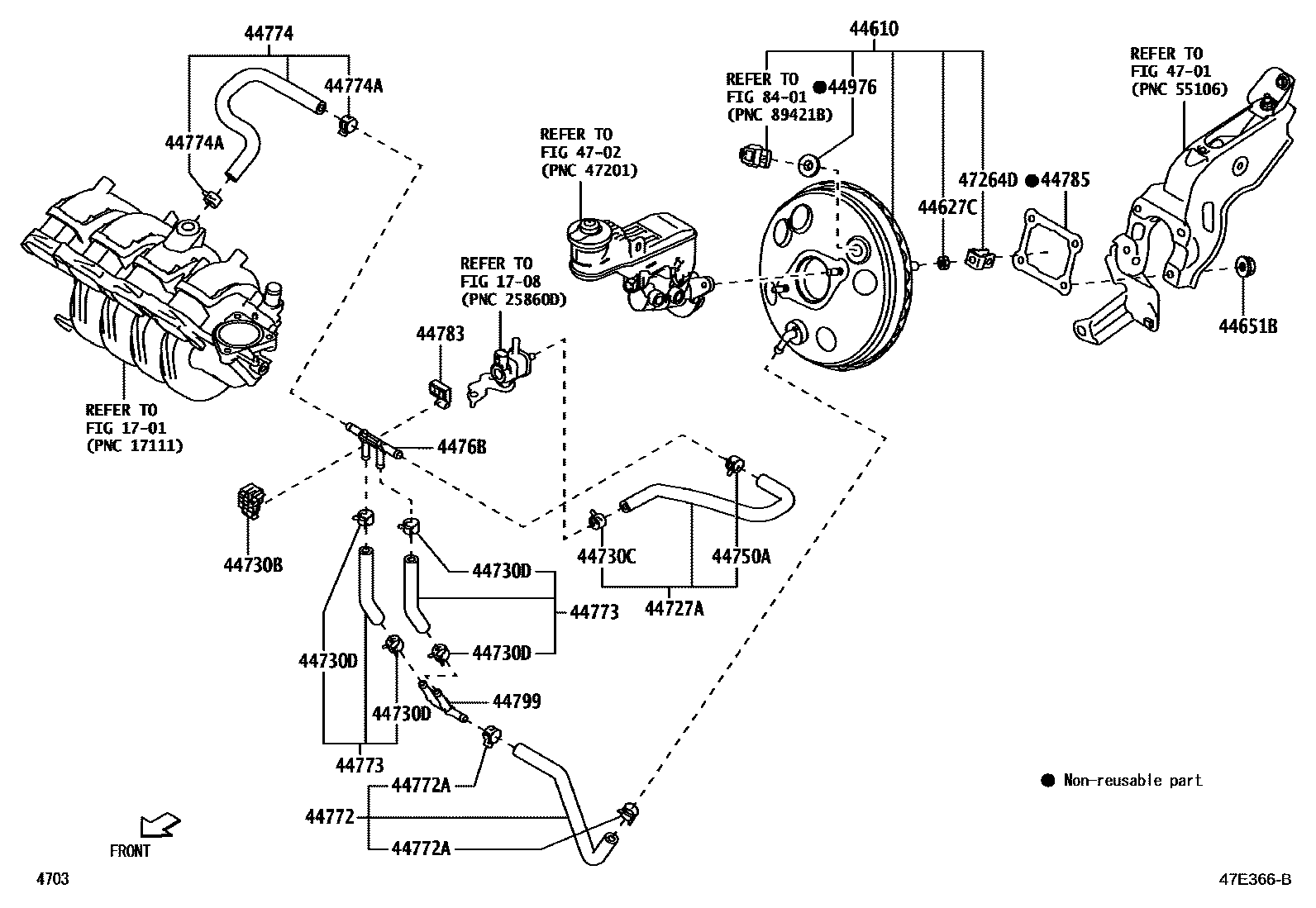

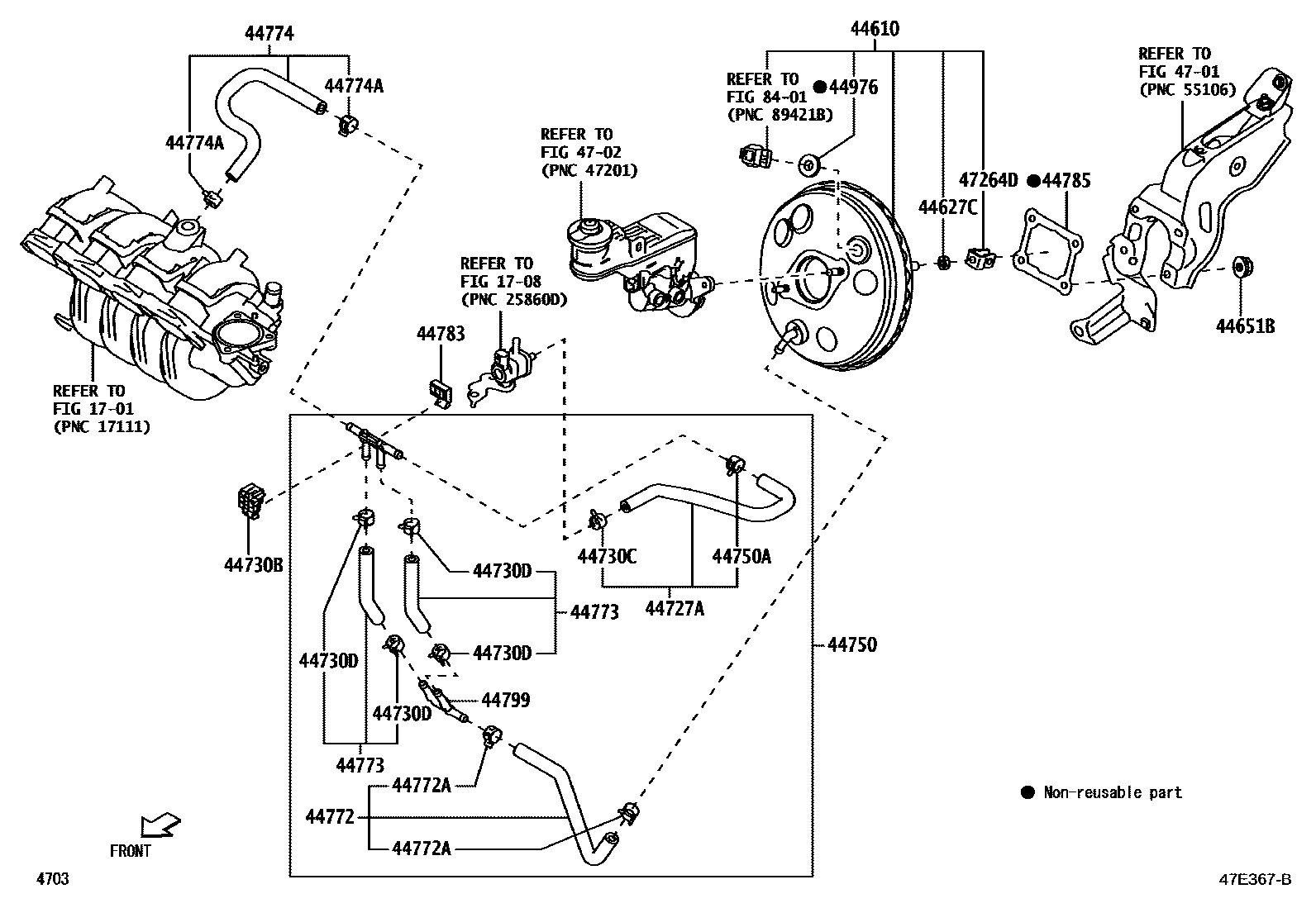

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-BZ730 · 44610-BZA10 · 44610-BZA30 |
| 44627C | Booster slave cylinder nut | 9004A-17229 |
| 44651B | booster nut | 90041-79300 |
| 44727A | Air hose No. 2 | 44727-BZ010 · 44727-BZ030 |
| 44730B | Vacuum hose clamp | 44783-BZ080 |
| 44730C | Clip (for vacuum hose) | 90044-67399 · 9004A-46337 |
| 44730D | Clamp (for vacuum hose No. 1) | 90044-67161 |
| 44750 | Vacuum hose assembly | 44750-BZ450 · 44750-BZ460 · 44750-BZ610 |
| 44750A | Clamp (for vacuum hose assembly) | 90044-67161 |
| 4476B | Brake booster vacuum injection pump | 4476B-B1010 |
| 44772 | Hoses (check valve to connector tube) | 44772-BZ160 · 44772-BZ200 |
| 44772A | Clip (for check valve to connector tube) | 90044-67161 |
| 44773 | No. 2 vacuum hose | 44770-BZ020 · 44770-BZ040 |
| 44774 | Hoses (joints to connector tubes) | 44774-BZ090 |
| 44774A | Clip (for fitting to connector tube hose) | 90044-67161 |
| 44783 | Vacuum hose clamp | 44783-BZ070 |
| 44785 | brake booster pad | 47275-BZ010 |
| 44799 | Brake vacuum hose connector | 44799-BZ030 · 44799-BZ040 |
| 44976 | booster seal | 44685-B2010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-BZ110 |
