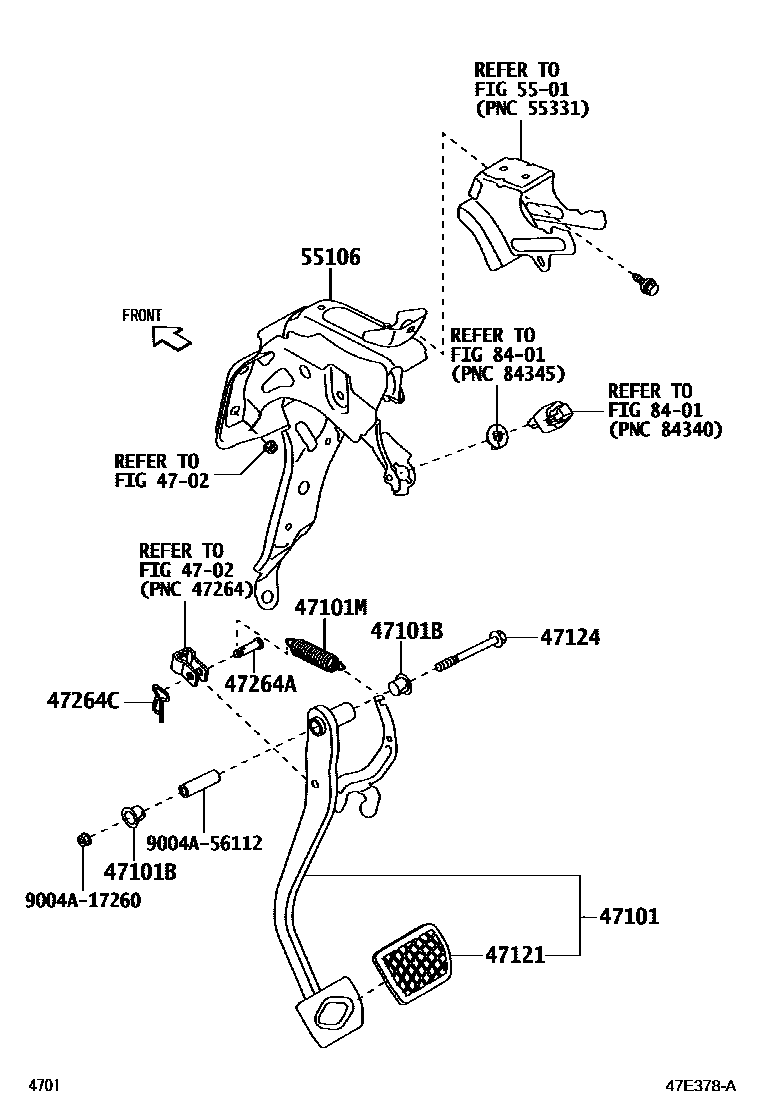

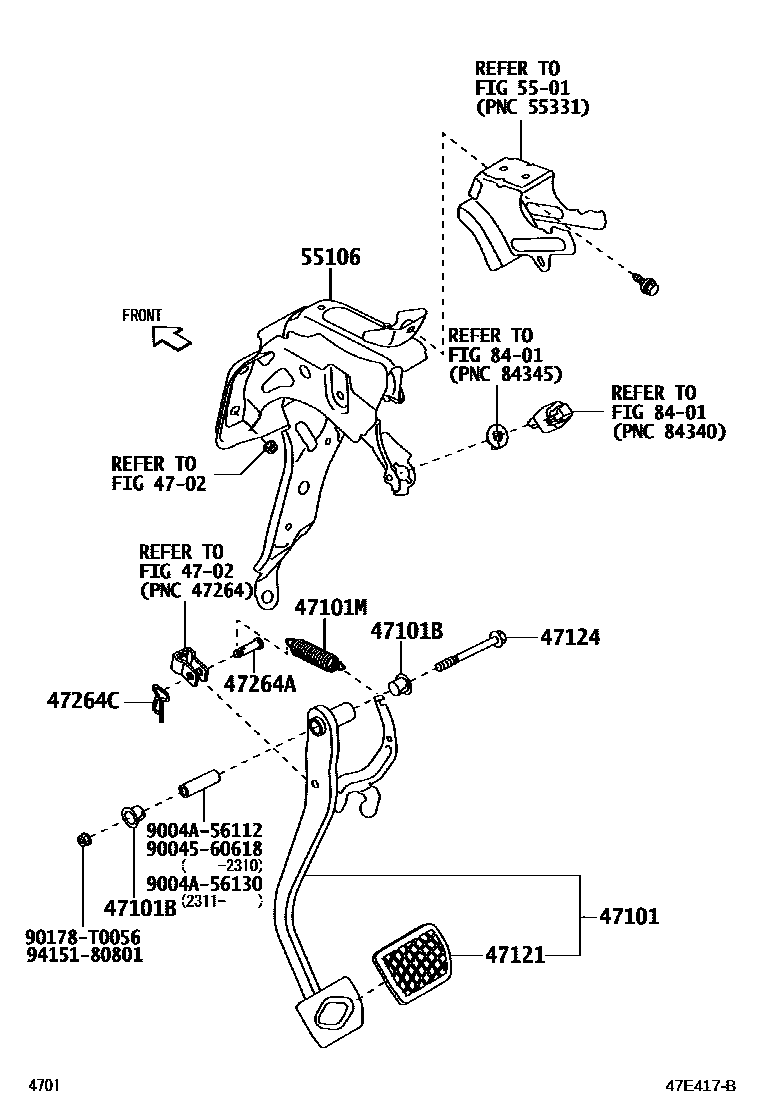

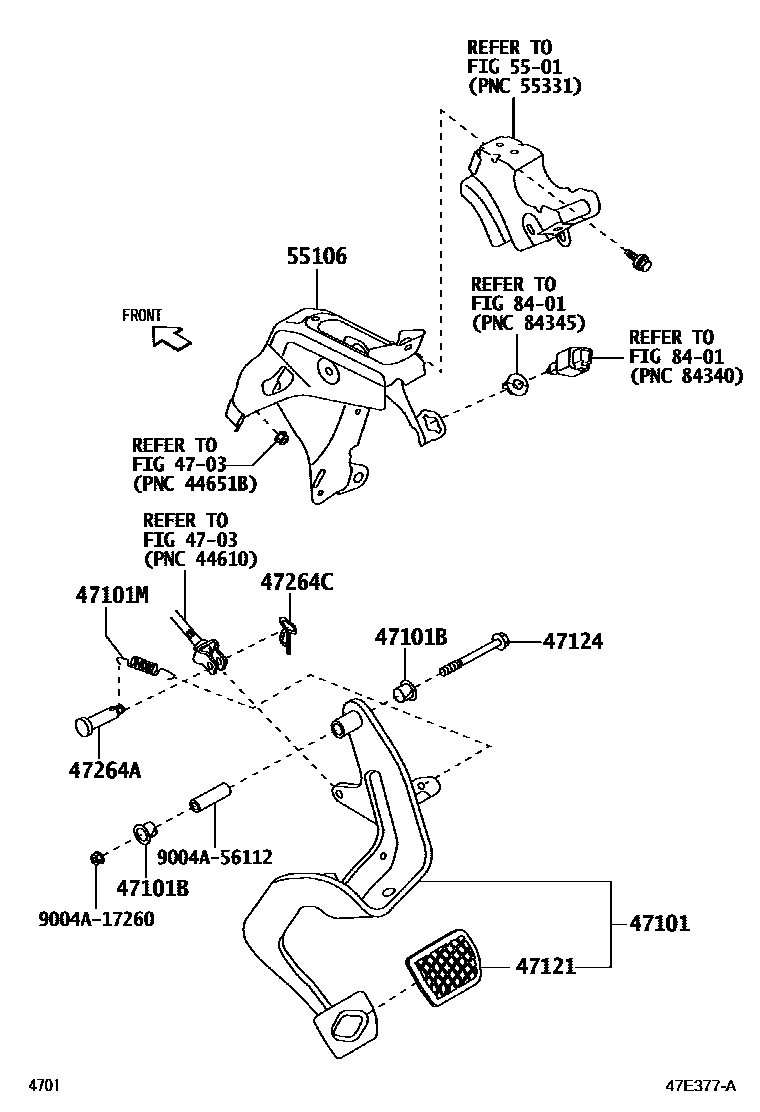

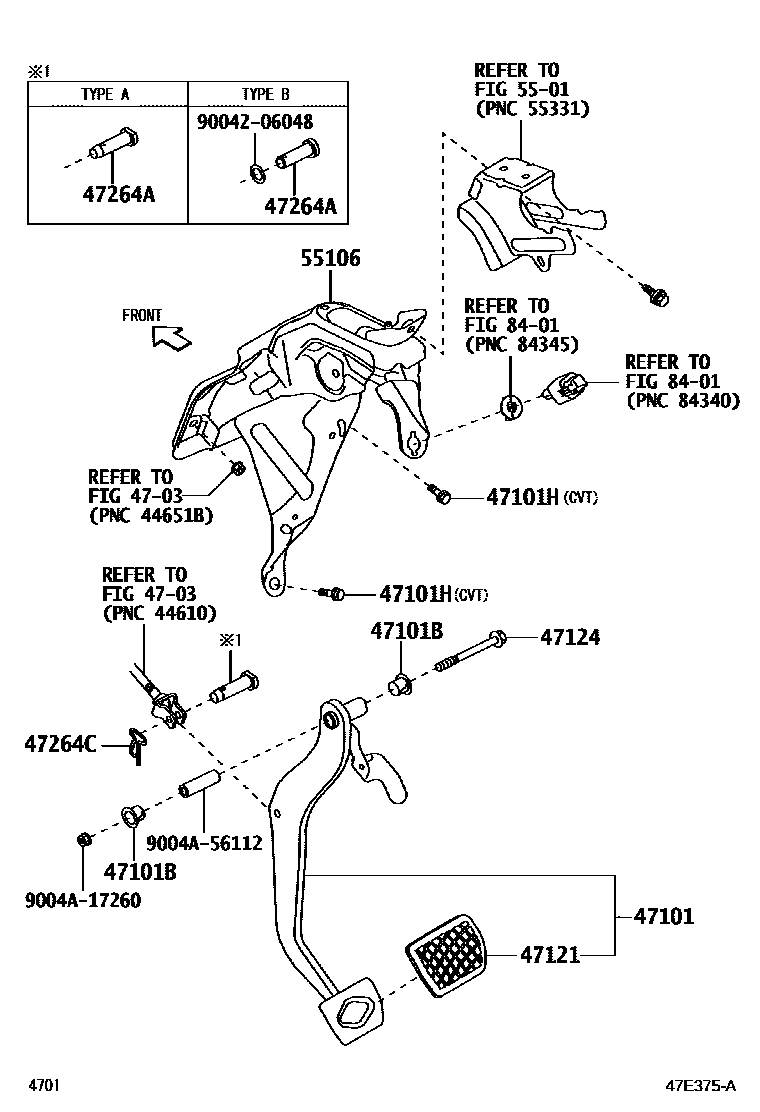

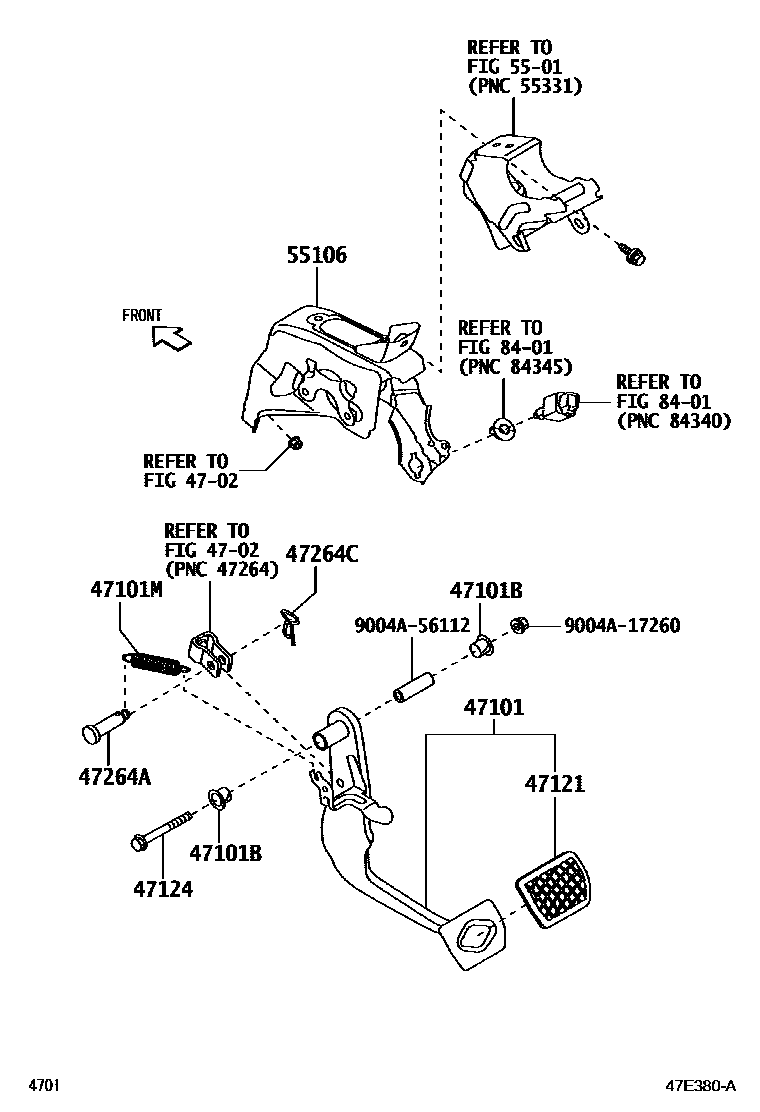

Toyota YARIS Brake Pedal & Bracket — Figure 4701
Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47110-BZ570 · 47110-BZ580 · 47110-BZ590 · 47110-BZ600 · 47110-BZ730 · 47110-BZ740 |
| 47101B | Bushing (for brake pedal) | 90043-86137 · 9004A-38094 |
| 47101H | Brake pedal limit bolt No. 2 | 9004A-11381 |
| 47101M | Tension spring | 90506-14088 · 90506-T0015 |
| 47121 | brake pedal pad | 47121-BZ060 · 47121-BZ070 · 47121-BZ080 · 47121-BZ081 |
| 47124 | brake pedal shaft | 90041-05626 · 9004A-10281 |
| 47264A | Pin (for push rod) | 90042-40143 · 90042-40151 · 90249-08051 |
| 47264C | Clip (for push rod clevis pin) | 90044-68076 · 90468-16142 |
| 55106 | Brake pedal bracket sub-assembly | 55106-BZ540 · 55106-BZ550 · 55106-BZ640 · 55106-BZ650 |
