Toyota YARIS Steering Column & Shaft — Figure 4501

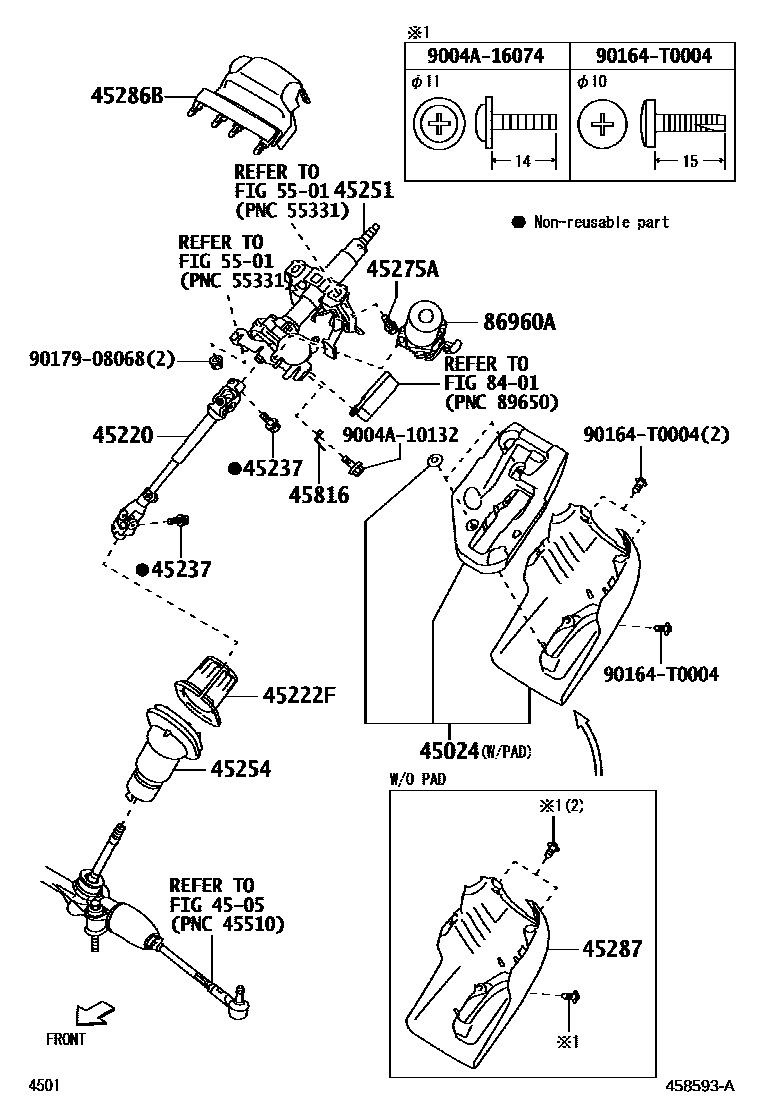

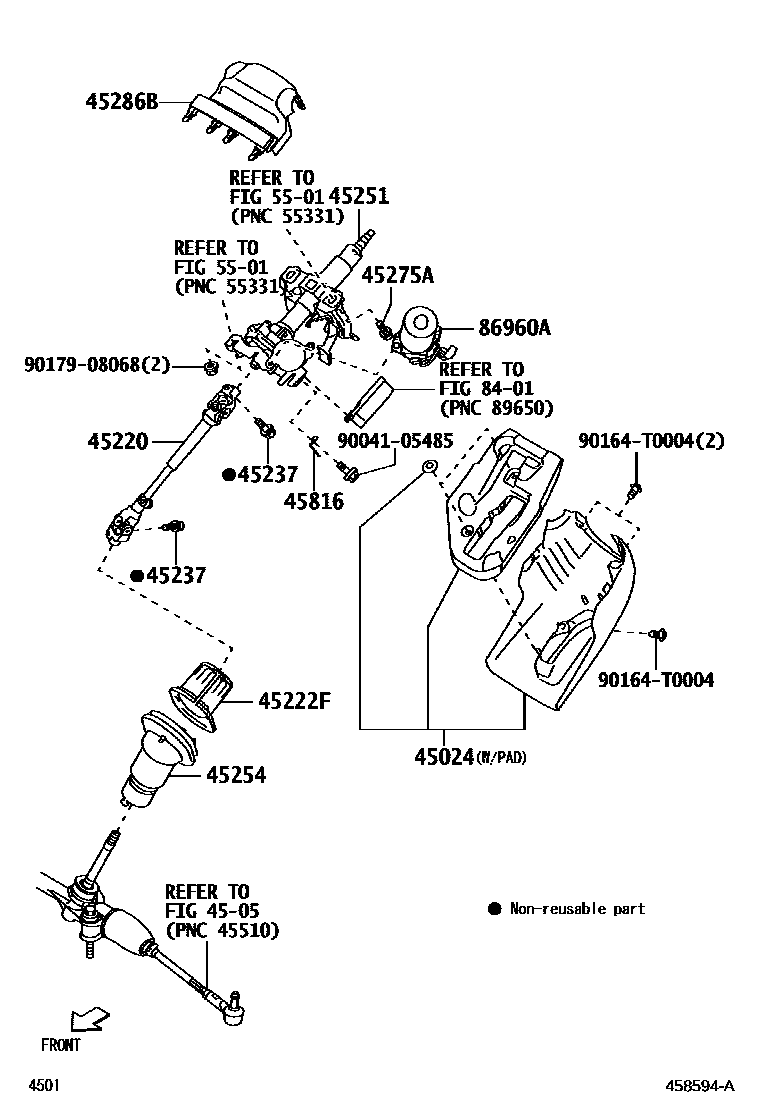

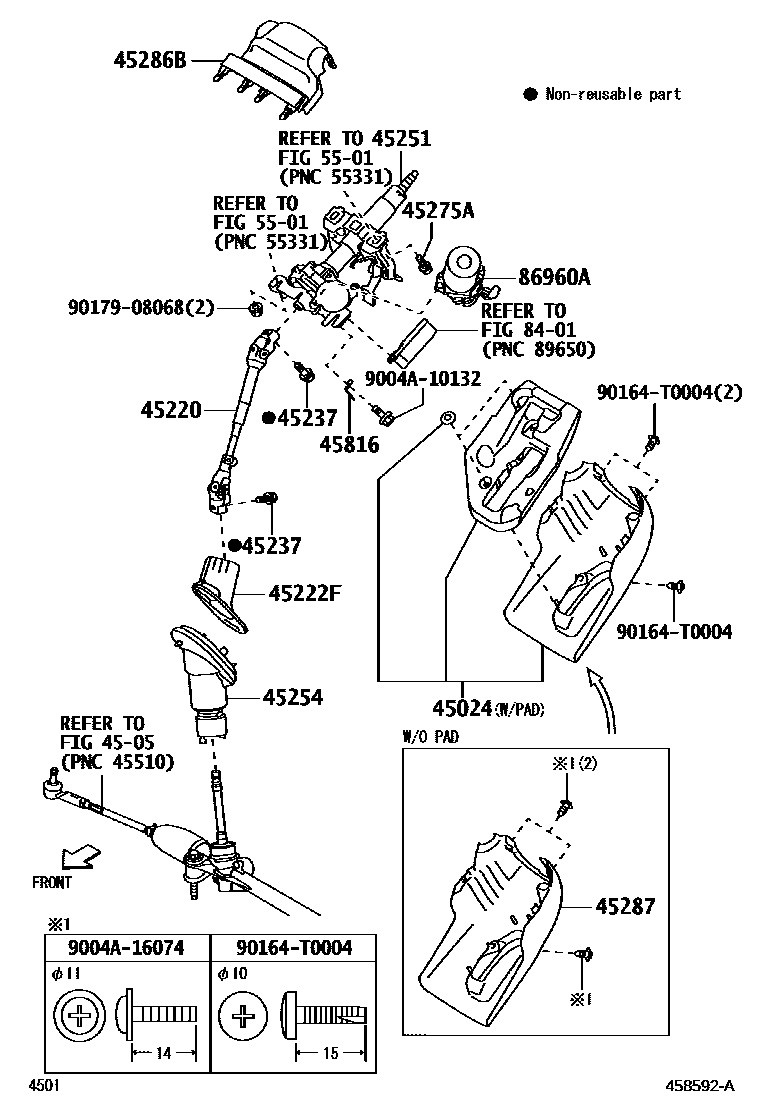

Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45220 | Steering intermediate shaft assembly | 45220-BZ450 · 45220-BZ460 · 45220-BZ610 · 45220-BZ612 · 45220-BZ670 · 45220-BZ680 |
| 45222F | dust cover | 45222-BZ210 · 45222-BZ220 |
| 45237 | Flexible fixing bolt (for steering spindle) | 90041-19747 |
| 45251 | Steering column tube assembly | 45251-B9440 · 45251-B9450 · 45251-B9480 · 45251-B9490 · 45251-B9500 · 45251-B9510 · 45251-B9520 · 45251-B9540 |
| 45254 | steering column escutcheon | 45254-BZ270 · 45254-BZ280 |
| 45275A | Hexagonal bolt (for steering column bracket) | 90041-20097 |
| 45816 | Wire harness bracket | 82715-BZE80 · 82715-BZR20 |
| 86960A | Power steering motor assembly | 80960-B9220 · 80960-B9240 · 80960-B9250 |
