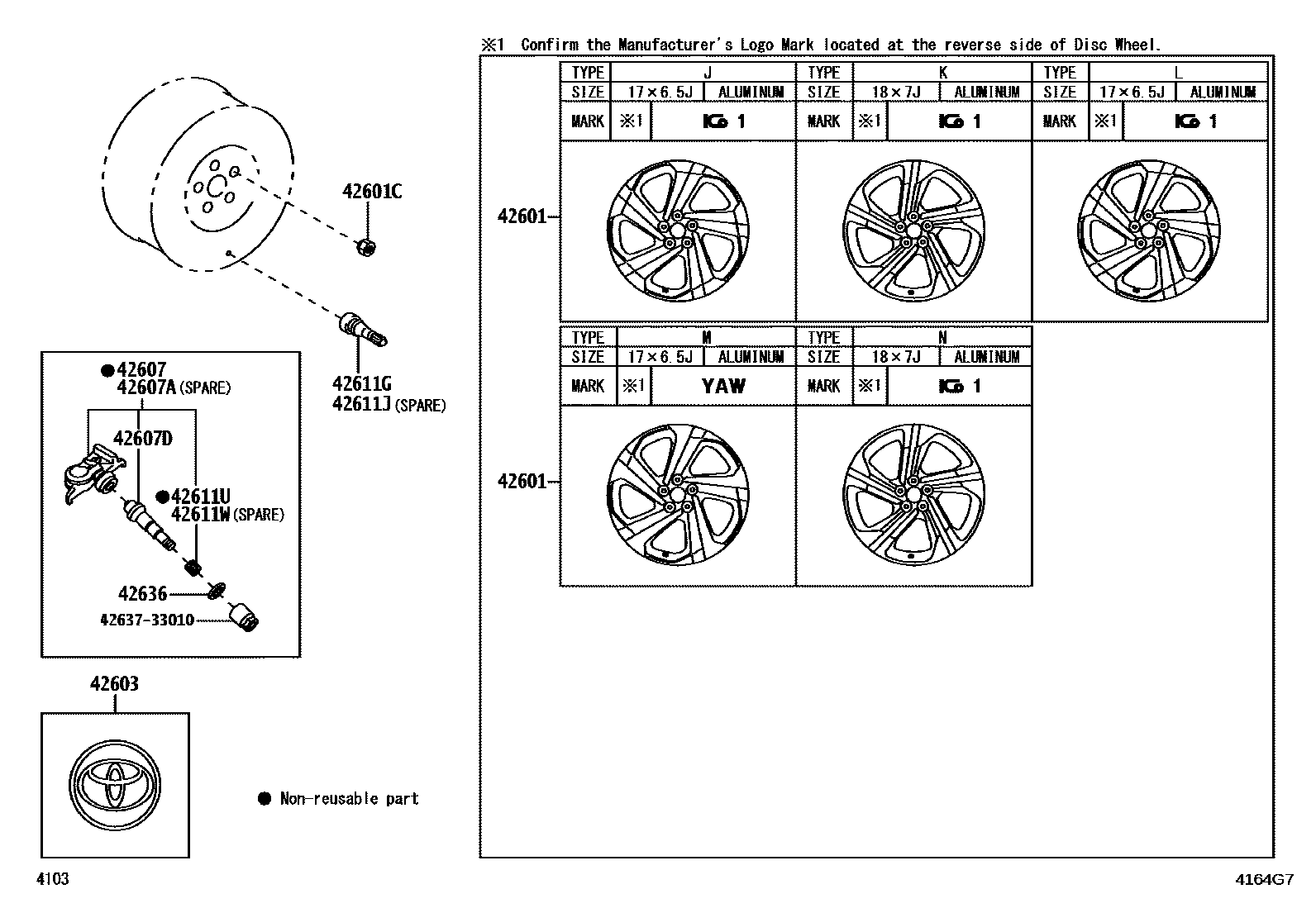

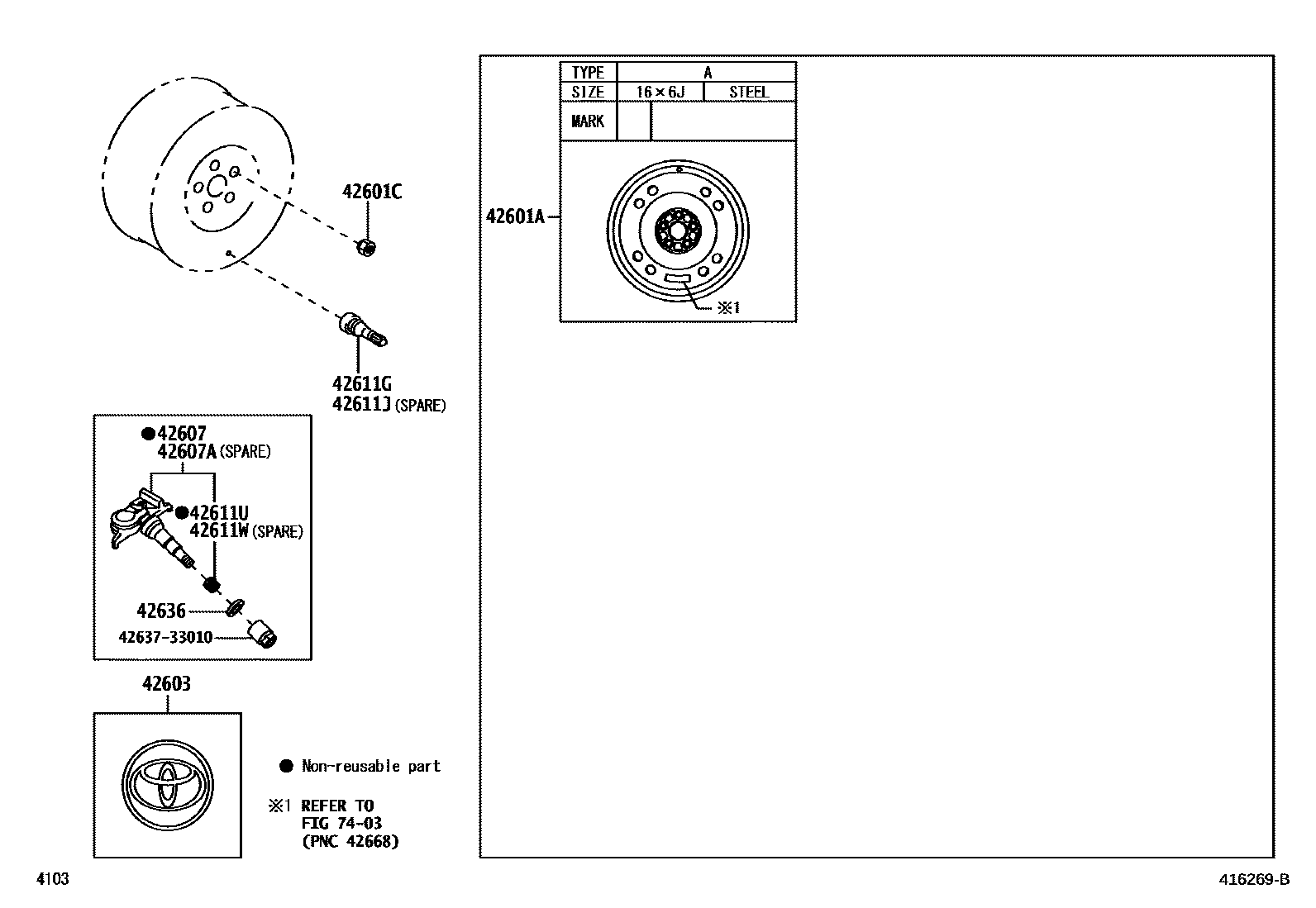

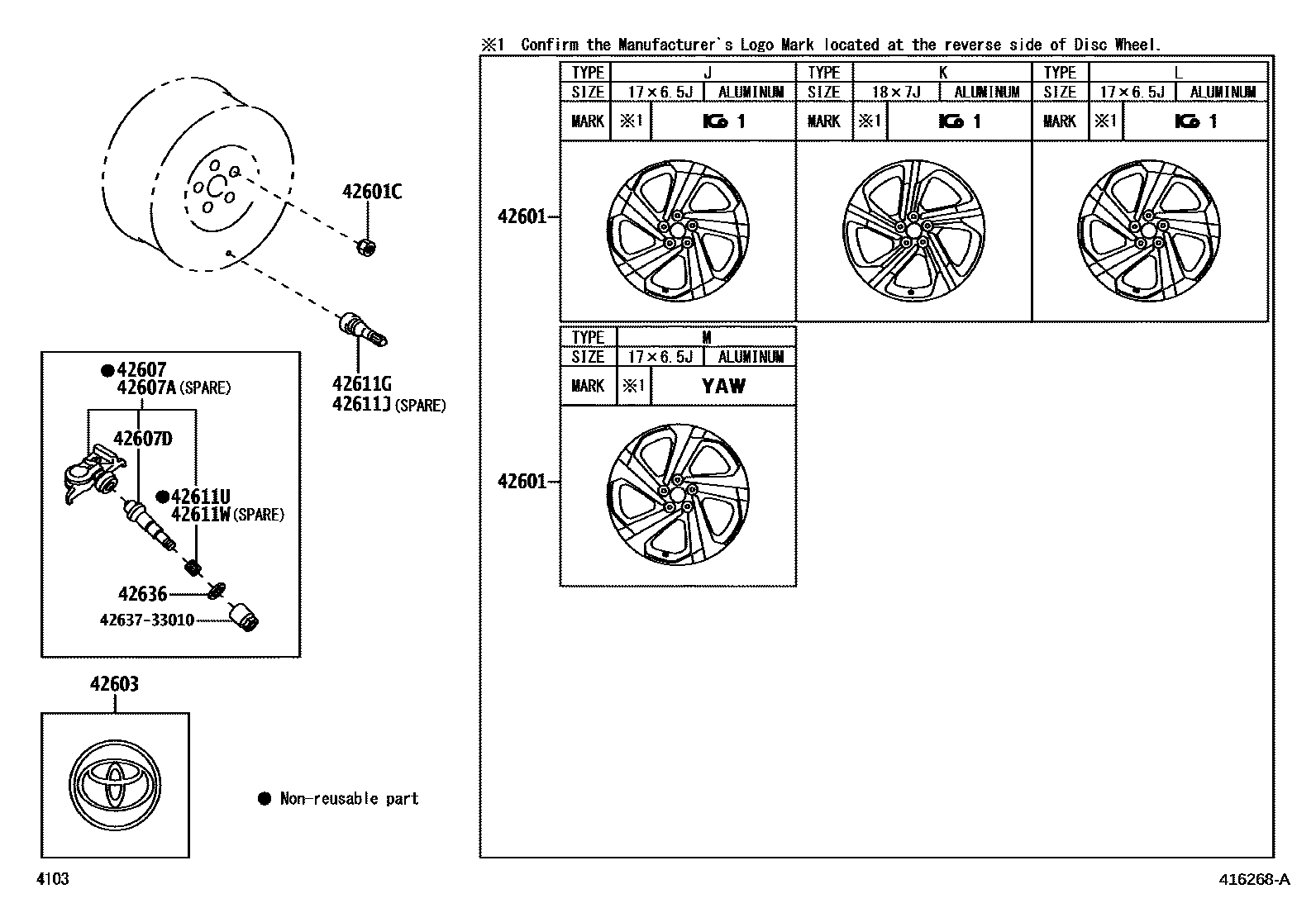

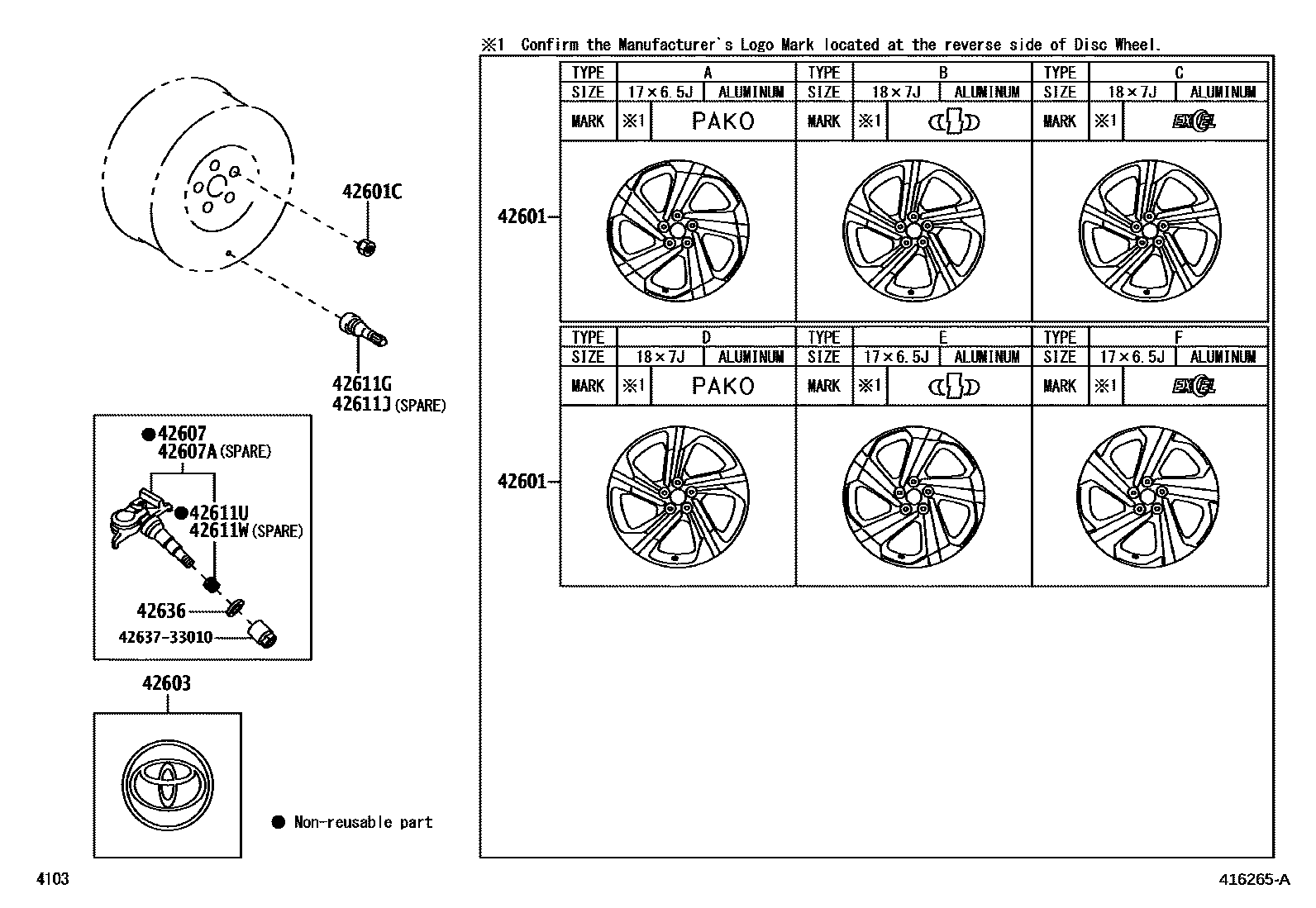

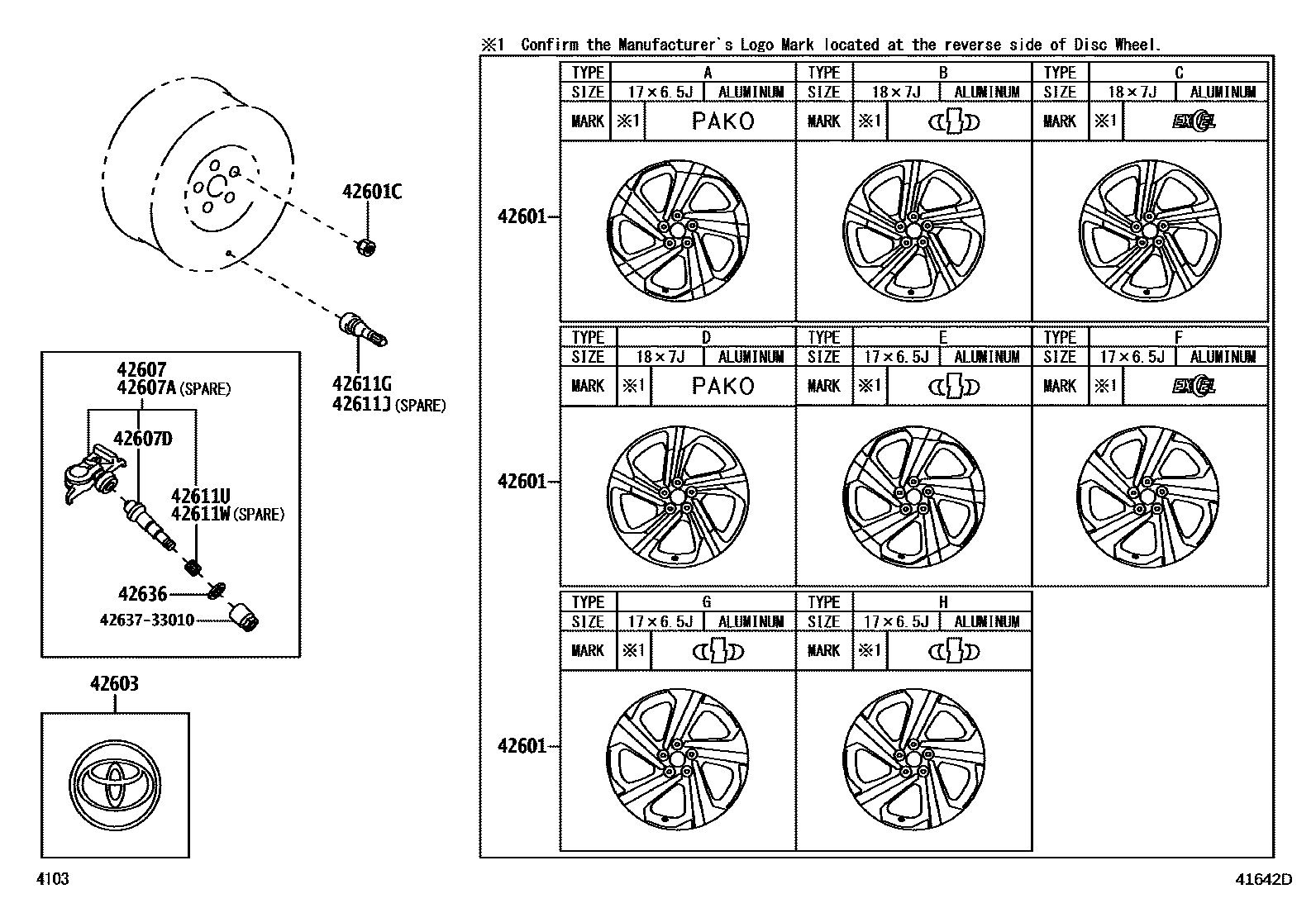

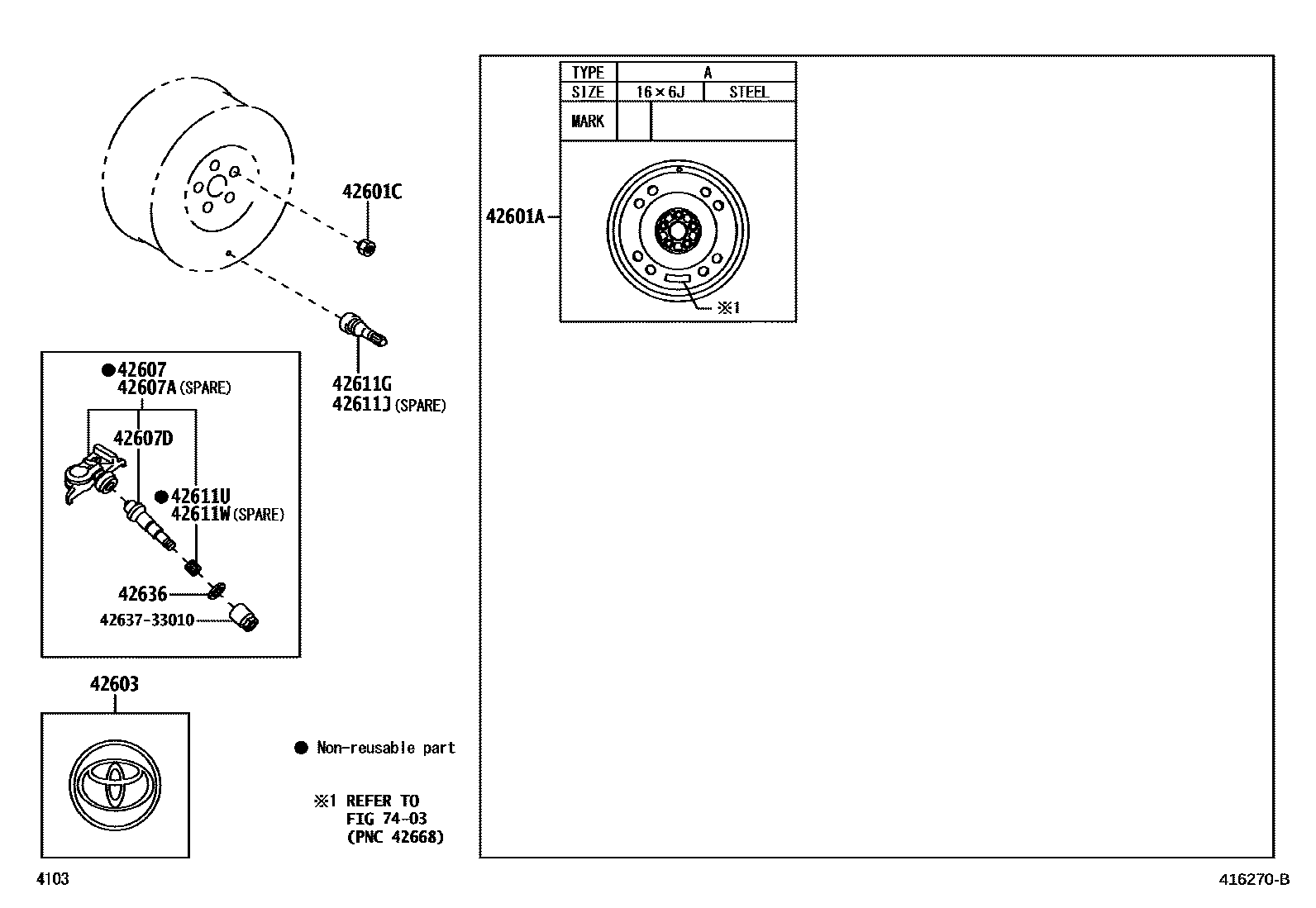

Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 8 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-BZF50 · 42611-BZJ60 · 42611-BZK20 · 42611-BZL90 · 42611-BZM70 · 42611-BZM80 · 42611-BZN00 · 42611-BZN10 · 42611-BZN20 · 42611-BZN30 · 42611-BZN40 · 42611-BZN50 · 42611-BZN60 |
| 42601A | Spoke wheel (for spare tire) | 42611-BZJ80 |
| 42601C | Hub nut (for axle) | 90049-11063 · 9004A-94124 |
| 42603 | Wheel hub decorative parts sub-assembly | 42638-BZ490 · 42638-BZ680 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12020 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-12020 |
| 42607D | tire pressure monitoring valve | 90942-05044 |
| 42611G | Valve (for tubeless tires) | 90049-02019 · 90080-94031 |
| 42611J | Valve (for tubeless spare tire) | 90049-02019 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42636 | tire valve gasket | 42636-33010 |
