Toyota YARIS 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

Toyota YARIS EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 2 images and 17 PNC and OE references.

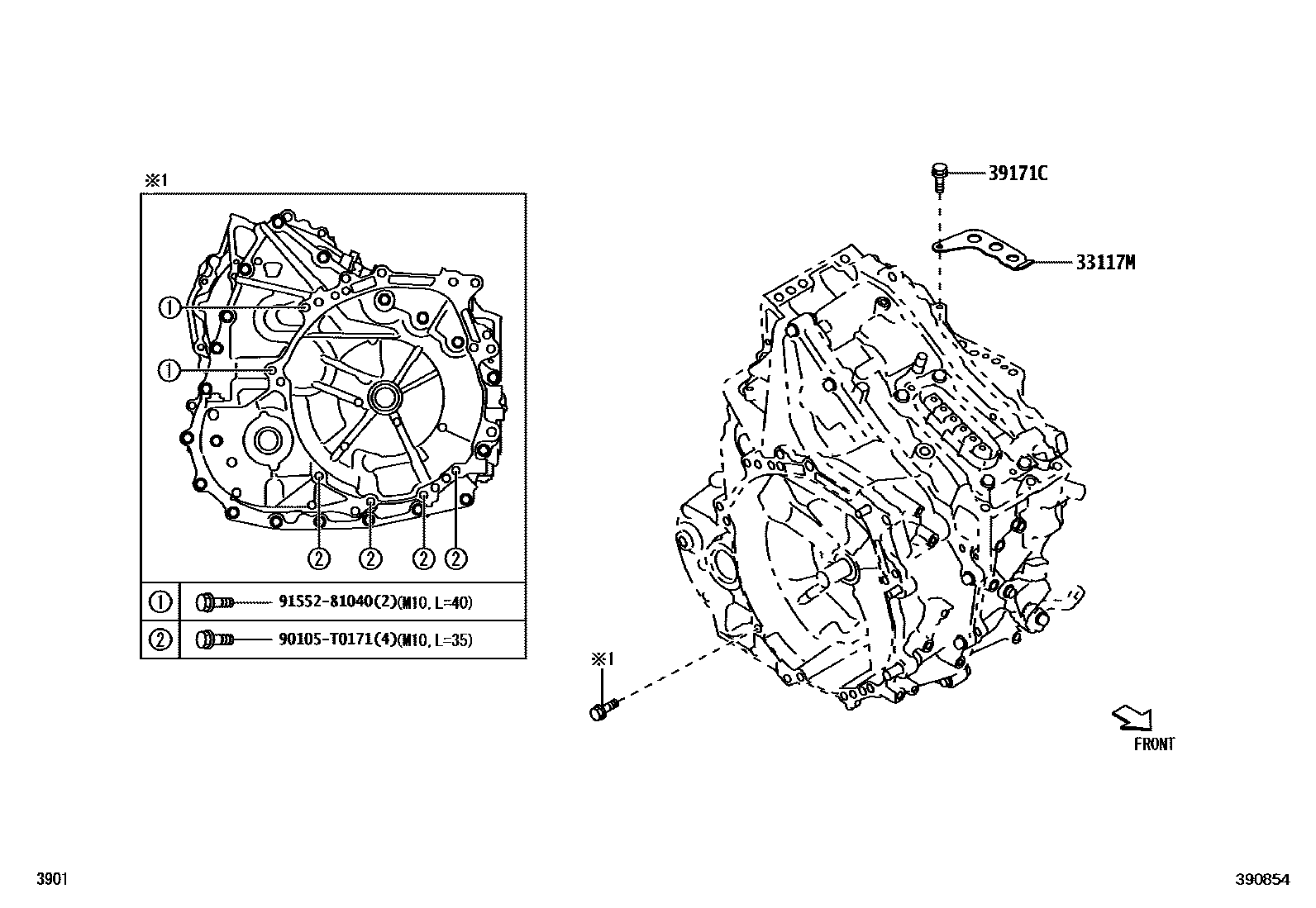

Toyota YARIS 传动桥总成(HEV 或 BEV 或 FCEV) EPC diagram — 390854
传动桥总成(HEV 或 BEV 或 FCEV) — 390854 (202306 – 999999)

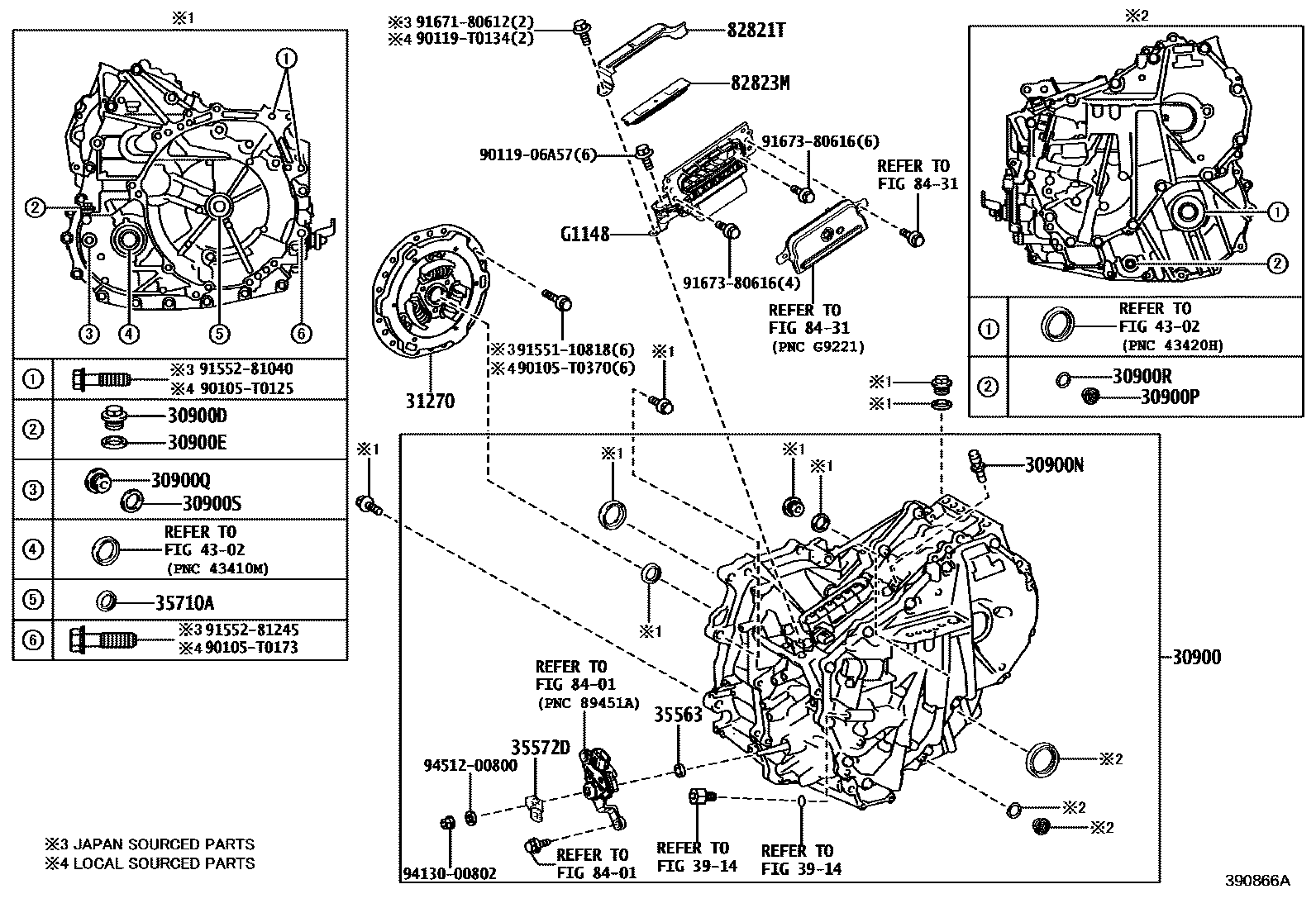

Toyota YARIS 传动桥总成(HEV 或 BEV 或 FCEV) EPC diagram — 390866A
传动桥总成(HEV 或 BEV 或 FCEV) — 390866A (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
30900Hybrid vehicle transmission axle assembly30900-0J030
30900DHeaded straight thread plug (for transaxle housing and transaxle housing)90341-18060
30900EGasket (for transaxle housing and transaxle housing)90430-18008
30900NBreather plug (for transaxle)90930-03201
30900PDrain plug (HEV)90341-18016
30900QOil filling plug (HEV)90341-18016
30900RDrain plug gasket (HEV)90430-18008
30900SOil filling plug gasket (HEV)90430-18008
31270Transmission input damper assembly31270-0J010
33117MReinforcement plate bracket33117-BZ010
35563Shift control actuator seal90311-12016
35572Dtransmission control lever35572-K0010
35710AT-type oil seal (for input shaft)90311-25025
39171CBolts (for transaxle cover)90119-06A16 · 90119-T0601
82821TConnector cover82821-52350
82823MTerminal cover82823-47040
G1148Motor cableG1148-0J010 · G1148-K0010
