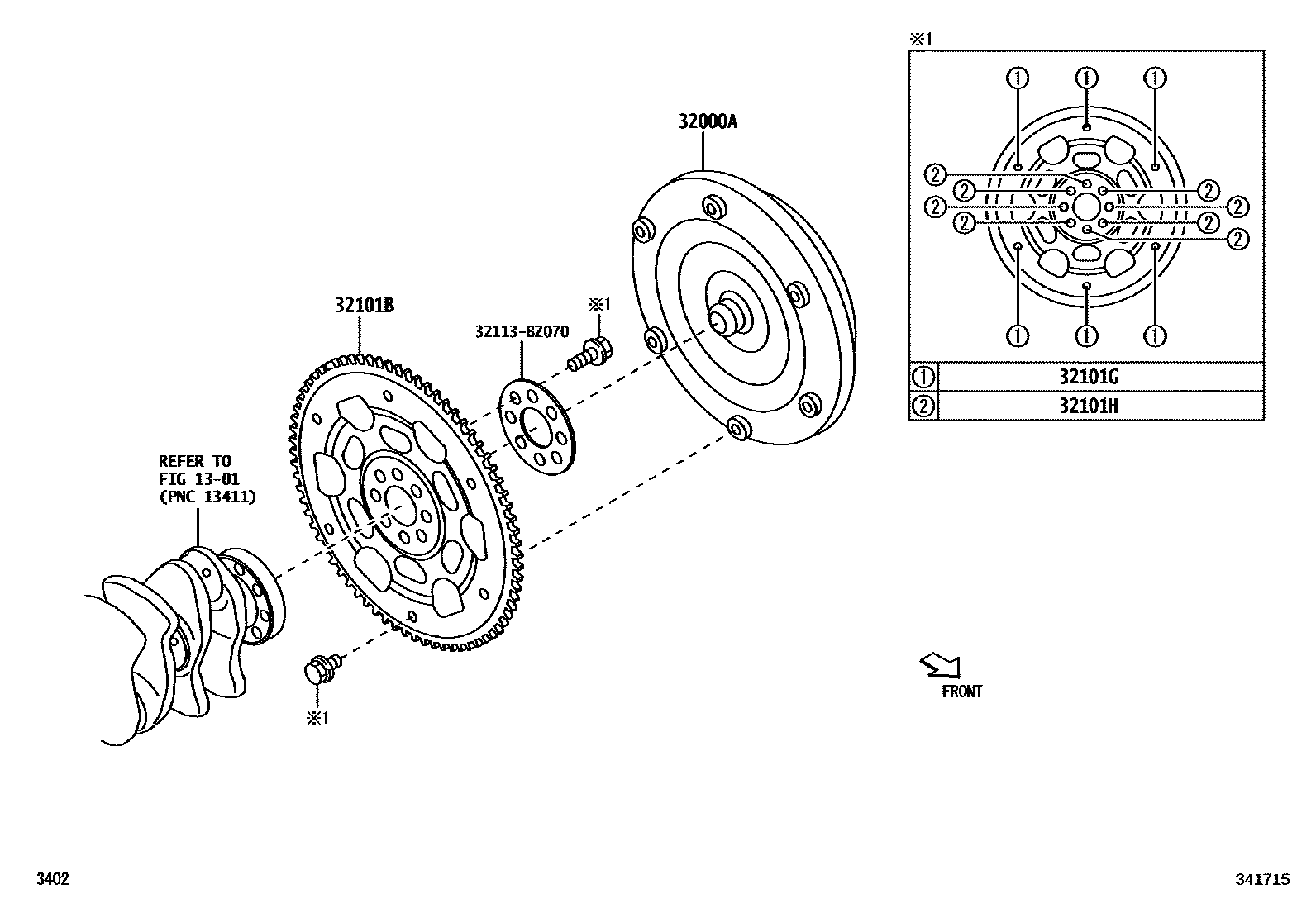

Toyota YARIS 变矩器、前油泵(CVT) — Figure 3402
Toyota YARIS EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000A | Torque converter assembly | 32000-B2230 |
| 32101B | Transmission plate and ring gear sub-assembly | 32101-BZ100 |
| 32101G | Bolts (for securing transmission plate and torque converter) | 9004A-10300 · 9004A-10301 |
| 32101H | Hexagonal bolts (used to fix the transmission plate) | 9004A-10200 |
