Toyota YARIS Shift Lever & Retainer — Figure 3312

Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 4 images and 11 PNC and OE references.

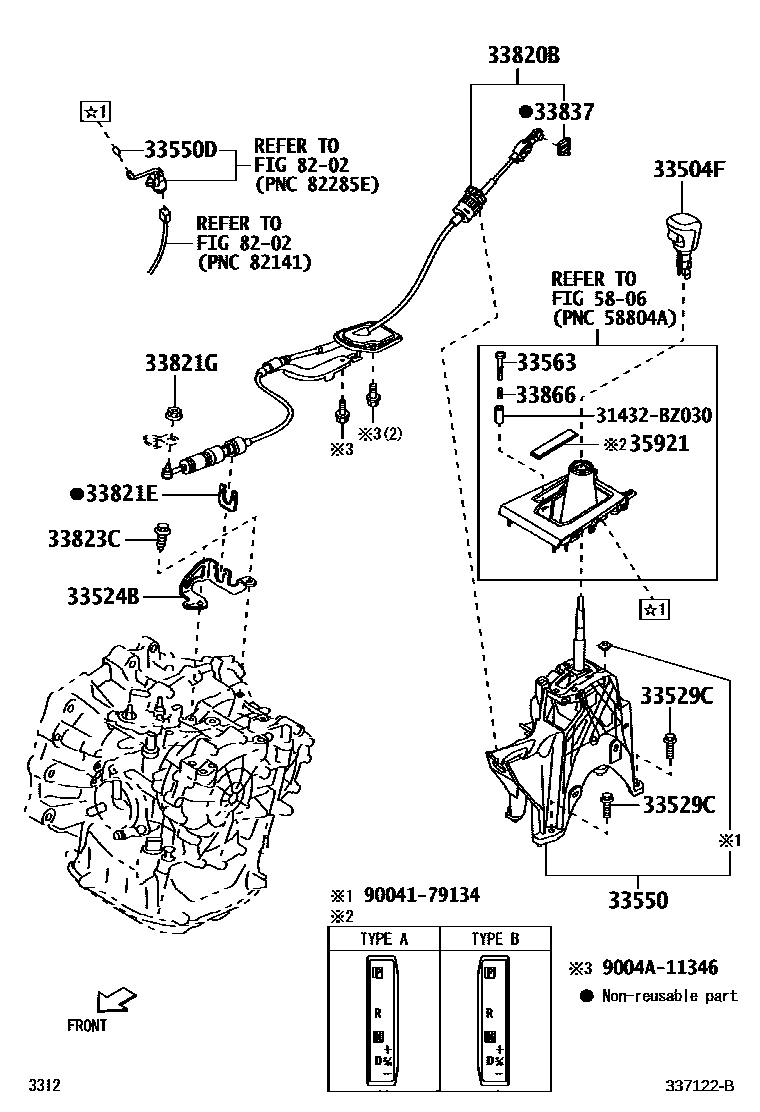

Toyota YARIS Shift Lever & Retainer EPC diagram — 337122B
Shift Lever & Retainer — 337122B (202306 – 999999)

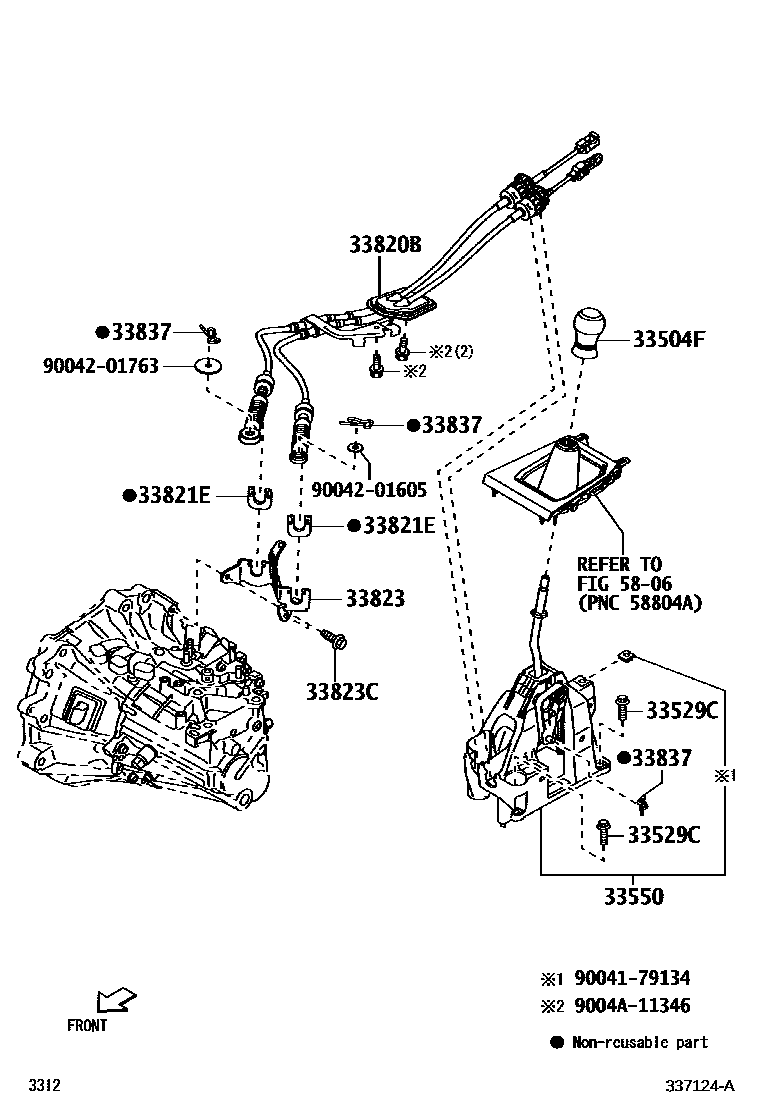

Toyota YARIS Shift Lever & Retainer EPC diagram — 337124A
Shift Lever & Retainer — 337124A (202306 – 999999)

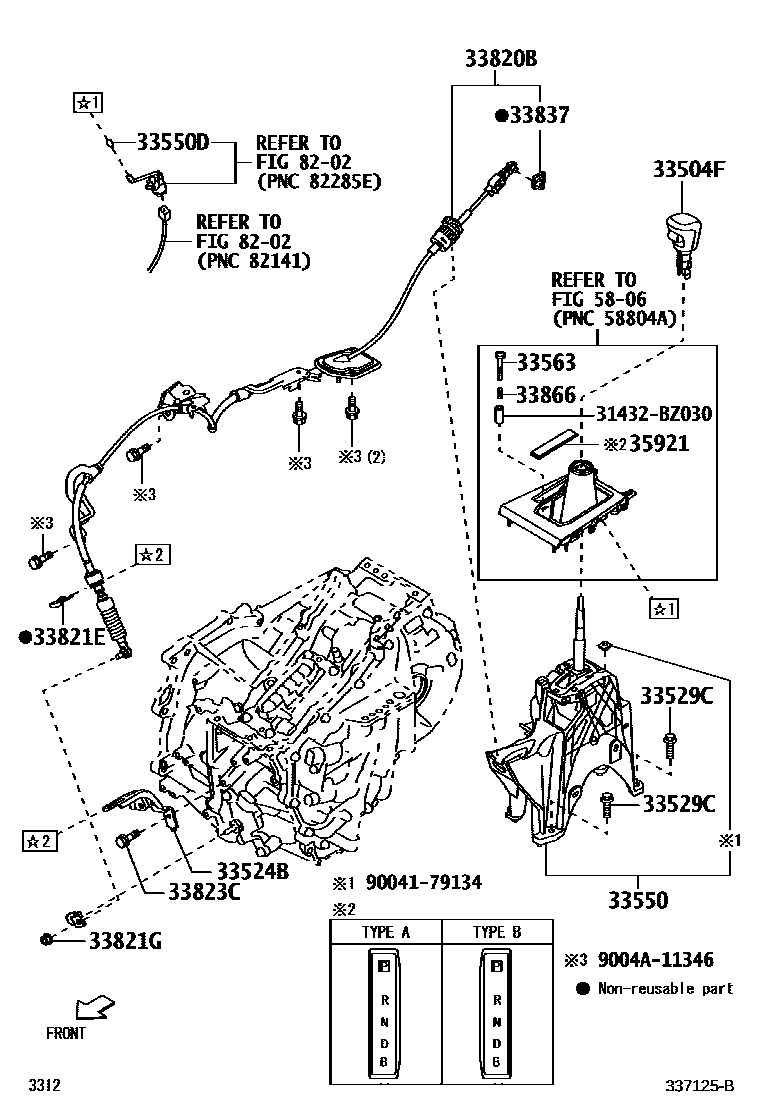

Toyota YARIS Shift Lever & Retainer EPC diagram — 337125B
Shift Lever & Retainer — 337125B (202306 – 999999)

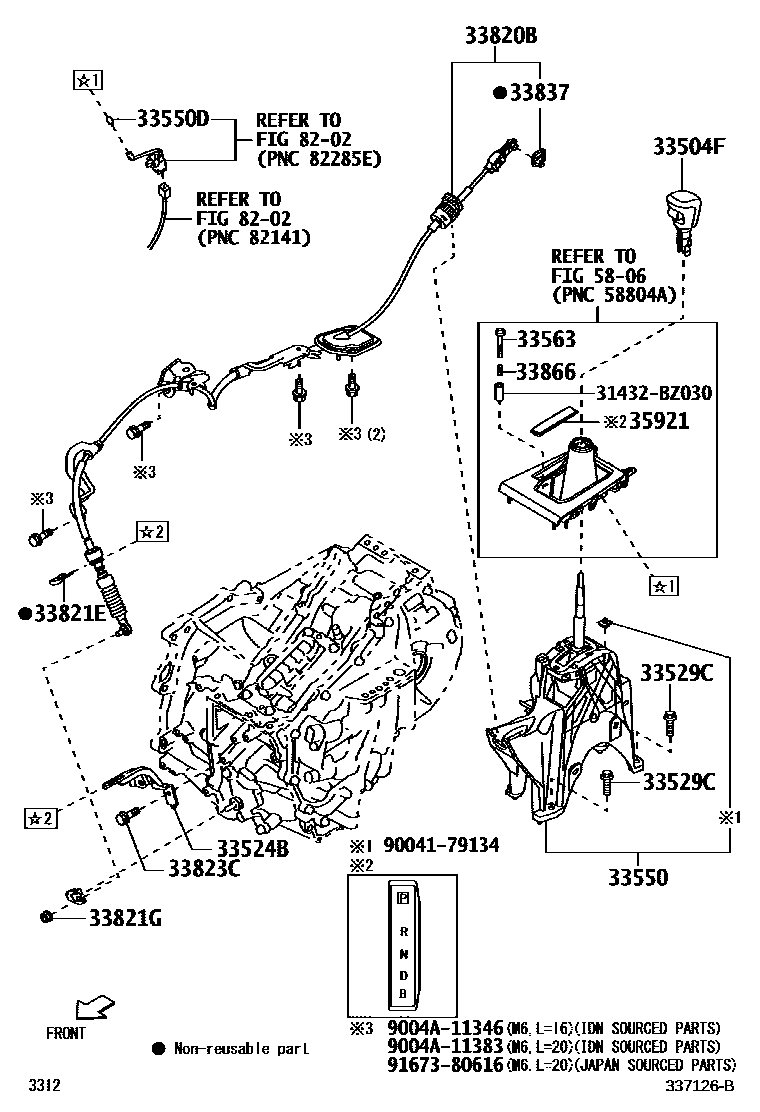

Toyota YARIS Shift Lever & Retainer EPC diagram — 337126B
Shift Lever & Retainer — 337126B (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
33524BControl cable bracket33524-BZ040 · 33524-BZ100
33529Cshift lever bolt9004A-11274
33550Dposition indicator light bulb35955-BZ030 · 35955-BZ070
33820BTransmission control cable assembly33820-BZ440 · 33820-BZ451 · 33820-BZ550
33821EClamp No. 1 (for transmission control cable)33567-B1010 · 90468-14016
33821GNut (for transmission control cable)9004A-17243 · 90178-T0019 · 90179-06274
33823No. 1 transmission control cable bracket33823-BZ090
33823CBolt (for transmission control cable bracket)9004A-10127 · 90105-T0120
33837Transmission control cable adjustment clip33837-B2010 · 90044-68076
33866Shift lock release spring33866-BZ010 · 33866-BZ050
35921control position indicator board35921-BZ240 · 35921-BZ290 · 35921-BZ310 · 35921-BZ320 · 35921-BZ330
