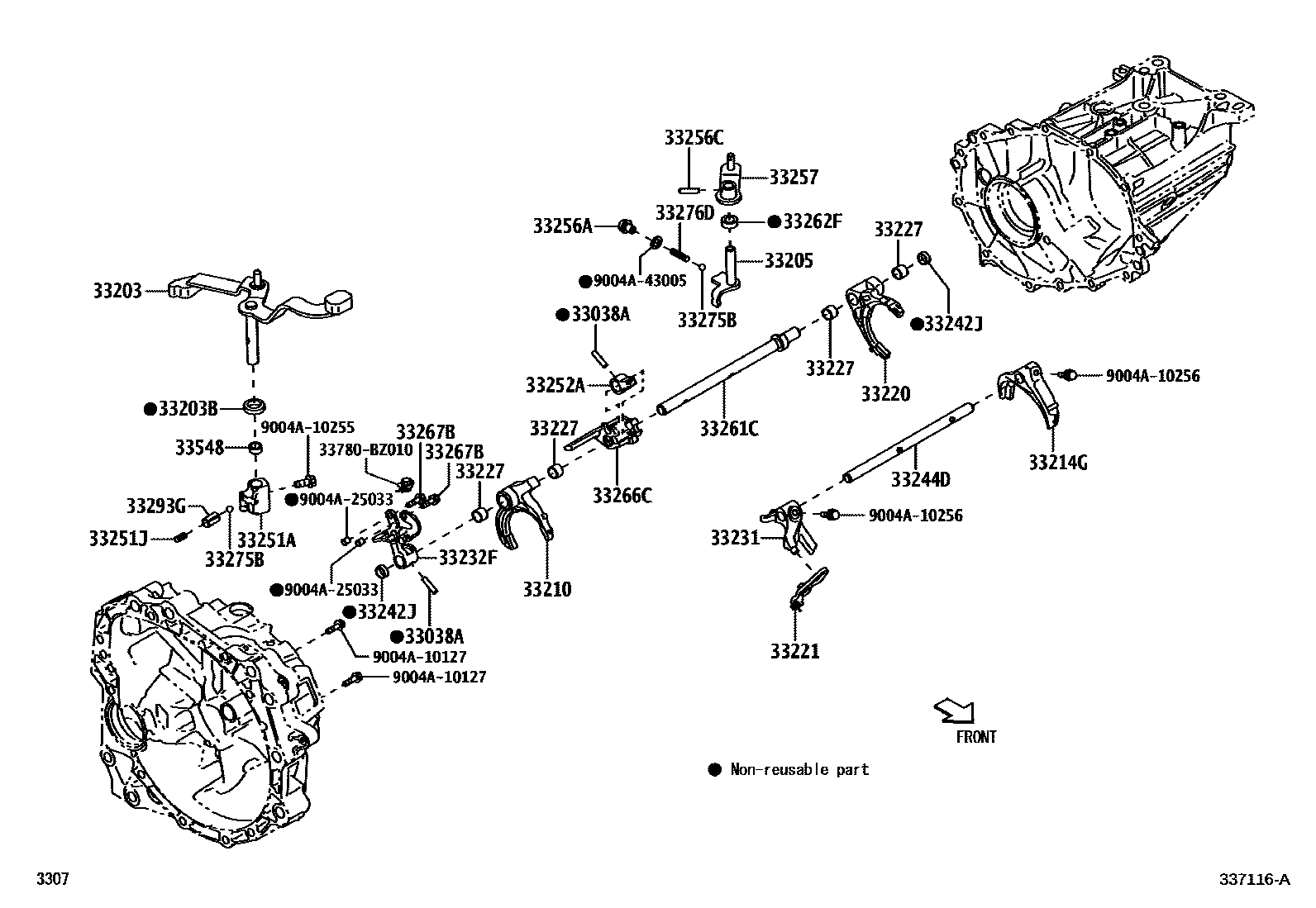

Toyota YARIS 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota YARIS EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33038A | Slotted spring pin | 9004A-25042 |
| 33203 | No. 1 shift lever shaft sub-assembly | 33203-BZ170 |
| 33203B | Oil seal (for shift lever shaft) | 9004A-31017 |
| 33205 | Selector lever shaft sub-assembly | 33205-BZ100 |
| 33210 | No. 1 shift fork assembly | 33210-BZ010 |
| 33214G | No. 3 shift fork | 33214-BZ080 |
| 33220 | No. 2 shift fork assembly | 33220-BZ010 |
| 33221 | Reverse shift arm | 33201-BZ050 |
| 33227 | Shift fork guide bushing | 33227-BZ020 |
| 33231 | Reverse gear shift guide block | 33231-BZ030 |
| 33232F | No. 1 transmission guide block | 33232-BZ030 |
| 33242J | Bushing (for shift fork shaft) | 33227-BZ010 |
| 33244D | No. 3 shift fork shaft | 33244-BZ090 |
| 33251A | Internal shift lever No. 1 | 33251-BZ070 |
| 33251J | Compression spring (for inner shift lever) | 9004A-50143 |
| 33252A | Internal shift lever No. 2 | 33252-BZ010 |
| 33256A | Fixing bolt (for interior gear selector) | 9004A-10253 |
| 33256C | Slotted spring pin (for interior selector lever) | 9004A-25043 |
| 33257 | External gear selector | 33260-BZ010 |
| 33261C | shift lever shaft | 33261-BZ130 |
| 33262F | Oil seal (for selector lever shaft) | 9004A-31052 |
| 33266C | shift interlock plate | 33266-BZ070 |
| 33267B | Bolt (for shift retainer plate) | 9004A-10197 |
| 33275B | Gear shift lock steel ball | 9004A-36044 |
| 33276D | Compression spring (for selector lever shaft) | 9004A-50142 |
| 33293G | Locking steel ball retainer | 33293-BZ030 |
| 33548 | shift lever bushing | 33548-BZ070 |
