Toyota YARIS 离合器总泵 — Figure 3103

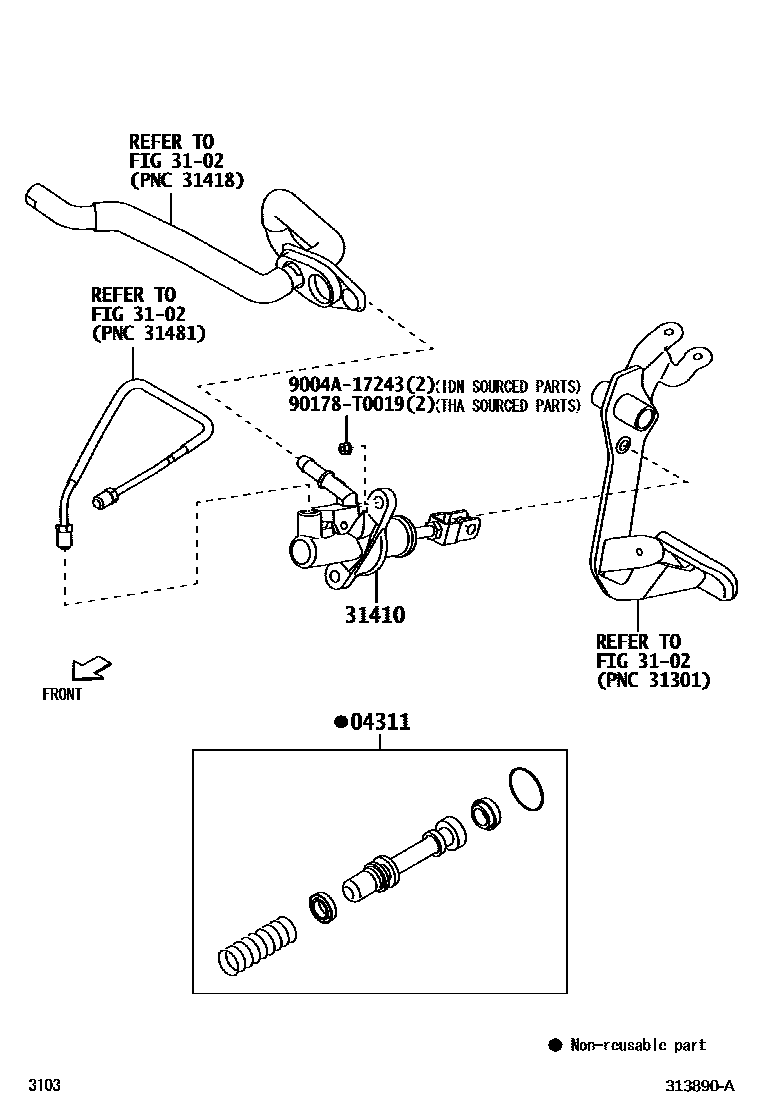

Toyota YARIS EPC diagram 3103, 离合器总泵, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-BZ020 |
| 31410 | Clutch master cylinder assembly | 31420-BZ040 |
