Toyota YARIS 燃油喷射系统 — Figure 2211

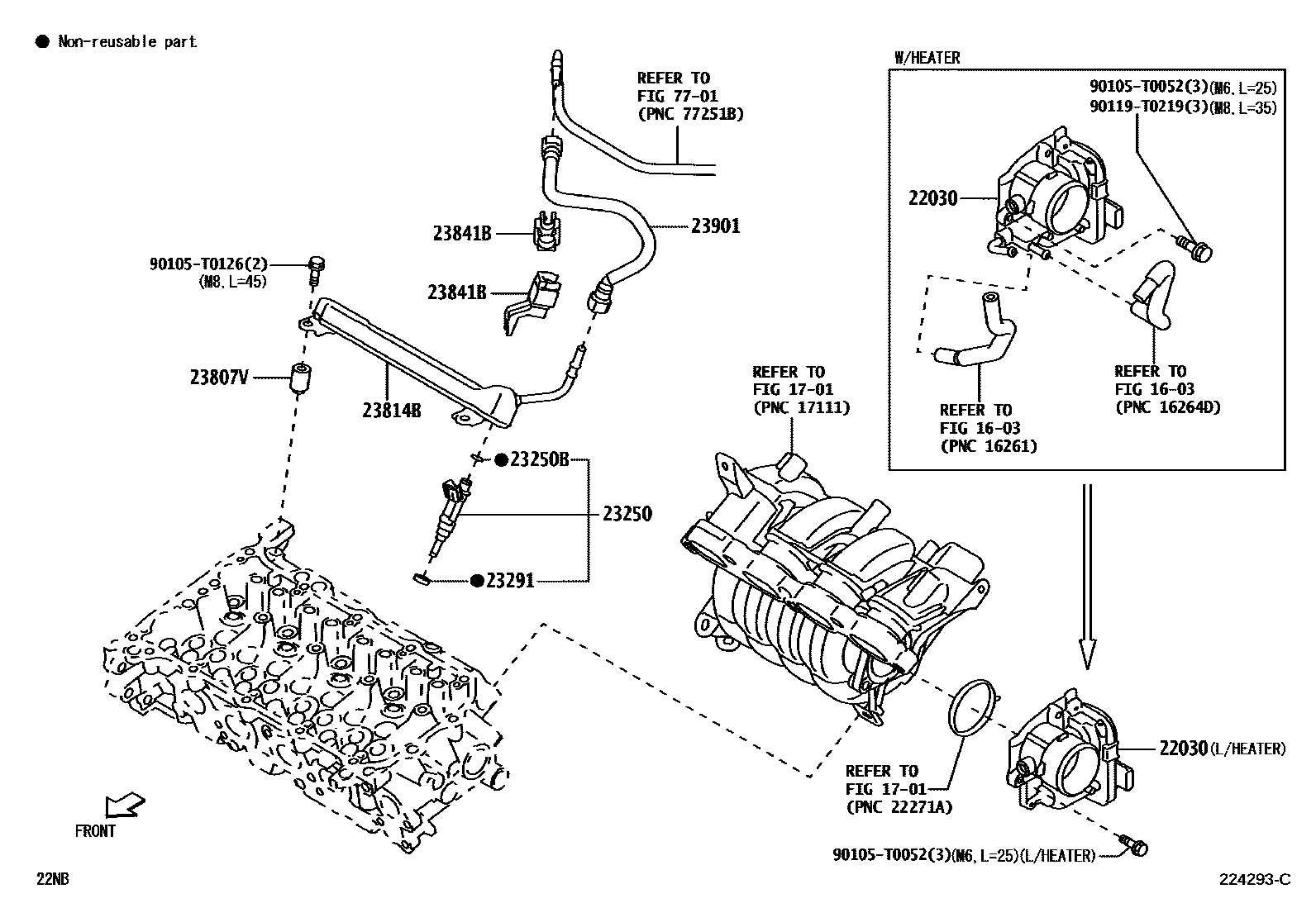

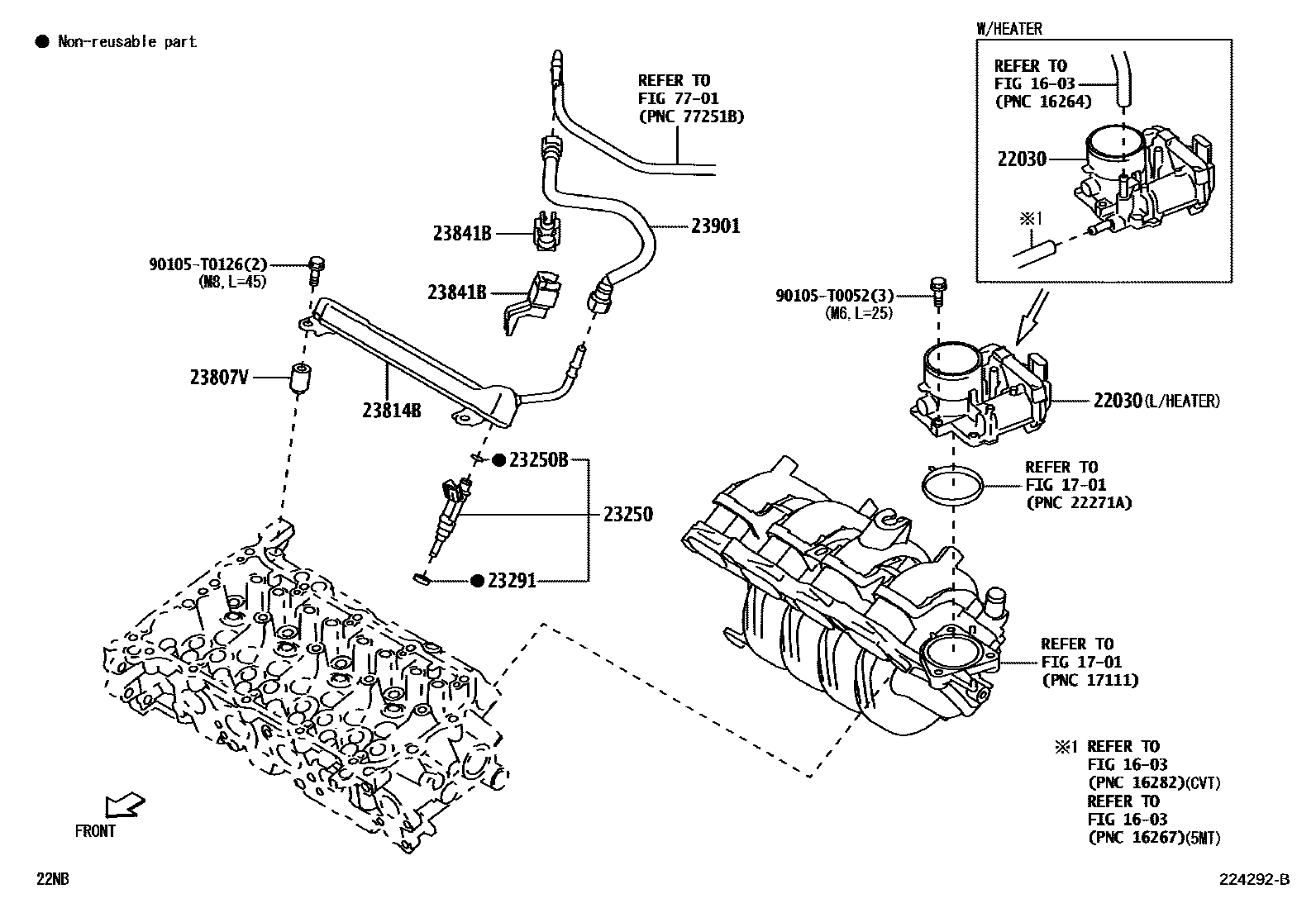

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-BZ150 · 22030-BZ160 · 22030-BZ180 |
| 23250 | Fuel injector assembly | 23209-09340 · 23209-B9080 · 23209-B9090 |
| 23250B | O-ring (for fuel injector) | 9004A-30072 · 90301-07042 |
| 23291 | Injector vibration isolation pad | 23291-0Y020 · 23291-0Y050 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-47040 |
| 23814B | oil pipeline | 23814-0Y010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-BZ020 |
| 23901 | Fuel pipe sub-assembly | 23901-BZ160 · 23901-BZ280 · 23901-BZ300 · 23901-BZ310 |
