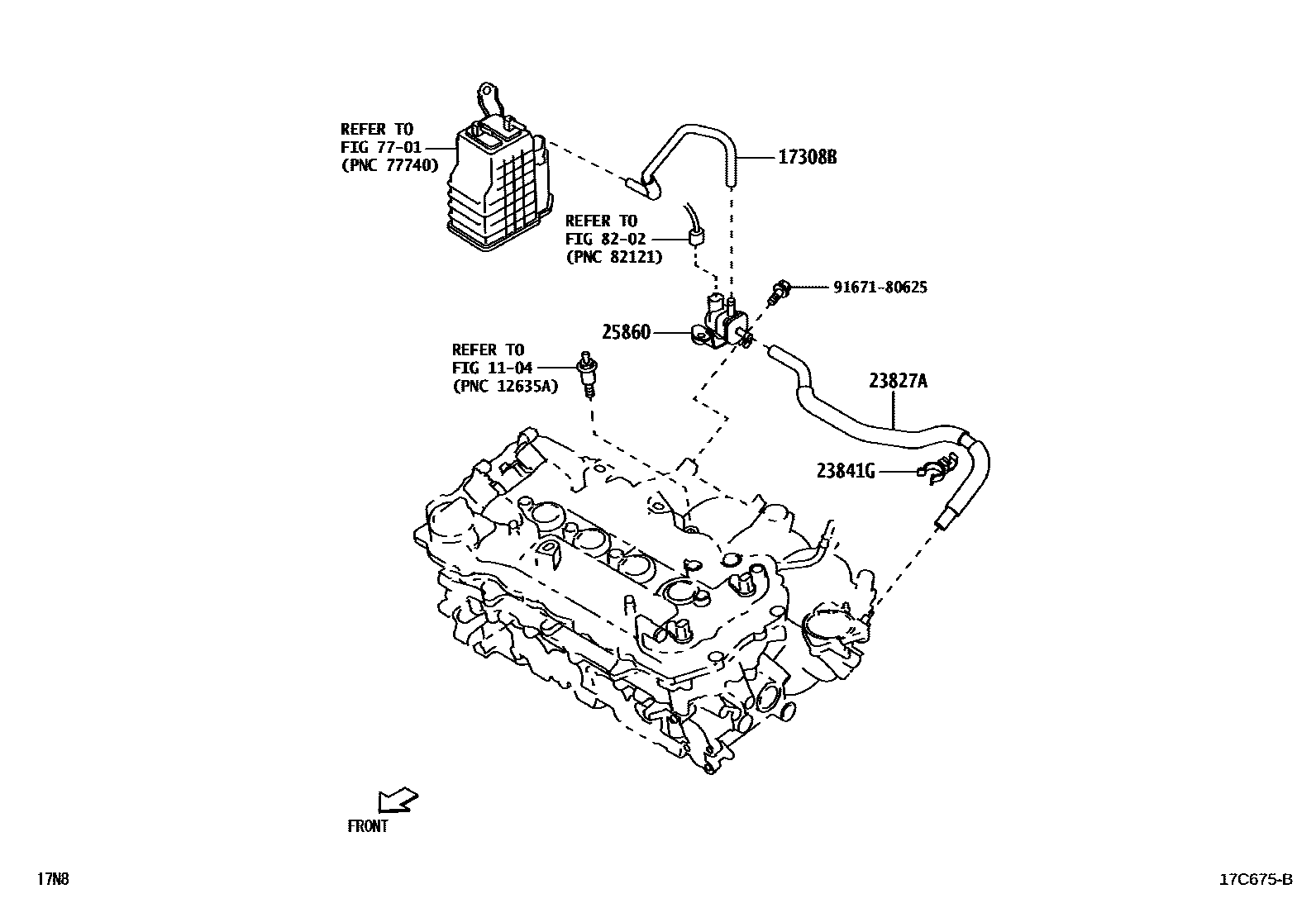

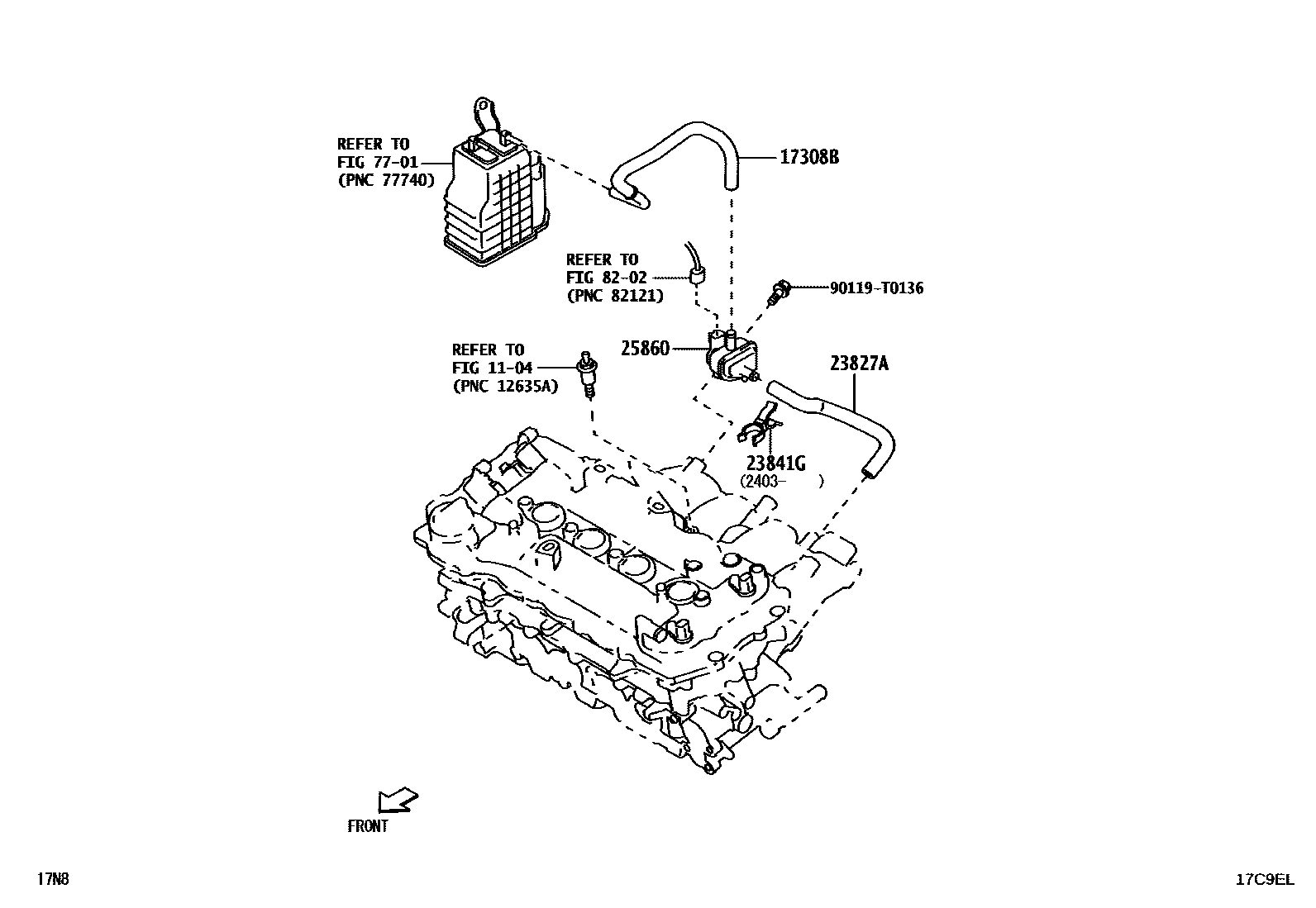

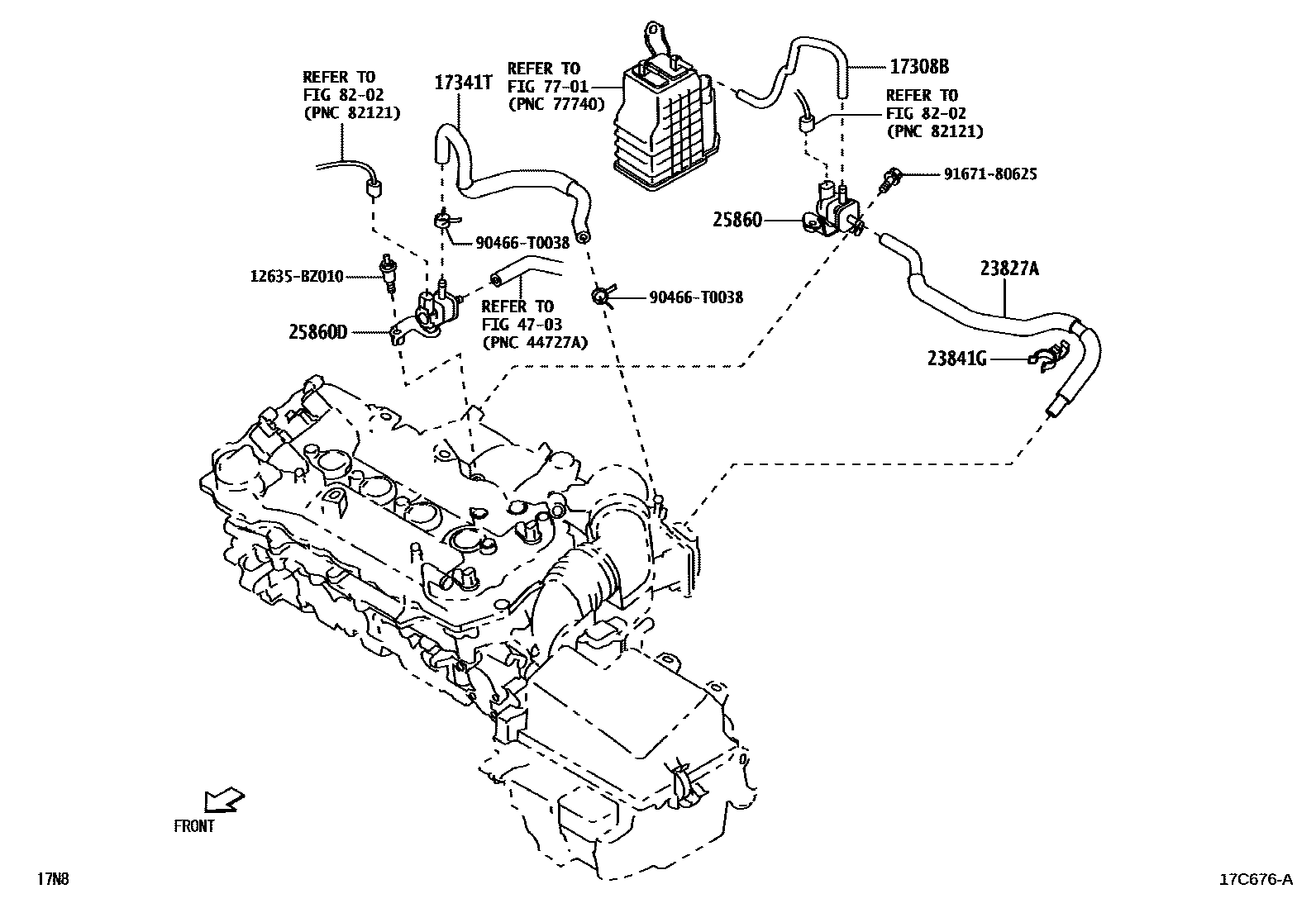

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 77754-BZ430 · 77754-BZ440 · 77754-BZ520 · 77754-BZ540 |
| 17341T | Air hose No. 1 | 17341-BZ040 |
| 23827A | No. 2 fuel vapor supply hose | 23827-BZ130 · 23827-BZ170 · 23827-BZ171 |
| 23841G | fuel hose clamp | 90044-64913 · 9004A-46363 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-BZ050 · 25860-BZ070 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-BZ060 |
