Toyota YARIS Air Cleaner — Figure 1703

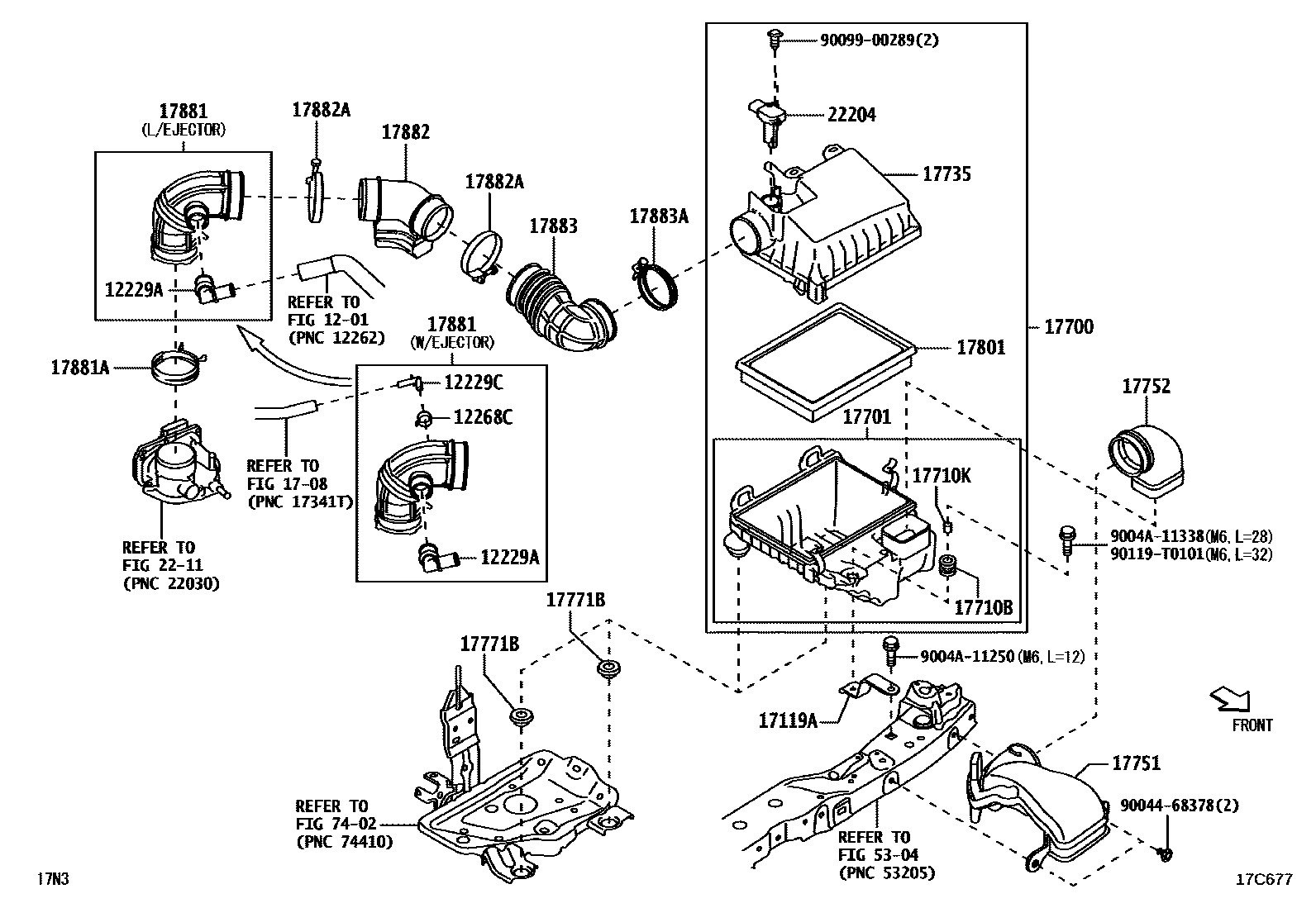

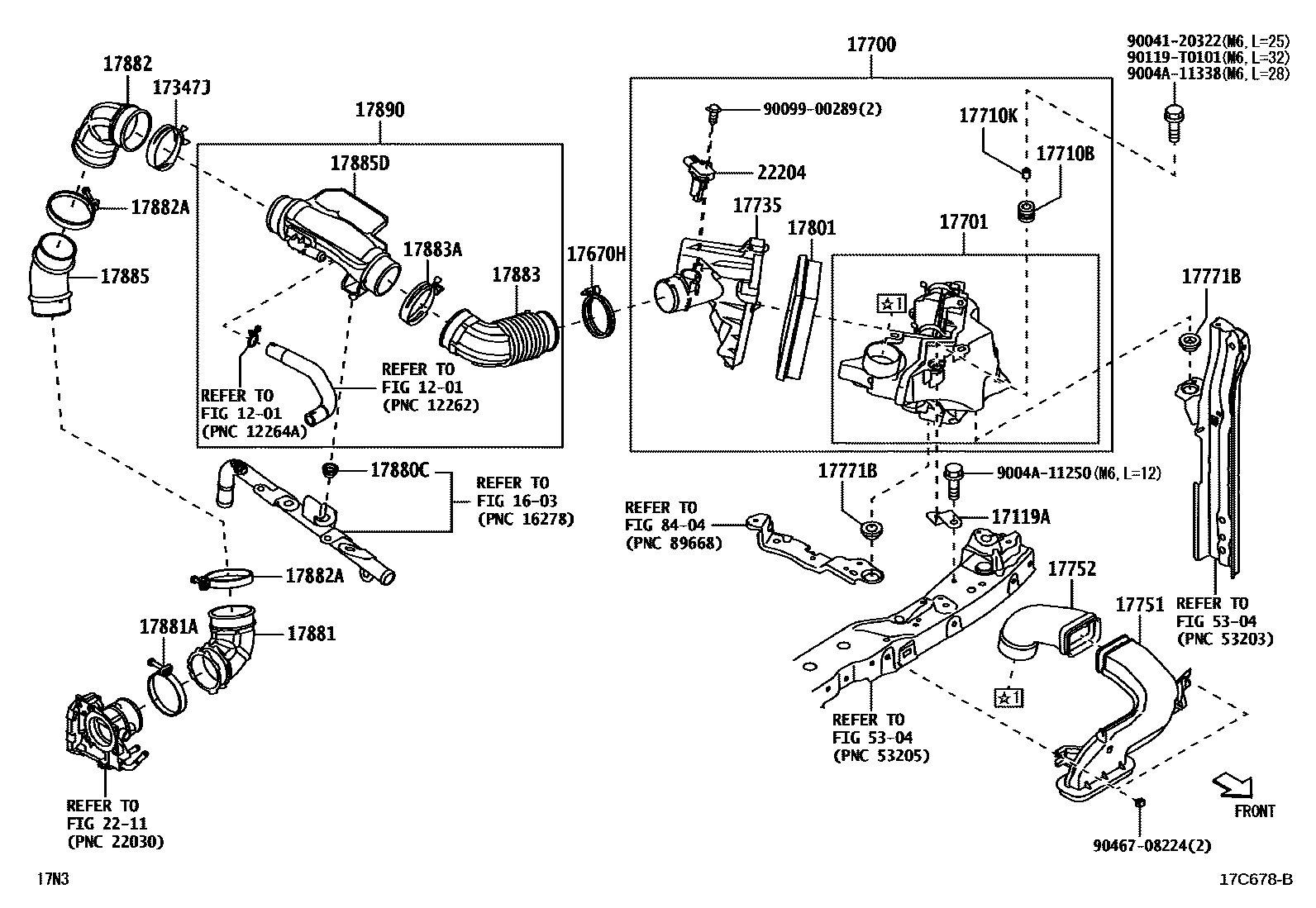

Toyota YARIS EPC diagram 1703, Air Cleaner, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-BZ020 |
| 12229C | Ventilation duct No. 2 | 12229-0Y110 |
| 12268C | Hose clip | 96136-41901 |
| 17119A | air filter bracket | 17771-BZ151 · 17771-BZ180 |
| 17347J | Air hose clip | 90466-62002 |
| 17670H | Clip (for No. 2 air hose) | 96111-10650 |
| 17700 | air filter assembly | 17700-BZ270 · 17700-BZ300 |
| 17701 | Air filter housing sub-assembly | 17701-BZ210 · 17701-BZ270 |
| 17710B | gasket | 90044-80392 |
| 17710K | Collar (for air cleaner) | 90042-09117 |
| 17735 | air filter cover | 17735-BZ040 · 17735-BZ070 |
| 17751 | No. 1 air filter air inlet | 17751-BZ160 · 17751-BZ220 |
| 17752 | No. 2 air filter air inlet | 17752-BZ100 · 17752-BZ120 |
| 17771B | Gasket (for air cleaner holder) | 9004A-48056 |
| 17801 | Air filter element sub-assembly | 17801-0T090 · 17801-BZ110 |
| 17880C | Gasket (for air cleaner hose) | 9004A-48068 |
| 17881 | No. 1 air cleaner hose | 17881-BZ270 · 17881-BZ280 · 17881-BZ330 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0017 · 90466-62002 |
| 17882 | No. 2 air cleaner hose | 17882-BZ100 · 17882-BZ130 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 9004A-46128 · 96111-10710 · 96111-10730 |
| 17883 | No. 3 air cleaner hose | 17883-BZ040 · 17883-BZ060 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-T0017 · 90466-62002 |
| 17885 | air cleaner tube | 17885-BZ030 |
| 17885D | No. 2 air cleaner tube | 17886-BZ010 |
| 17890 | No. 2 air cleaner hose assembly | 17890-BZ010 |
| 22204 | Intake air flow meter assembly | 22204-BZ010 |
