Toyota YARIS Exhaust Pipe — Figure 1702

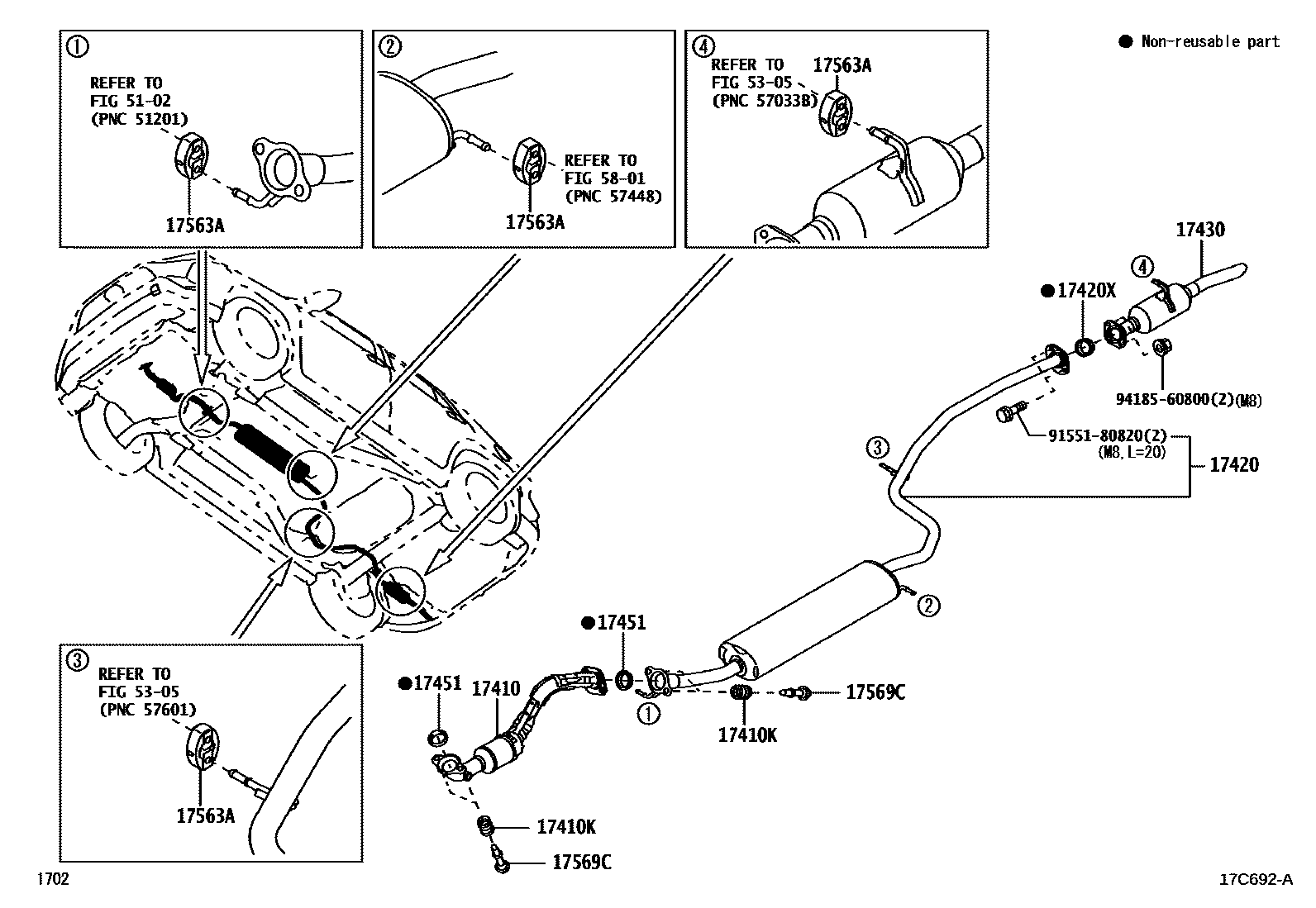

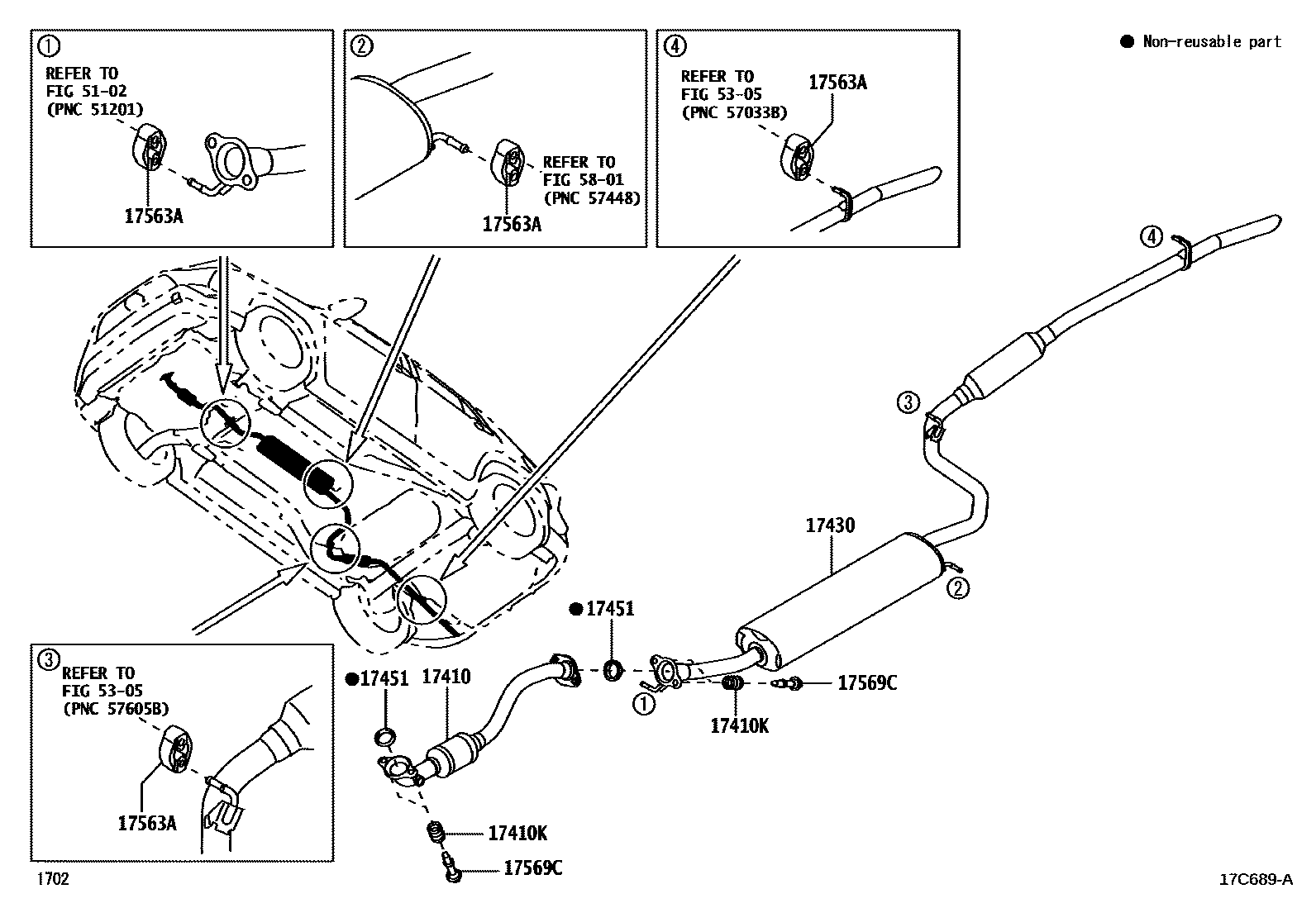

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-BZA50 · 17410-BZA70 · 17410-BZB00 · 17410-BZE20 · 17410-BZE30 · 17410-BZE60 · 17410-BZE80 · 17410-BZF00 · 17410-BZF10 · 17410-BZF20 |
| 17410K | Exhaust pipe spring | 17152-BZ010 · 90501-35035 · 90501-T0020 |
| 17420 | Central exhaust pipe assembly | 17420-BZ040 · 17420-BZ060 |
| 17420X | Center exhaust pipe liner | 90917-06048 |
| 17430 | Exhaust tailpipe assembly | 17430-BZ730 · 17430-BZ740 · 17430-BZ750 · 17430-BZ760 · 17430-BZ790 · 17430-BZA80 |
| 17451 | Exhaust pipe gasket | 17451-BZ110 |
| 17563A | No. 3 exhaust pipe lifting lug | 17567-B2020 · 17567-BZ090 |
| 17569C | Exhaust pipe bracket bolts | 90109-T0016 · 90901-05026 |
