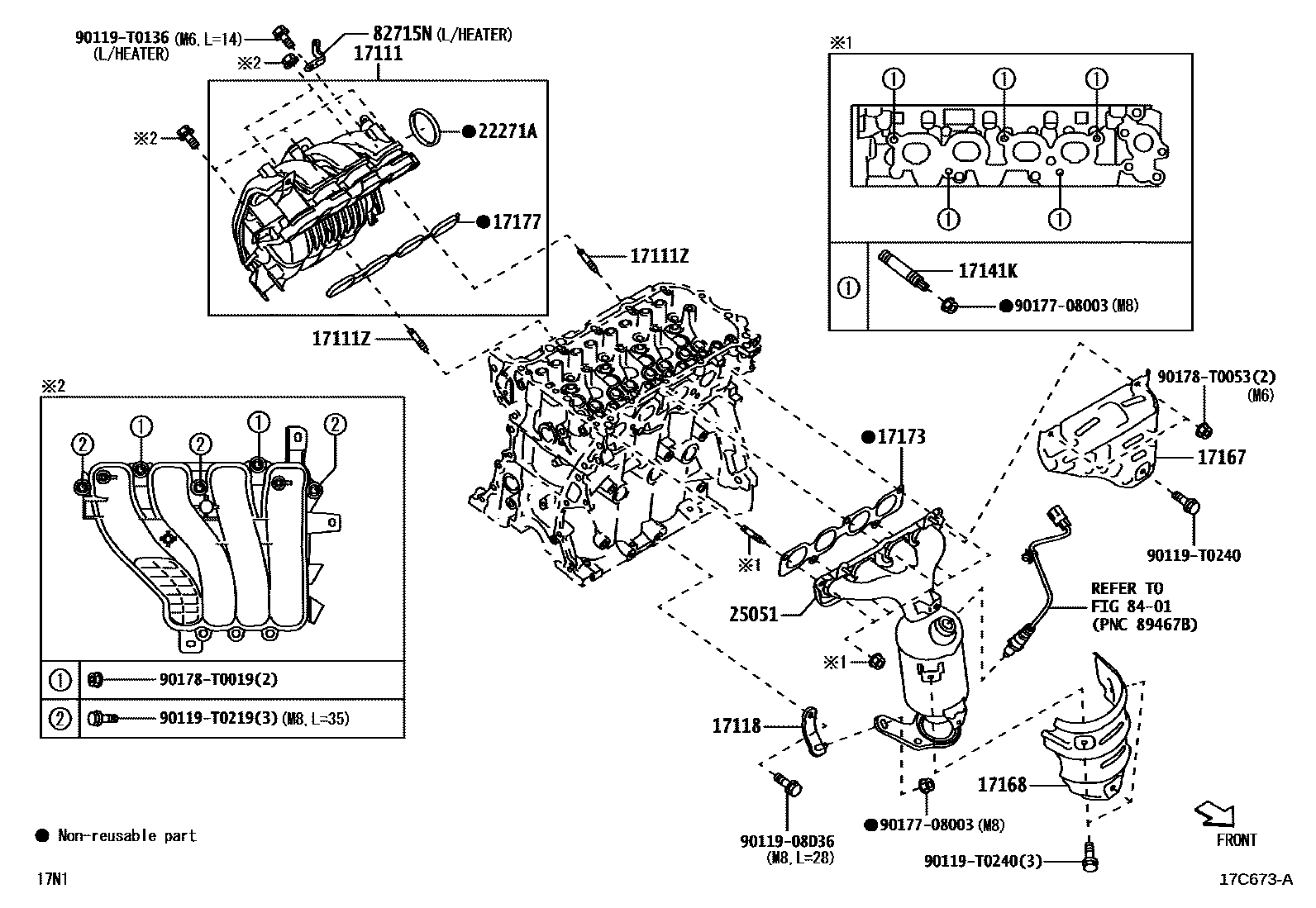

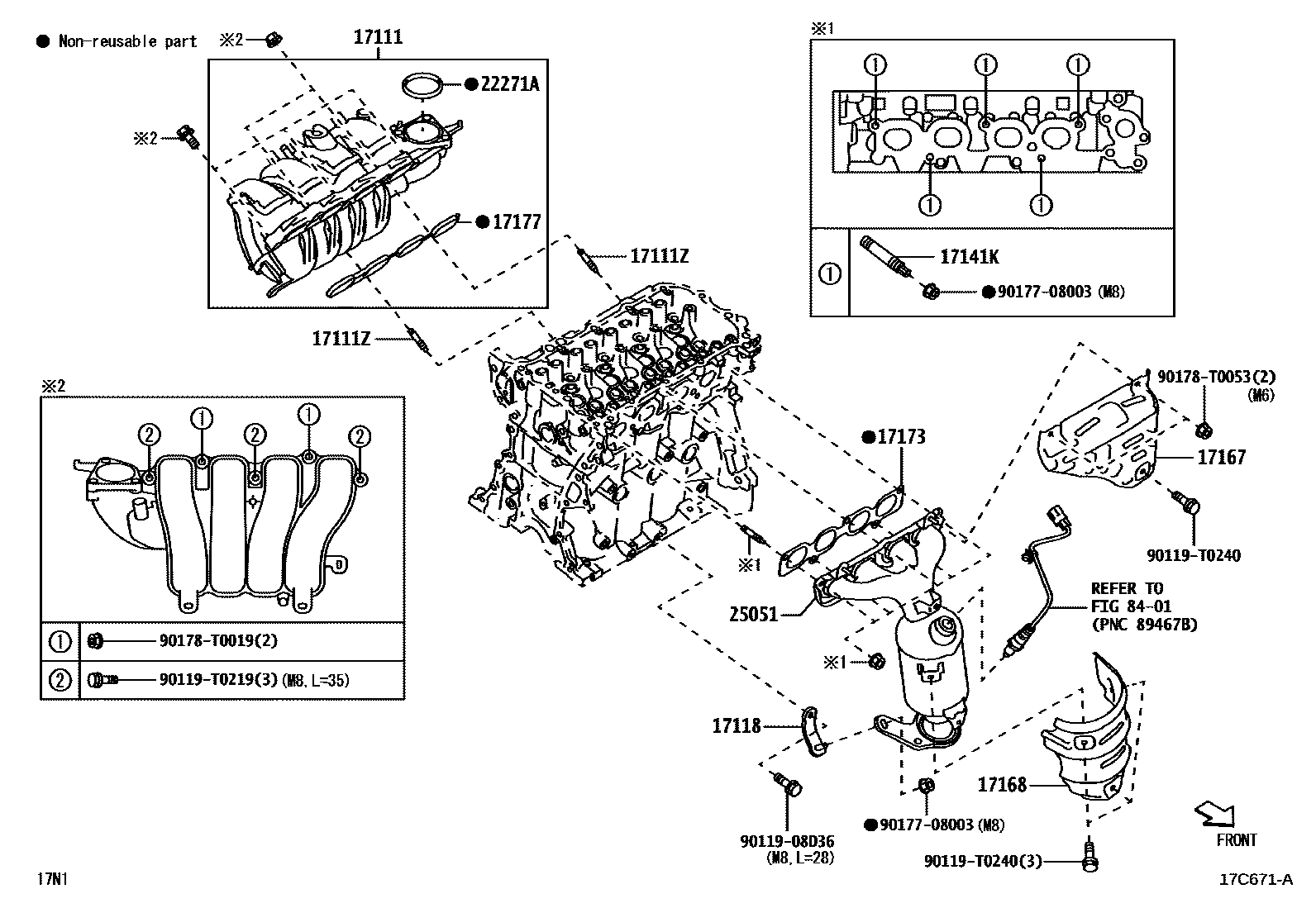

Toyota YARIS Manifold — Figure 1701
Toyota YARIS EPC diagram 1701, Manifold, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-BZ130 · 17120-BZ210 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-T0019 |
| 17118 | Manifold stays | 17118-0Y031 · 17118-0Y061 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08063 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0Y020 · 17167-0Y050 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0Y020 · 17168-0Y050 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0Y030 · 17173-0Y060 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0Y030 |
| 22271A | Throttle body gasket | 22271-0Y030 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-BZ140 · 25051-BZ150 · 25051-BZ260 |
| 82715N | Wire harness clamp bracket | 82715-BZR70 |
