Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 8 PNC and OE references.

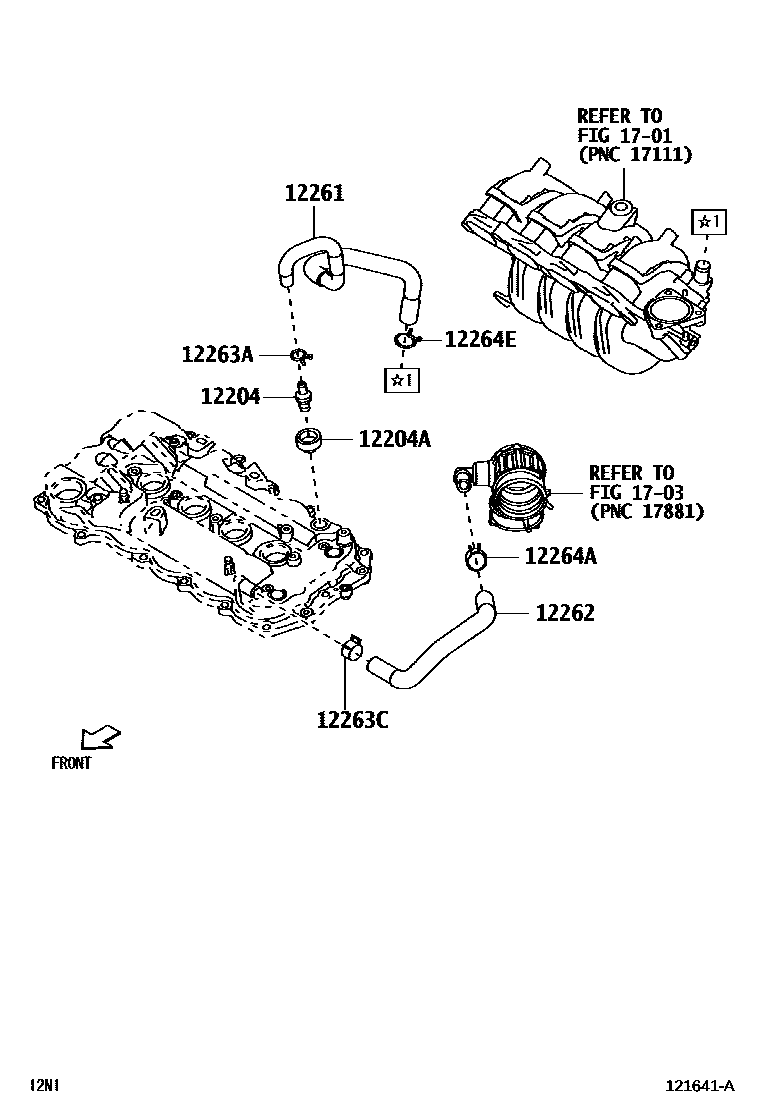

Toyota YARIS Ventilation Hose EPC diagram — 121641A
Ventilation Hose — 121641A (202306 – 999999)

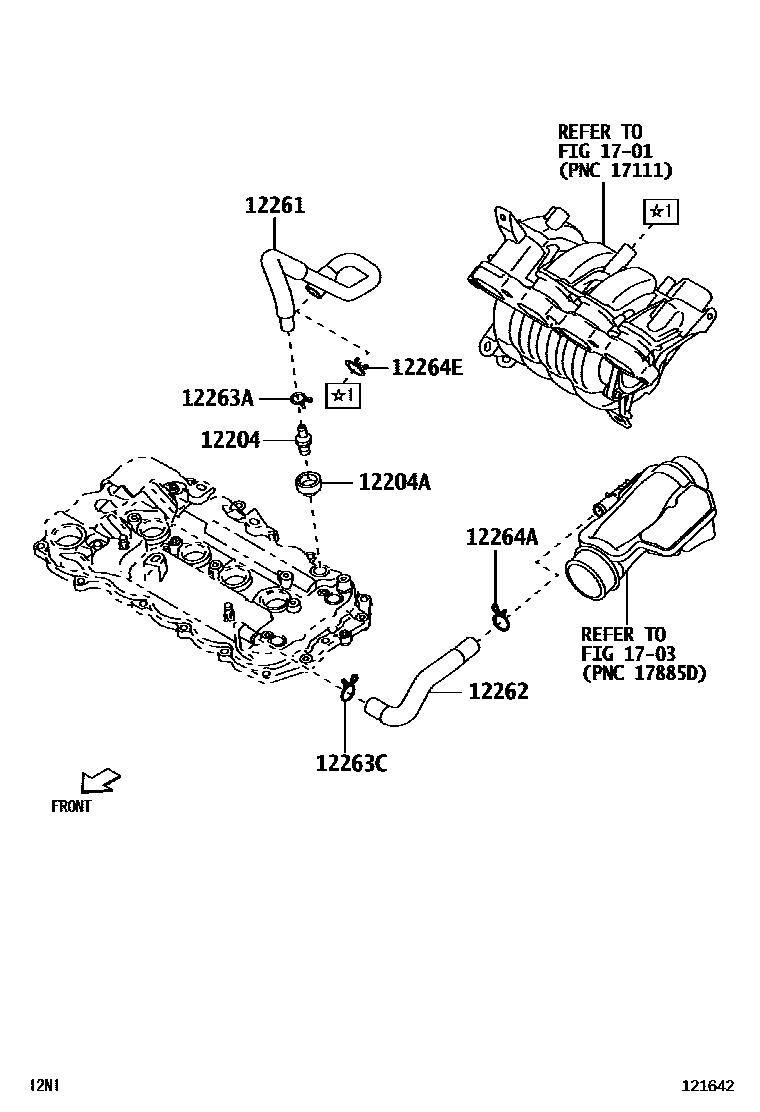

Toyota YARIS Ventilation Hose EPC diagram — 121642
Ventilation Hose — 121642 (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0Y020 · 12204-BZ070
12204AGasket (for ventilation system)90480-T0013
12261Ventilation Hose12261-BZ210 · 12261-BZ310
12262Ventilation hose No. 212262-BZ190 · 12262-BZ220
12263AClip (for ventilation hose)90466-T0060 · 90466-T0061
12263CClip (for ventilation hose)90466-T0020 · 90466-T0063
12264AClip (for ventilation hose)90466-T0027
12264EClip (for ventilation hose)90466-T0032 · 90466-T0062
