Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

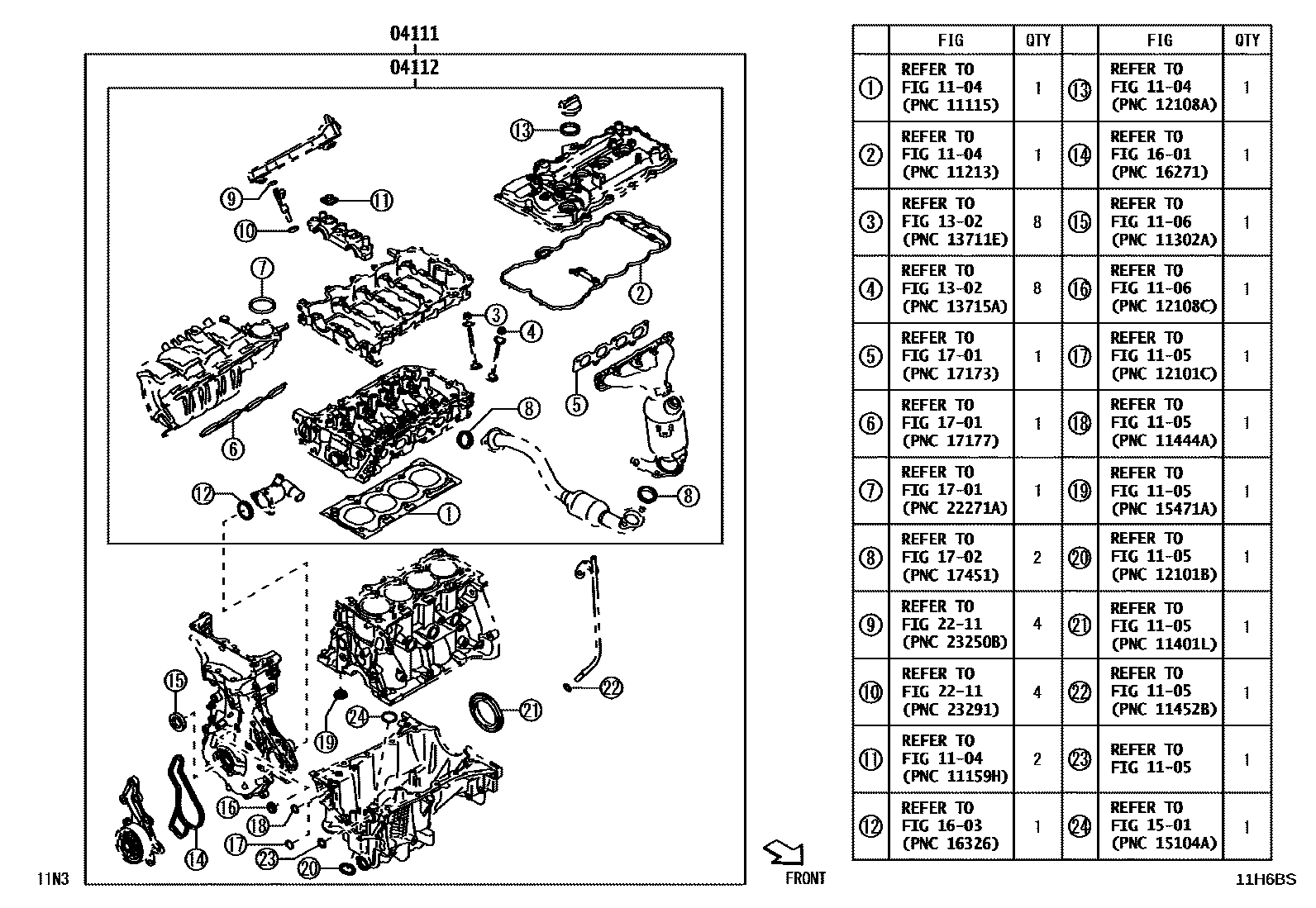

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11H6BS
Engine Overhaul Gasket Kit — 11H6BS (202306 – 999999)

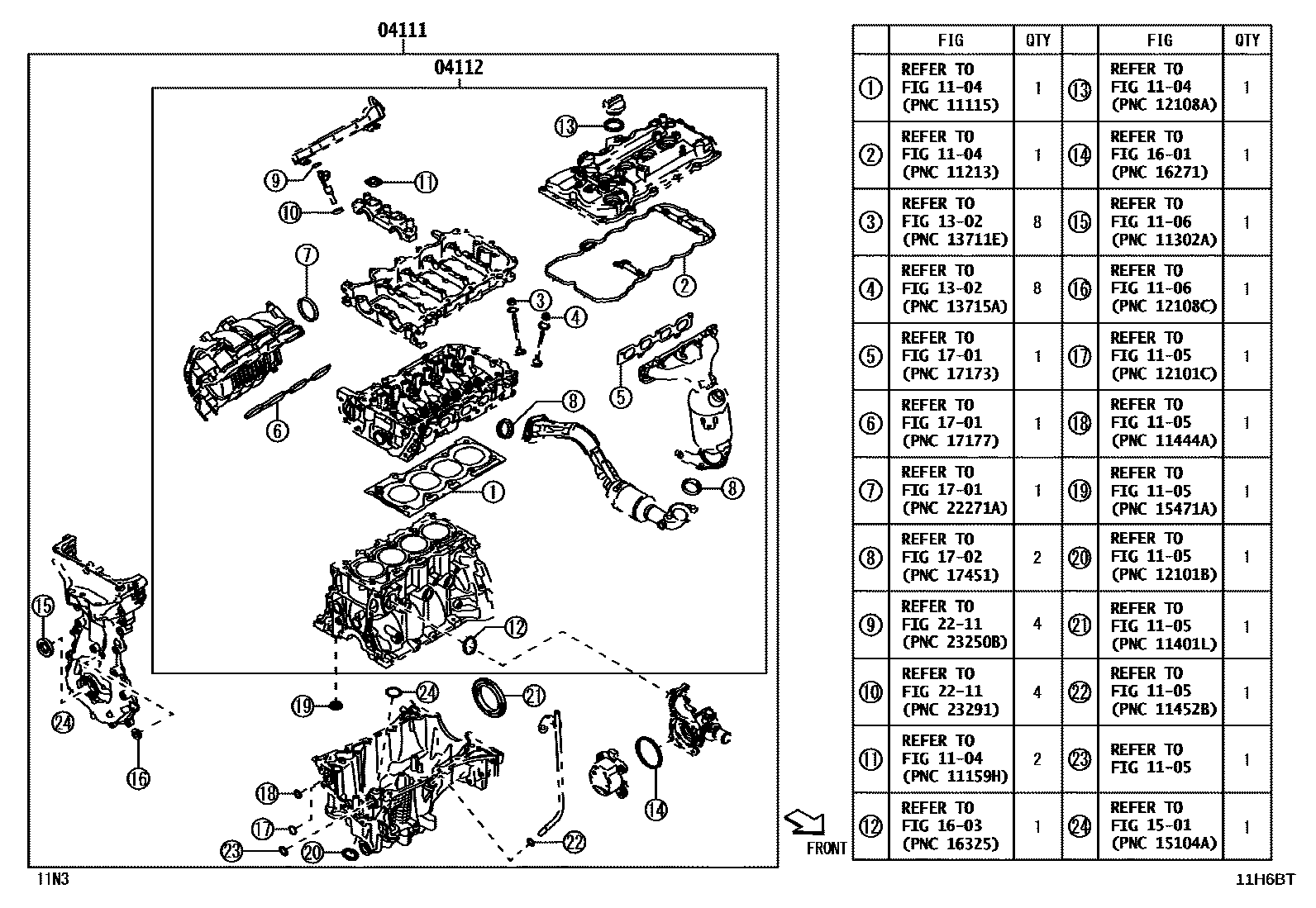

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11H6BT
Engine Overhaul Gasket Kit — 11H6BT (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-BZC00 · 04111-BZC40 · 04111-BZC70
04112Engine valve grinding pad assembly04112-BZC00 · 04112-BZC40 · 04112-BZC70
