Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

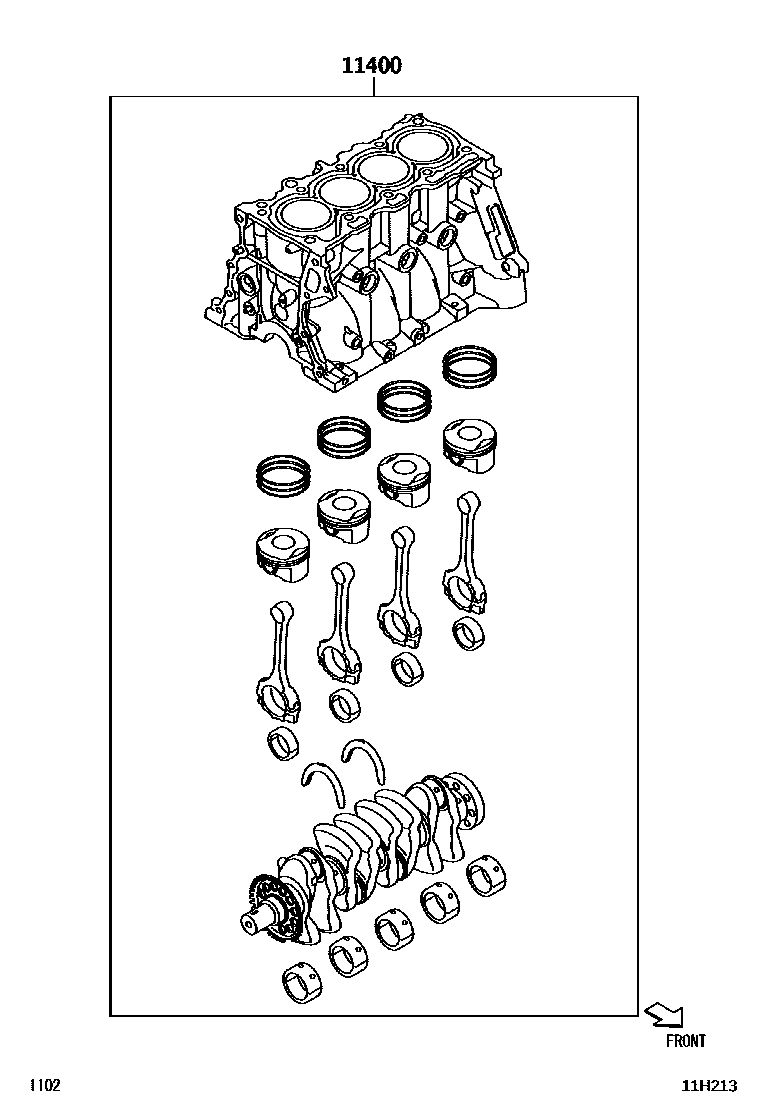

Toyota YARIS Short Block Assembly EPC diagram — 11H213
Short Block Assembly — 11H213 (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-BZB61 · 11400-BZC15 · 11400-BZC51
