Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 2 images and 1 PNC and OE references.

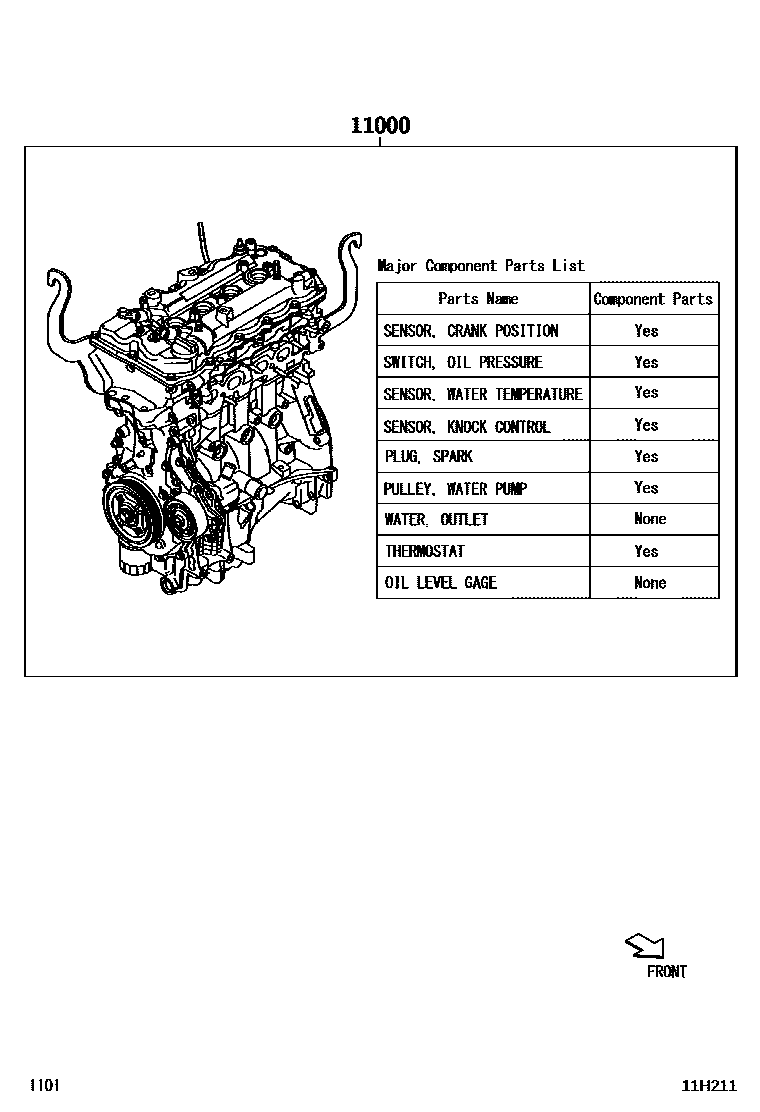

Toyota YARIS Partial Engine Assembly EPC diagram — 11H211
Partial Engine Assembly — 11H211 (202306 – 999999)

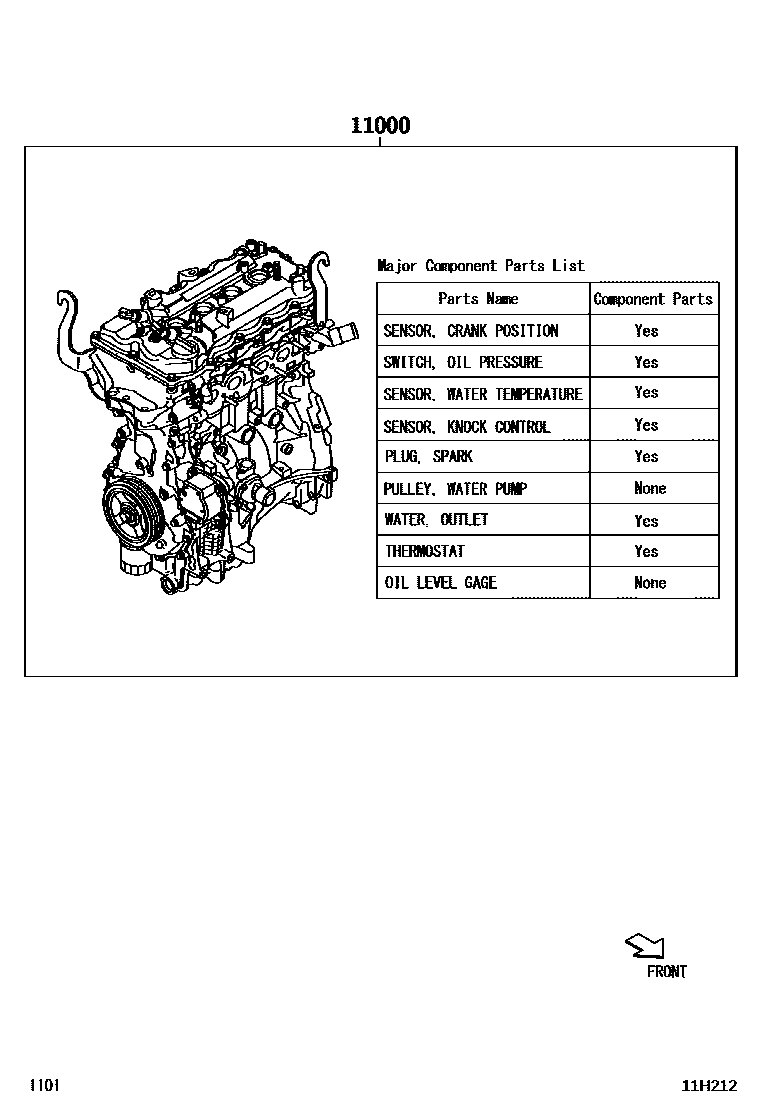

Toyota YARIS Partial Engine Assembly EPC diagram — 11H212
Partial Engine Assembly — 11H212 (202306 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-BZB71 · 19000-BZC15 · 19000-BZC35 · 19000-BZC51 · 19000-BZC55
