Toyota YARIS Standard Tools — Figure 0901

Toyota YARIS EPC diagram 0901, Standard Tools, with 3 images and 9 PNC and OE references.

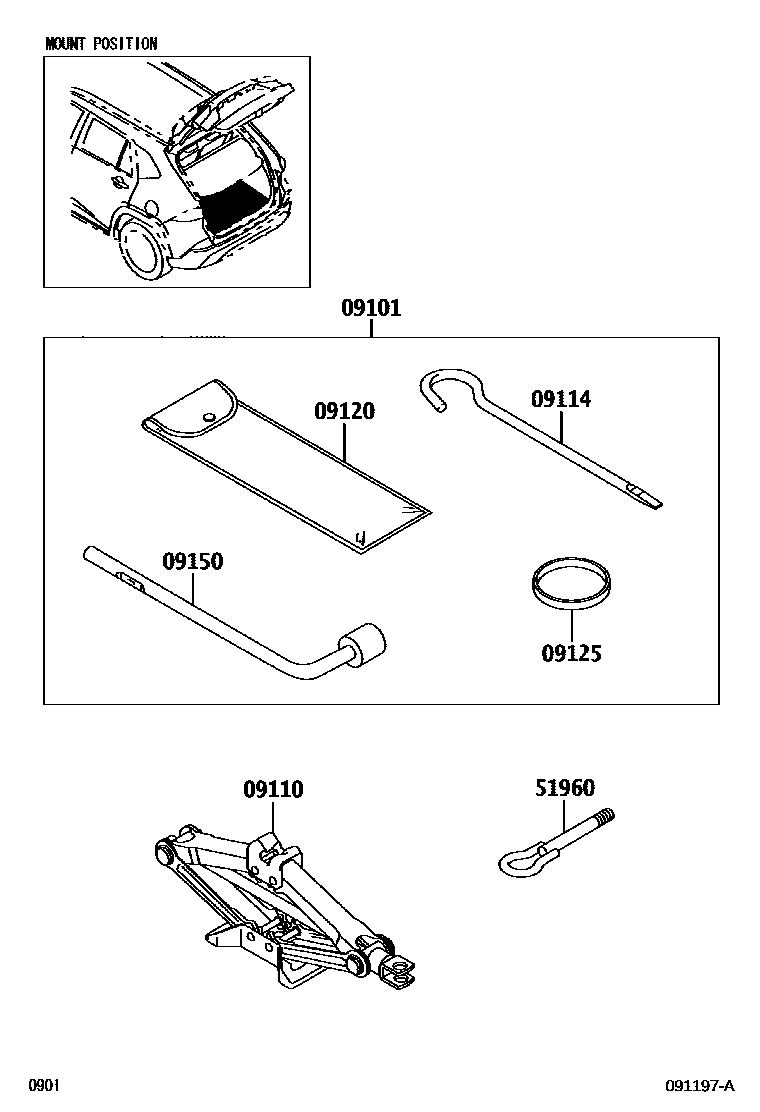

Toyota YARIS Standard Tools EPC diagram — 091197A
Standard Tools — 091197A (202306 – 999999)

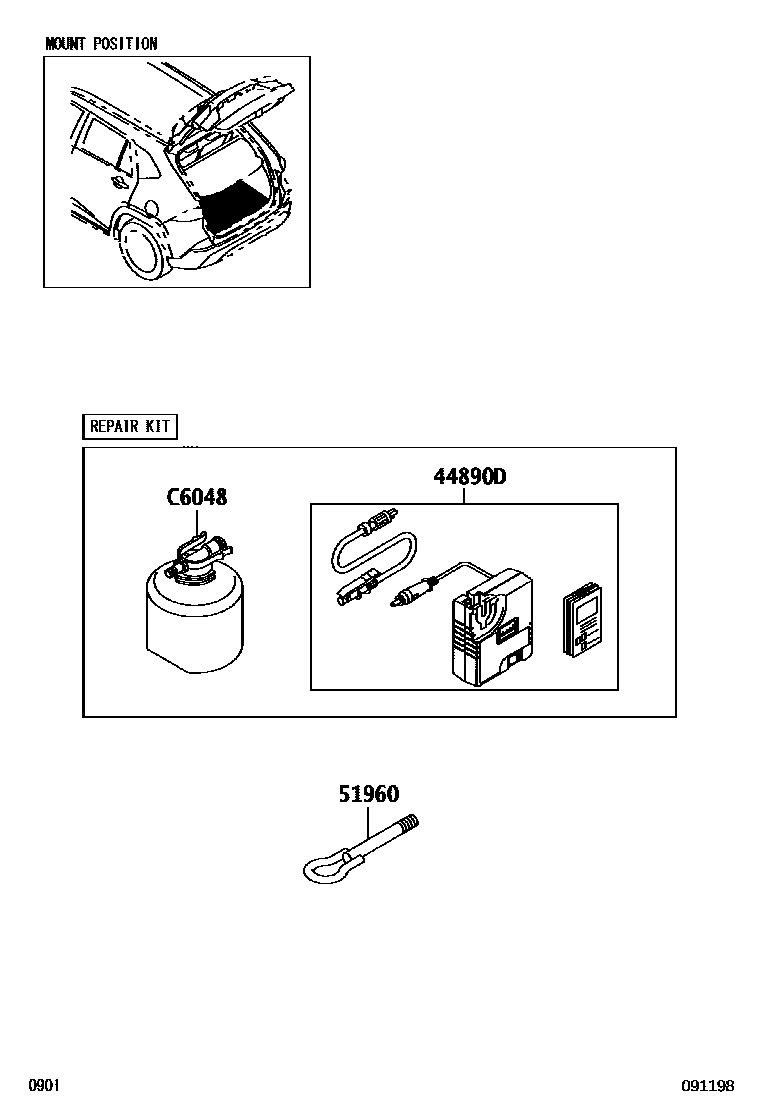

Toyota YARIS Standard Tools EPC diagram — 091198
Standard Tools — 091198 (202310 – 999999)

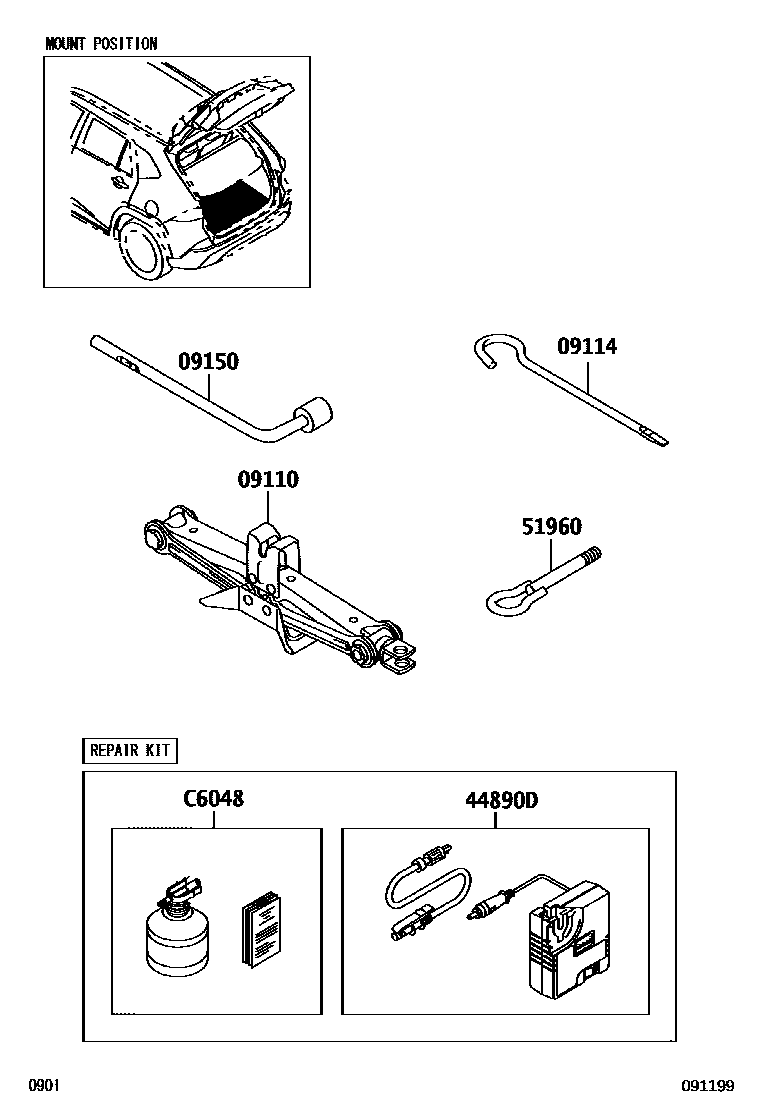

Toyota YARIS Standard Tools EPC diagram — 091199
Standard Tools — 091199 (202310 – 999999)

PNC and OE references

PNCPart nameOE numbers
09101Standard kit without jack09101-BZ260
09110Jack Assembly09111-BZ201 · 09111-BZ230
09114Jack Handle Extension Sub-Assembly09114-BZ060
09120Tool Bag09120-BZ180
09125tool bag straps09125-BZ010
09150Wheel Nut Wrench Case09151-BZ010
44890DAir Compressor Assembly44890-02030 · 44890-BZ050
51960Front Towing Hook Assembly51960-BZ120 · 51960-BZ240
C6048Tire Repair KitC6048-02030 · C6048-BZ030
