Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

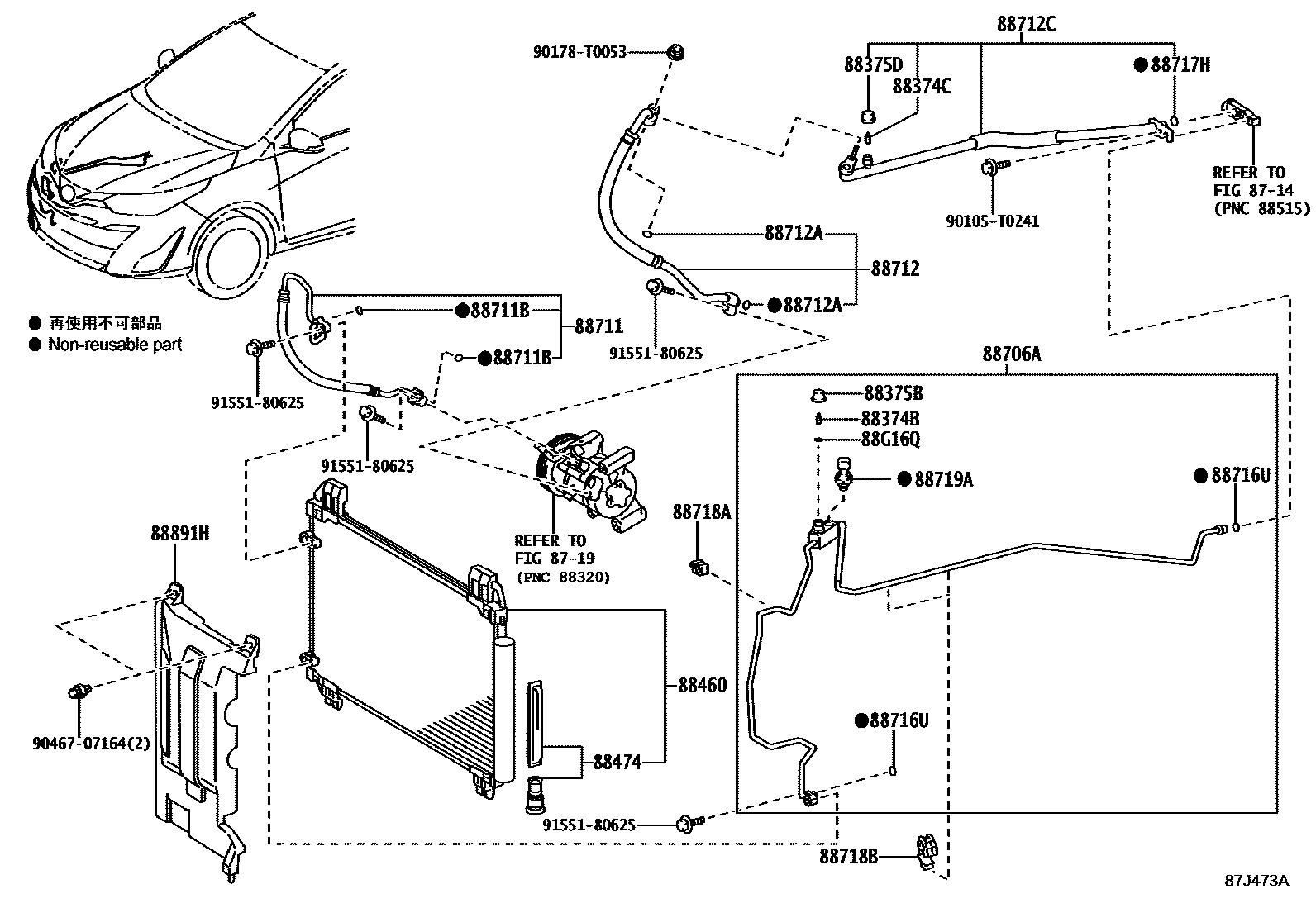

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-0D580 |
| 88474 | cooler dryer | 88474-12010 |
| 88706A | Liquid pipe A sub-assembly | 88706-0DB10 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0D800 |
| 88711B | O-ring (for cooler refrigerant drain hose) | 90099-14120 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0D780 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90099-14121 |
| 88712C | Oil suction hose | 88707-0D410 |
| 88716U | O-ring (for cooler refrigerant liquid pipe) | 90099-14119 |
| 88717H | O-ring (for cooler refrigerant suction pipe) | 90099-14121 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-0D240 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-0D790 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
| 88891H | Cooler cover No. 1 | 88891-0D340 |
| 88G16Q | No. 1 O-ring (for liquid pipe) | 90099-14122 |
