Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

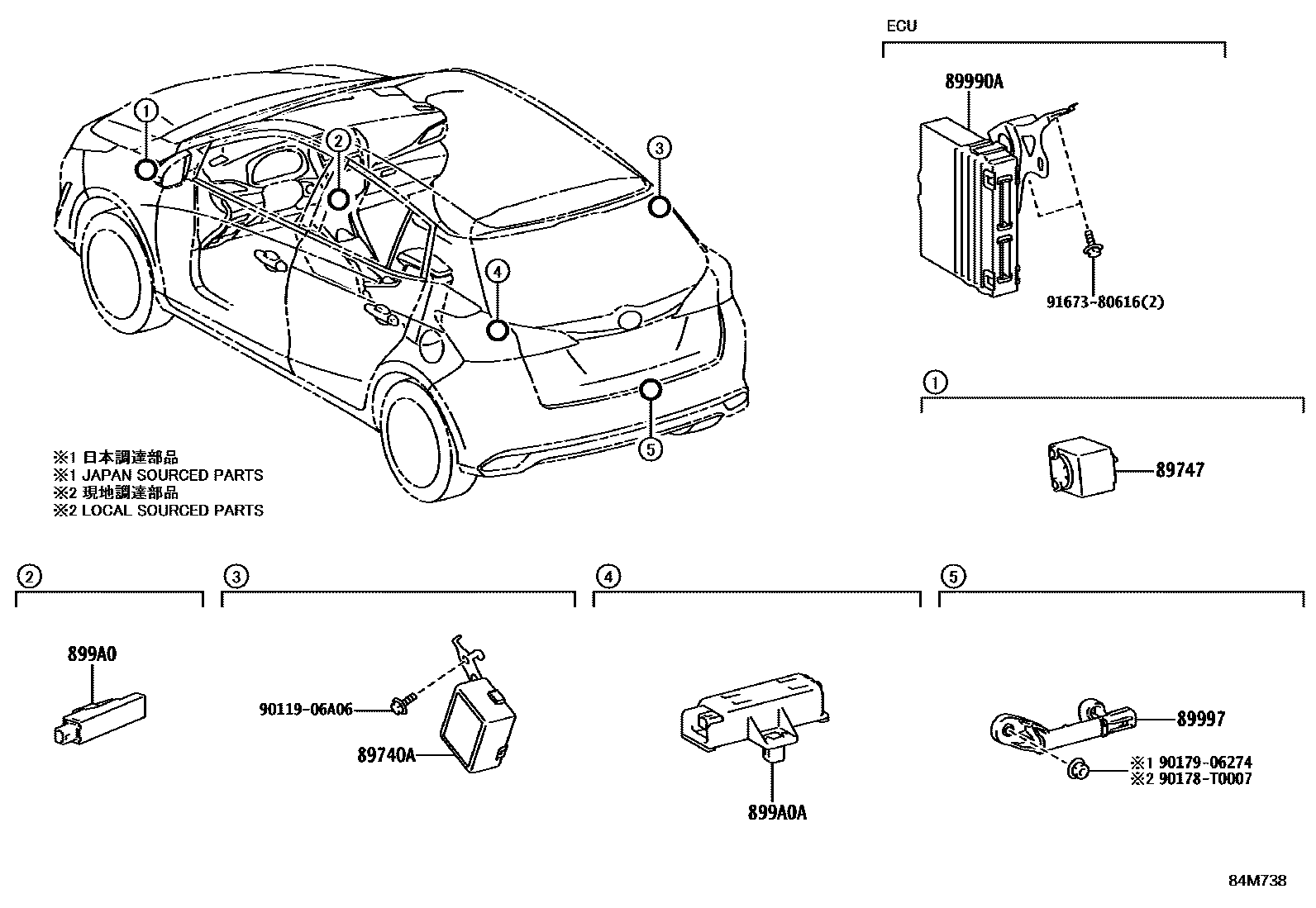

| 89740A | Smart door control receiver assembly | 89740-0D310 · 89740-0D360 |

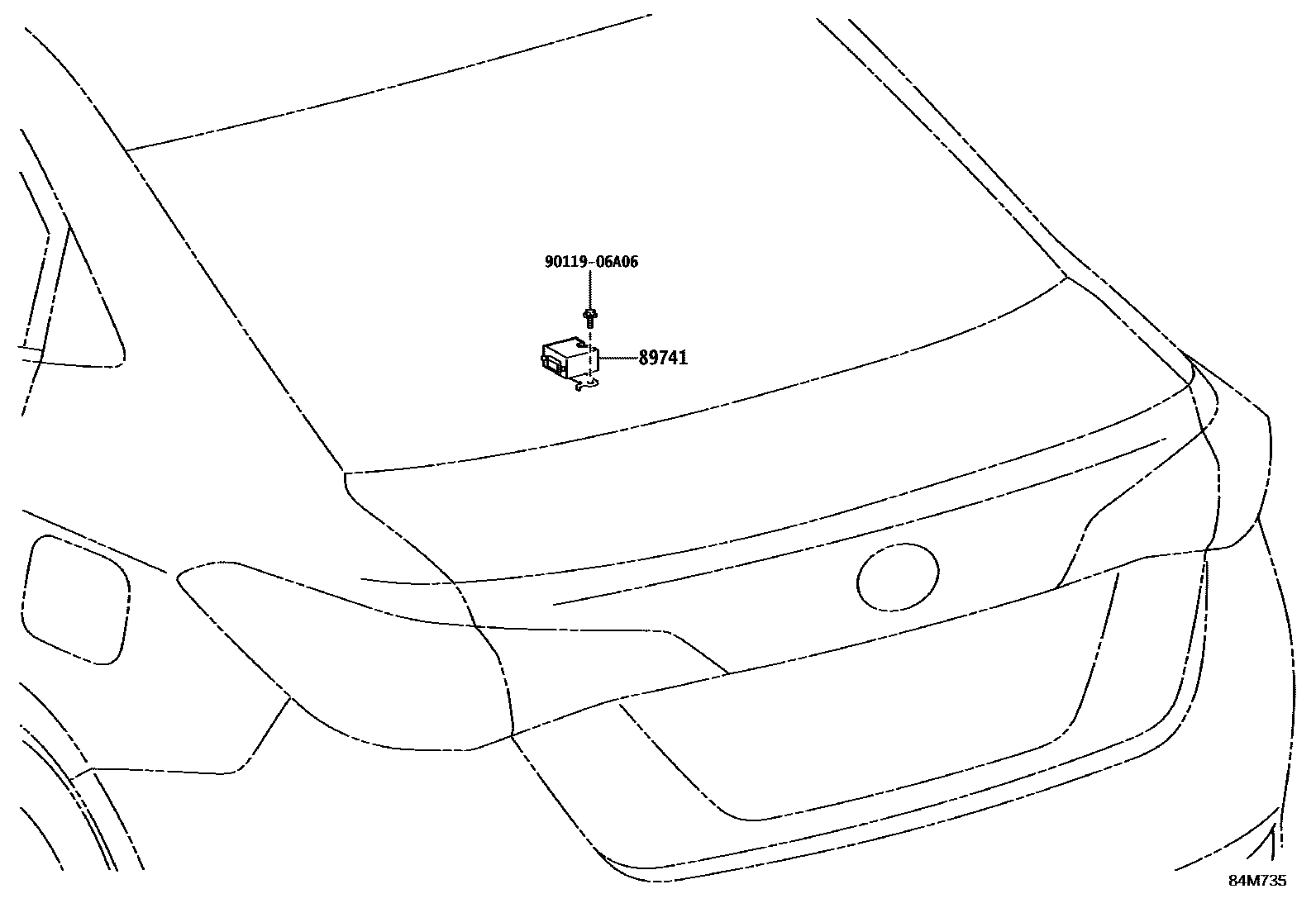

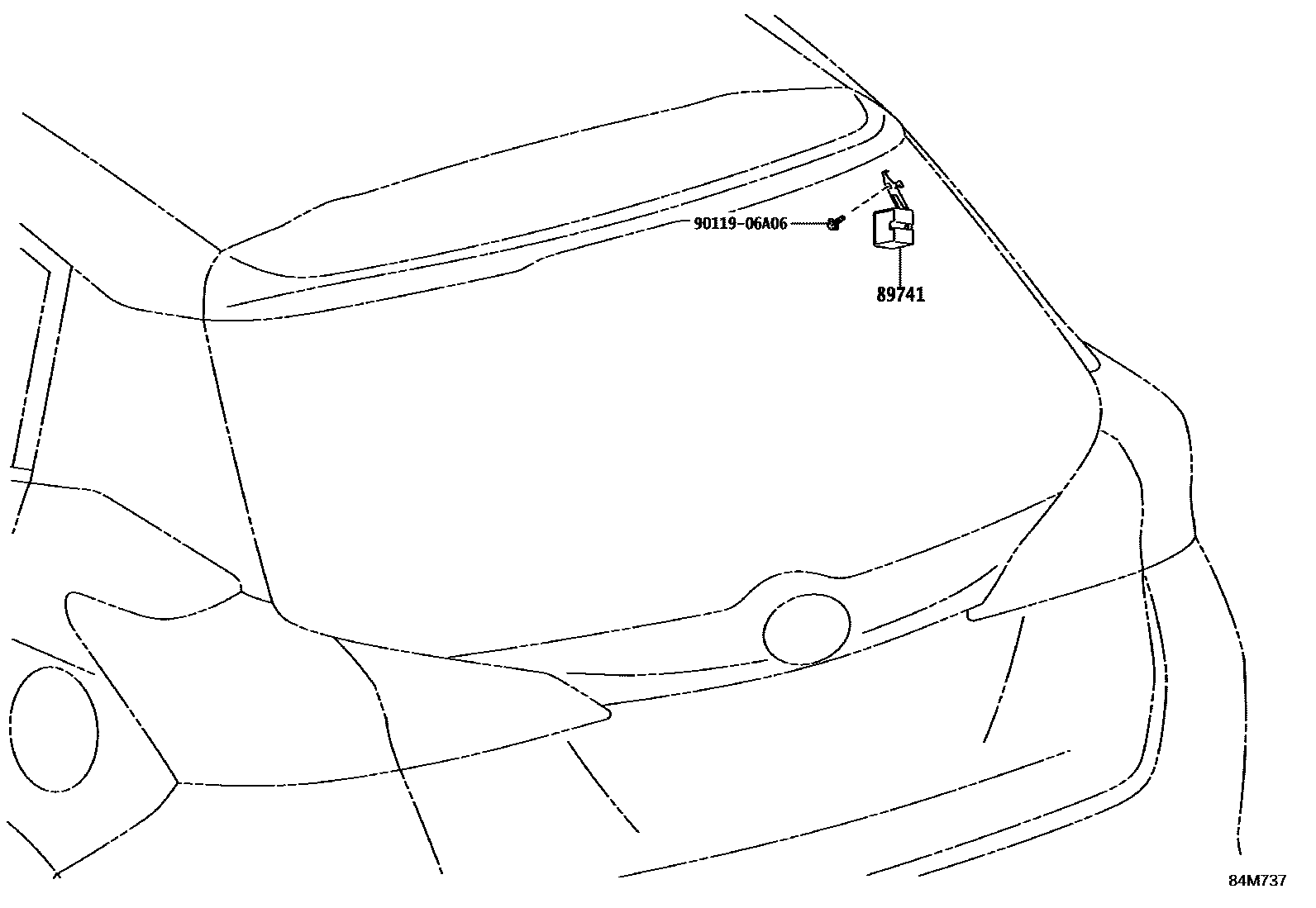

| 89741 | door control receiver | 89741-0D380 · 89741-0D480 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-0D110 · 89990-0D220 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-60010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-52020 |
