Toyota YARIS 测距雷达和倒车雷达 — Figure 8417

Toyota YARIS EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.

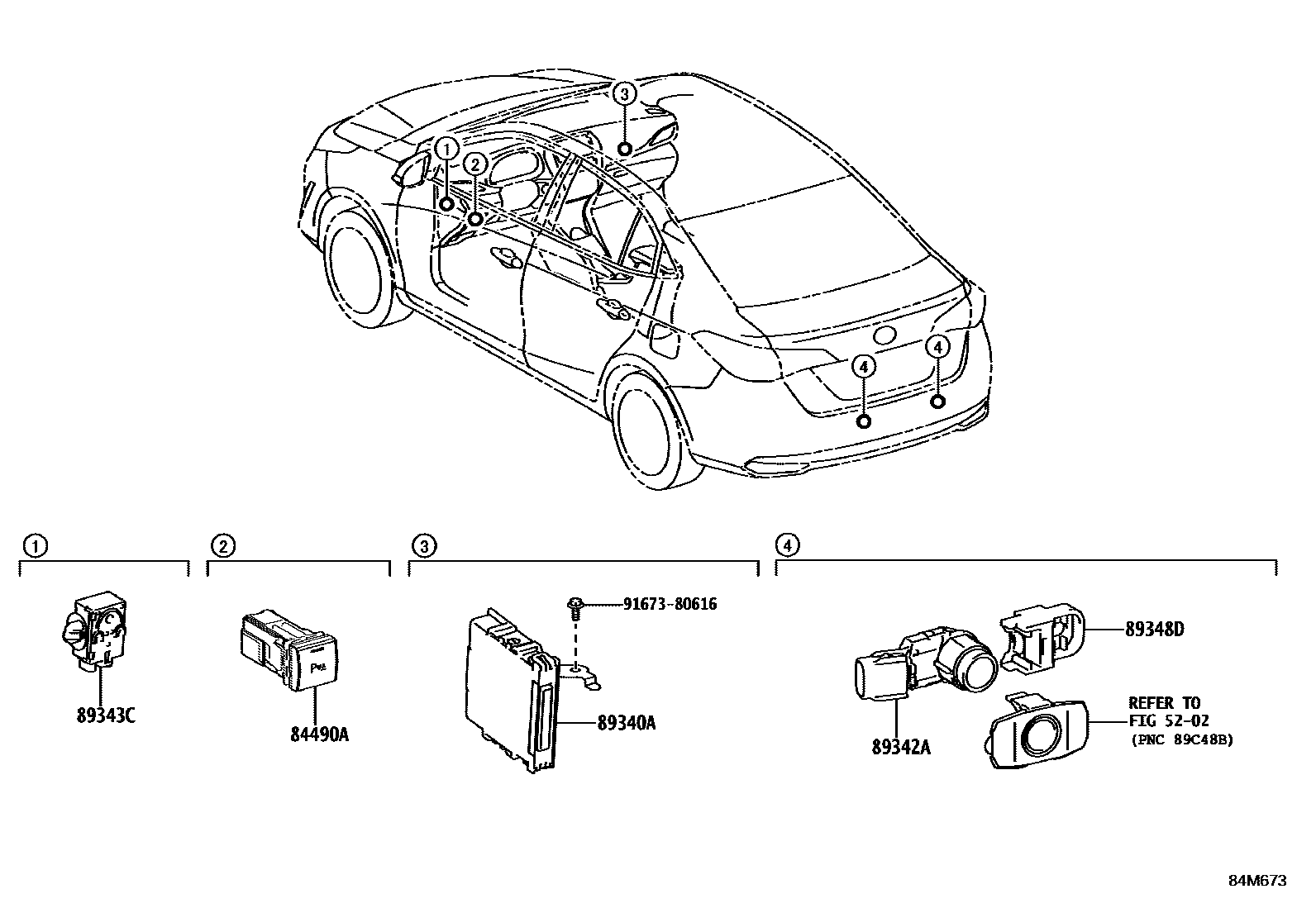

Toyota YARIS 测距雷达和倒车雷达 EPC diagram — 84M673
测距雷达和倒车雷达 — 84M673 (202101 – 999999)

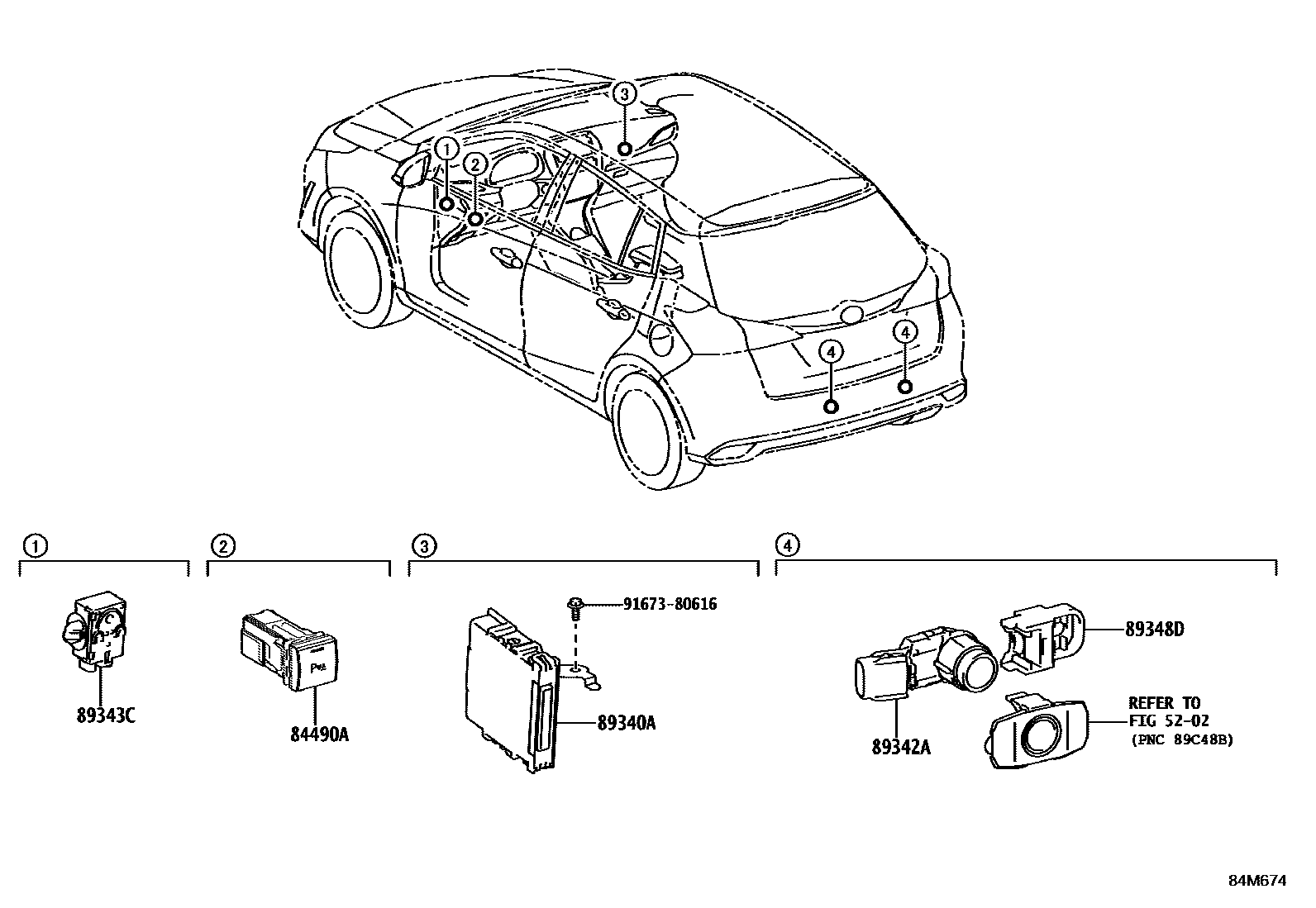

Toyota YARIS 测距雷达和倒车雷达 EPC diagram — 84M674
测距雷达和倒车雷达 — 84M674 (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
84490AReversing radar or ranging radar switch assembly84490-0D090
89340ADistance warning ECU assembly89340-0D030
89343CNo. 1 distance warning buzzer89343-48010
89348DUltrasonic sensor clip89348-0D040
