Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 2 PNC and OE references.

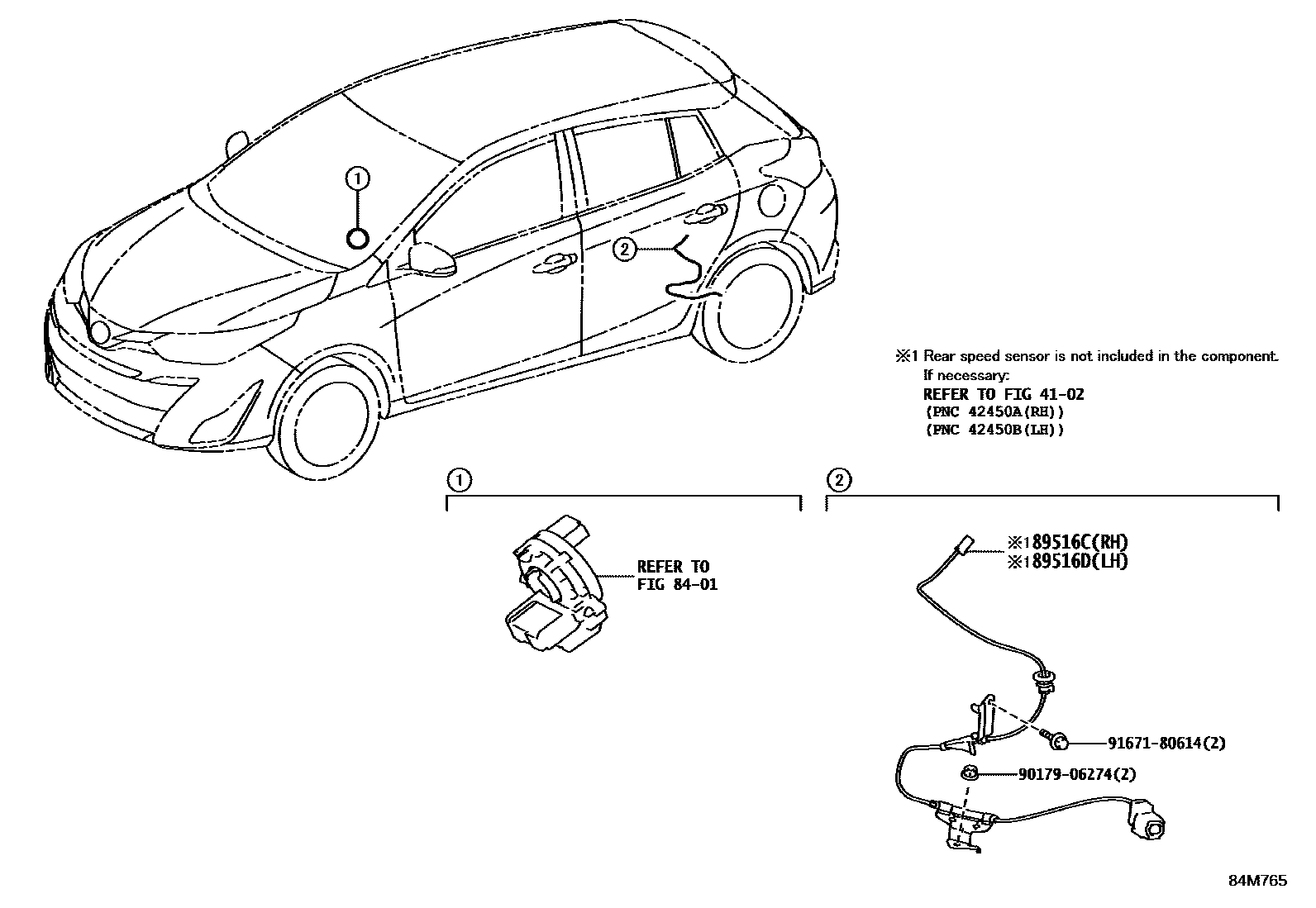

Toyota YARIS ABS 和 VSC EPC diagram — 84M765
ABS 和 VSC — 84M765 (202101 – 999999)

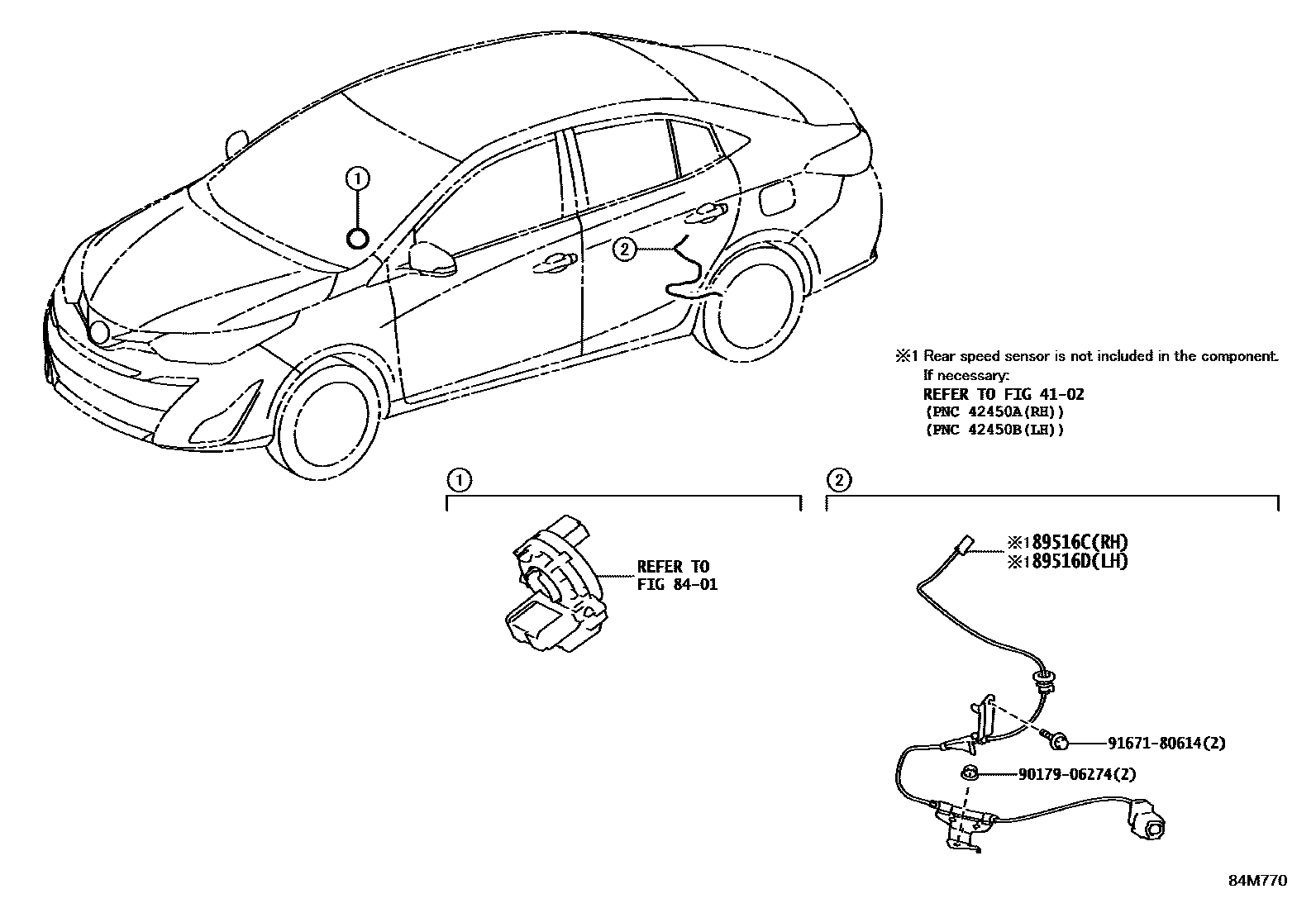

Toyota YARIS ABS 和 VSC EPC diagram — 84M770
ABS 和 VSC — 84M770 (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
89516CRight anti-skid control sensor harness89516-0D270
89516DLeft anti-skid control sensor wiring harness89516-0D280
