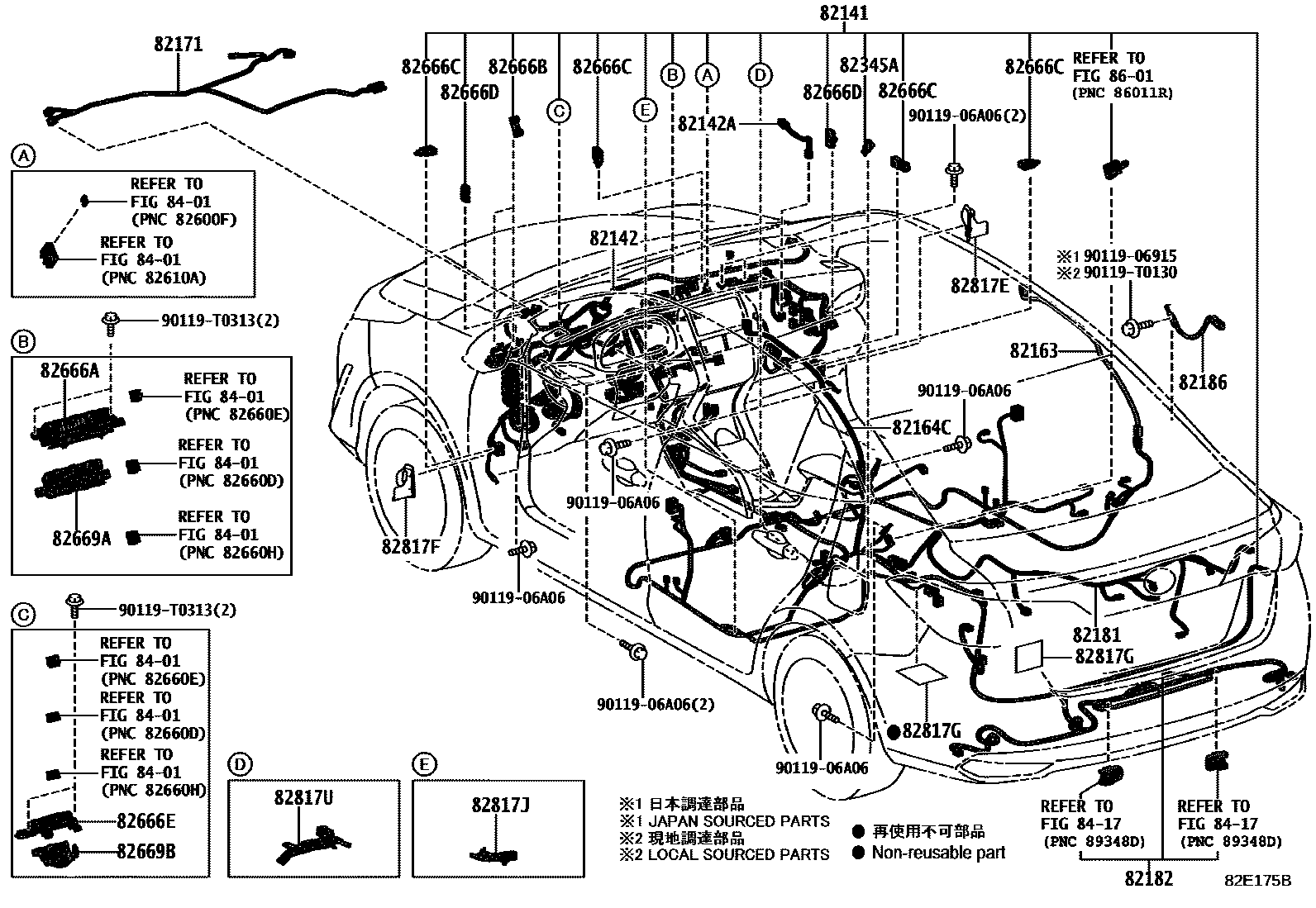

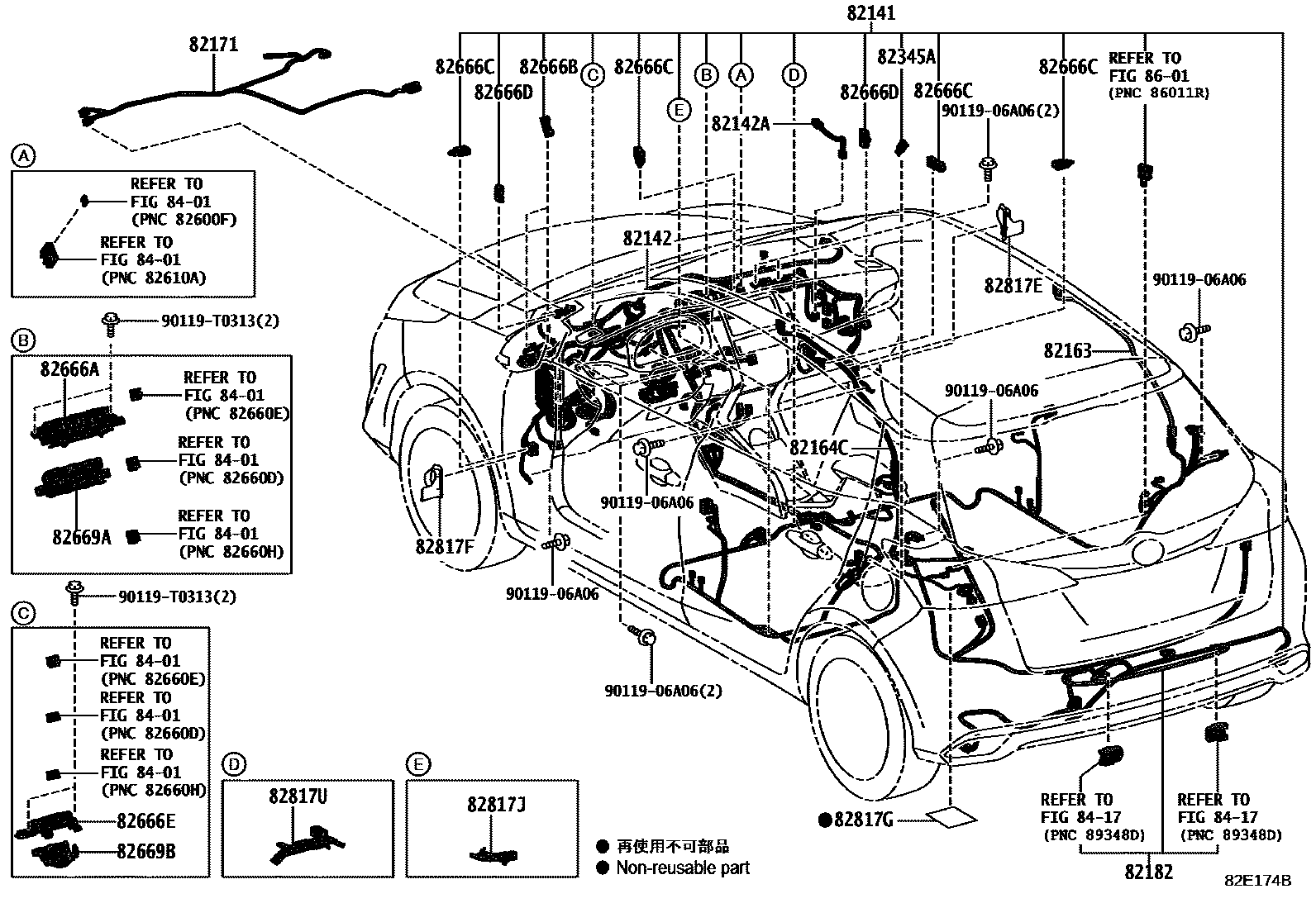

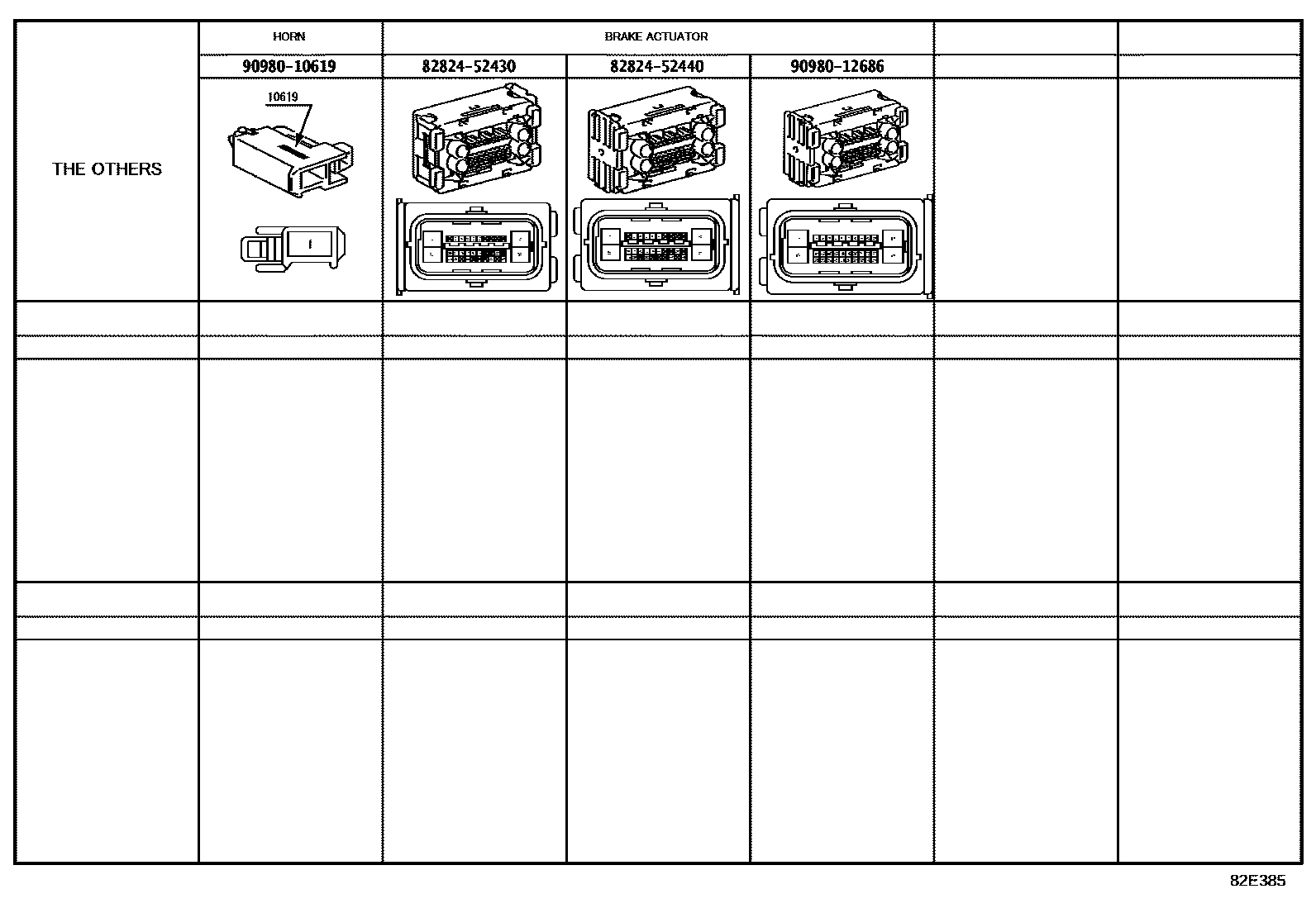

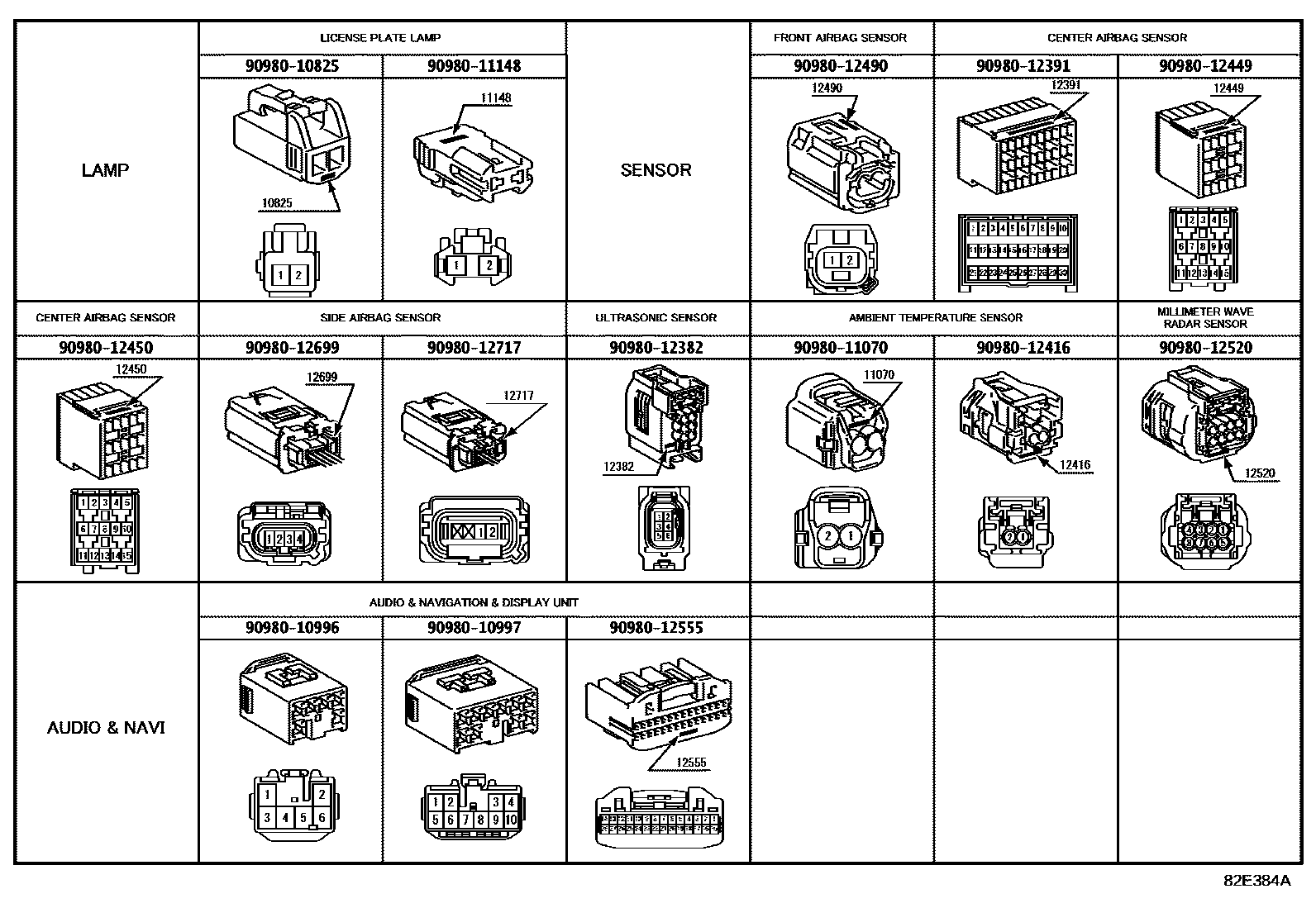

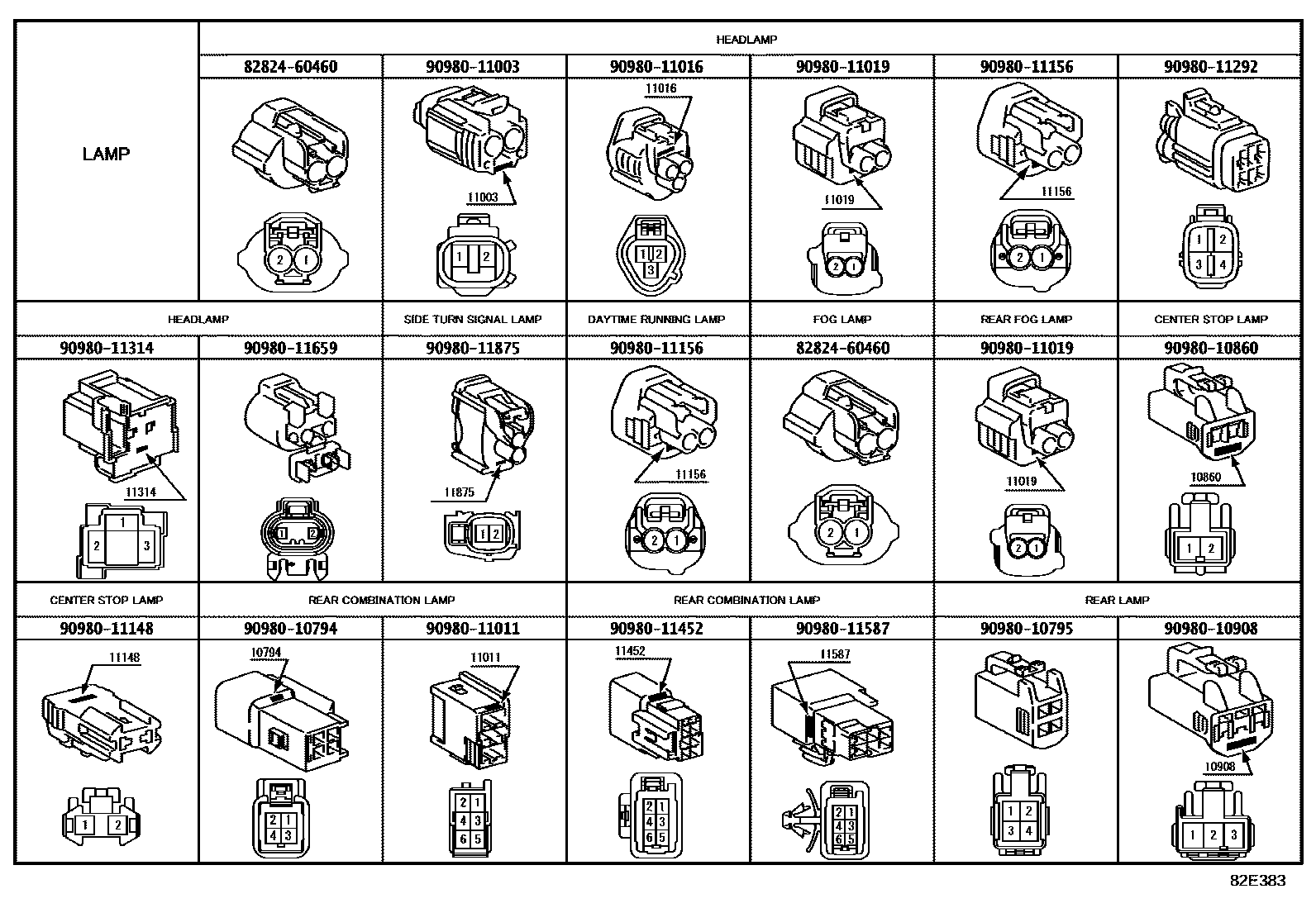

Toyota YARIS 线束和卡夹 — Figure 8202
Toyota YARIS EPC diagram 8202, 线束和卡夹, with 12 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

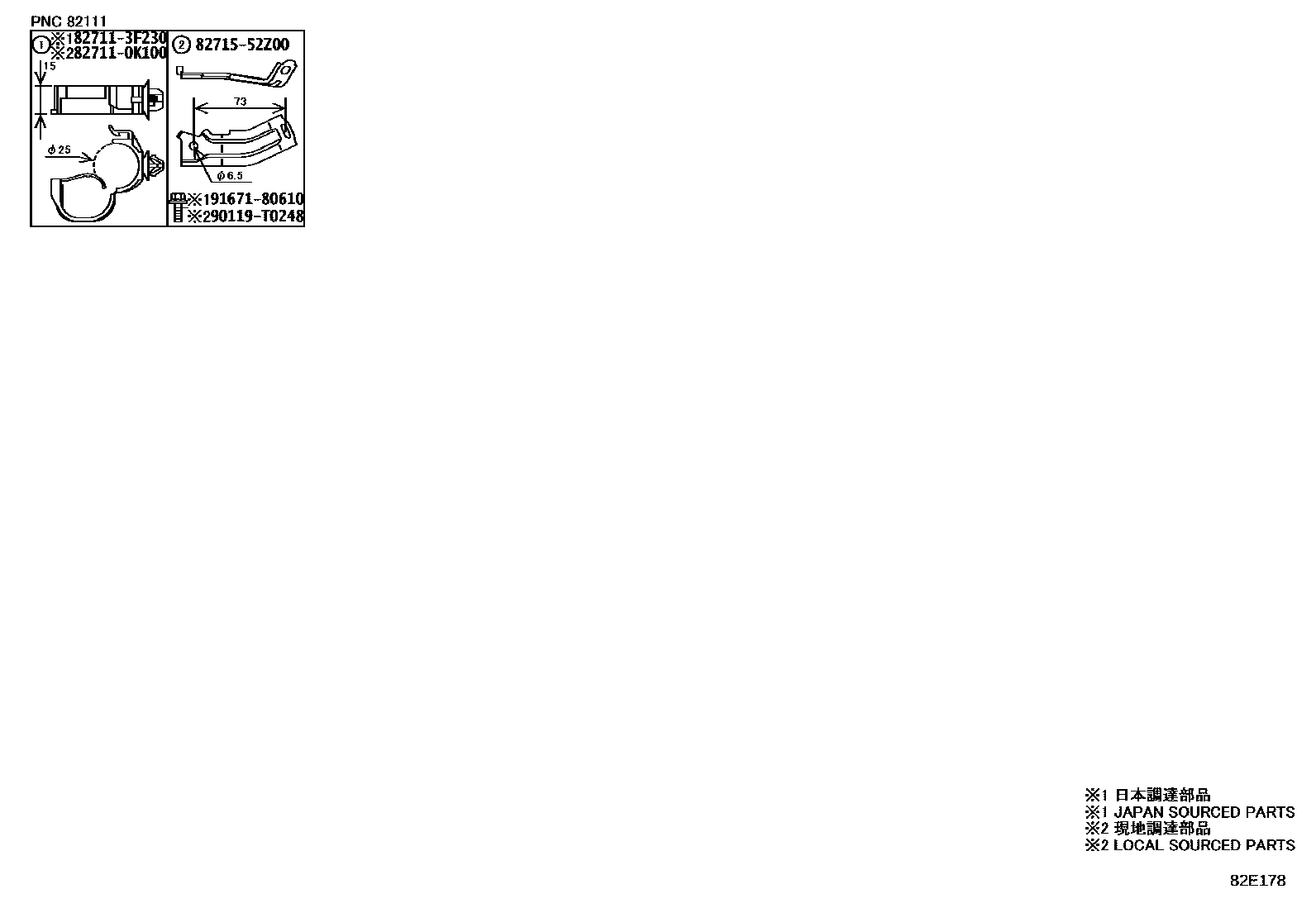

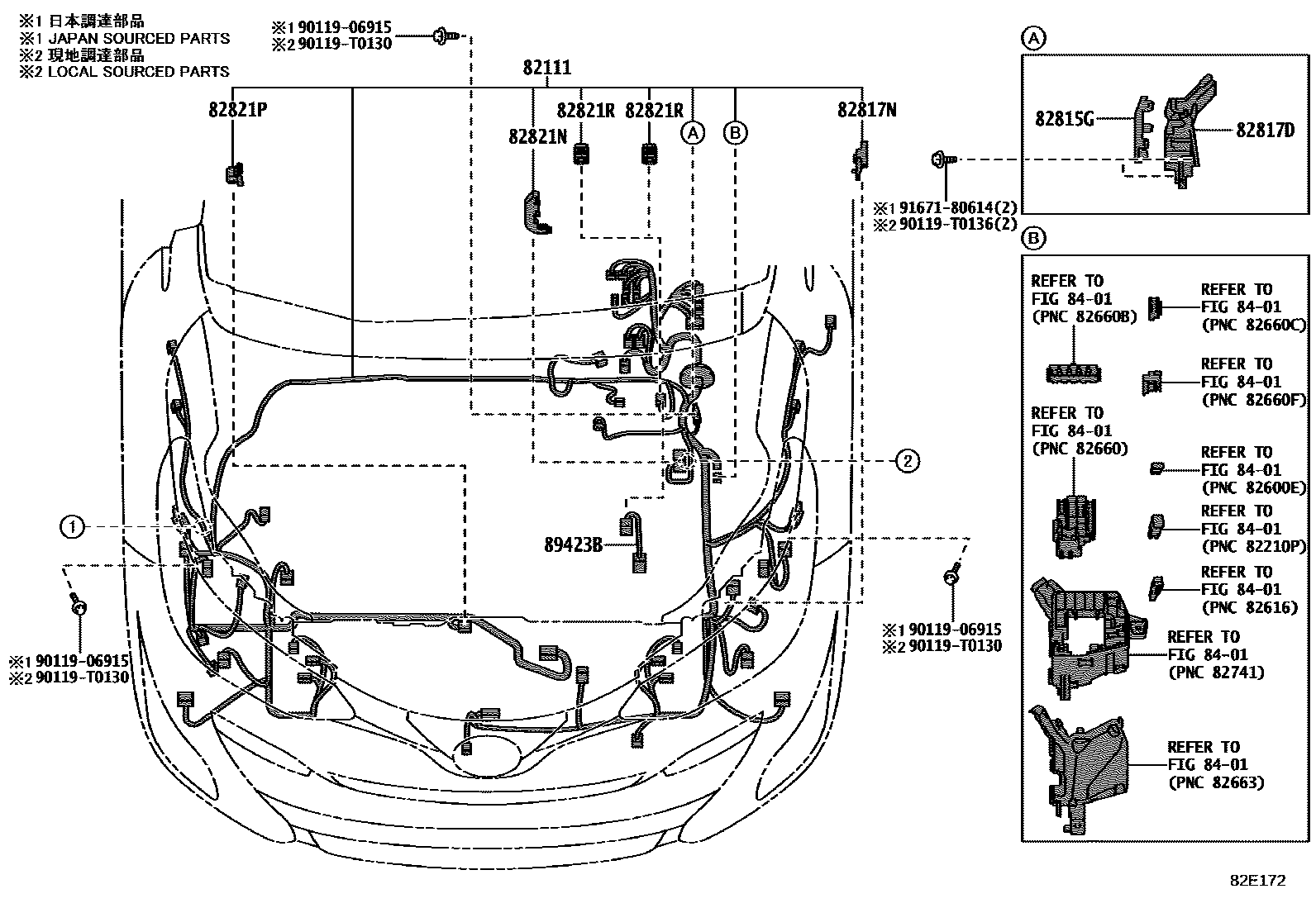

| 82111 | Engine room main wiring harness | 82111-0UU10 · 82111-0UU20 · 82115-0UU60 · 82115-0UU70 · 82115-0UU80 |

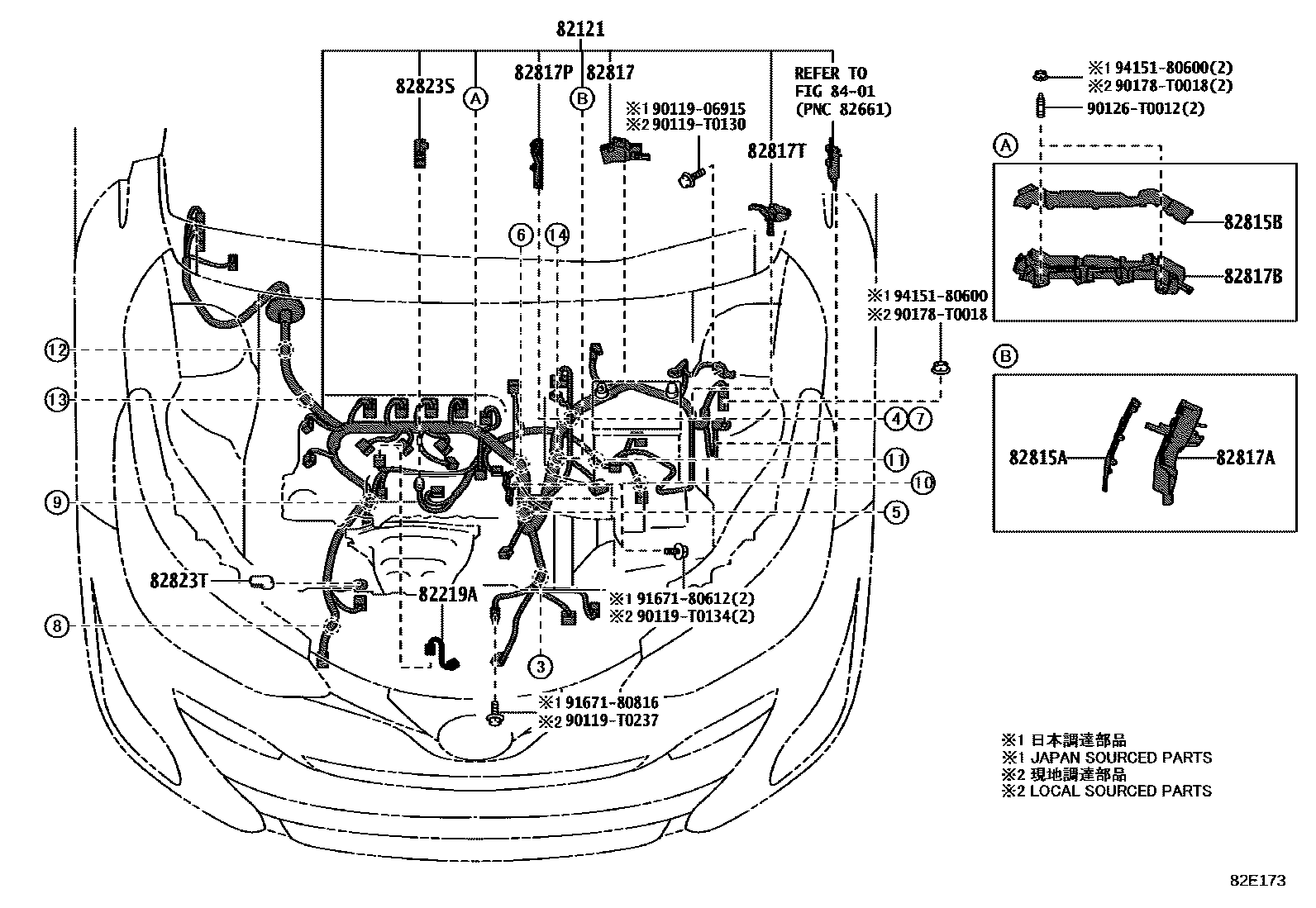

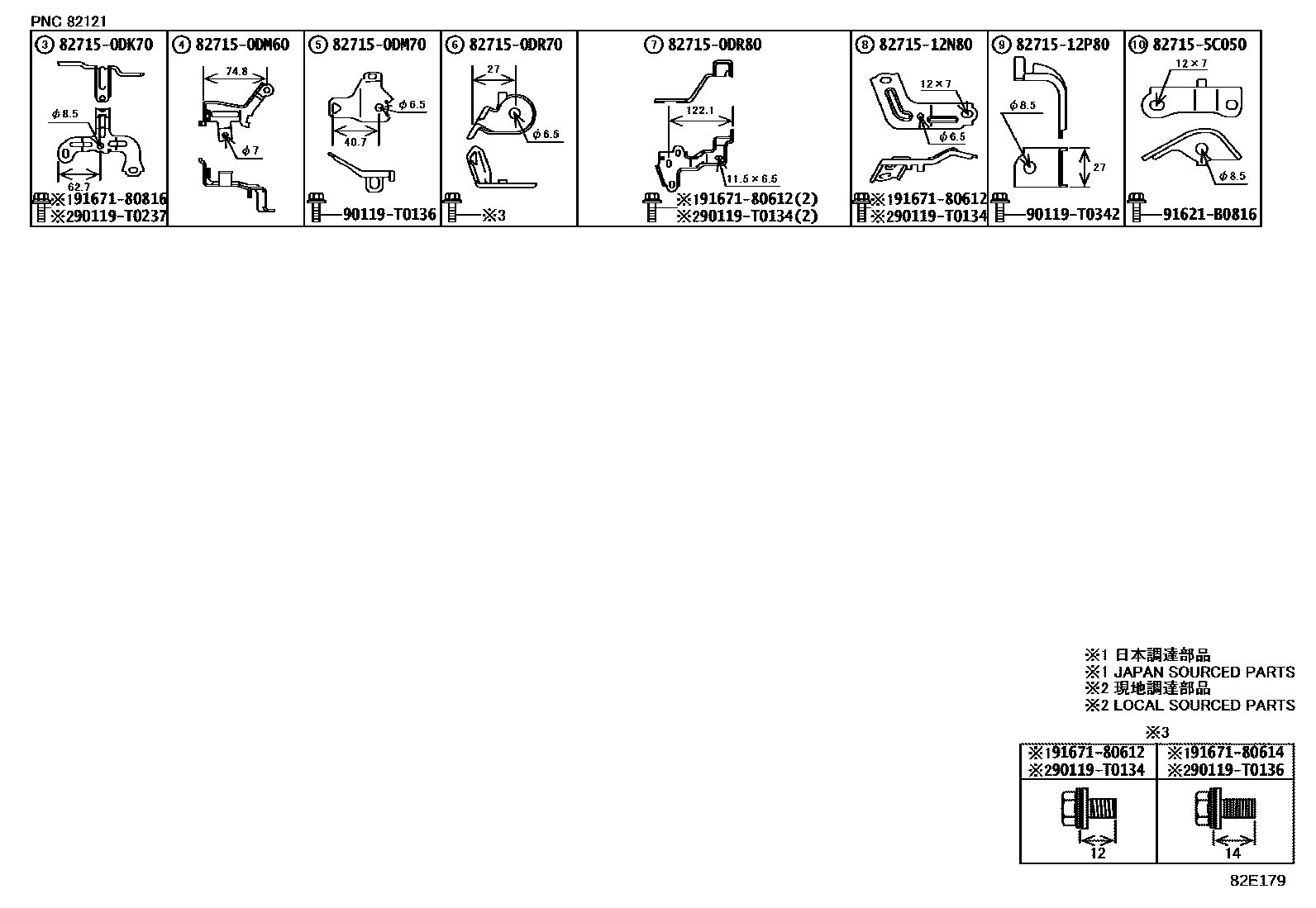

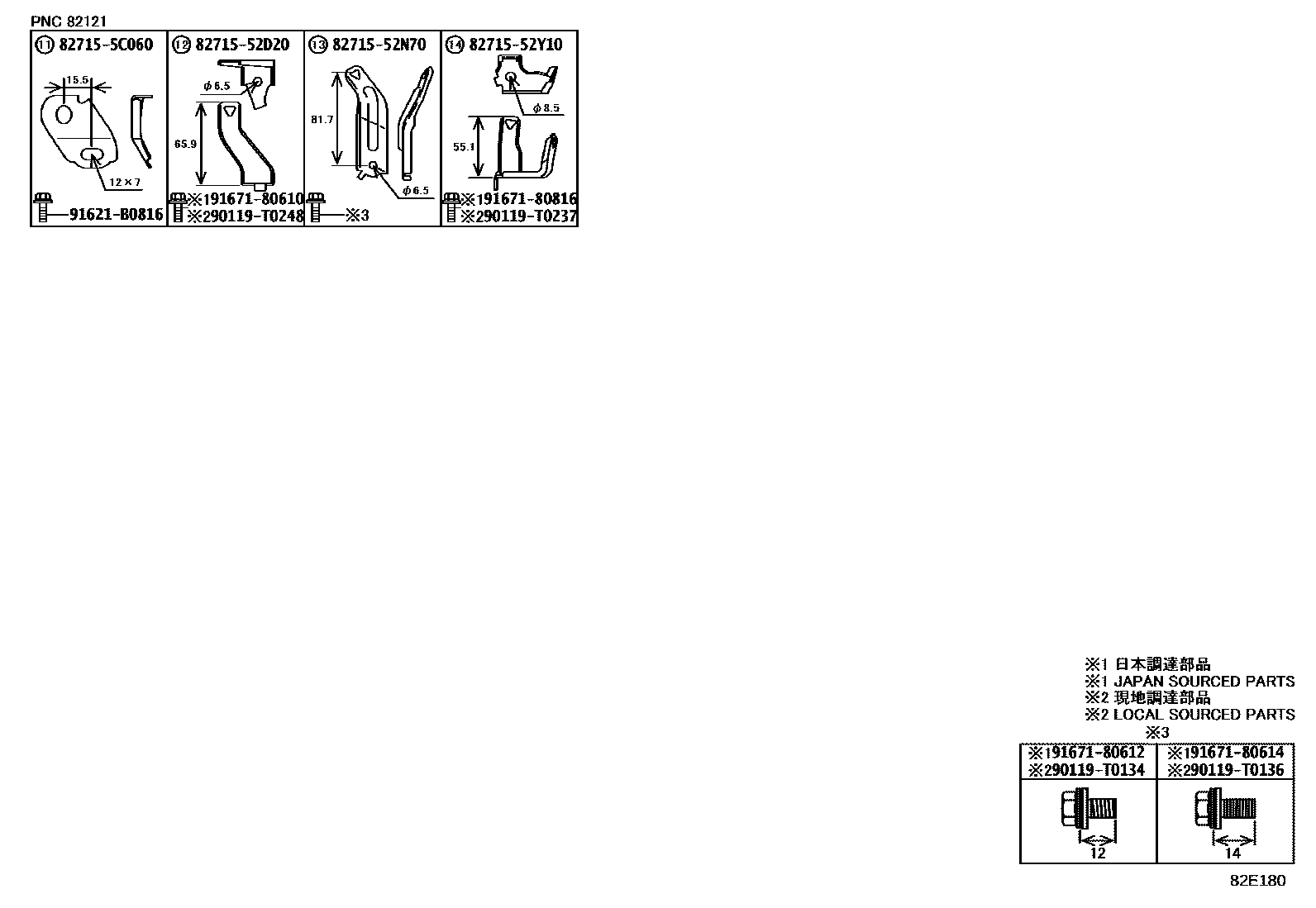

| 82121 | Engine wiring harness | 82121-0U021 |
| 82141 | Dashboard wiring harness | 82118-0DK60 · 82118-0DK80 · 82118-0DK90 · 82146-0US30 · 82146-0UT70 · 82146-0UT80 · 82146-0UT90 · 82146-0UU00 · 82146-0UU10 · 82146-0UU20 · 82146-F5D60 · 82146-F5D70 · 82146-F5K50 · 82146-F5K60 · 82146-F5K70 · 82146-F5K80 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-0D580 · 82142-0D590 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0D200 |

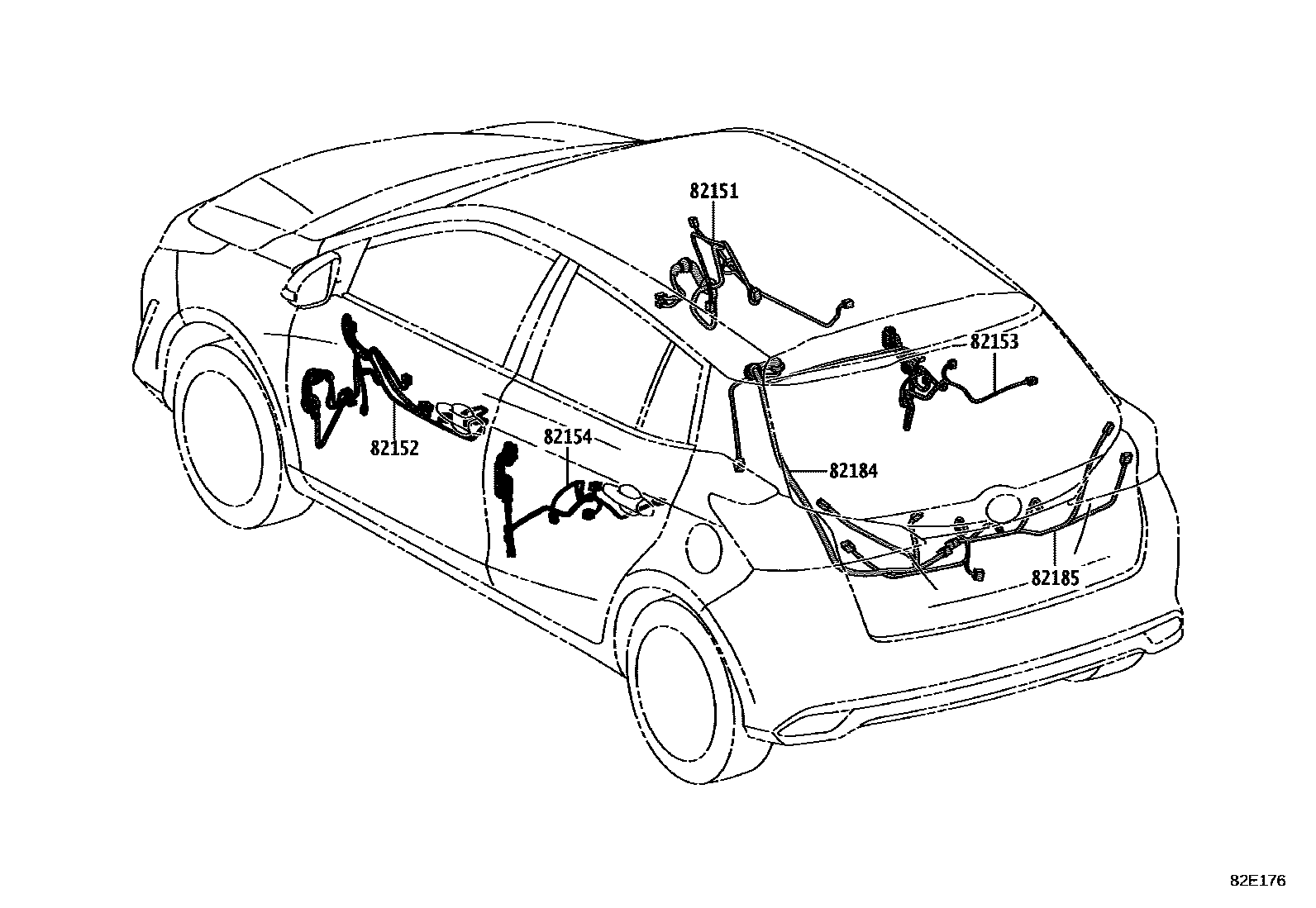

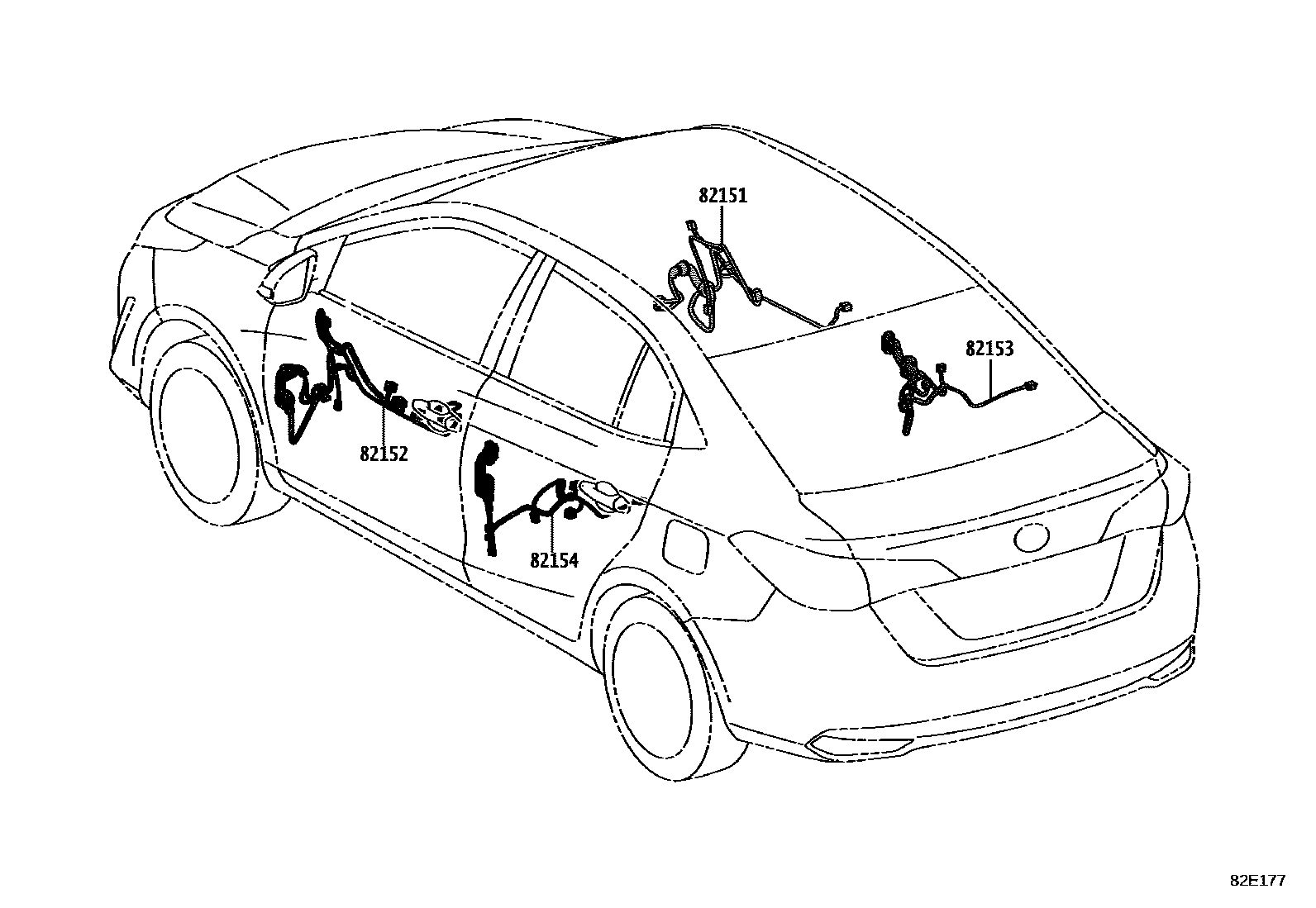

| 82151 | Right front door wiring harness | 82151-0UD30 · 82151-0UD40 |
| 82152 | Left front door wiring harness | 82152-0UE00 · 82152-0UE01 · 82152-0UE10 · 82152-0UE11 |
| 82153 | Rear door wiring harness No. 1 | 82153-0DJ30 · 82153-0DJ40 · 82153-0DJ50 |
| 82154 | Rear door wiring harness No. 2 | 82154-0DG30 · 82154-0DG40 · 82154-0DG50 |
| 82163 | Floor wiring harness No. 3 | 82163-0D100 · 82163-0D150 |
| 82164C | No. 4 floor wiring harness | 82164-0D070 · 82164-0D120 |
| 82171 | Roof No. 1 wiring harness | 82171-0D480 · 82171-0D860 · 82171-0DK00 |
| 82181 | Luggage No. 1 wiring harness | 82181-0D460 · 82181-0D470 |
| 82182 | Luggage No. 2 wiring harness | 82182-0D490 · 82182-0D500 |
| 82184 | Rear door No. 1 wiring harness | 82184-0D781 |
| 82185 | Rear door wiring harness No. 2 | 82185-0D861 · 82185-0D871 |
| 82186 | Rear window wiring harness No. 1 | 82186-0D341 |
| 82219A | sensor harness | 82219-0D110 |
| 82345A | diode | 82345-32010 |
| 82666A | Connector holder No. 2 | 82666-0D220 |
| 82666B | No. 3 connector holder | 82666-0D240 |
| 82666C | No. 4 connector holder | 82666-20270 |
| 82666D | No. 5 connector holder | 82666-60220 |
| 82666E | No. 6 connector holder | 82666-0D230 |
| 82669A | Connector box lower cover | 82669-0D040 |
| 82669B | Connector box lower cover | 82669-0D050 |
| 82815A | Wiring harness protector cover | 82815-0D400 |
| 82815B | Wiring harness protector cover | 82815-52230 |
| 82815G | No. 5 wire harness protector cover | 82815-0D350 |
| 82817 | No. 1 wire harness protection device | 82817-0D700 |
| 82817A | No. 2 wire harness protection device | 82817-0D790 |
| 82817B | No. 3 wire harness protection device | 82817-52B80 |
| 82817D | No. 5 wire harness protection device | 82817-0D580 |
| 82817E | No. 6 wire harness protection device | 82817-0D600 |
| 82817F | No. 7 wire harness protection device | 82817-0D610 |
| 82817G | No. 8 wire harness protection device | 61815-64010 |
| 82817J | No. 9 wire harness protection device | 82817-0DC30 |
| 82817N | No. 13 wire harness protection device | 82817-0DB10 |
| 82817P | No. 14 wire harness protection device | 82817-0DB50 |
| 82817T | No. 15 wire harness protection device | 82817-52860 |
| 82817U | No. 16 wire harness protection device | 82817-0DC20 |
| 82821N | Connector cover | 82821-52240 |
| 82821P | Connector cover | 82821-30650 |
| 82821R | Connector cover | 82821-30600 |
| 82823S | starter terminal cover | 82823-20080 |
| 82823T | Generator terminal cover | 82823-22050 |
| 89423B | Vacuum sensor harness | 89423-0D060 |
