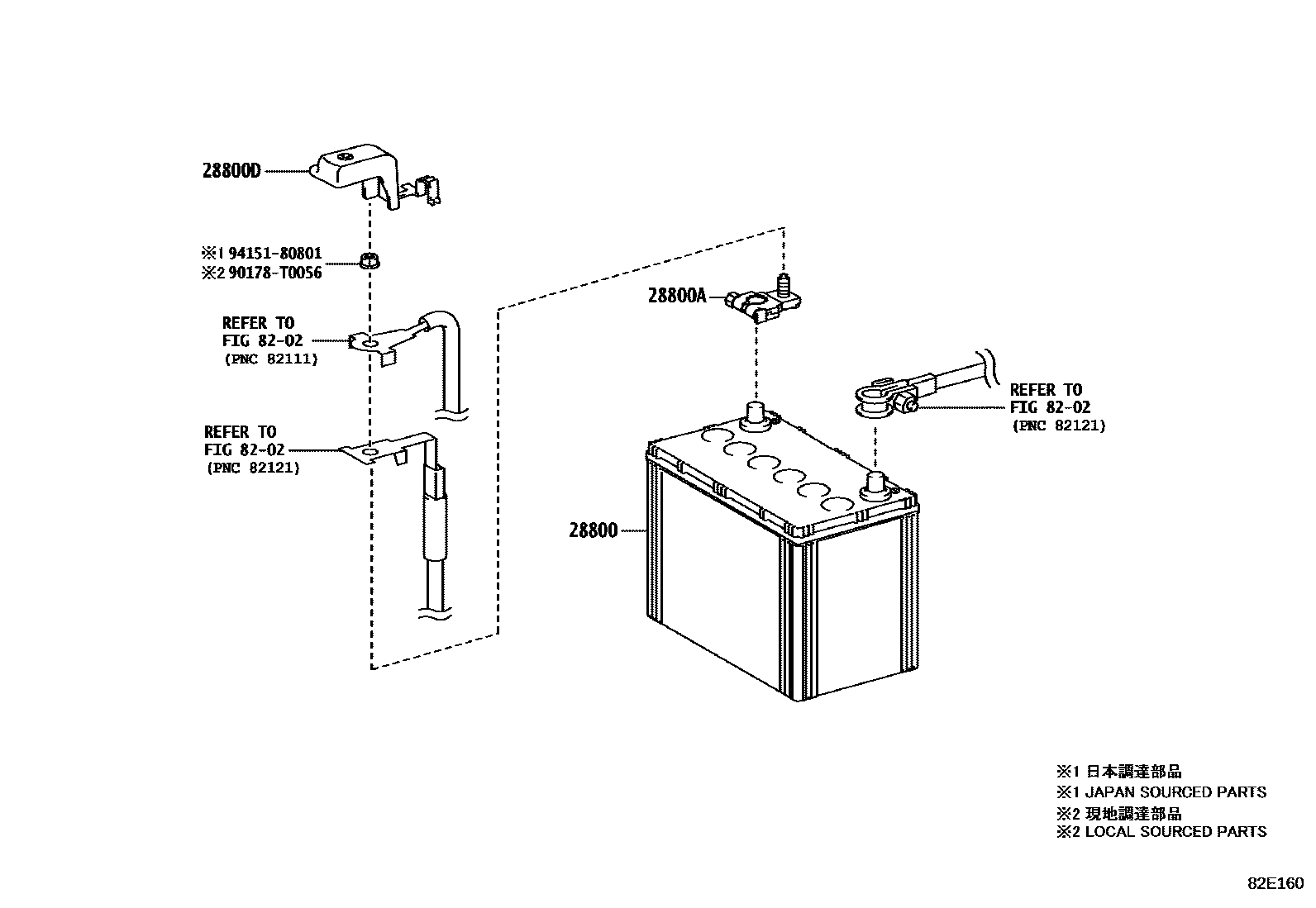

Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201
Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0M190 · 28800-0M191 · 28800-0M200 · 28800-0M201 |
| 28800A | battery positive terminal | 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 |
