Toyota YARIS 后雾灯 — Figure 8116

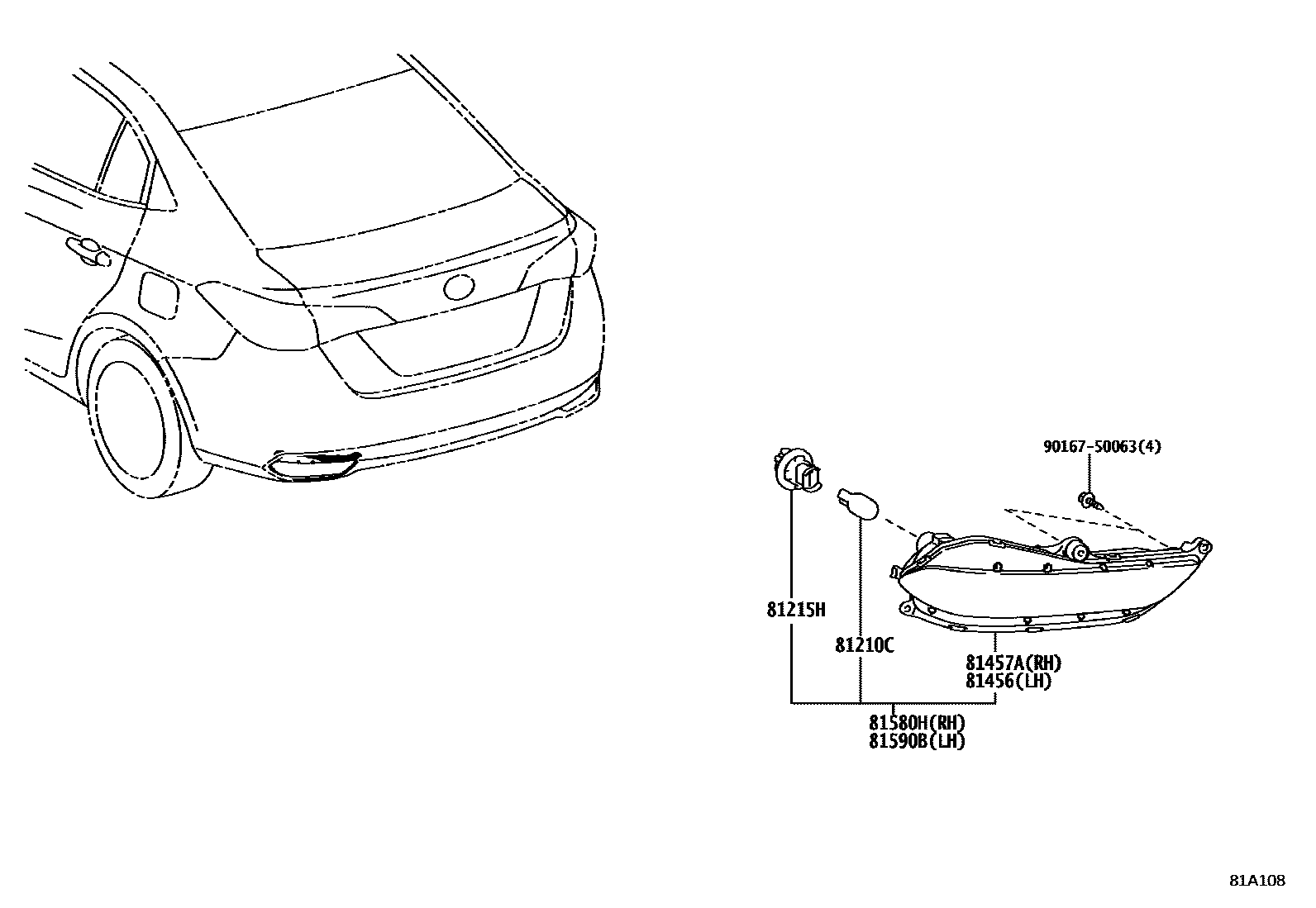

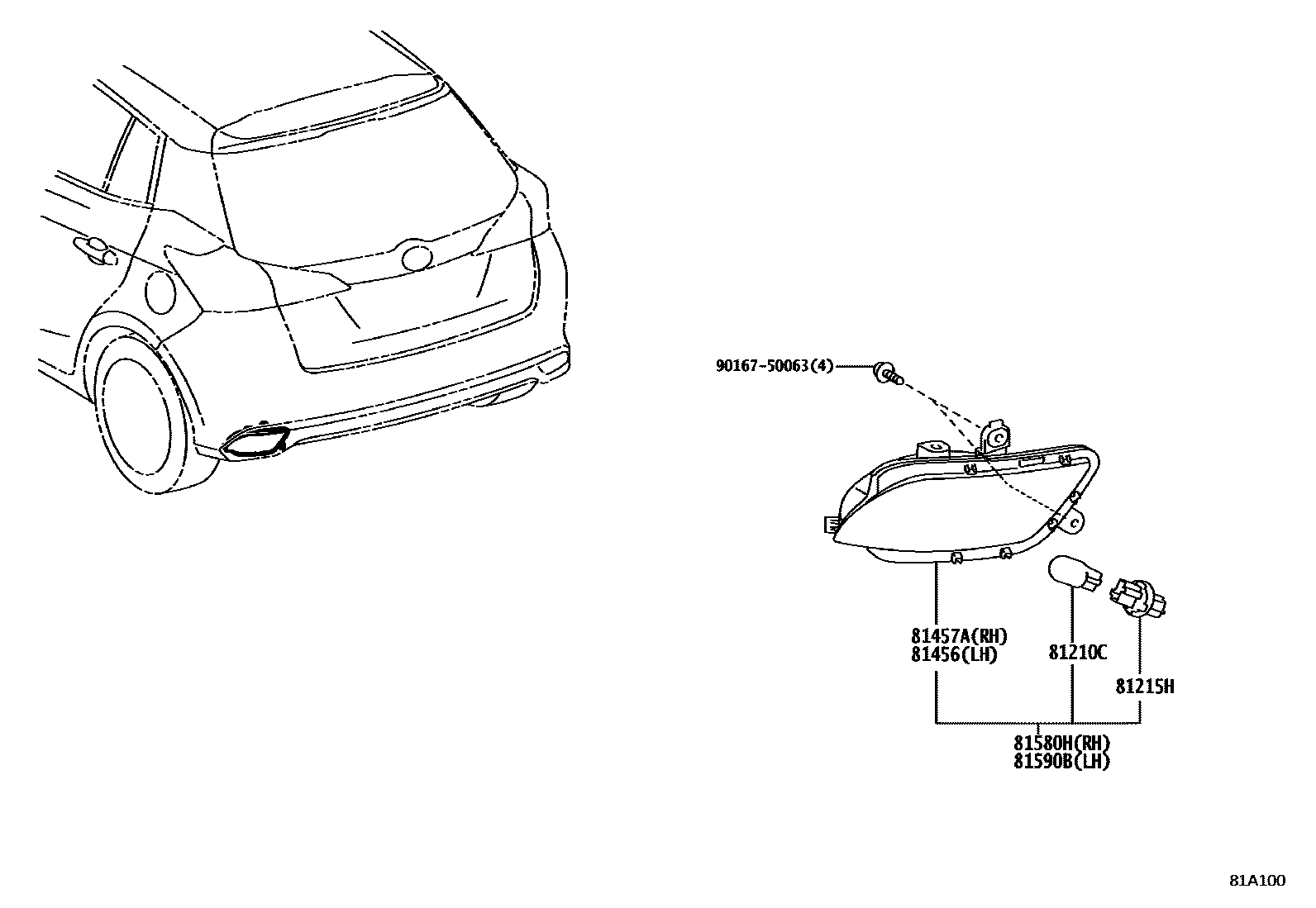

Toyota YARIS EPC diagram 8116, 后雾灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 90981-13043 |
| 81215H | Rear fog light lamp holder | 90075-99080 |
| 81456 | Left rear fog lamp cover and lamp body | 81456-0D090 · 81456-0D200 |
| 81457A | Right rear fog lamp cover and lamp body | 81457-0D090 · 81457-0D200 |
| 81580H | Right rear fog light assembly | 81480-0D090 · 81480-0D200 |
| 81590B | Left rear fog light assembly | 81490-0D090 · 81490-0D200 |
