Toyota YARIS Headlamp — Figure 8101

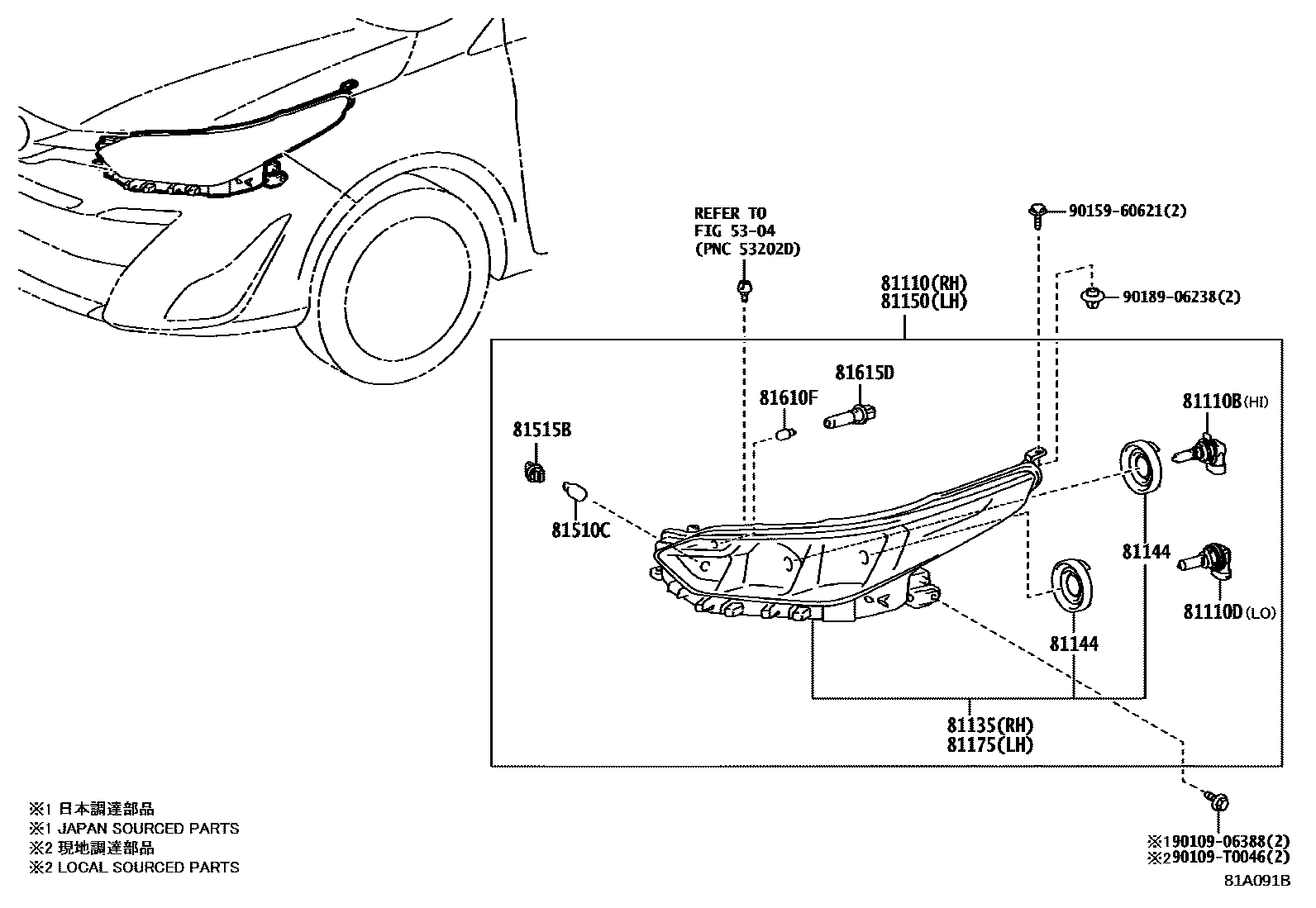

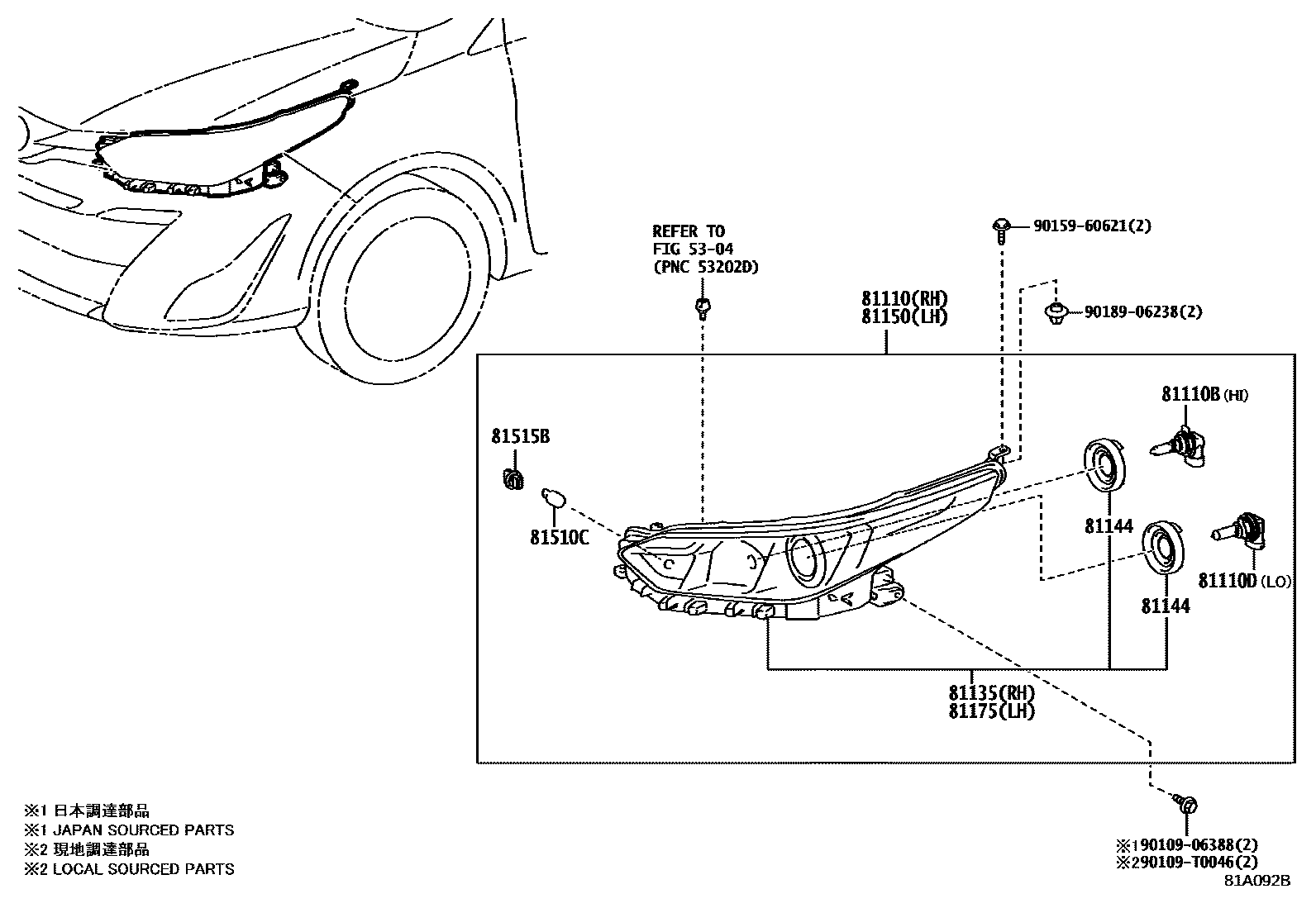

Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0DJ30 · 81110-0DJ40 · 81110-0DJ50 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13085 |
| 81135 | Right headlight assembly assembly | 81130-0DJ30 · 81130-0DJ40 · 81130-0DJ50 |
| 81144 | No. 1 headlight cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-0DJ30 · 81150-0DJ40 · 81150-0DJ50 |
| 81175 | Left headlight assembly assembly | 81170-0DJ30 · 81170-0DJ40 · 81170-0DJ50 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60077 |
