Toyota YARIS 后防护条 — Figure 7504

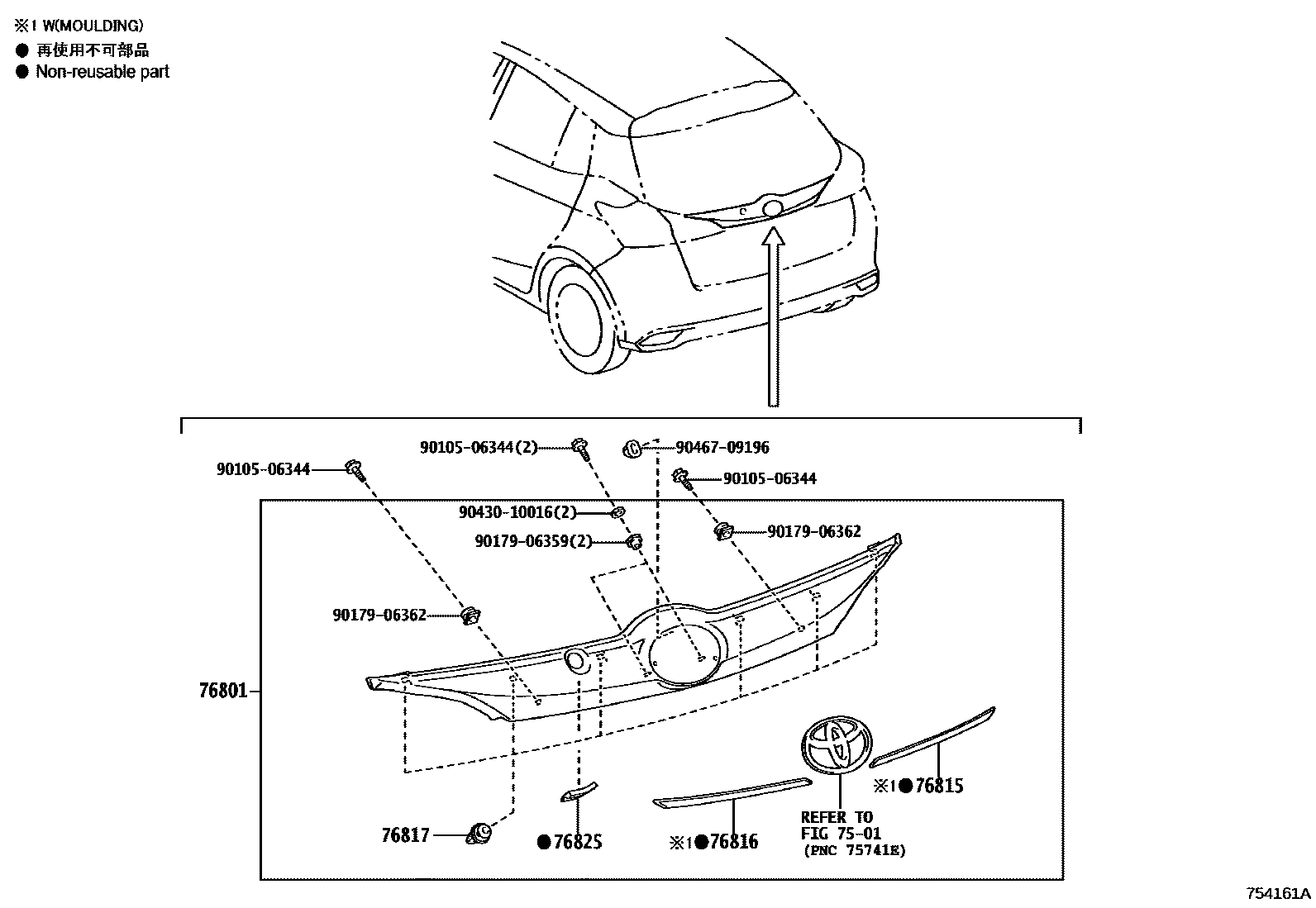

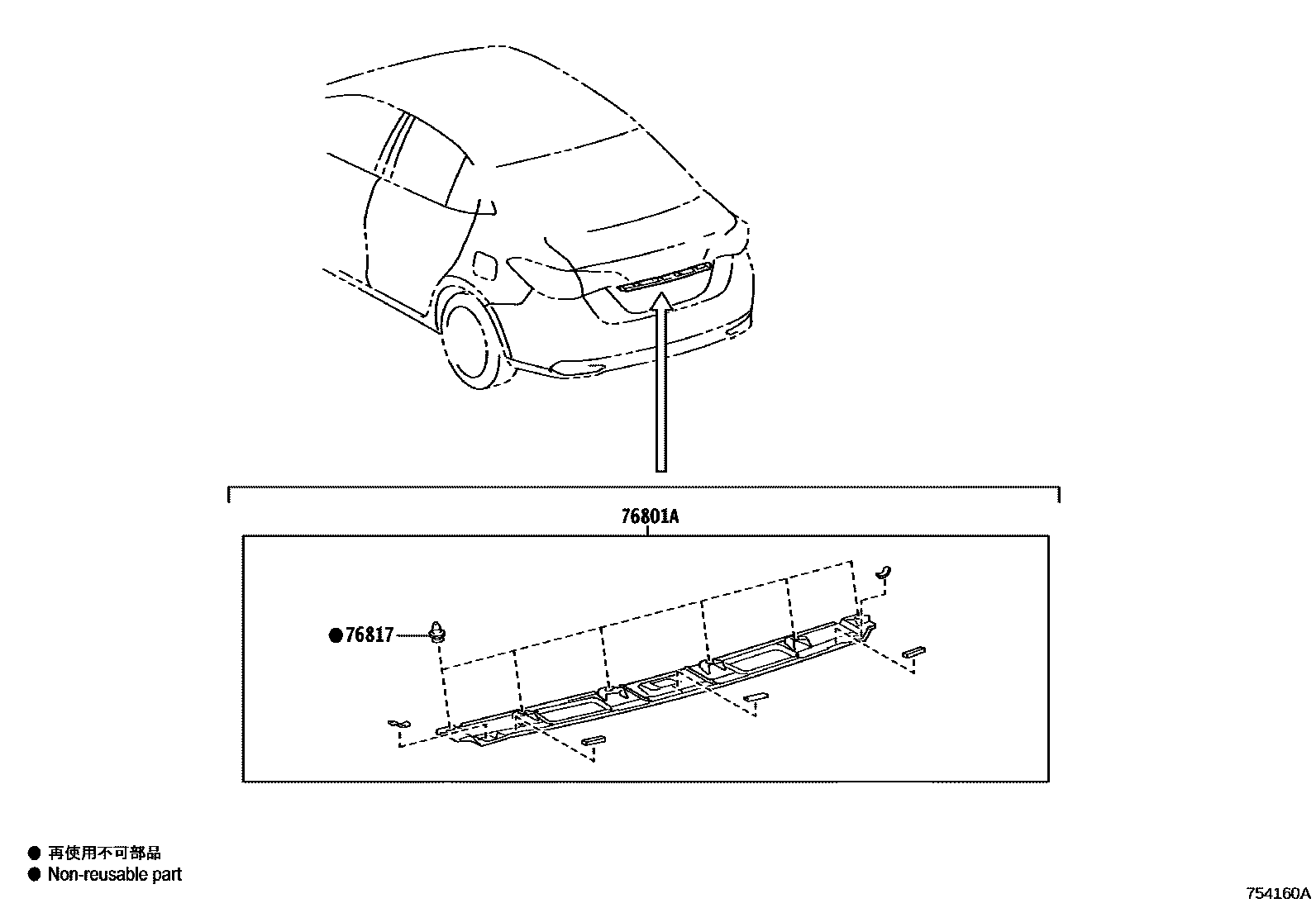

Toyota YARIS EPC diagram 7504, 后防护条, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0DA70 · 76801-0DB60 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-0DB80 · 76801-0DB90 |
| 76815 | Lower right decorative strip outside the back door | 76815-0D010 |
| 76816 | Lower left decorative strip outside the back door | 76816-0D010 |
| 76817 | Rear door exterior decorative strip clip | 90467-09206 · 90467-T0019 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0D260 |
