Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

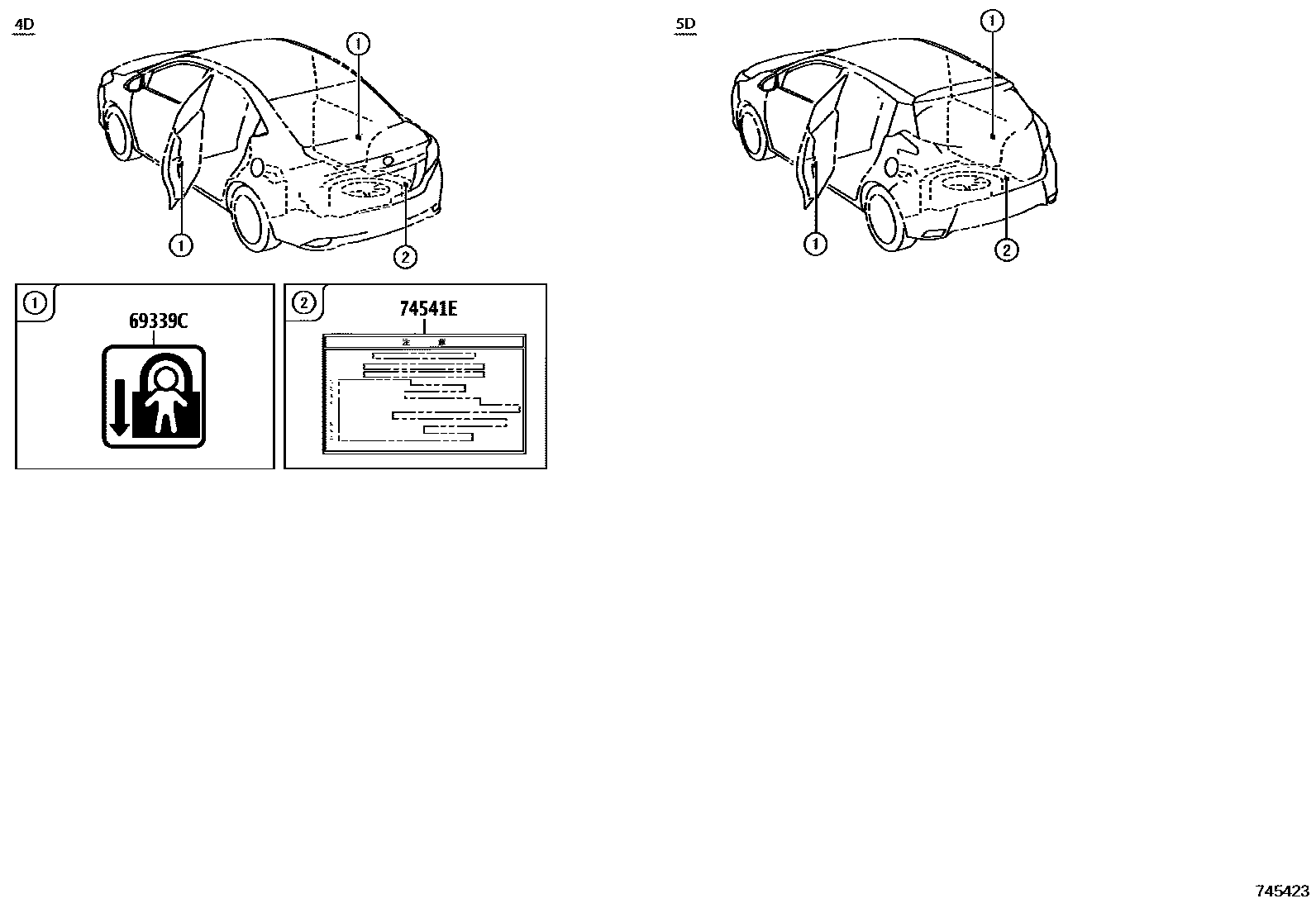

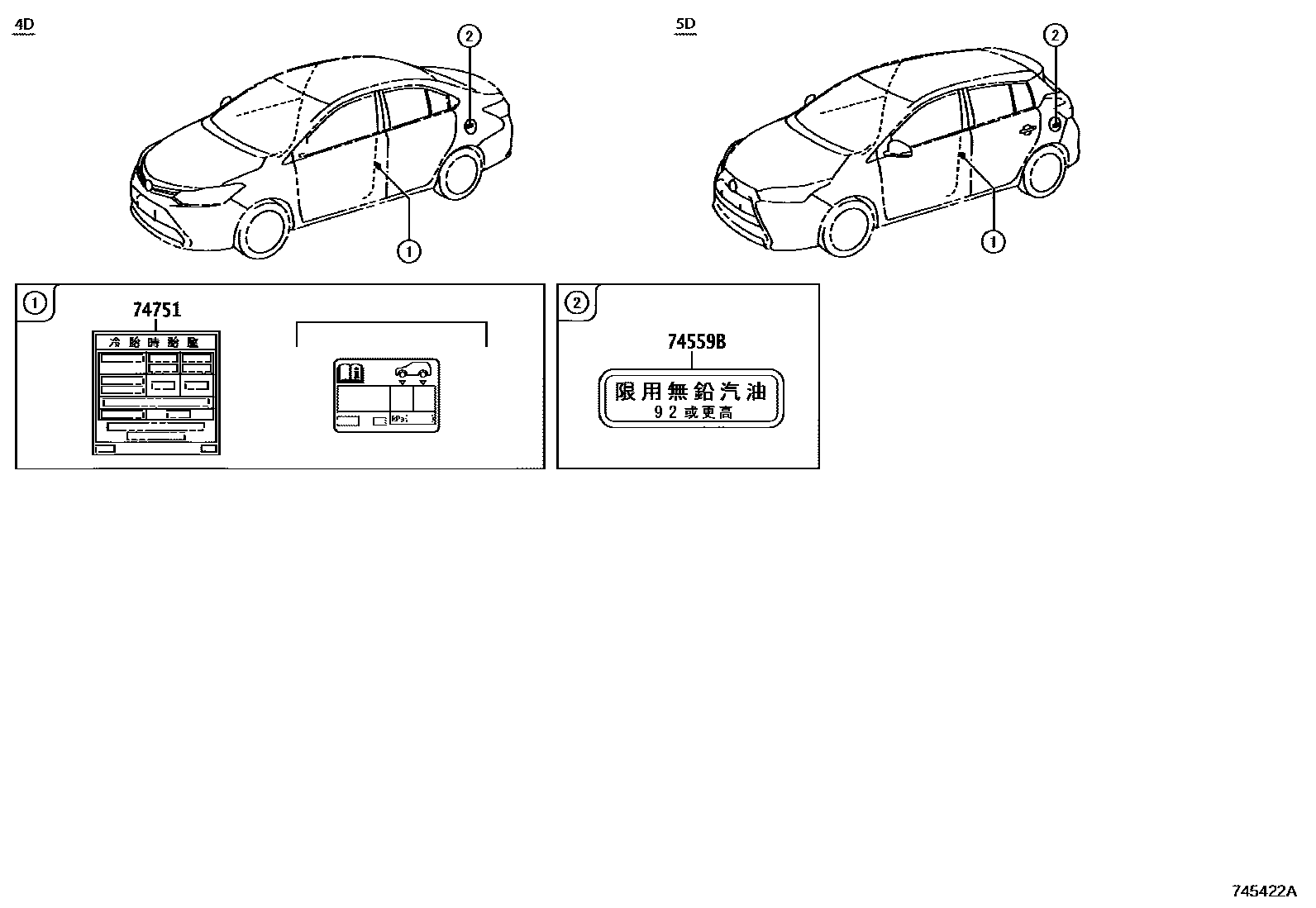

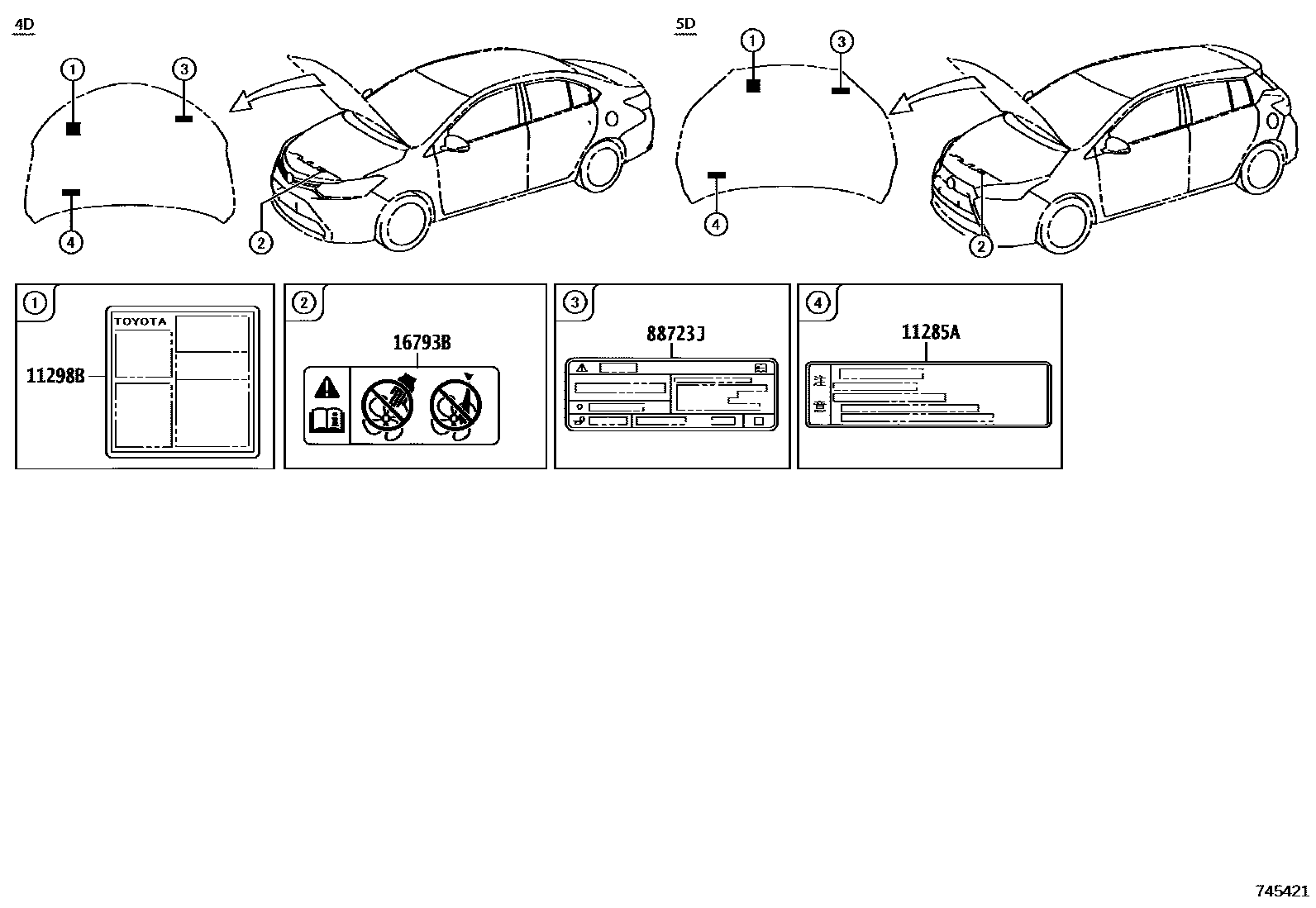

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0Y050 |
| 11298B | Emission Control Information Label | 11298-0Y054 · 11298-0Y055 · 11298-0Y056 · 11298-0Y064 · 11298-0Y065 |
| 16793B | Cooling fan information label | 16793-36030 |
| 69339C | Child Restraint Information Label | 69339-06070 |
| 74541E | Small spare tire warning plate | 42668-02140 · 42668-42050 |
| 74559B | fuel information label | 74579-0B010 |
| 74751 | tire pressure information label | 42661-0D670 · 42661-0D680 · 42661-0D690 · 42661-0DC00 · 42661-0DC10 · 42661-0DC20 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-0D100 |
