Toyota YARIS 扶手和遮阳板 — Figure 7401

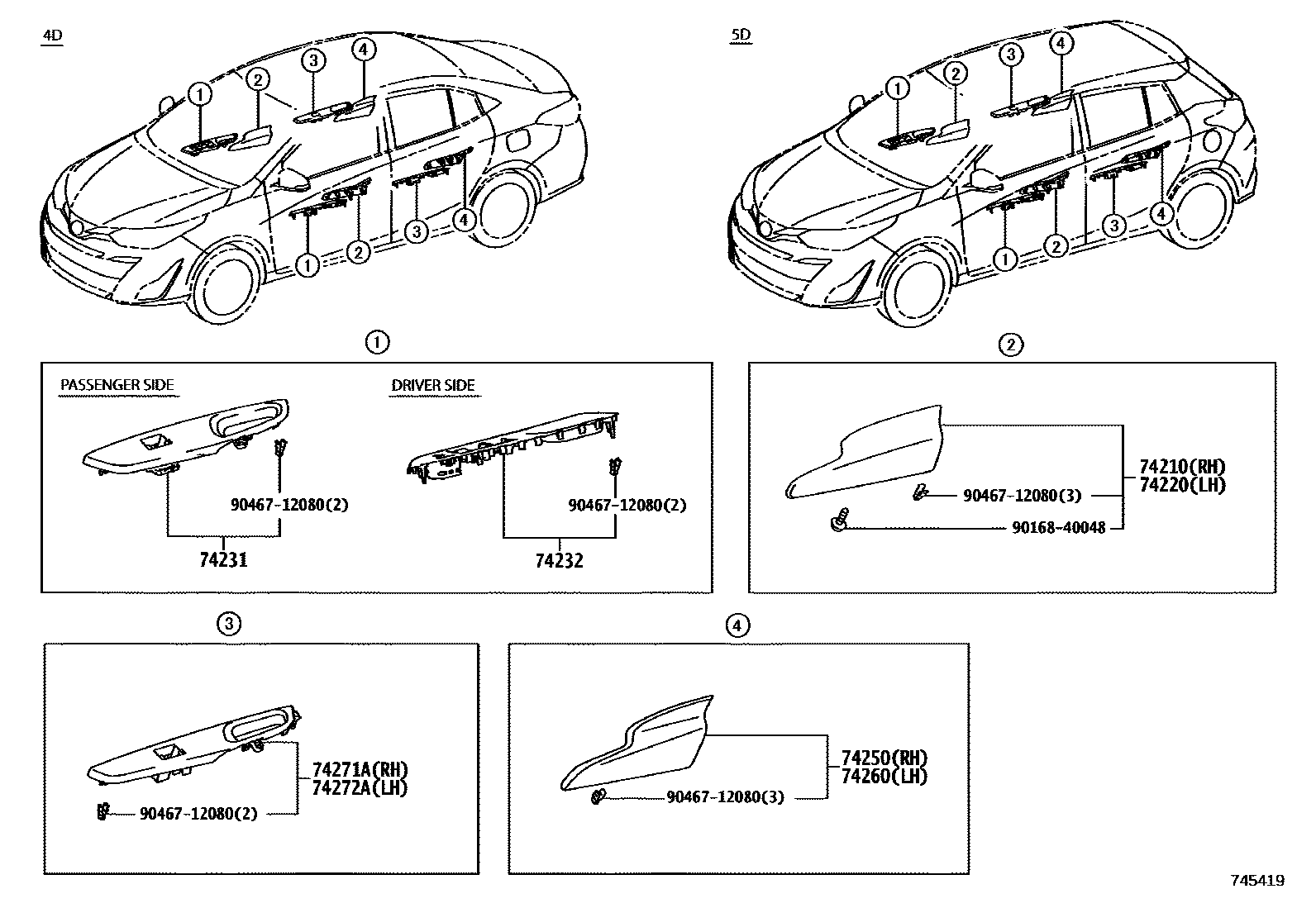

Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0DB00 |
| 74232 | Left front armrest upper panel | 74232-0DB41 · 74232-0DB50 |
| 74271A | Right rear door armrest upper panel | 74271-0D550 · 74271-0D560 |
| 74272A | Left rear door armrest upper panel | 74272-0D550 · 74272-0D560 |
| 74811B | door handle | 69285-0D070 |
